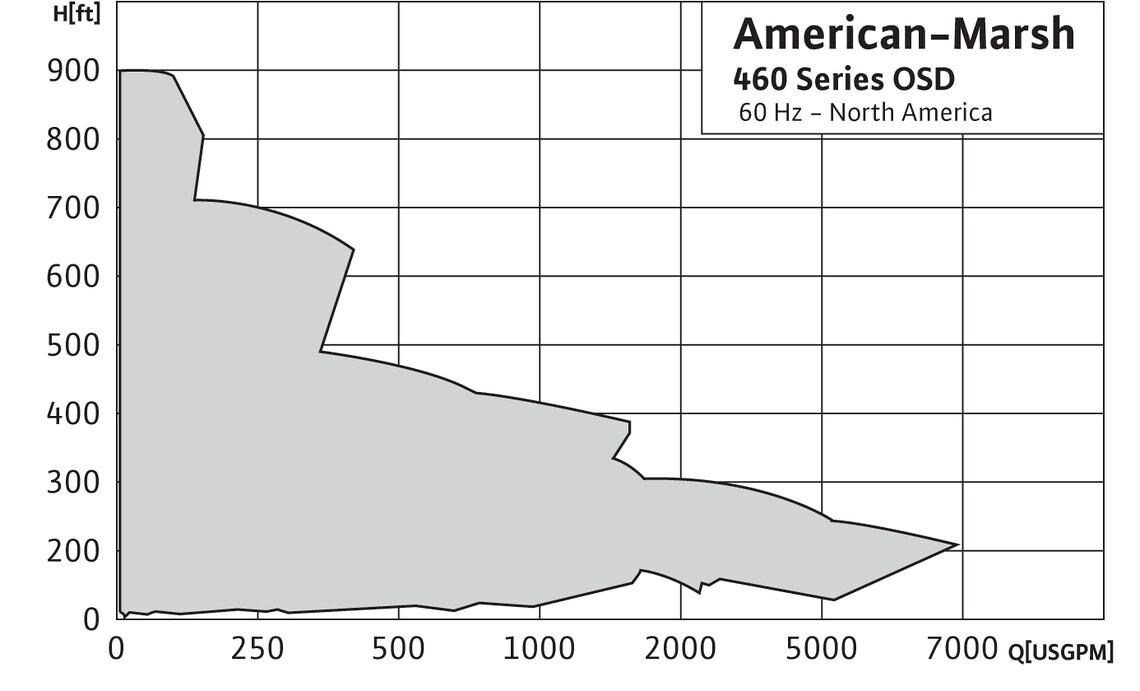

460 Series OSD Diagram

460 Series OSD

460 Series OSD

ANSI B73.1 Process Pumps

OSD ANSI pumps are used in harsh process applications in a variety of industrial and municipal markets. The OSD series ANSI pumps feature heavy-duty castings, oversized shafts, oil lubrication, single row inboard and double row outboard bearings and choice of optional metallurgies.


  • Process
  • Petrochemical
  • Pulp & Paper
  • Steel Mills
  • Municipal

Max. Flow: 7,000 GPM

Max. Head: 900 feet

Features & Benefits

  • Reverse-vane
  • Semi-open & low-flow impellers
  • Back pull-out
  • Heavy-duty
  • Multiple stuffing box configurations

Technical Data

  • Temperature up to 220°F
  • Base mounted, flex-coupled
  • Discharge sizes: 1"-8"

Materials of Construction

  • Stocked in cast steel & 316 SS, CD4 is available
  • Optional metallurgies available

Product Brochure

460 Series OSD

Installation & Operation Manual

460 Series OSD

Dimensional Information
