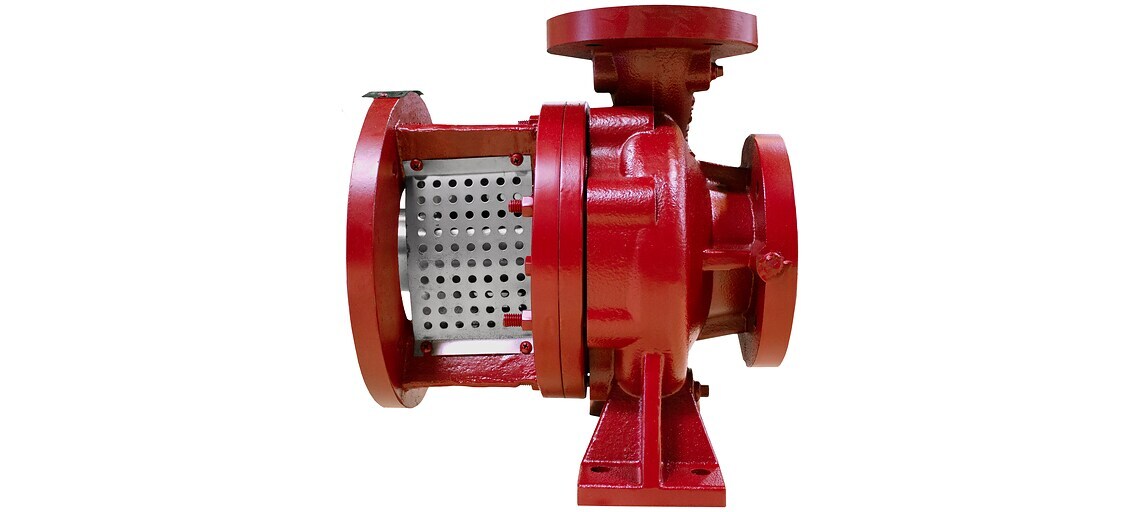

300 Series REC & REF

REC Close-Coupled & REF Flex-Coupled End Suction Pumps
General purpose end suction pumps are used in agricultural, commercial, industrial and municipal applications. The RE series end suction products feature back-pull out design, centerline discharges, cast integral feet with heavy-duty casings, impellers with back pump out vanes and oversized shafts to provide the end user with a superior, reliable product.

Application

• Agriculture & Irrigation
• Commercial
• Industrial
• Municipal
• Circulation
• Booster
• HVAC

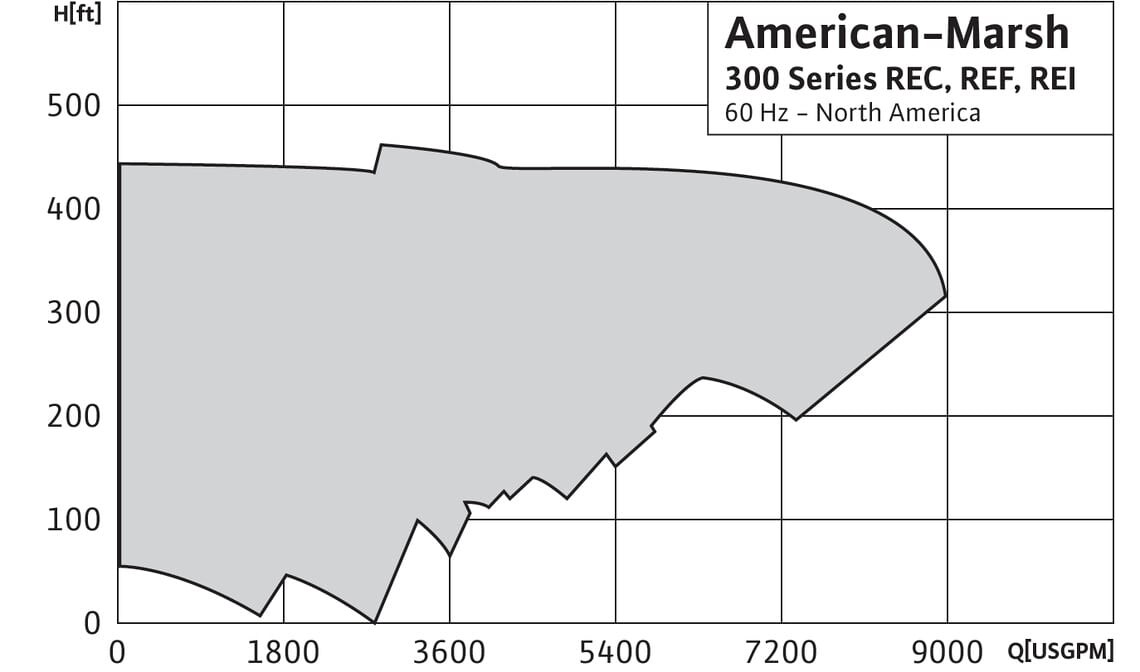

Max. Flow: 9,000 GPM

Max. Head: 450 feet

Features & Benefits

• Back pull-out design
• Replaceable case wear rings
• Internal plan 1 seal flush
• CL 250 cast flanges drilled to CL 125
• Centerline discharge
• Integral feet on casing
• Suction & discharge flanges drilled & tapped for gauges
• Standard T-frame motors on flex-coupled models
• REC close-coupled utilize standard C-face T-frame motors
• REF base mounted, flex-coupled

Technical Data

• Temperature up to 180°F
• Discharge sizes: 1.25"-12"

Materials of Construction

• Cast Iron
• Stainless Steel fitted
• 810 Component seal

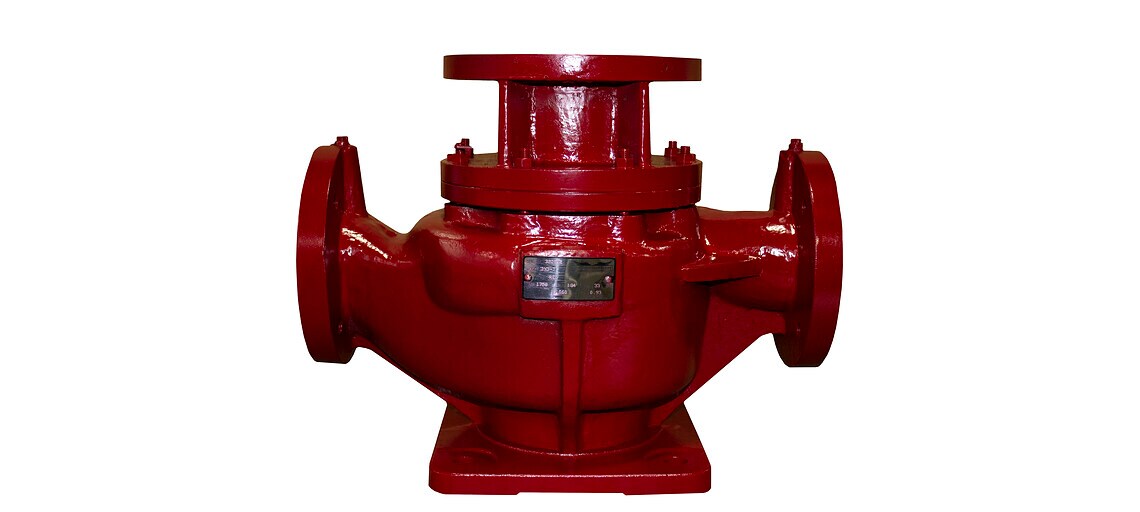

300 Series REI

Vertical Inline End Suction Pumps

Application

• Agriculture & Irrigation
• Commercial
• Industrial
• Municipal
• Circulation
• Booster
• HVAC

Max. Flow: 9,000 GPM

Max. Head: 450 feet

Features & Benefits

• Back pull-out design
• Replaceable case wear rings
• Internal plan 1 seal flush
• CL 250 cast flanges drilled to CL 125
• Centerline discharge
• Integral feet on casing
• Suction & discharge flanges drilled & tapped for gauges
• REI close-coupled utilize standard C-face T-frame motors

Technical Data

• Temperature up to 180°F
• Discharge sizes: 2"-12"

Materials of Construction

• Cast Iron
• Stainless Steel fitted
• 810 Component seal
