Two-Stage Horizontal Split Case Pumps

Two-stage split case pumps are used for moderate to high heads in a variety of commercial, industrial, and municipal applications. The HH series two-stage split case pumps operate up to 3600 RPM and feature heavy-duty casings, high-efficiency enclosed impellers, oversized shafts, and optional oil-lubricated bearings.


  • Boiler Feed
  • Condensate
  • High Pressure Booster

Max Flow: 900 GPM

Max Head: 950 feet

Features & Benefits

  • High head
  • Opposed impellers
  • Optional ring-oiled lubrication

Technical Data

  • Temperature up to 220°F
  • Base mounted, flex-coupled
  • Discharge sizes: 1.5" to 4"

Materials of Construction

  • Cast Iron
  • Bronze fitted

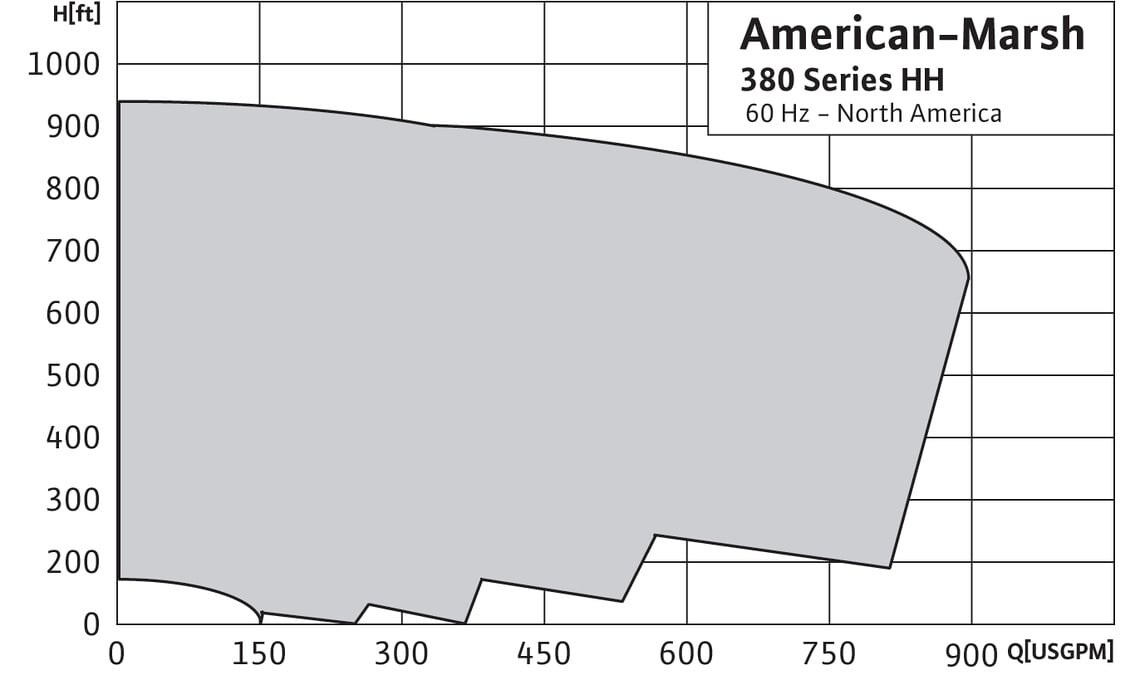

380 Series HH Performance Curves

Product Brochure

380 Series HH

Installation & Operation Manual

380 Series HH

Engineering Information
