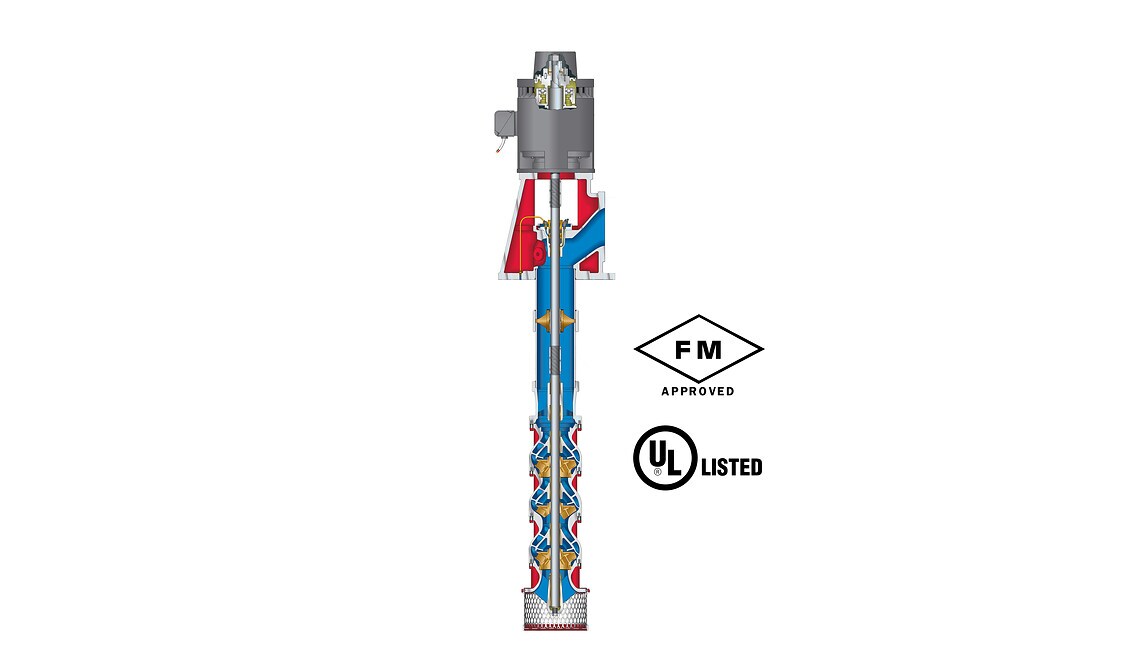

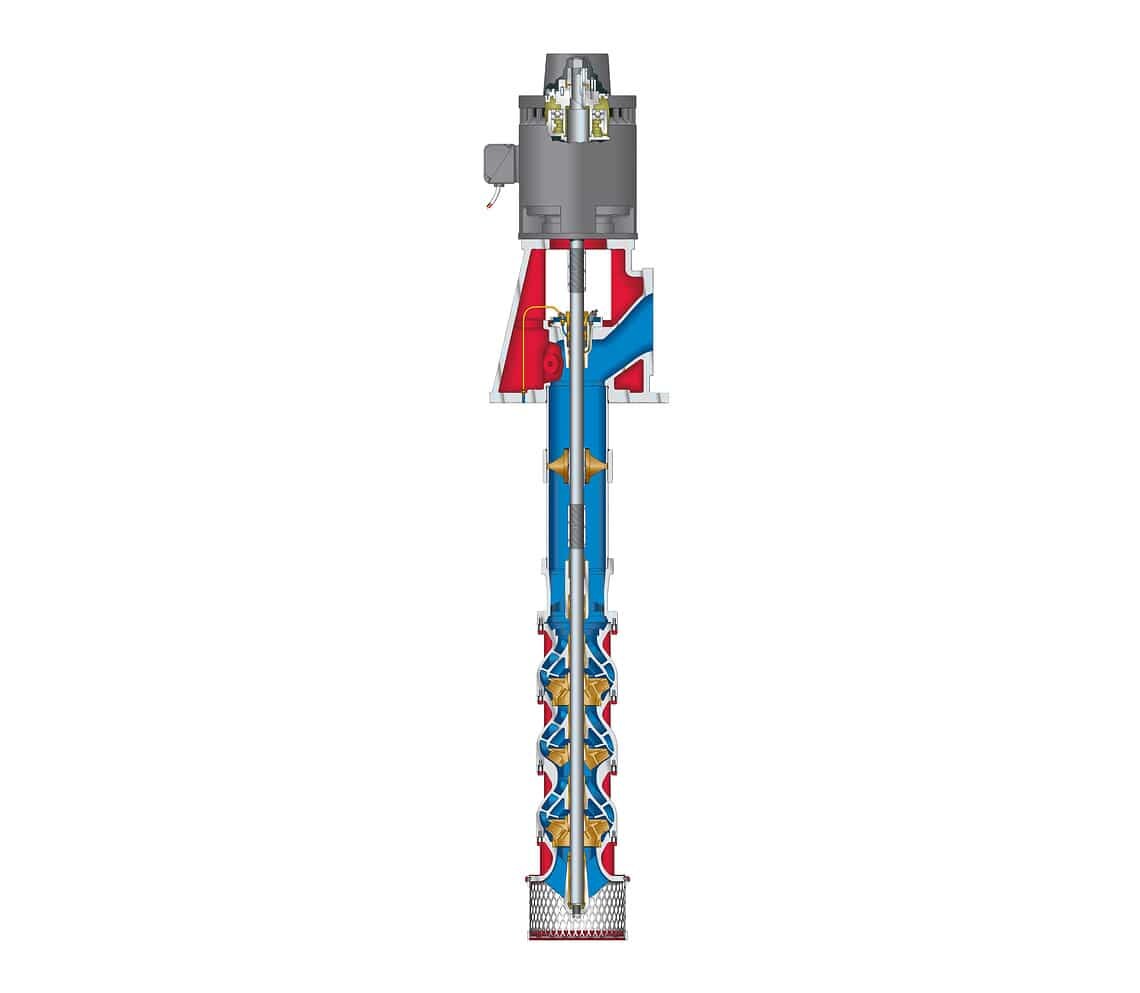

500 Series VT Fire Pump Diagram

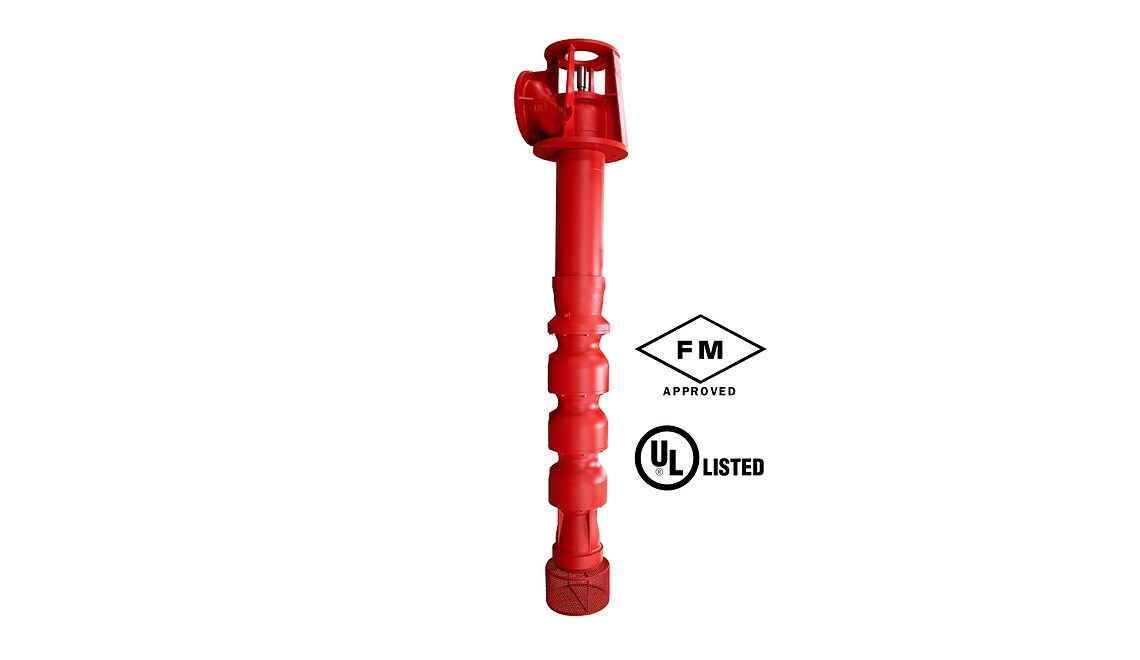

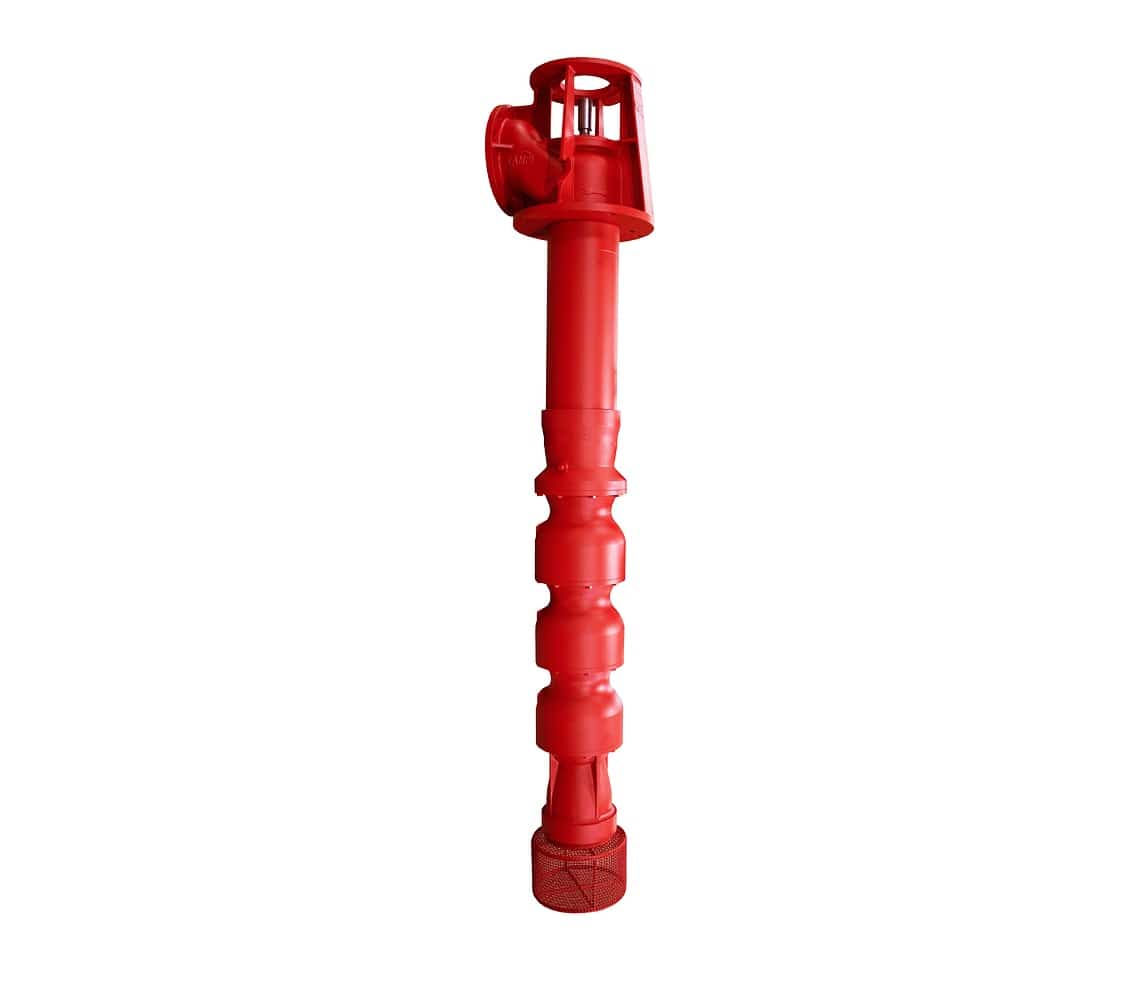

500 Series VT Fire Pump

500 Series FP-VT Fire Pump

Vertical Turbine Fire Pumps

Vertical turbine pumps are used in fire protection services every day. The FP-VT series vertical turbine products feature modular bowl assemblies, heavy-wall bowl bearings, and oversized shafts to provide the end-user with a superior, reliable product. These products have been tested in our test lab to fully meet UL & FM specifications.


  • Fire Protections

Max. Flow: 4,500 GPM

Max. Head: 840 feet

Features & Benefits

  • UL listed & FM certification
  • Cast Iron/bronze fitted
  • Packed
  • Modular bowl assemblies
  • Packaged with driver & controller

Technical Data

  • Temperature up to 120°F
  • 1500 to 1800 RPM

Materials of Construction

  • Cast Iron
  • Bronze fitted
  • Bronze impellers

Product Brochure

500 Series FP-VT Fire

Installation & Operation Manual

480 Series Vertical Turbine
