480 Series Vertical Turbine
Open & Enclosed Lineshaft, Submersible, Axial & Mixed Flow Pumps
Vertical turbine pumps are used in a variety of commercial, industrial, mining and municipal applications. Vertical turbine pumps are available in short set, deep set, submersible, mixed flow and propeller designs. These vertical turbines feature enamel coated bowl assemblies, extra heavy-duty casings, high-efficiency enclosed or semi-open impellers, enclosed lineshaft assemblies and optional metallurgies.
Application
- Steel Mill
- Power Plant
- Water Well
- Commercial
- Irrigation
-
Municipal
Max. Flow: 30,000 GPM
Max. Head: 1,000 feet
Features & Benefits
- Modular design enameled bowls through 15" for VT
- Cast Iron, 316 Stainless Steel fitted for VT
- Cast Iron, bronze fitted for axial & mixed flow pumps
- Cast Iron or Fabricated Steel discharge heads
- Semi-open, enclosed, axial & mixed flow impellers
Technical Data
- Temperature up to 180°F
- Bowl diameters: 5"-42"
Materials of Construction
- Cast Iron
- Bronze or Stainless Steel fitted
- Optional metallurgies available

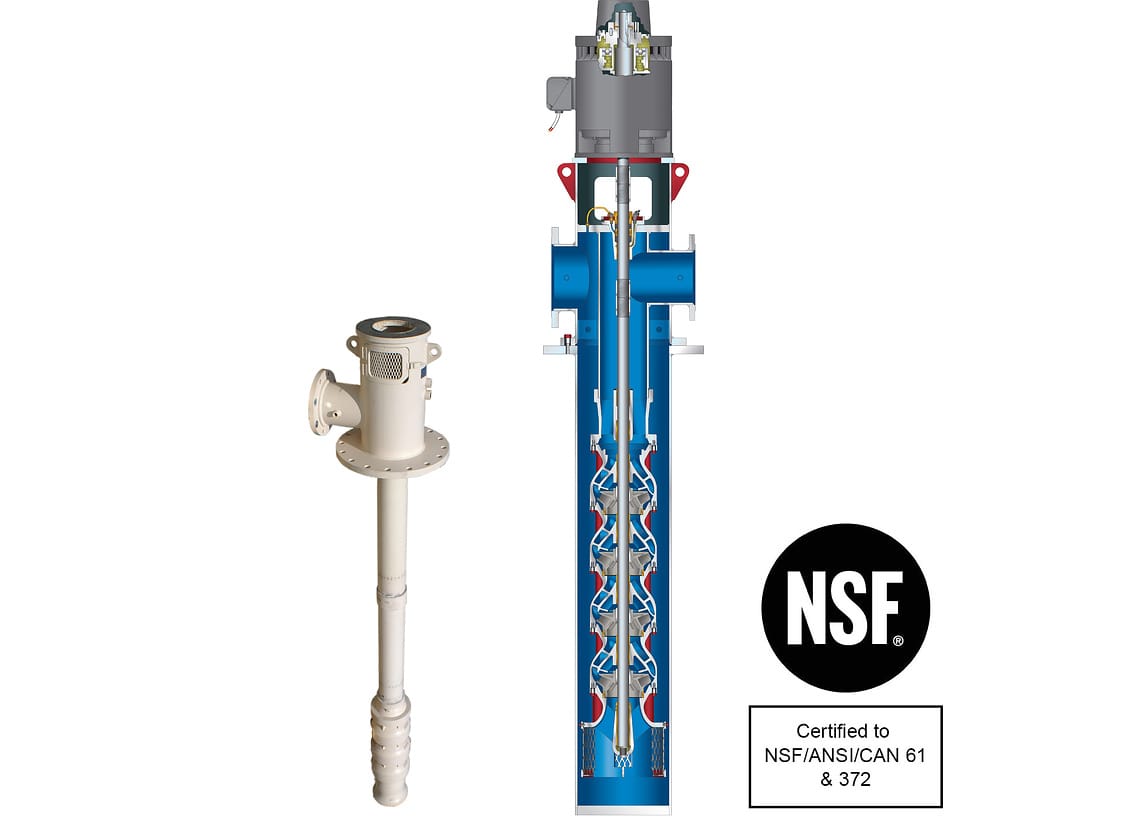

480 Series VT NSF/ANSI/CAN 61 & 372
480 Series Vertical Turbine NSF
Open & Enclosed Lineshaft Pumps
Complete pump assemblies certified to NSF/ANSI/CAN 61 & 372!
Application
- Potable Water
- Water Well
Max. Flow: 30,000 GPM
Max. Head: 1,000 feet
Features & Benefits
- Open lineshaft design
- Packing and cartridge seal options
- Threaded column pipe up to 12”
- Flanged column pipe up to 24”
- Drop in or fabricated bearing retainers
- Threaded or keyed lineshafts up to 2-15/16”
- Optional suction can / barrel
- Epoxy coatings
Technical Data
- Certified to NSF/ANSI/CAN 61 & 372
- Cold (73 °F / 23 °C) water contact temperature
- Colleted impellers 6” - 15”
- Keyed impellers 16” - 42”
- Bowl sizes 6” - 42”
Materials of Construction
- Lead free construction
- Enclosed 304 or 316 Stainless Steel impellers
- Cast Iron bowls
- Enamel lined bowls up to 15”
- Fabricated Steel & Cast Iron discharge heads


480 Series Performance Curves: Choose by RPM
OLS VT Enclosed Impeller
OLS VT Semi-Open Impeller
ELS VT Enclosed Impeller
ELS VT Semi-Open Impeller
FAB VT Enclosed Impeller
FAB VT Semi-Open Impeller
AF & MF Axial Flow
AF & MF Mixed Flow
SUB Family
SUB Enclosed & Semi-Open Impeller

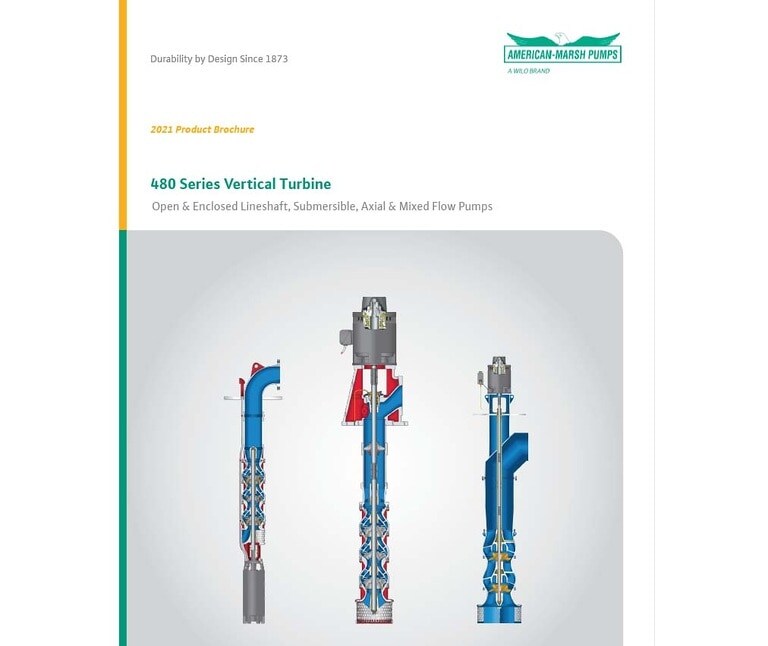

Product Brochure
480 Series Vertical Turbine

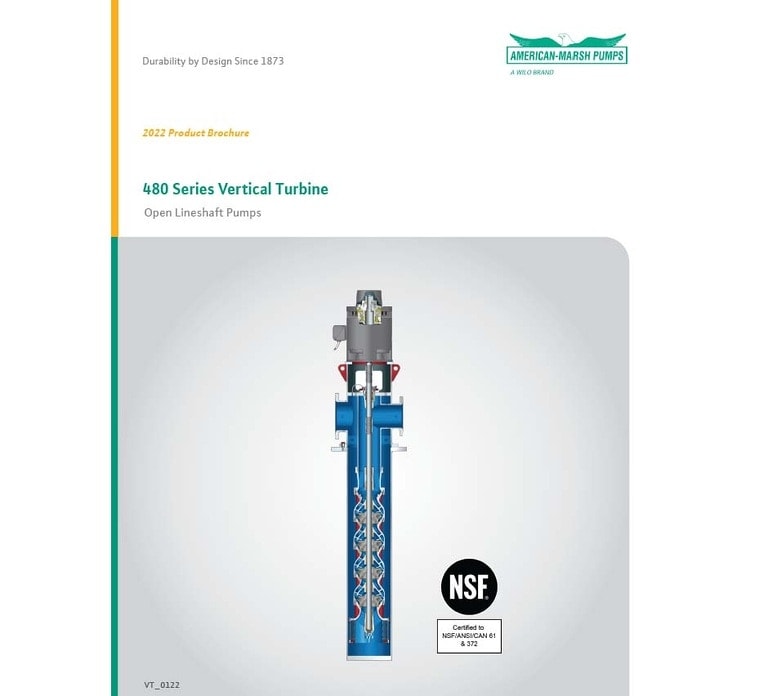

Product Brochure
480 Series Vertical Turbine NSF/ANSI/CAN 61 & 372

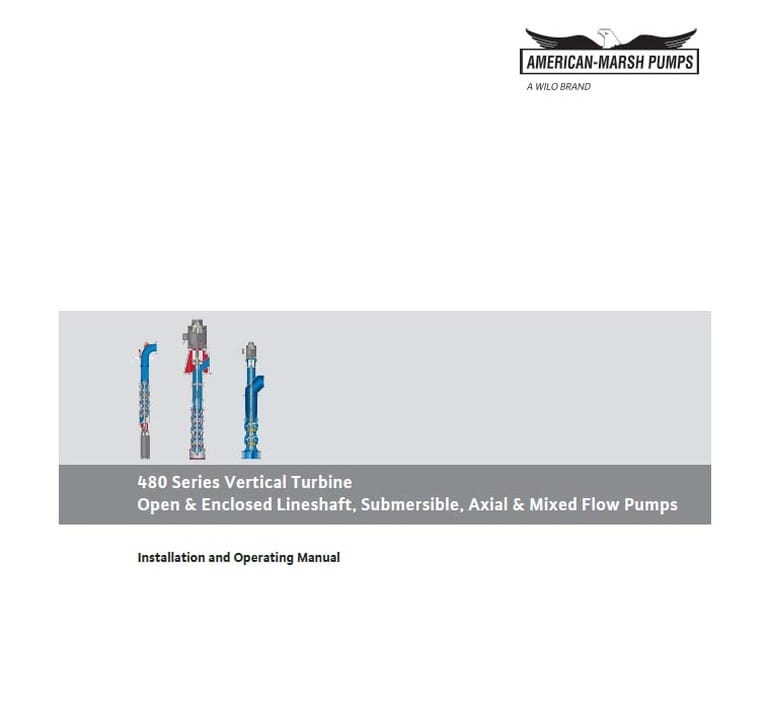

Installation & Operating Manual
IOM - 480 Series Vertical Turbine
Dimensional Information
480 Series Vertical Turbine
NSF Certifications
