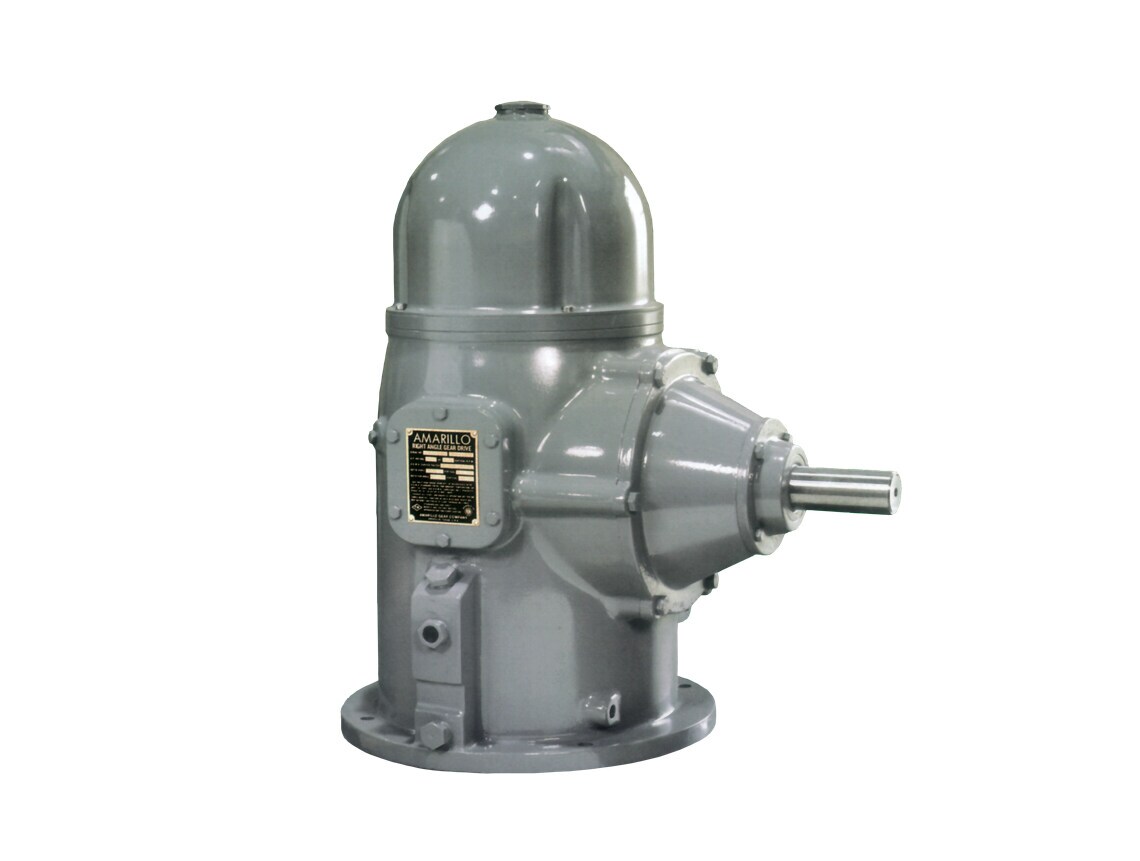

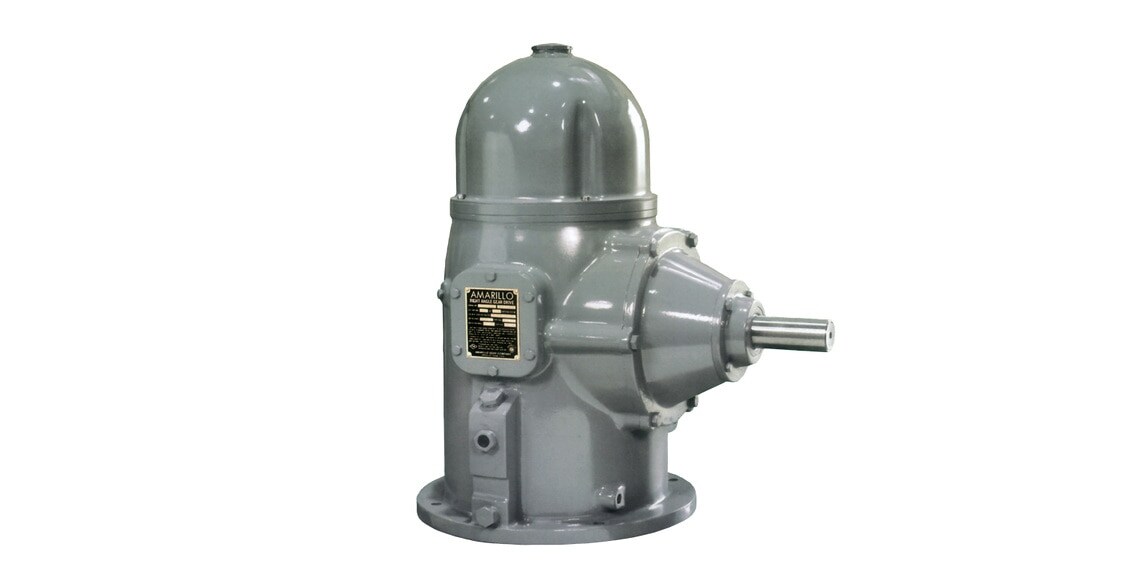

Right Angle Gear Drives

For 480 Series Vertical Turbines

Application

  • Agricultural
  • Industrial
  • Municipal
  • Fire

Features & Benefits

  • Cooling coils available
  • Non-reverse clutches
  • Rigid castings designed to insure correct alignment
  • Gears are case hardened alloy steel, lapped in pairs
  • Positive pressure oil distribution systems
  • Bearings exceed AGMA recommendations

Technical Data

  • Gear drives rated from 30 HP to over 1,000 HP

Materials of Construction

  • Industry standard

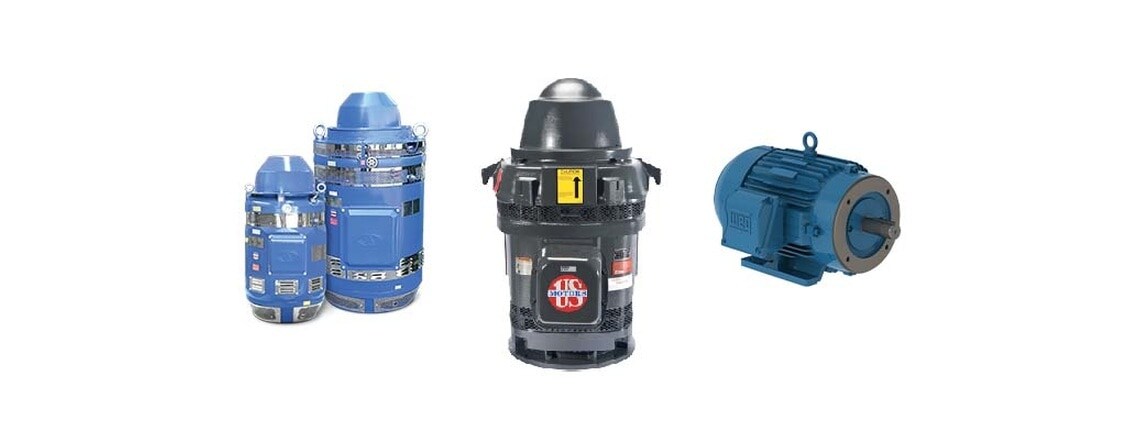

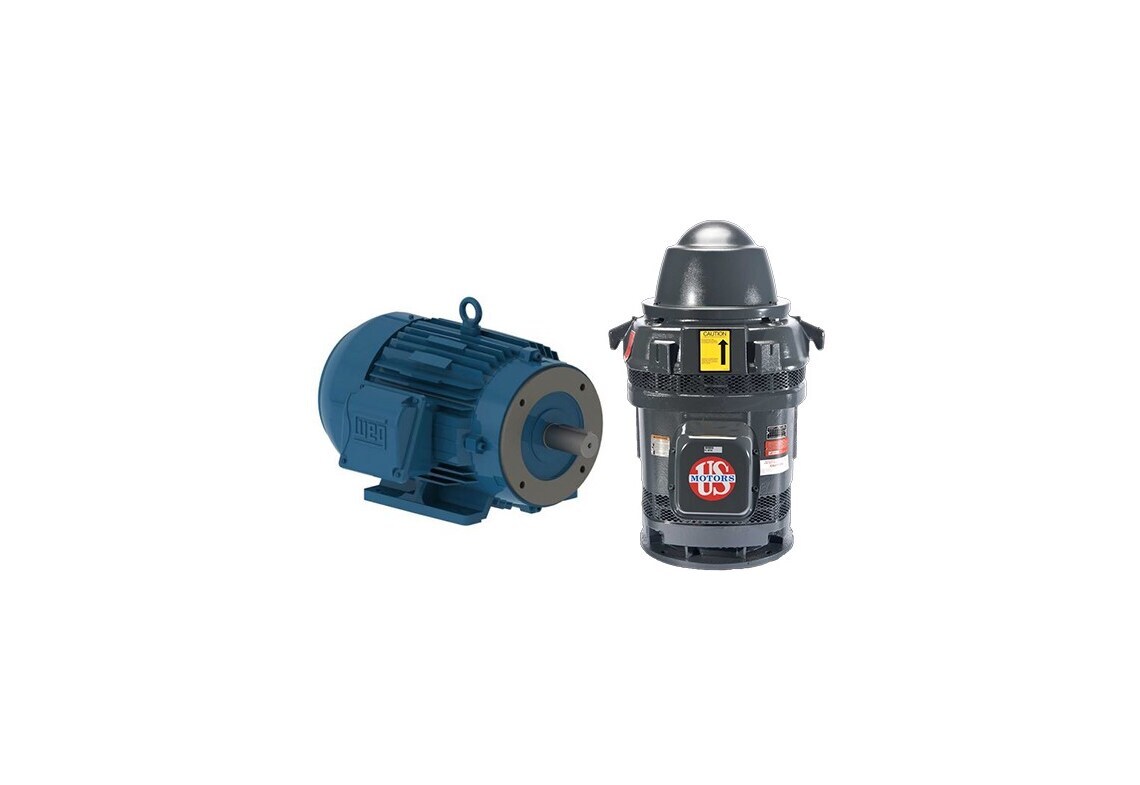

Motors

Vertical, Horizontal & Submersible

Application

  • Agriculture & Irrigation
  • Commercial/HVAC
  • Industrial
  • Municipal
  • Fire

Features & Benefits

  • Horizontal, Vertical & Submersible
  • WPI, TEFC, ODP
  • Canned style submersibles

Technical Data

  • Multiple HP ranges
  • 1/2 HP to over 1,000 HP
  • 50 Hz & 60 Hz
  • Speeds: 514-3,600 RPM

Materials of Construction

  • Industry standard

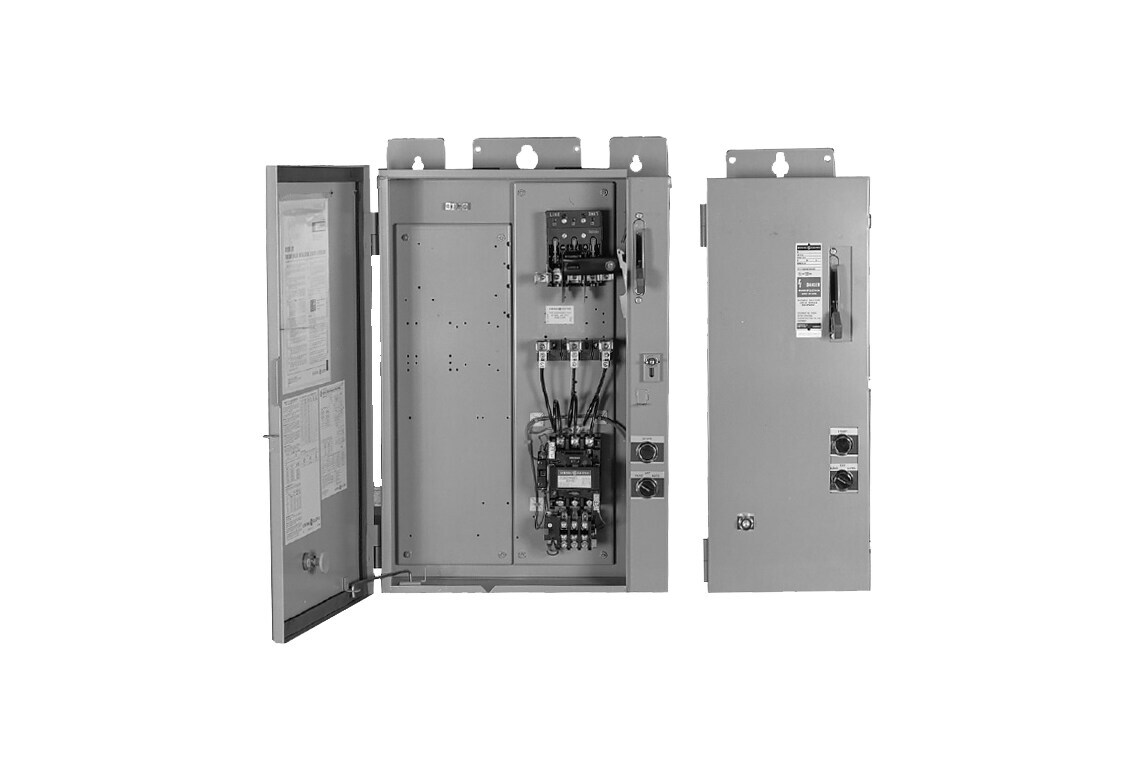

ATL, PWS, VFD

Control Panels

Application

  • Agriculture & Irrigation
  • Commercial/HVAC
  • Industrial
  • Municipal

Features & Benefits

  • NEMA Type 1
  • NEMA Type 3
  • NEMA Type 3R

Materials of Construction

Industry Standard
