Helix V 110-270

8" Vertical Multistage Pumps


  • Water Supply / Pressure Boosting
  • Condensate Return
  • Boiler Feed
  • Washing / Sprinkling
  • Process Engineering
  • Cooling Circuits

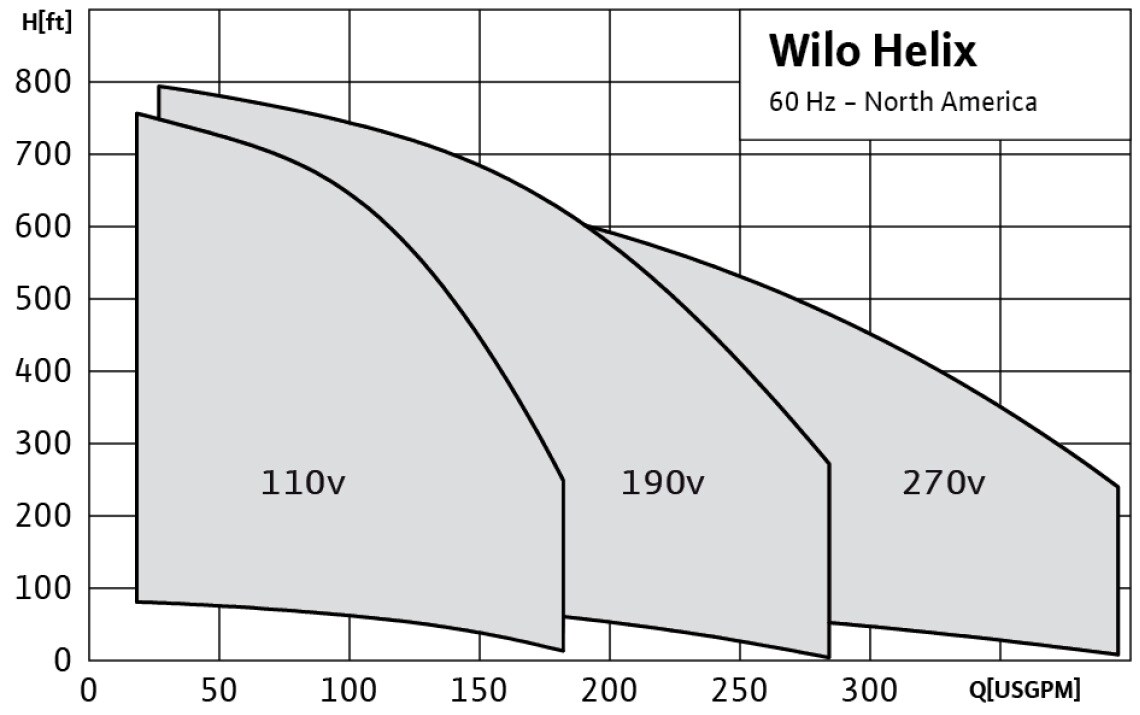

Max. Flow: 380 USGPM

Max. Head: 800 feet

Features & Benefits

  • Up to 33% more head, and 10% more flow per stage!
  • Rebuildable cartridge seal system reduces maintenance time by up to 70%
  • Floating flanges for easy installation
  • Standard EISA compliant TEFC motors
  • Integrated thrust bearing reduces motor stress

Technical Data

  • 3~ 230v TEFC motors standard (ODP available on request)
  • Liquid Temp Range 4°F to 248°F (-15°C to 120°C)
  • Electrical Connections: 3~230/460/575v
  • Flange Connection: 250# ANSI

Materials of Construction

  • Cast Iron, Cataphoresis Coated Volute
  • Stainless Steel Impeller, Shaft, Pressure Shroud & Pump Base
  • EPDM/FKM Elastomers
  • Optional Mechanical Seals Available
  • Tungsten Carbide/Ceramic Bearing
