MVI

Vertical Multistage Pumps

Application

  • Water Supply / Pressure Boosting
  • Condensate Return
  • Boiler Feed
  • Washing / Sprinkling
  • Process Engineering
  • Cooling Circuits

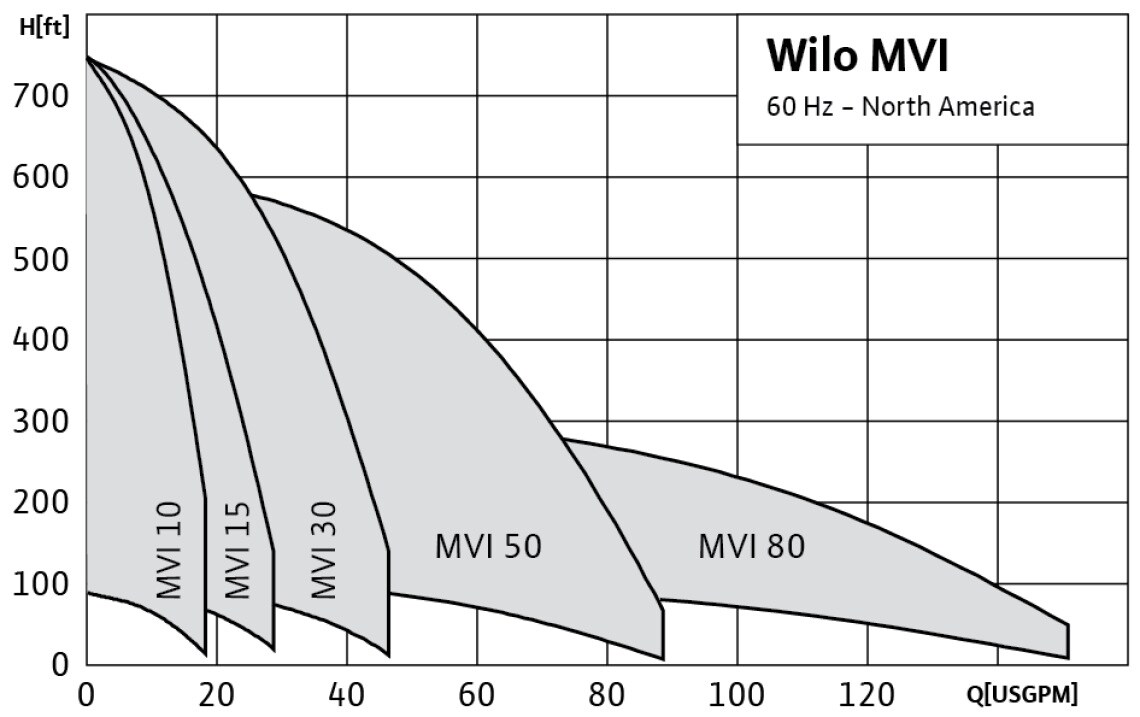

Max. Flow: 150 USGPM

Max. Head: 750 feet

Features & Benefits

  • 304 Stainless steel construction on parts in contact with fluid
  • Standard TEFC NEMA frame Baldor motors
  • EPDM/Viton mechanical seals
  • Heavy duty pump base
  • Both Oval and ANSI flanges available

Technical Data

  • TEFC motors standard (ODP available on request)
  • Temp Range: -5°F to to 250°F with EPDM Seal (-20°C to 121°C)
  • 1¼” 250# ANSI (not included) or 1” FNPT Oval Flanges (included) Flange Connection

Materials of Construction

  • Stainless Steel Volute, Impeller & Shaft
  • Carbon/tungsten Carbide, SiC/ Carbon, EPDM Elastomers Mechanical Seal
