SiBooster EXCEL

High-Efficiency Pressure Boosting Systems

Application

  • Water Supply
  • Pressure Boosting
  • Agriculture
  • Washing / Sprinkling Systems
  • Cooling Circuits
  • Condensate Return

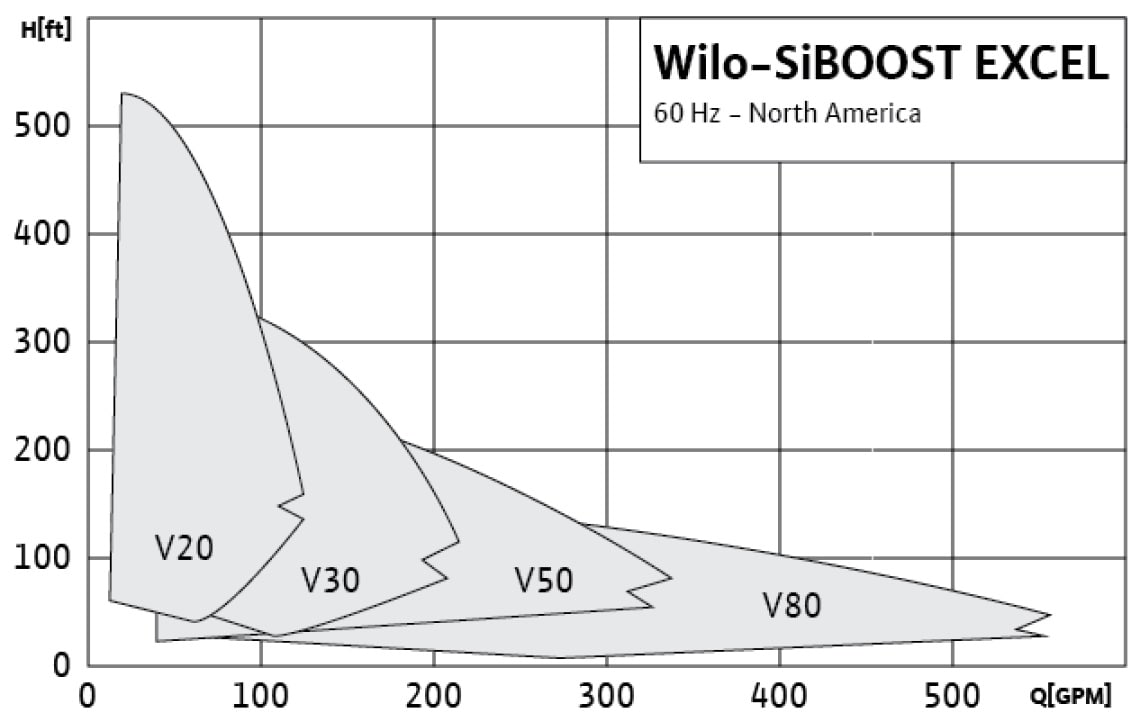

Max. Flow: 575 USGPM

Max. Head: 525 feet

Features & Benefits

  • Includes Helix EXCEL high-efficiency ECM pumps
  • Real-time diagnostics and remote monitoring
  • Full system kWh energy reporting
  • Easy to use 7" touchscreen interface
  • Onboard ModBUS and optional BacNET and LonWorks interface
  • Variable speed control per pump
  • Adjustable low pressure cut-out
  • Balanced run time for all pumps

Technical Data

  • Temp Range 4°F to 248°F (-15°C to 120°C)
  • Electrical Connections: 3~460V
  • Rated Pressure: 232 PSI
  • Flange Connection: 300 class ANSI
  • TEFC motors standard

Materials of Construction

  • All 304 Stainless Steel Construction
  • Pumps certified to NSF/ANSI 61, system pending
  • EPDM/FKM Elastomers
  • Mechanical Seal Options
    Tungsten Carbide/EPDM, or optional Viton®/FKM
  • Mechanical Seal
