BL150/295-37/4

Data sheet

Hydraulic data
  • Max. operating pressure p
    16 bar
  • Maximum operating pressure PN
    16 bar
  • Min. fluid temperature Tmin
    -20 °C
  • Max. fluid temperature Tmax
    140 °C
  • Max. ambient temperature Tmax
    40 °C
Motor data
  • Voltage tolerance
    ±10 %
  • Motor efficiency class
    IE3
  • Rated power P2
    37.00 kW
  • Rated current IN
    69.60 A
  • Rated speed n
    1485 rpm
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    93
  • Motor efficiency ηM 75%
    94
  • Motor efficiency ηM 100%
    94
  • Insulation class
    F
  • Protection class motor
    IP55
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Mechanical seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 200
  • Pipe connection on the pressure side RPD
    DN 150
Information for order placements
  • Brand
    Wilo
  • Product description
    BL150/295-37/4
  • Article number
    9142409
  • Net weight, approx. m
    583 kg
  • Gross weight, approx. m
    641.0 kg
  • Length with packaging
    1700 mm
  • Height with packaging
    860 mm
  • Width with packaging
    670 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Minimum order quantity
    1

Tender text

Single-stage glanded centrifugal pump in monobloc design for installation on a base. Low-vibration and low-noise monobloc design with lantern and rigidly connected standard motor. With force-flushed, bidirectional bellows mechanical seal (from 37 kW/4-pole and 45 kW/2-pole, optionally available with a cartridge mechanical seal in back pull-out design for mechanical seal replacement without dismantling the motor) and cavitation-reducing impeller. Flange with R 1/8 pressure measuring connections. Pump housing and lantern are cataphoretic-coated. Motors in IE3 technology as standard. Pump with motor ≥ 5.5 kW are equipped as standard with a PTC thermistor sensor for motor protection.

Operating data
  • Fluid media
    Water
  • Maximum operating pressure PN
    16 bar
Motor data
  • Motor efficiency class
    IE3
  • Voltage tolerance
    ±10 %
  • Rated power P2
    37000.0 W
  • Rated speed n
    1485 rpm
  • Rated current IN
    69.60 A
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    93
  • Motor efficiency ηM 75%
    94
  • Motor efficiency ηM 100%
    94
  • Insulation class
    F
  • Protection class
    IP55
  • Motor protection
    PTC
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Shaft seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 200
  • Pipe connection on the pressure side RPD
    DN 150
Information for order placements
  • Brand
    Wilo
  • Product description
    BL150/295-37/4
  • Net weight, approx. m
    583 kg
  • Article number
    9142409

Pump curves

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    BL150/295-37/4
  • Article number
    9142409
  • Gross weight, approx. m
    641.0 kg
  • Net weight, approx. m
    583 kg
  • Overall length L
    1153.0 mm
  • Height without packaging H
    780 mm
  • Colour
    Green
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Number per layer
    1
  • Width without packaging L
    600.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

Wilo-Wilo-CronoLine-IL Wilo-CronoTwin-DL Wilo-CronoBloc-BL

Article Number 2202024
Edition 2018-07
Version number 01
Page format 209.9 x 297.0 mm
Number of pages 128

PDF (12 MB)

下载

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: BL150/295-37/4

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

BL150/305-45/4

Data sheet

Hydraulic data
  • Max. operating pressure p
    16 bar
  • Maximum operating pressure PN
    16 bar
  • Min. fluid temperature Tmin
    -20 °C
  • Max. fluid temperature Tmax
    140 °C
  • Max. ambient temperature Tmax
    40 °C
Motor data
  • Voltage tolerance
    ±10 %
  • Motor efficiency class
    IE3
  • Rated power P2
    45.00 kW
  • Rated current IN
    84.40 A
  • Rated speed n
    1485 rpm
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    94
  • Motor efficiency ηM 100%
    94
  • Insulation class
    F
  • Protection class motor
    IP55
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Mechanical seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 200
  • Pipe connection on the pressure side RPD
    DN 150
Information for order placements
  • Brand
    Wilo
  • Product description
    BL150/305-45/4
  • Article number
    9142408
  • Net weight, approx. m
    602 kg
  • Gross weight, approx. m
    662.0 kg
  • Length with packaging
    1700 mm
  • Height with packaging
    860 mm
  • Width with packaging
    670 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Minimum order quantity
    1

Tender text

Single-stage glanded centrifugal pump in monobloc design for installation on a base. Low-vibration and low-noise monobloc design with lantern and rigidly connected standard motor. With force-flushed, bidirectional bellows mechanical seal (from 37 kW/4-pole and 45 kW/2-pole, optionally available with a cartridge mechanical seal in back pull-out design for mechanical seal replacement without dismantling the motor) and cavitation-reducing impeller. Flange with R 1/8 pressure measuring connections. Pump housing and lantern are cataphoretic-coated. Motors in IE3 technology as standard. Pump with motor ≥ 5.5 kW are equipped as standard with a PTC thermistor sensor for motor protection.

Operating data
  • Fluid media
    Water
  • Maximum operating pressure PN
    16 bar
Motor data
  • Motor efficiency class
    IE3
  • Voltage tolerance
    ±10 %
  • Rated power P2
    45000.0 W
  • Rated speed n
    1485 rpm
  • Rated current IN
    84.40 A
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    94
  • Motor efficiency ηM 100%
    94
  • Insulation class
    F
  • Protection class
    IP55
  • Motor protection
    PTC
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Shaft seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 200
  • Pipe connection on the pressure side RPD
    DN 150
Information for order placements
  • Brand
    Wilo
  • Product description
    BL150/305-45/4
  • Net weight, approx. m
    602 kg
  • Article number
    9142408

Pump curves

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    BL150/305-45/4
  • Article number
    9142408
  • Gross weight, approx. m
    662.0 kg
  • Net weight, approx. m
    602 kg
  • Overall length L
    1128.0 mm
  • Height without packaging H
    780 mm
  • Colour
    Green
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Number per layer
    1
  • Width without packaging L
    600.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

Wilo-Wilo-CronoLine-IL Wilo-CronoTwin-DL Wilo-CronoBloc-BL

Article Number 2202024
Edition 2018-07
Version number 01
Page format 209.9 x 297.0 mm
Number of pages 128

PDF (12 MB)

下载

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: BL150/305-45/4

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

BL150/315-55/4

Data sheet

Hydraulic data
  • Max. operating pressure p
    16 bar
  • Maximum operating pressure PN
    16 bar
  • Min. fluid temperature Tmin
    -20 °C
  • Max. fluid temperature Tmax
    140 °C
  • Max. ambient temperature Tmax
    40 °C
Motor data
  • Voltage tolerance
    ±10 %
  • Motor efficiency class
    IE3
  • Rated power P2
    55.00 kW
  • Rated current IN
    102.70 A
  • Rated speed n
    1485 rpm
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    95
  • Motor efficiency ηM 100%
    95
  • Insulation class
    F
  • Protection class motor
    IP55
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Mechanical seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 200
  • Pipe connection on the pressure side RPD
    DN 150
Information for order placements
  • Brand
    Wilo
  • Product description
    BL150/315-55/4
  • Article number
    9142407
  • Net weight, approx. m
    658 kg
  • Gross weight, approx. m
    724.0 kg
  • Length with packaging
    1700 mm
  • Height with packaging
    860 mm
  • Width with packaging
    670 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Minimum order quantity
    1

Tender text

Single-stage glanded centrifugal pump in monobloc design for installation on a base. Low-vibration and low-noise monobloc design with lantern and rigidly connected standard motor. With force-flushed, bidirectional bellows mechanical seal (from 37 kW/4-pole and 45 kW/2-pole, optionally available with a cartridge mechanical seal in back pull-out design for mechanical seal replacement without dismantling the motor) and cavitation-reducing impeller. Flange with R 1/8 pressure measuring connections. Pump housing and lantern are cataphoretic-coated. Motors in IE3 technology as standard. Pump with motor ≥ 5.5 kW are equipped as standard with a PTC thermistor sensor for motor protection.

Operating data
  • Fluid media
    Water
  • Maximum operating pressure PN
    16 bar
Motor data
  • Motor efficiency class
    IE3
  • Voltage tolerance
    ±10 %
  • Rated power P2
    55000.0 W
  • Rated speed n
    1485 rpm
  • Rated current IN
    102.70 A
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    95
  • Motor efficiency ηM 100%
    95
  • Insulation class
    F
  • Protection class
    IP55
  • Motor protection
    PTC
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Shaft seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 200
  • Pipe connection on the pressure side RPD
    DN 150
Information for order placements
  • Brand
    Wilo
  • Product description
    BL150/315-55/4
  • Net weight, approx. m
    658 kg
  • Article number
    9142407

Pump curves

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    BL150/315-55/4
  • Article number
    9142407
  • Gross weight, approx. m
    724.0 kg
  • Net weight, approx. m
    658 kg
  • Overall length L
    1231.0 mm
  • Height without packaging H
    780 mm
  • Colour
    Green
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Number per layer
    1
  • Width without packaging L
    600.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

Wilo-Wilo-CronoLine-IL Wilo-CronoTwin-DL Wilo-CronoBloc-BL

Article Number 2202024
Edition 2018-07
Version number 01
Page format 209.9 x 297.0 mm
Number of pages 128

PDF (12 MB)

下载

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: BL150/315-55/4

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

BL125/360-37/4

Data sheet

Hydraulic data
  • Max. operating pressure p
    16 bar
  • Maximum operating pressure PN
    16 bar
  • Min. fluid temperature Tmin
    -20 °C
  • Max. fluid temperature Tmax
    140 °C
  • Max. ambient temperature Tmax
    40 °C
Motor data
  • Voltage tolerance
    ±10 %
  • Motor efficiency class
    IE3
  • Rated power P2
    37.00 kW
  • Rated current IN
    69.60 A
  • Rated speed n
    1485 rpm
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    93
  • Motor efficiency ηM 75%
    94
  • Motor efficiency ηM 100%
    94
  • Insulation class
    F
  • Protection class motor
    IP55
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Mechanical seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/360-37/4
  • Article number
    9142406
  • Net weight, approx. m
    587 kg
  • Gross weight, approx. m
    646.0 kg
  • Length with packaging
    1700 mm
  • Height with packaging
    860 mm
  • Width with packaging
    670 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Minimum order quantity
    1

Tender text

Single-stage glanded centrifugal pump in monobloc design for installation on a base. Low-vibration and low-noise monobloc design with lantern and rigidly connected standard motor. With force-flushed, bidirectional bellows mechanical seal (from 37 kW/4-pole and 45 kW/2-pole, optionally available with a cartridge mechanical seal in back pull-out design for mechanical seal replacement without dismantling the motor) and cavitation-reducing impeller. Flange with R 1/8 pressure measuring connections. Pump housing and lantern are cataphoretic-coated. Motors in IE3 technology as standard. Pump with motor ≥ 5.5 kW are equipped as standard with a PTC thermistor sensor for motor protection.

Operating data
  • Fluid media
    Water
  • Maximum operating pressure PN
    16 bar
Motor data
  • Motor efficiency class
    IE3
  • Voltage tolerance
    ±10 %
  • Rated power P2
    37000.0 W
  • Rated speed n
    1485 rpm
  • Rated current IN
    69.60 A
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    93
  • Motor efficiency ηM 75%
    94
  • Motor efficiency ηM 100%
    94
  • Insulation class
    F
  • Protection class
    IP55
  • Motor protection
    PTC
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Shaft seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/360-37/4
  • Net weight, approx. m
    587 kg
  • Article number
    9142406

Pump curves

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/360-37/4
  • Article number
    9142406
  • Gross weight, approx. m
    646.0 kg
  • Net weight, approx. m
    587 kg
  • Overall length L
    1108.0 mm
  • Height without packaging H
    814 mm
  • Colour
    Green
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Number per layer
    1
  • Width without packaging L
    540.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

Wilo-Wilo-CronoLine-IL Wilo-CronoTwin-DL Wilo-CronoBloc-BL

Article Number 2202024
Edition 2018-07
Version number 01
Page format 209.9 x 297.0 mm
Number of pages 128

PDF (12 MB)

下载

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: BL125/360-37/4

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

BL125/370-45/4

Data sheet

Hydraulic data
  • Max. operating pressure p
    16 bar
  • Maximum operating pressure PN
    16 bar
  • Min. fluid temperature Tmin
    -20 °C
  • Max. fluid temperature Tmax
    140 °C
  • Max. ambient temperature Tmax
    40 °C
Motor data
  • Voltage tolerance
    ±10 %
  • Motor efficiency class
    IE3
  • Rated power P2
    45.00 kW
  • Rated current IN
    84.40 A
  • Rated speed n
    1485 rpm
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    94
  • Motor efficiency ηM 100%
    94
  • Insulation class
    F
  • Protection class motor
    IP55
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Mechanical seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/370-45/4
  • Article number
    9142405
  • Net weight, approx. m
    620 kg
  • Gross weight, approx. m
    682.0 kg
  • Length with packaging
    1700 mm
  • Height with packaging
    860 mm
  • Width with packaging
    670 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Minimum order quantity
    1

Tender text

Single-stage glanded centrifugal pump in monobloc design for installation on a base. Low-vibration and low-noise monobloc design with lantern and rigidly connected standard motor. With force-flushed, bidirectional bellows mechanical seal (from 37 kW/4-pole and 45 kW/2-pole, optionally available with a cartridge mechanical seal in back pull-out design for mechanical seal replacement without dismantling the motor) and cavitation-reducing impeller. Flange with R 1/8 pressure measuring connections. Pump housing and lantern are cataphoretic-coated. Motors in IE3 technology as standard. Pump with motor ≥ 5.5 kW are equipped as standard with a PTC thermistor sensor for motor protection.

Operating data
  • Fluid media
    Water
  • Maximum operating pressure PN
    16 bar
Motor data
  • Motor efficiency class
    IE3
  • Voltage tolerance
    ±10 %
  • Rated power P2
    45000.0 W
  • Rated speed n
    1485 rpm
  • Rated current IN
    84.40 A
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    94
  • Motor efficiency ηM 100%
    94
  • Insulation class
    F
  • Protection class
    IP55
  • Motor protection
    PTC
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Shaft seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/370-45/4
  • Net weight, approx. m
    620 kg
  • Article number
    9142405

Pump curves

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/370-45/4
  • Article number
    9142405
  • Gross weight, approx. m
    682.0 kg
  • Net weight, approx. m
    620 kg
  • Overall length L
    1133.0 mm
  • Height without packaging H
    814 mm
  • Colour
    Green
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Number per layer
    1
  • Width without packaging L
    540.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

Wilo-Wilo-CronoLine-IL Wilo-CronoTwin-DL Wilo-CronoBloc-BL

Article Number 2202024
Edition 2018-07
Version number 01
Page format 209.9 x 297.0 mm
Number of pages 128

PDF (12 MB)

下载

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: BL125/370-45/4

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

BL125/380-55/4

Data sheet

Hydraulic data
  • Max. operating pressure p
    16 bar
  • Maximum operating pressure PN
    16 bar
  • Min. fluid temperature Tmin
    -20 °C
  • Max. fluid temperature Tmax
    140 °C
  • Max. ambient temperature Tmax
    40 °C
Motor data
  • Voltage tolerance
    ±10 %
  • Motor efficiency class
    IE3
  • Rated power P2
    55.00 kW
  • Rated current IN
    102.70 A
  • Rated speed n
    1485 rpm
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    95
  • Motor efficiency ηM 100%
    95
  • Insulation class
    F
  • Protection class motor
    IP55
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Mechanical seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/380-55/4
  • Article number
    9142404
  • Net weight, approx. m
    700 kg
  • Gross weight, approx. m
    770.0 kg
  • Length with packaging
    1700 mm
  • Height with packaging
    860 mm
  • Width with packaging
    670 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Minimum order quantity
    1

Tender text

Single-stage glanded centrifugal pump in monobloc design for installation on a base. Low-vibration and low-noise monobloc design with lantern and rigidly connected standard motor. With force-flushed, bidirectional bellows mechanical seal (from 37 kW/4-pole and 45 kW/2-pole, optionally available with a cartridge mechanical seal in back pull-out design for mechanical seal replacement without dismantling the motor) and cavitation-reducing impeller. Flange with R 1/8 pressure measuring connections. Pump housing and lantern are cataphoretic-coated. Motors in IE3 technology as standard. Pump with motor ≥ 5.5 kW are equipped as standard with a PTC thermistor sensor for motor protection.

Operating data
  • Fluid media
    Water
  • Maximum operating pressure PN
    16 bar
Motor data
  • Motor efficiency class
    IE3
  • Voltage tolerance
    ±10 %
  • Rated power P2
    55000.0 W
  • Rated speed n
    1485 rpm
  • Rated current IN
    102.70 A
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    95
  • Motor efficiency ηM 100%
    95
  • Insulation class
    F
  • Protection class
    IP55
  • Motor protection
    PTC
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Shaft seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/380-55/4
  • Net weight, approx. m
    700 kg
  • Article number
    9142404

Pump curves

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/380-55/4
  • Article number
    9142404
  • Gross weight, approx. m
    770.0 kg
  • Net weight, approx. m
    700 kg
  • Overall length L
    1211.0 mm
  • Height without packaging H
    814 mm
  • Colour
    Green
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Number per layer
    1
  • Width without packaging L
    570.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

Wilo-Wilo-CronoLine-IL Wilo-CronoTwin-DL Wilo-CronoBloc-BL

Article Number 2202024
Edition 2018-07
Version number 01
Page format 209.9 x 297.0 mm
Number of pages 128

PDF (12 MB)

下载

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: BL125/380-55/4

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

BL125/390-75/4

Data sheet

Hydraulic data
  • Max. operating pressure p
    16 bar
  • Maximum operating pressure PN
    16 bar
  • Min. fluid temperature Tmin
    -20 °C
  • Max. fluid temperature Tmax
    140 °C
  • Max. ambient temperature Tmax
    40 °C
Motor data
  • Voltage tolerance
    ±10 %
  • Motor efficiency class
    IE3
  • Rated power P2
    75.00 kW
  • Rated current IN
    136.30 A
  • Rated speed n
    1485 rpm
  • Power factor cos φ
    0.88
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    95
  • Motor efficiency ηM 100%
    95
  • Insulation class
    F
  • Protection class motor
    IP55
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Mechanical seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/390-75/4
  • Article number
    9142403
  • Net weight, approx. m
    826 kg
  • Gross weight, approx. m
    909.0 kg
  • Length with packaging
    1850 mm
  • Height with packaging
    980 mm
  • Width with packaging
    720 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Minimum order quantity
    1

Tender text

Single-stage glanded centrifugal pump in monobloc design for installation on a base. Low-vibration and low-noise monobloc design with lantern and rigidly connected standard motor. With force-flushed, bidirectional bellows mechanical seal (from 37 kW/4-pole and 45 kW/2-pole, optionally available with a cartridge mechanical seal in back pull-out design for mechanical seal replacement without dismantling the motor) and cavitation-reducing impeller. Flange with R 1/8 pressure measuring connections. Pump housing and lantern are cataphoretic-coated. Motors in IE3 technology as standard. Pump with motor ≥ 5.5 kW are equipped as standard with a PTC thermistor sensor for motor protection.

Operating data
  • Fluid media
    Water
  • Maximum operating pressure PN
    16 bar
Motor data
  • Motor efficiency class
    IE3
  • Voltage tolerance
    ±10 %
  • Rated power P2
    75000.0 W
  • Rated speed n
    1485 rpm
  • Rated current IN
    136.30 A
  • Power factor cos φ
    0.88
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    95
  • Motor efficiency ηM 100%
    95
  • Insulation class
    F
  • Protection class
    IP55
  • Motor protection
    PTC
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Shaft seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/390-75/4
  • Net weight, approx. m
    826 kg
  • Article number
    9142403

Pump curves

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/390-75/4
  • Article number
    9142403
  • Gross weight, approx. m
    909.0 kg
  • Net weight, approx. m
    826 kg
  • Overall length L
    1272.0 mm
  • Height without packaging H
    814 mm
  • Colour
    Green
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Number per layer
    1
  • Width without packaging L
    600.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

Wilo-Wilo-CronoLine-IL Wilo-CronoTwin-DL Wilo-CronoBloc-BL

Article Number 2202024
Edition 2018-07
Version number 01
Page format 209.9 x 297.0 mm
Number of pages 128

PDF (12 MB)

下载

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: BL125/390-75/4

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

BL125/400-90/4

Data sheet

Hydraulic data
  • Max. operating pressure p
    16 bar
  • Maximum operating pressure PN
    16 bar
  • Min. fluid temperature Tmin
    -20 °C
  • Max. fluid temperature Tmax
    140 °C
  • Max. ambient temperature Tmax
    40 °C
Motor data
  • Voltage tolerance
    ±10 %
  • Motor efficiency class
    IE3
  • Rated power P2
    90.00 kW
  • Rated current IN
    163.20 A
  • Rated speed n
    1485 rpm
  • Power factor cos φ
    0.88
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    95
  • Motor efficiency ηM 100%
    95
  • Insulation class
    F
  • Protection class motor
    IP55
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Mechanical seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/400-90/4
  • Article number
    9142402
  • Net weight, approx. m
    916 kg
  • Gross weight, approx. m
    1008.0 kg
  • Length with packaging
    1850 mm
  • Height with packaging
    980 mm
  • Width with packaging
    720 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Minimum order quantity
    1

Tender text

Single-stage glanded centrifugal pump in monobloc design for installation on a base. Low-vibration and low-noise monobloc design with lantern and rigidly connected standard motor. With force-flushed, bidirectional bellows mechanical seal (from 37 kW/4-pole and 45 kW/2-pole, optionally available with a cartridge mechanical seal in back pull-out design for mechanical seal replacement without dismantling the motor) and cavitation-reducing impeller. Flange with R 1/8 pressure measuring connections. Pump housing and lantern are cataphoretic-coated. Motors in IE3 technology as standard. Pump with motor ≥ 5.5 kW are equipped as standard with a PTC thermistor sensor for motor protection.

Operating data
  • Fluid media
    Water
  • Maximum operating pressure PN
    16 bar
Motor data
  • Motor efficiency class
    IE3
  • Voltage tolerance
    ±10 %
  • Rated power P2
    90000.0 W
  • Rated speed n
    1485 rpm
  • Rated current IN
    163.20 A
  • Power factor cos φ
    0.88
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    95
  • Motor efficiency ηM 100%
    95
  • Insulation class
    F
  • Protection class
    IP55
  • Motor protection
    PTC
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Shaft seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/400-90/4
  • Net weight, approx. m
    916 kg
  • Article number
    9142402

Pump curves

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/400-90/4
  • Article number
    9142402
  • Gross weight, approx. m
    1008.0 kg
  • Net weight, approx. m
    916 kg
  • Overall length L
    1323.0 mm
  • Height without packaging H
    814 mm
  • Colour
    Green
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Number per layer
    1
  • Width without packaging L
    600.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

Wilo-Wilo-CronoLine-IL Wilo-CronoTwin-DL Wilo-CronoBloc-BL

Article Number 2202024
Edition 2018-07
Version number 01
Page format 209.9 x 297.0 mm
Number of pages 128

PDF (12 MB)

下载

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: BL125/400-90/4

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

BL125/305-37/4

Data sheet

Hydraulic data
  • Max. operating pressure p
    16 bar
  • Maximum operating pressure PN
    16 bar
  • Min. fluid temperature Tmin
    -20 °C
  • Max. fluid temperature Tmax
    140 °C
  • Max. ambient temperature Tmax
    40 °C
Motor data
  • Voltage tolerance
    ±10 %
  • Motor efficiency class
    IE3
  • Rated power P2
    37.00 kW
  • Rated current IN
    69.60 A
  • Rated speed n
    1485 rpm
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    93
  • Motor efficiency ηM 75%
    94
  • Motor efficiency ηM 100%
    94
  • Insulation class
    F
  • Protection class motor
    IP55
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Mechanical seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/305-37/4
  • Article number
    9142401
  • Net weight, approx. m
    542 kg
  • Gross weight, approx. m
    596.0 kg
  • Length with packaging
    1700 mm
  • Height with packaging
    860 mm
  • Width with packaging
    670 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Minimum order quantity
    1

Tender text

Single-stage glanded centrifugal pump in monobloc design for installation on a base. Low-vibration and low-noise monobloc design with lantern and rigidly connected standard motor. With force-flushed, bidirectional bellows mechanical seal (from 37 kW/4-pole and 45 kW/2-pole, optionally available with a cartridge mechanical seal in back pull-out design for mechanical seal replacement without dismantling the motor) and cavitation-reducing impeller. Flange with R 1/8 pressure measuring connections. Pump housing and lantern are cataphoretic-coated. Motors in IE3 technology as standard. Pump with motor ≥ 5.5 kW are equipped as standard with a PTC thermistor sensor for motor protection.

Operating data
  • Fluid media
    Water
  • Maximum operating pressure PN
    16 bar
Motor data
  • Motor efficiency class
    IE3
  • Voltage tolerance
    ±10 %
  • Rated power P2
    37000.0 W
  • Rated speed n
    1485 rpm
  • Rated current IN
    69.60 A
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    93
  • Motor efficiency ηM 75%
    94
  • Motor efficiency ηM 100%
    94
  • Insulation class
    F
  • Protection class
    IP55
  • Motor protection
    PTC
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Shaft seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/305-37/4
  • Net weight, approx. m
    542 kg
  • Article number
    9142401

Pump curves

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/305-37/4
  • Article number
    9142401
  • Gross weight, approx. m
    596.0 kg
  • Net weight, approx. m
    542 kg
  • Overall length L
    1108.0 mm
  • Height without packaging H
    735 mm
  • Colour
    Green
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Number per layer
    1
  • Width without packaging L
    540.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

Wilo-Wilo-CronoLine-IL Wilo-CronoTwin-DL Wilo-CronoBloc-BL

Article Number 2202024
Edition 2018-07
Version number 01
Page format 209.9 x 297.0 mm
Number of pages 128

PDF (12 MB)

下载

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: BL125/305-37/4

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

BL125/315-45/4

Data sheet

Hydraulic data
  • Max. operating pressure p
    16 bar
  • Maximum operating pressure PN
    16 bar
  • Min. fluid temperature Tmin
    -20 °C
  • Max. fluid temperature Tmax
    140 °C
  • Max. ambient temperature Tmax
    40 °C
Motor data
  • Voltage tolerance
    ±10 %
  • Motor efficiency class
    IE3
  • Rated power P2
    45.00 kW
  • Rated current IN
    84.40 A
  • Rated speed n
    1485 rpm
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    94
  • Motor efficiency ηM 100%
    94
  • Insulation class
    F
  • Protection class motor
    IP55
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Mechanical seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/315-45/4
  • Article number
    9142400
  • Net weight, approx. m
    575 kg
  • Gross weight, approx. m
    633.0 kg
  • Length with packaging
    1700 mm
  • Height with packaging
    860 mm
  • Width with packaging
    670 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Minimum order quantity
    1

Tender text

Single-stage glanded centrifugal pump in monobloc design for installation on a base. Low-vibration and low-noise monobloc design with lantern and rigidly connected standard motor. With force-flushed, bidirectional bellows mechanical seal (from 37 kW/4-pole and 45 kW/2-pole, optionally available with a cartridge mechanical seal in back pull-out design for mechanical seal replacement without dismantling the motor) and cavitation-reducing impeller. Flange with R 1/8 pressure measuring connections. Pump housing and lantern are cataphoretic-coated. Motors in IE3 technology as standard. Pump with motor ≥ 5.5 kW are equipped as standard with a PTC thermistor sensor for motor protection.

Operating data
  • Fluid media
    Water
  • Maximum operating pressure PN
    16 bar
Motor data
  • Motor efficiency class
    IE3
  • Voltage tolerance
    ±10 %
  • Rated power P2
    45000.0 W
  • Rated speed n
    1485 rpm
  • Rated current IN
    84.40 A
  • Power factor cos φ
    0.86
  • Motor efficiency ηM 50%
    94
  • Motor efficiency ηM 75%
    94
  • Motor efficiency ηM 100%
    94
  • Insulation class
    F
  • Protection class
    IP55
  • Motor protection
    PTC
Materials
  • Pump housing
    5.1301, KTL-coated
  • Impeller
    EN-GJL-200
  • Shaft
    1.4122
  • Shaft seal
    AQ1EGG
Installation dimensions
  • Pipe connection on the suction side RPS
    DN 150
  • Pipe connection on the pressure side RPD
    DN 125
Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/315-45/4
  • Net weight, approx. m
    575 kg
  • Article number
    9142400

Pump curves

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    BL125/315-45/4
  • Article number
    9142400
  • Gross weight, approx. m
    633.0 kg
  • Net weight, approx. m
    575 kg
  • Overall length L
    1133.0 mm
  • Height without packaging H
    735 mm
  • Colour
    Green
  • Packaging property
    Transport packaging
  • Packaging type
    Wooden box
  • Number per layer
    1
  • Width without packaging L
    540.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

Wilo-Wilo-CronoLine-IL Wilo-CronoTwin-DL Wilo-CronoBloc-BL

Article Number 2202024
Edition 2018-07
Version number 01
Page format 209.9 x 297.0 mm
Number of pages 128

PDF (12 MB)

下载

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: BL125/315-45/4

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.09-18-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    12.2
  • Optimal volume flow Qopt
    8.7
  • Max. delivery head Hmax
    98.9
  • Optimal delivery head Hopt
    70.19
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    3.00 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    7.40 A
  • Starting current I
    42 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 2
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-18-CI (3~400 V, 50 Hz)
  • EAN number
    4048482650883
  • Article number
    6079277
  • Net weight, approx. m
    27 kg
  • Gross weight, approx. m
    30.7 kg
  • Length with packaging
    1550 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    9.61 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 2
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    27 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    3.00 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    7.40 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    27 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-18-CI (3~400 V, 50 Hz)
  • Article number
    6079277

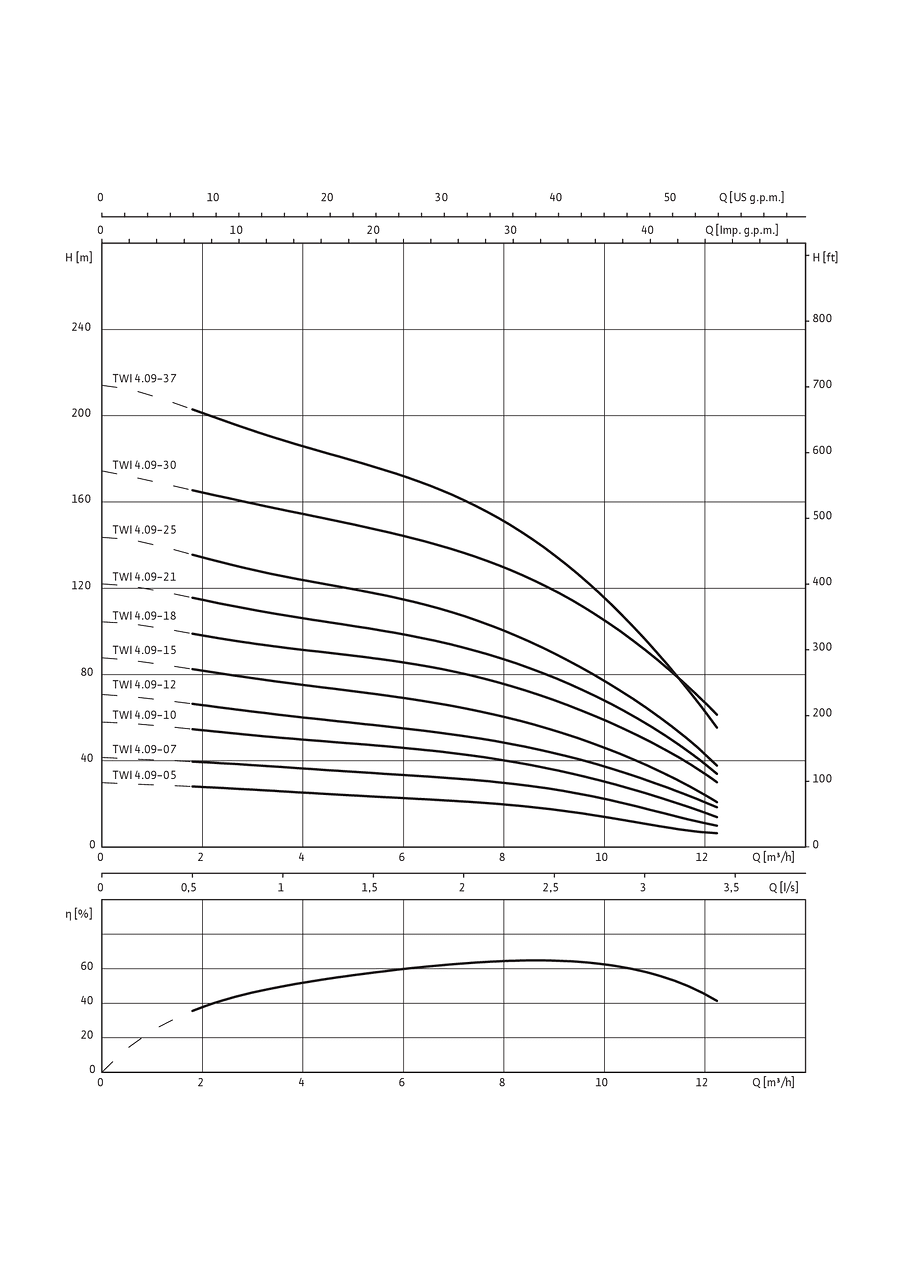

Pump curves

Sub TWI 4.09..-B, (3~400 V)

Sub TWI 4.09..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.09..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-18-CI (3~400 V, 50 Hz)
  • EAN number
    4048482650883
  • Article number
    6079277
  • Gross weight, approx. m
    30.7 kg
  • Net weight, approx. m
    27 kg
  • Overall length L
    1366.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.09-18-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.09-15-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    12.2
  • Optimal volume flow Qopt
    8.5
  • Max. delivery head Hmax
    82.5
  • Optimal delivery head Hopt
    57.17
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Starting current I
    30 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 2
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-15-CI (3~400 V, 50 Hz)
  • EAN number
    4048482650876
  • Article number
    6079276
  • Net weight, approx. m
    21 kg
  • Gross weight, approx. m
    22.5 kg
  • Length with packaging
    1550 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    7.94 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 2
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    21 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    21 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-15-CI (3~400 V, 50 Hz)
  • Article number
    6079276

Pump curves

Sub TWI 4.09..-B, (3~400 V)

Sub TWI 4.09..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.09..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-15-CI (3~400 V, 50 Hz)
  • EAN number
    4048482650876
  • Article number
    6079276
  • Gross weight, approx. m
    22.5 kg
  • Net weight, approx. m
    21 kg
  • Overall length L
    1185.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.09-15-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.09-12-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    12.2
  • Optimal volume flow Qopt
    8.5
  • Max. delivery head Hmax
    66.4
  • Optimal delivery head Hopt
    46.26
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Starting current I
    30 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 2
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-12-CI (3~400 V, 50 Hz)
  • EAN number
    4048482650869
  • Article number
    6079275
  • Net weight, approx. m
    20 kg
  • Gross weight, approx. m
    21.1 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    6.37 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 2
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    20 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    20 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-12-CI (3~400 V, 50 Hz)
  • Article number
    6079275

Pump curves

Sub TWI 4.09..-B, (3~400 V)

Sub TWI 4.09..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.09..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-12-CI (3~400 V, 50 Hz)
  • EAN number
    4048482650869
  • Article number
    6079275
  • Gross weight, approx. m
    21.1 kg
  • Net weight, approx. m
    20 kg
  • Overall length L
    1059.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.09-12-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.09-10-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    12.2
  • Optimal volume flow Qopt
    8.3
  • Max. delivery head Hmax
    54.7
  • Optimal delivery head Hopt
    39.15
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Starting current I
    21 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.79
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 2
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-10-CI (3~400 V, 50 Hz)
  • EAN number
    4048482650852
  • Article number
    6079274
  • Net weight, approx. m
    17 kg
  • Gross weight, approx. m
    18.8 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    5.10 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 2
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    17 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    17 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-10-CI (3~400 V, 50 Hz)
  • Article number
    6079274

Pump curves

Sub TWI 4.09..-B, (3~400 V)

Sub TWI 4.09..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.09..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-10-CI (3~400 V, 50 Hz)
  • EAN number
    4048482650852
  • Article number
    6079274
  • Gross weight, approx. m
    18.8 kg
  • Net weight, approx. m
    17 kg
  • Overall length L
    943.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.09-10-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.09-07-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    12.2
  • Optimal volume flow Qopt
    8.3
  • Max. delivery head Hmax
    39.6
  • Optimal delivery head Hopt
    28.97
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Starting current I
    16 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.78
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 2
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037937
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-07-CI (3~400 V, 50 Hz)
  • EAN number
    4048482650845
  • Article number
    6079273
  • Net weight, approx. m
    15 kg
  • Gross weight, approx. m
    15.8 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    3.92 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 2
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    15 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    15 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-07-CI (3~400 V, 50 Hz)
  • Article number
    6079273

Pump curves

Sub TWI 4.09..-B, (3~400 V)

Sub TWI 4.09..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.09..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-07-CI (3~400 V, 50 Hz)
  • EAN number
    4048482650845
  • Article number
    6079273
  • Gross weight, approx. m
    15.8 kg
  • Net weight, approx. m
    15 kg
  • Overall length L
    793.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.09-07-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.09-05-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    12.2
  • Optimal volume flow Qopt
    7.9
  • Max. delivery head Hmax
    28.1
  • Optimal delivery head Hopt
    19.95
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Starting current I
    16 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.78
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 2
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037937
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-05-CI (3~400 V, 50 Hz)
  • EAN number
    4048482650838
  • Article number
    6079272
  • Net weight, approx. m
    14 kg
  • Gross weight, approx. m
    14.8 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    2.75 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 2
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    14 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    14 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-05-CI (3~400 V, 50 Hz)
  • Article number
    6079272

Pump curves

Sub TWI 4.09..-B, (3~400 V)

Sub TWI 4.09..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.09..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.09-05-CI (3~400 V, 50 Hz)
  • EAN number
    4048482650838
  • Article number
    6079272
  • Gross weight, approx. m
    14.8 kg
  • Net weight, approx. m
    14 kg
  • Overall length L
    709.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.09-05-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.05-33-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    6.8
  • Optimal volume flow Qopt
    5.3
  • Max. delivery head Hmax
    190.9
  • Optimal delivery head Hopt
    124.60
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    3.00 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    7.40 A
  • Starting current I
    42 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1½
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-33-CI (3~400 V, 50 Hz)
  • EAN number
    4048482649054
  • Article number
    6079271
  • Net weight, approx. m
    26 kg
  • Gross weight, approx. m
    29.3 kg
  • Length with packaging
    1550 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    18.63 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1½
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    26 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    3.00 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    7.40 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    26 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-33-CI (3~400 V, 50 Hz)
  • Article number
    6079271

Pump curves

Sub TWI 4.05..-B, (3~400 V)

Sub TWI 4.05..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.05..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-33-CI (3~400 V, 50 Hz)
  • EAN number
    4048482649054
  • Article number
    6079271
  • Gross weight, approx. m
    29.3 kg
  • Net weight, approx. m
    26 kg
  • Overall length L
    1276.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.05-33-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.05-25-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    6.8
  • Optimal volume flow Qopt
    5.4
  • Max. delivery head Hmax
    144.4
  • Optimal delivery head Hopt
    91.12
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Starting current I
    30 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1½
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-25-CI (3~400 V, 50 Hz)
  • EAN number
    4048482649047
  • Article number
    6079270
  • Net weight, approx. m
    18 kg
  • Gross weight, approx. m
    19.5 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    13.93 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1½
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    18 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    18 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-25-CI (3~400 V, 50 Hz)
  • Article number
    6079270

Pump curves

Sub TWI 4.05..-B, (3~400 V)

Sub TWI 4.05..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.05..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-25-CI (3~400 V, 50 Hz)
  • EAN number
    4048482649047
  • Article number
    6079270
  • Gross weight, approx. m
    19.5 kg
  • Net weight, approx. m
    18 kg
  • Overall length L
    1045.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.05-25-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.05-21-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    6.8
  • Optimal volume flow Qopt
    5.5
  • Max. delivery head Hmax
    122.9
  • Optimal delivery head Hopt
    77.53
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Starting current I
    30 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1½
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-21-CI (3~400 V, 50 Hz)
  • EAN number
    4048482649030
  • Article number
    6079269
  • Net weight, approx. m
    17 kg
  • Gross weight, approx. m
    18.8 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    11.96 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1½
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    17 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    17 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-21-CI (3~400 V, 50 Hz)
  • Article number
    6079269

Pump curves

Sub TWI 4.05..-B, (3~400 V)

Sub TWI 4.05..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.05..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-21-CI (3~400 V, 50 Hz)
  • EAN number
    4048482649030
  • Article number
    6079269
  • Gross weight, approx. m
    18.8 kg
  • Net weight, approx. m
    17 kg
  • Overall length L
    961.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.05-21-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.05-17-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    6.8
  • Optimal volume flow Qopt
    5.0
  • Max. delivery head Hmax
    100.0
  • Optimal delivery head Hopt
    67.97
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Starting current I
    30 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1½
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-17-CI (3~400 V, 50 Hz)
  • EAN number
    4048482649023
  • Article number
    6079268
  • Net weight, approx. m
    16 kg
  • Gross weight, approx. m
    17.9 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    9.61 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1½
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    16 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    16 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-17-CI (3~400 V, 50 Hz)
  • Article number
    6079268

Pump curves

Sub TWI 4.05..-B, (3~400 V)

Sub TWI 4.05..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.05..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-17-CI (3~400 V, 50 Hz)
  • EAN number
    4048482649023
  • Article number
    6079268
  • Gross weight, approx. m
    17.9 kg
  • Net weight, approx. m
    16 kg
  • Overall length L
    877.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.05-17-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.05-12-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    6.8
  • Optimal volume flow Qopt
    4.9
  • Max. delivery head Hmax
    71.1
  • Optimal delivery head Hopt
    49.51
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Starting current I
    21 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.79
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1½
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037935
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-12-CI (3~400 V, 50 Hz)
  • EAN number
    4048482649016
  • Article number
    6079267
  • Net weight, approx. m
    14 kg
  • Gross weight, approx. m
    15.3 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    6.86 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1½
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    14 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    14 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-12-CI (3~400 V, 50 Hz)
  • Article number
    6079267

Pump curves

Sub TWI 4.05..-B, (3~400 V)

Sub TWI 4.05..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.05..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-12-CI (3~400 V, 50 Hz)
  • EAN number
    4048482649016
  • Article number
    6079267
  • Gross weight, approx. m
    15.3 kg
  • Net weight, approx. m
    14 kg
  • Overall length L
    740.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.05-12-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.05-08-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    6.8
  • Optimal volume flow Qopt
    4.7
  • Max. delivery head Hmax
    47.2
  • Optimal delivery head Hopt
    32.79
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.75 kW
  • Rated speed n
    865 rpm
  • Rated current IN
    2.05 A
  • Starting current I
    10.6 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1½
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037935
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-08-CI (3~400 V, 50 Hz)
  • EAN number
    4048482649009
  • Article number
    6079266
  • Net weight, approx. m
    11 kg
  • Gross weight, approx. m
    12.4 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    4.71 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1½
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    11 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.75 kW
  • Rated speed n
    865 rpm
  • Rated current IN
    2.05 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    11 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-08-CI (3~400 V, 50 Hz)
  • Article number
    6079266

Pump curves

Sub TWI 4.05..-B, (3~400 V)

Sub TWI 4.05..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.05..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-08-CI (3~400 V, 50 Hz)
  • EAN number
    4048482649009
  • Article number
    6079266
  • Gross weight, approx. m
    12.4 kg
  • Net weight, approx. m
    11 kg
  • Overall length L
    606.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.05-08-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.05-06-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    6.8
  • Optimal volume flow Qopt
    4.3
  • Max. delivery head Hmax
    35.2
  • Optimal delivery head Hopt
    25.91
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.55 kW
  • Rated speed n
    2870 rpm
  • Rated current IN
    1.58 A
  • Starting current I
    7.4 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.74
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1½
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037935
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-06-CI (3~400 V, 50 Hz)
  • EAN number
    4048482648996
  • Article number
    6079265
  • Net weight, approx. m
    10 kg
  • Gross weight, approx. m
    11.1 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    3.24 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1½
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    10 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.55 kW
  • Rated speed n
    2870 rpm
  • Rated current IN
    1.58 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    10 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-06-CI (3~400 V, 50 Hz)
  • Article number
    6079265

Pump curves

Sub TWI 4.05..-B, (3~400 V)

Sub TWI 4.05..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.05..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-06-CI (3~400 V, 50 Hz)
  • EAN number
    4048482648996
  • Article number
    6079265
  • Gross weight, approx. m
    11.1 kg
  • Net weight, approx. m
    10 kg
  • Overall length L
    544.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.05-06-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.05-04-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    6.8
  • Optimal volume flow Qopt
    4.0
  • Max. delivery head Hmax
    23.5
  • Optimal delivery head Hopt
    17.94
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.55 kW
  • Rated speed n
    2870 rpm
  • Rated current IN
    1.58 A
  • Starting current I
    7.4 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.74
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1½
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037935
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-04-CI (3~400 V, 50 Hz)
  • EAN number
    4048482648989
  • Article number
    6079264
  • Net weight, approx. m
    9 kg
  • Gross weight, approx. m
    10.5 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    2.26 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1½
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    9 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.55 kW
  • Rated speed n
    2870 rpm
  • Rated current IN
    1.58 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    9 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-04-CI (3~400 V, 50 Hz)
  • Article number
    6079264

Pump curves

Sub TWI 4.05..-B, (3~400 V)

Sub TWI 4.05..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.05..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.05-04-CI (3~400 V, 50 Hz)
  • EAN number
    4048482648989
  • Article number
    6079264
  • Gross weight, approx. m
    10.5 kg
  • Net weight, approx. m
    9 kg
  • Overall length L
    502.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.05-04-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.03-45-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    4.7
  • Optimal volume flow Qopt
    2.9
  • Max. delivery head Hmax
    269.4
  • Optimal delivery head Hopt
    198.80
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    3.00 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    7.40 A
  • Starting current I
    42 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-45-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647937
  • Article number
    6079263
  • Net weight, approx. m
    29 kg
  • Gross weight, approx. m
    32.7 kg
  • Length with packaging
    2300 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    26.48 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    29 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    3.00 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    7.40 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    29 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-45-CI (3~400 V, 50 Hz)
  • Article number
    6079263

Pump curves

Sub TWI 4.03..-B, (3~400 V)

Sub TWI 4.03..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.03..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-45-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647937
  • Article number
    6079263
  • Gross weight, approx. m
    32.7 kg
  • Net weight, approx. m
    29 kg
  • Overall length L
    1543.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.03-45-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.03-39-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    4.7
  • Optimal volume flow Qopt
    2.9
  • Max. delivery head Hmax
    236.0
  • Optimal delivery head Hopt
    175.40
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    3.00 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    7.40 A
  • Starting current I
    42 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-39-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647920
  • Article number
    6079262
  • Net weight, approx. m
    28 kg
  • Gross weight, approx. m
    31.7 kg
  • Length with packaging
    2300 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    23.05 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    28 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    3.00 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    7.40 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    28 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-39-CI (3~400 V, 50 Hz)
  • Article number
    6079262

Pump curves

Sub TWI 4.03..-B, (3~400 V)

Sub TWI 4.03..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.03..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-39-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647920
  • Article number
    6079262
  • Gross weight, approx. m
    31.7 kg
  • Net weight, approx. m
    28 kg
  • Overall length L
    1417.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.03-39-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.03-33-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    4.7
  • Optimal volume flow Qopt
    3.0
  • Max. delivery head Hmax
    197.8
  • Optimal delivery head Hopt
    145.40
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Starting current I
    30 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-33-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647913
  • Article number
    6079261
  • Net weight, approx. m
    22 kg
  • Gross weight, approx. m
    23.1 kg
  • Length with packaging
    1550 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    19.12 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    22 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    22 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-33-CI (3~400 V, 50 Hz)
  • Article number
    6079261

Pump curves

Sub TWI 4.03..-B, (3~400 V)

Sub TWI 4.03..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.03..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-33-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647913
  • Article number
    6079261
  • Gross weight, approx. m
    23.1 kg
  • Net weight, approx. m
    22 kg
  • Overall length L
    1236.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.03-33-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.03-29-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    4.7
  • Optimal volume flow Qopt
    3.2
  • Max. delivery head Hmax
    172.7
  • Optimal delivery head Hopt
    122.50
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Starting current I
    30 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-29-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647906
  • Article number
    6079260
  • Net weight, approx. m
    19 kg
  • Gross weight, approx. m
    20.4 kg
  • Length with packaging
    1550 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    16.67 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    19 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    19 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-29-CI (3~400 V, 50 Hz)
  • Article number
    6079260

Pump curves

Sub TWI 4.03..-B, (3~400 V)

Sub TWI 4.03..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.03..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-29-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647906
  • Article number
    6079260
  • Gross weight, approx. m
    20.4 kg
  • Net weight, approx. m
    19 kg
  • Overall length L
    1129.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.03-29-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.03-25-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    4.7
  • Optimal volume flow Qopt
    3.0
  • Max. delivery head Hmax
    149.7
  • Optimal delivery head Hopt
    109.60
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Starting current I
    30 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-25-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647890
  • Article number
    6079259
  • Net weight, approx. m
    18 kg
  • Gross weight, approx. m
    19.5 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    14.71 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    18 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    18 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-25-CI (3~400 V, 50 Hz)
  • Article number
    6079259

Pump curves

Sub TWI 4.03..-B, (3~400 V)

Sub TWI 4.03..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.03..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-25-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647890
  • Article number
    6079259
  • Gross weight, approx. m
    19.5 kg
  • Net weight, approx. m
    18 kg
  • Overall length L
    1045.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.03-25-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.03-22-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    4.7
  • Optimal volume flow Qopt
    3.0
  • Max. delivery head Hmax
    132.7
  • Optimal delivery head Hopt
    98.34
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Starting current I
    21 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.79
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-22-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647883
  • Article number
    6079258
  • Net weight, approx. m
    16 kg
  • Gross weight, approx. m
    17.4 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    12.75 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    16 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    16 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-22-CI (3~400 V, 50 Hz)
  • Article number
    6079258

Pump curves

Sub TWI 4.03..-B, (3~400 V)

Sub TWI 4.03..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.03..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-22-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647883
  • Article number
    6079258
  • Gross weight, approx. m
    17.4 kg
  • Net weight, approx. m
    16 kg
  • Overall length L
    950.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.03-22-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.03-18-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    4.7
  • Optimal volume flow Qopt
    3.0
  • Max. delivery head Hmax
    108.4
  • Optimal delivery head Hopt
    81.02
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Starting current I
    21 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.79
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-18-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647876
  • Article number
    6079257
  • Net weight, approx. m
    15 kg
  • Gross weight, approx. m
    16.6 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    10.30 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    15 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    15 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-18-CI (3~400 V, 50 Hz)
  • Article number
    6079257

Pump curves

Sub TWI 4.03..-B, (3~400 V)

Sub TWI 4.03..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.03..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-18-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647876
  • Article number
    6079257
  • Gross weight, approx. m
    16.6 kg
  • Net weight, approx. m
    15 kg
  • Overall length L
    866.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.03-18-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.03-15-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    4.7
  • Optimal volume flow Qopt
    3.0
  • Max. delivery head Hmax
    91.9
  • Optimal delivery head Hopt
    69.65
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Starting current I
    16 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.78
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-15-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647869
  • Article number
    6079256
  • Net weight, approx. m
    14 kg
  • Gross weight, approx. m
    14.9 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    8.83 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    14 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    14 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-15-CI (3~400 V, 50 Hz)
  • Article number
    6079256

Pump curves

Sub TWI 4.03..-B, (3~400 V)

Sub TWI 4.03..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.03..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-15-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647869
  • Article number
    6079256
  • Gross weight, approx. m
    14.9 kg
  • Net weight, approx. m
    14 kg
  • Overall length L
    779.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.03-15-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.03-12-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    4.7
  • Optimal volume flow Qopt
    3.0
  • Max. delivery head Hmax
    71.3
  • Optimal delivery head Hopt
    52.30
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Starting current I
    16 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.78
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037935
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-12-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647852
  • Article number
    6079255
  • Net weight, approx. m
    13 kg
  • Gross weight, approx. m
    14.2 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    6.86 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    13 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    13 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-12-CI (3~400 V, 50 Hz)
  • Article number
    6079255

Pump curves

Sub TWI 4.03..-B, (3~400 V)

Sub TWI 4.03..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.03..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-12-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647852
  • Article number
    6079255
  • Gross weight, approx. m
    14.2 kg
  • Net weight, approx. m
    13 kg
  • Overall length L
    716.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.03-12-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.03-09-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    4.7
  • Optimal volume flow Qopt
    2.8
  • Max. delivery head Hmax
    52.9
  • Optimal delivery head Hopt
    40.32
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.75 kW
  • Rated speed n
    865 rpm
  • Rated current IN
    2.05 A
  • Starting current I
    10.6 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037935
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-09-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647845
  • Article number
    6079254
  • Net weight, approx. m
    11 kg
  • Gross weight, approx. m
    12.5 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    4.90 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    11 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.75 kW
  • Rated speed n
    865 rpm
  • Rated current IN
    2.05 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    11 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-09-CI (3~400 V, 50 Hz)
  • Article number
    6079254

Pump curves

Sub TWI 4.03..-B, (3~400 V)

Sub TWI 4.03..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.03..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-09-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647845
  • Article number
    6079254
  • Gross weight, approx. m
    12.5 kg
  • Net weight, approx. m
    11 kg
  • Overall length L
    627.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.03-09-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.03-06-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    4.7
  • Optimal volume flow Qopt
    2.4
  • Max. delivery head Hmax
    35.5
  • Optimal delivery head Hopt
    29.50
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.55 kW
  • Rated speed n
    2870 rpm
  • Rated current IN
    1.58 A
  • Starting current I
    7.4 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.74
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037935
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-06-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647838
  • Article number
    6079253
  • Net weight, approx. m
    10 kg
  • Gross weight, approx. m
    11.2 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    3.43 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    10 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.55 kW
  • Rated speed n
    2870 rpm
  • Rated current IN
    1.58 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    10 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-06-CI (3~400 V, 50 Hz)
  • Article number
    6079253

Pump curves

Sub TWI 4.03..-B, (3~400 V)

Sub TWI 4.03..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.03..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.03-06-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647838
  • Article number
    6079253
  • Gross weight, approx. m
    11.2 kg
  • Net weight, approx. m
    10 kg
  • Overall length L
    544.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.03-06-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.02-48-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    2.9
  • Optimal volume flow Qopt
    1.8
  • Max. delivery head Hmax
    270.6
  • Optimal delivery head Hopt
    199.40
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Starting current I
    30 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-48-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647791
  • Article number
    6079252
  • Net weight, approx. m
    25 kg
  • Gross weight, approx. m
    27.3 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    26.48 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    25 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    25 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-48-CI (3~400 V, 50 Hz)
  • Article number
    6079252

Pump curves

Sub TWI 4.02..-B, (3~400 V)

Sub TWI 4.02..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.02..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-48-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647791
  • Article number
    6079252
  • Gross weight, approx. m
    27.3 kg
  • Net weight, approx. m
    25 kg
  • Overall length L
    1551.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.02-48-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.02-40-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    2.9
  • Optimal volume flow Qopt
    1.9
  • Max. delivery head Hmax
    227.8
  • Optimal delivery head Hopt
    160.30
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Starting current I
    30 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037936
  • Item no. for jacket pipe cooling (vertical)
    4064431
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-40-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647784
  • Article number
    6079251
  • Net weight, approx. m
    23 kg
  • Gross weight, approx. m
    24.1 kg
  • Length with packaging
    2300 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    22.06 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    23 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    2.20 kW
  • Rated speed n
    2845 rpm
  • Rated current IN
    5.50 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    23 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-40-CI (3~400 V, 50 Hz)
  • Article number
    6079251

Pump curves

Sub TWI 4.02..-B, (3~400 V)

Sub TWI 4.02..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.02..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-40-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647784
  • Article number
    6079251
  • Gross weight, approx. m
    24.1 kg
  • Net weight, approx. m
    23 kg
  • Overall length L
    1383.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.02-40-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.02-33-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    2.9
  • Optimal volume flow Qopt
    2.0
  • Max. delivery head Hmax
    190.9
  • Optimal delivery head Hopt
    134.10
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Starting current I
    21 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.79
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-33-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647777
  • Article number
    6079250
  • Net weight, approx. m
    20 kg
  • Gross weight, approx. m
    23.3 kg
  • Length with packaging
    1550 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    18.63 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    20 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    20 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-33-CI (3~400 V, 50 Hz)
  • Article number
    6079250

Pump curves

Sub TWI 4.02..-B, (3~400 V)

Sub TWI 4.02..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.02..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-33-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647777
  • Article number
    6079250
  • Gross weight, approx. m
    23.3 kg
  • Net weight, approx. m
    20 kg
  • Overall length L
    1204.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.02-33-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.02-28-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    2.9
  • Optimal volume flow Qopt
    1.9
  • Max. delivery head Hmax
    161.8
  • Optimal delivery head Hopt
    116.20
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Starting current I
    21 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.79
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-28-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647760
  • Article number
    6079249
  • Net weight, approx. m
    17 kg
  • Gross weight, approx. m
    19.5 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    15.69 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    17 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    17 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-28-CI (3~400 V, 50 Hz)
  • Article number
    6079249

Pump curves

Sub TWI 4.02..-B, (3~400 V)

Sub TWI 4.02..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.02..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-28-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647760
  • Article number
    6079249
  • Gross weight, approx. m
    19.5 kg
  • Net weight, approx. m
    17 kg
  • Overall length L
    1076.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.02-28-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.02-23-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    2.9
  • Optimal volume flow Qopt
    1.9
  • Max. delivery head Hmax
    131.1
  • Optimal delivery head Hopt
    94.79
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Starting current I
    16 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.78
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-23-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647753
  • Article number
    6079248
  • Net weight, approx. m
    15 kg
  • Gross weight, approx. m
    16.5 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    12.75 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    15 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    15 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-23-CI (3~400 V, 50 Hz)
  • Article number
    6079248

Pump curves

Sub TWI 4.02..-B, (3~400 V)

Sub TWI 4.02..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.02..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-23-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647753
  • Article number
    6079248
  • Gross weight, approx. m
    16.5 kg
  • Net weight, approx. m
    15 kg
  • Overall length L
    947.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.02-23-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.02-18-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    2.9
  • Optimal volume flow Qopt
    1.7
  • Max. delivery head Hmax
    99.8
  • Optimal delivery head Hopt
    73.88
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Starting current I
    16 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.78
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-18-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647746
  • Article number
    6079247
  • Net weight, approx. m
    14 kg
  • Gross weight, approx. m
    15.4 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    9.81 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    14 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    14 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-18-CI (3~400 V, 50 Hz)
  • Article number
    6079247

Pump curves

Sub TWI 4.02..-B, (3~400 V)

Sub TWI 4.02..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.02..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-18-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647746
  • Article number
    6079247
  • Gross weight, approx. m
    15.4 kg
  • Net weight, approx. m
    14 kg
  • Overall length L
    842.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.02-18-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.02-13-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    2.9
  • Optimal volume flow Qopt
    1.9
  • Max. delivery head Hmax
    72.6
  • Optimal delivery head Hopt
    51.69
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.75 kW
  • Rated speed n
    865 rpm
  • Rated current IN
    2.05 A
  • Starting current I
    10.6 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-13-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647722
  • Article number
    6079246
  • Net weight, approx. m
    12 kg
  • Gross weight, approx. m
    13.4 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    7.06 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    12 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.75 kW
  • Rated speed n
    865 rpm
  • Rated current IN
    2.05 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    12 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-13-CI (3~400 V, 50 Hz)
  • Article number
    6079246

Pump curves

Sub TWI 4.02..-B, (3~400 V)

Sub TWI 4.02..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.02..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-13-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647722
  • Article number
    6079246
  • Gross weight, approx. m
    13.4 kg
  • Net weight, approx. m
    12 kg
  • Overall length L
    711.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.02-13-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.02-09-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.7
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    2.9
  • Optimal volume flow Qopt
    1.5
  • Max. delivery head Hmax
    50.7
  • Optimal delivery head Hopt
    42.17
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.55 kW
  • Rated speed n
    2870 rpm
  • Rated current IN
    1.58 A
  • Starting current I
    7.4 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.74
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6037935
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-09-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647739
  • Article number
    6079245
  • Net weight, approx. m
    10 kg
  • Gross weight, approx. m
    11.4 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    4.90 m
Unit
  • Minimum efficiency index (MEI)
    0.7
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    10 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.55 kW
  • Rated speed n
    2870 rpm
  • Rated current IN
    1.58 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    10 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-09-CI (3~400 V, 50 Hz)
  • Article number
    6079245

Pump curves

Sub TWI 4.02..-B, (3~400 V)

Sub TWI 4.02..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.02..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.02-09-CI (3~400 V, 50 Hz)
  • EAN number
    4048482647739
  • Article number
    6079245
  • Gross weight, approx. m
    11.4 kg
  • Net weight, approx. m
    10 kg
  • Overall length L
    607.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.02-09-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.01-42-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    1.8
  • Optimal volume flow Qopt
    0.9
  • Max. delivery head Hmax
    231.9
  • Optimal delivery head Hopt
    179.70
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Starting current I
    21 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.79
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-42-CI (3~400 V, 50 Hz)
  • EAN number
    4048482646510
  • Article number
    6079244
  • Net weight, approx. m
    22 kg
  • Gross weight, approx. m
    23.1 kg
  • Length with packaging
    1550 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    22.36 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    22 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.50 kW
  • Rated speed n
    2843 rpm
  • Rated current IN
    3.85 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    22 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-42-CI (3~400 V, 50 Hz)
  • Article number
    6079244

Pump curves

Sub TWI 4.01..-B, (3~400 V)

Sub TWI 4.01..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.01..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-42-CI (3~400 V, 50 Hz)
  • EAN number
    4048482646510
  • Article number
    6079244
  • Gross weight, approx. m
    23.1 kg
  • Net weight, approx. m
    22 kg
  • Overall length L
    1393.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.01-42-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.01-36-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    1.8
  • Optimal volume flow Qopt
    1.0
  • Max. delivery head Hmax
    198.3
  • Optimal delivery head Hopt
    143.60
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Starting current I
    16 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.78
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-36-CI (3~400 V, 50 Hz)
  • EAN number
    4048482646503
  • Article number
    6079243
  • Net weight, approx. m
    19 kg
  • Gross weight, approx. m
    32.1 kg
  • Length with packaging
    1550 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    19.12 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    19 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    19 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-36-CI (3~400 V, 50 Hz)
  • Article number
    6079243

Pump curves

Sub TWI 4.01..-B, (3~400 V)

Sub TWI 4.01..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.01..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-36-CI (3~400 V, 50 Hz)
  • EAN number
    4048482646503
  • Article number
    6079243
  • Gross weight, approx. m
    32.1 kg
  • Net weight, approx. m
    19 kg
  • Overall length L
    1243.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.01-36-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.01-28-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    1.8
  • Optimal volume flow Qopt
    0.9
  • Max. delivery head Hmax
    150.0
  • Optimal delivery head Hopt
    110.60
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Starting current I
    16 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.78
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-28-CI (3~400 V, 50 Hz)
  • EAN number
    4048482646497
  • Article number
    6079242
  • Net weight, approx. m
    16 kg
  • Gross weight, approx. m
    17.5 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    14.61 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    16 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    1.10 kW
  • Rated speed n
    2850 rpm
  • Rated current IN
    2.80 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    16 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-28-CI (3~400 V, 50 Hz)
  • Article number
    6079242

Pump curves

Sub TWI 4.01..-B, (3~400 V)

Sub TWI 4.01..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.01..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-28-CI (3~400 V, 50 Hz)
  • EAN number
    4048482646497
  • Article number
    6079242
  • Gross weight, approx. m
    17.5 kg
  • Net weight, approx. m
    16 kg
  • Overall length L
    1052.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.01-28-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.01-21-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    1.8
  • Optimal volume flow Qopt
    0.9
  • Max. delivery head Hmax
    111.7
  • Optimal delivery head Hopt
    80.80
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.75 kW
  • Rated speed n
    865 rpm
  • Rated current IN
    2.05 A
  • Starting current I
    10.6 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.77
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-21-CI (3~400 V, 50 Hz)
  • EAN number
    4048482646480
  • Article number
    6079241
  • Net weight, approx. m
    13 kg
  • Gross weight, approx. m
    15.0 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    10.79 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    13 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.75 kW
  • Rated speed n
    865 rpm
  • Rated current IN
    2.05 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    13 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-21-CI (3~400 V, 50 Hz)
  • Article number
    6079241

Pump curves

Sub TWI 4.01..-B, (3~400 V)

Sub TWI 4.01..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.01..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-21-CI (3~400 V, 50 Hz)
  • EAN number
    4048482646480
  • Article number
    6079241
  • Gross weight, approx. m
    15.0 kg
  • Net weight, approx. m
    13 kg
  • Overall length L
    879.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.01-21-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载

Sub TWI 4.01-18-CI (3~400 V, 50 Hz)

Data sheet

Hydraulic data
  • Minimum efficiency index (MEI)
    0.4
  • Maximum operating pressure PN
    40 bar
  • Max. sand content
    50
  • Max. immersion depth
    350.00 m
  • Max. volume flow Qmax
    1.8
  • Optimal volume flow Qopt
    0.9
  • Max. delivery head Hmax
    97.8
  • Optimal delivery head Hopt
    72.56
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.55 kW
  • Rated speed n
    2870 rpm
  • Rated current IN
    1.58 A
  • Starting current I
    7.4 A
  • Activation type
    Direct (D)
  • Power factor cos φ
    0.74
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Impeller
    1.4301
  • Shaft
    1.4057
  • Motor housing
    1.4301
Installation dimensions
  • Pipe connection on the pressure side RPD
    Rp 1¼
Information for order placements
  • Item no. for jacket pipe cooling (horizontal)
    6038901
  • Item no. for jacket pipe cooling (vertical)
    4064430
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-18-CI (3~400 V, 50 Hz)
  • EAN number
    4048482646473
  • Article number
    6079240
  • Net weight, approx. m
    12 kg
  • Gross weight, approx. m
    13.3 kg
  • Length with packaging
    1150 mm
  • Height with packaging
    200 mm
  • Width with packaging
    200 mm
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Minimum order quantity
    1

Tender text

Fully submersible, multistage pump for pumping industrial and drinking water (ACS rating) with radial or semi-axial impellers in sectional construction for vertical or horizontal installation, with built-in non-return valve. Corrosion-free single-phase or three-phase AC motor for direct starting with water-glycol filling. Hermetically cast with enamel-insulated windings, resin-impregnated and self-lubricating bearings. The motor is cooled by the pumped fluid. Therefore, the unit must always be operated immersed. The limit values for maximum fluid temperature and minimum flow velocity must be adhered to. Vertical installation is possible with or without cooling jacket. In cases of horizontal installation, a cooling jacket must always be provided .

Scope of delivery:

  • Submersible pump with connection cable and ACS rating
  • Single-phase version including switchbox with capacitor, thermal motor protection and On/Off switch
  • Installation and operating instructions
Operating data
  • Fluid media
    Water
  • Max. delivery head H
    9.41 m
Unit
  • Minimum efficiency index (MEI)
    0.4
  • Pipe connection on the pressure side RPD
    Rp 1¼
  • Maximum operating pressure p
    40 bar
  • Max. sand content
    50
  • Protection class motor
    IP68
  • Max. immersion depth
    350.00 m
  • Min. fluid temperature Tmin
    3 °C
  • Max. fluid temperature Tmax
    30 °C
  • Net weight, approx. m
    12 kg
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    0.55 kW
  • Rated speed n
    2870 rpm
  • Rated current IN
    1.58 A
  • Activation type
    Direct (D)
  • Max. switching frequency t
    20 1/h
  • Motor diameter Ø
    98 mm
  • Min. flow rate at the motor m/s
    0.08 m/s
Cable
  • Connection cable length
    1.5 m
  • Cable cross-section
    4G1,5 mm²
Materials
  • Pump housing
    1.4301
  • Motor housing
    1.4301
  • Shaft
    1.4057
  • Impeller
    1.4301
Information for order placements
  • Net weight, approx. m
    12 kg
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-18-CI (3~400 V, 50 Hz)
  • Article number
    6079240

Pump curves

Sub TWI 4.01..-B, (3~400 V)

Sub TWI 4.01..-B, (3~400 V)

3~400 V, 50 Hz, p = 1 kg/dm3, v = 1x10-6 m2/s, ISO 9906 Annex A, η = pump efficiency

Sub TWI 4.01..-B, (3~400 V)

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Sub TWI 4.01-18-CI (3~400 V, 50 Hz)
  • EAN number
    4048482646473
  • Article number
    6079240
  • Gross weight, approx. m
    13.3 kg
  • Net weight, approx. m
    12 kg
  • Overall length L
    796.0 mm
  • Height without packaging H
    98 mm
  • Colour
    Silver
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    98.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Downloads

REACH regulation

Edition 2018-10
Page format 209.9 x 296.7 mm
Number of pages 4

PDF (581 kB)

下载

PDF: Sub TWI 4.01-18-CI (3~400 V, 50 Hz)

进行配置

頁面選擇

頁面大小

可选信息

您可以輸入任何您想在標題中顯示的個人信息。

下载
