Sewage plant

removal

Drainage and sewage

Efficient solutions from Wilo ensure sustainable interaction with the environment. All private households and public institutions produce sewage, which must be transported away as efficiently and reliably as possible. The legally and socially defined hygiene standards must be fulfilled to avoid unpleasant odours, for example.

Sewage and sanitary technology

Water Management end-user - wastewater treatment

Due to territorial peculiarities or infrastructure conditions, it can often occur that drainage and sewage doesn't simply flow into the sewer system by means of gravitational flow. Here, our efficient and sustainable building services are used.

Every time sanitary facilities are installed, different aspects must be observed, such as:

  • Pressure

  • Sewage pipe

  • Pipe cleaning

  • Possible backflow

  • Positions where pipes could burst

  • Wastewater ordinance

  • Sewage disposal charges

  • The type of sanitary technology to be installed

Wilo is pleased to help you with the planning of sanitary facilities. Furthermore, we can advise you regarding the disposal of the resulting drainage and sewage.

Types of sewage disposal

Every sanitary facility produces sewage on a daily basis, which must be transported and disposed of in a responsible manner. Here the different requirements must be observed, because not all sewage is the same. There are several types of wastewater which are defined by the components of the sewage.

Grey water

Grey water is the term used for lightly contaminated sewage, which does not contain any faeces. Partially, grey water can be treated in process water treatment plants.

Black water

Black water is the part of the sewage that contains the faeces, urine and other residues. Treatment of this type of sewage involves more effort than is the case for grey water.

Rainwater

Rainwater is a type of wastewater. It comes about when substances from the environment are washed away by rainwater and then flow into the sewer system.

Dry weather outflow

Dry weather outflow is the term used to describe sewage, which enters the sewer system but does not mix with rainwater. Usually this is domestic, commercial or industrial sewage.

The different types of sewage are usually channelled by pump systems via the drain pipe into the sewer system where it is then sent through the town’s drainage system to wastewater treatment plants to be treated and purified. After clean water treatment, the water can be fed back into the water supply. For buildings and sites that are not connected to a public sewer system it is necessary to build a septic tank. The collected sewage from these septic tanks can be disposed of using sewage pumps.

Biological treatment with circulation tank

Field of applications for sewage pumps

A sewage pump (also known as a wastewater pump) facilitates the pumping of various sewage types that have either a lower or higher amount of solids and partly larger components with a different consistency.

Usually the entire pump is submerged in the sewage that is to be pumped. Normally, these pumps are not self-priming.
Pumps for wastewater and sewage have a specific delivery head, which must be adapted to suit the requirements of the building and environment.

Material and requirements for sewage systems

Due to the condition of the sewage and its constituents, which can be very corrosive and aggressive, the finish and material are decisive for sewage and drainage pumps. Wilo only uses extremely robust and wear-resistant materials.

Wilo pumps and systems set standards in terms of performance and efficiency. In addition, we provide you with support from the design phase, through to commissioning and the maintenance of your system. At Wilo, you get everything from one source: from domestic drainage, to pumps stations, intermediate or collection pumping stations, through to pressure drainage at any delivery head.

The high-performance and highly efficient Wilo lifting units and pumps ensure that our partners and users no longer have to worry about wastewater. It is reliably transported away in a resource-efficient manner. Our efficient solutions are used primarily in these fields of application:

  • Wastewater collection and transport

  • Wastewater treatment

  • Drainage and flood control

OUR PRODUCT HIGHLIGHTS:

Wilo-Drain TMR-32

the minimalist one

Design

Basement drainage pump, water-cooled

Advantages

  • Constantly clean pump sump due to patented integrated turbulator (TMW)

  • Minimal residual water level of 2 mm (TMR)

  • For aggressive fluids (HD version)

  • With float switch (A version)

  • Incl. hose connection and 10 m cable

Wilo-DrainLift TMP

the proven one

Design

Wastewater lifting unit (floor-mounted installation)

Advantages

  • Modern design

  • Shower drains from height of 110 mm possible

  • Low-noise operation

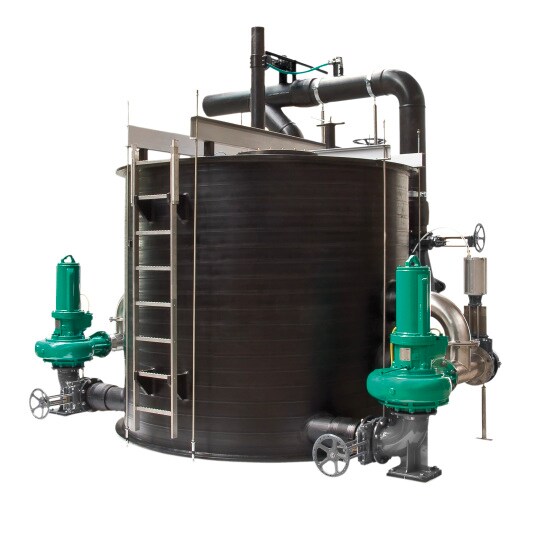

Wilo EMUport FTS

the long-lasting one

Design

Sewage lifting unit with solids separation system for installation in a building or concrete sump

Advantages

  • Energy saving due to pumps with narrow ball passage, which produces better efficiency than with conventional sewage pumping stations

  • Considerably less susceptible to plugging as the pumps do not come into contact with the solids in the wastewater

  • Uninterrupted operation during maintenance or repair work due to the station's double-pump design and individual shut-off of the solids separation reservoirs

  • All parts are accessible from outside, so very easy to maintain and hygienic

  • Resistance to corrosion and long life due to construction from PE-HD material

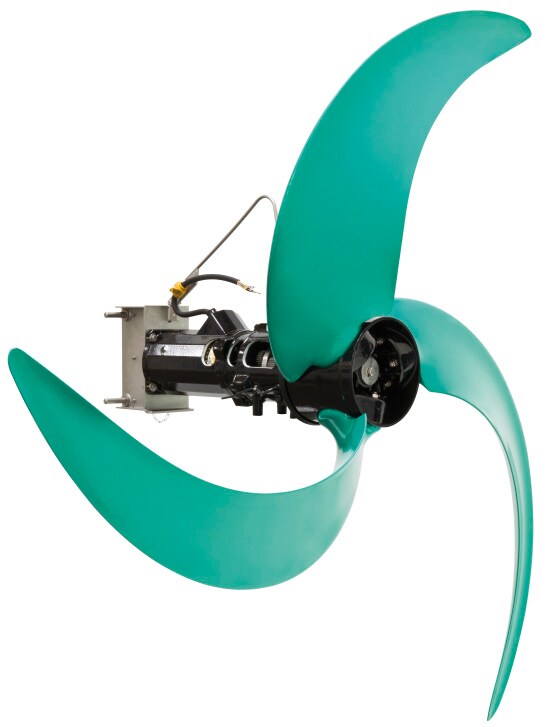

Wilo-EMU TRE 326

the permanently operating one

Design

Slow-running submersible mixer reduced by two-stage planetary gear

Advantages

  • 2-stage planetary gear for adjusting the propeller speed

  • Self-cleaning propeller

  • TRE units with IE3 motor

  • Propeller blades can be individually replaced (not for TR 212)

  • Easy-to-install blades and hub

  • Propeller in GfK version

  • ATEX and FM versions

  • Gear shaft 1.4462

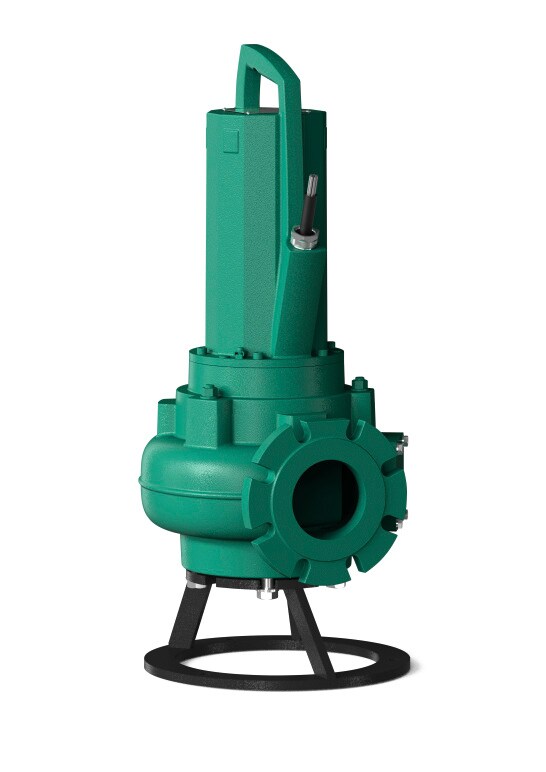

Wilo-Rexa PRO

the reliable one

Design

Submersible sewage pump for permanent operation, made of grey cast iron for stationary and portable wet well installation and stationary dry well installation.

Advantages

  • Vortex impeller non-susceptible to clogging

  • Seal by two mechanical seals

  • Ex-rated in accordance with ATEX as standard

  • Operation with frequency converter

  • Optional external sealing chamber control for the oil barrier chamber

  • Longitudinally watertight cable inlet

  • Very smooth operation

  • Easy installation via suspension unit or pump base

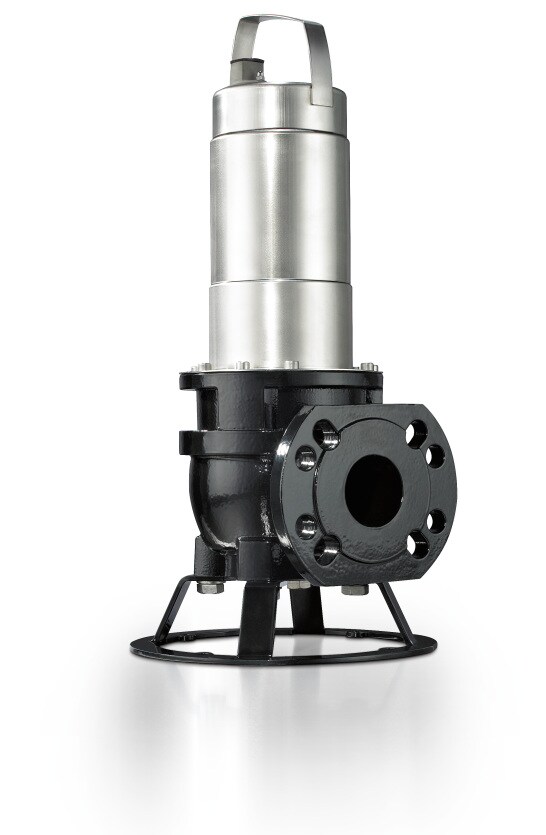

Wilo-Rexa FIT

the dependable one

Design

Submersible sewage pump for intermittent operation with grey cast iron hydraulics and stainless steel motor for stationary and portable wet well installation and stationary dry well installation.

Advantages

  • Vortex impeller non-susceptible to clogging

  • Seal by two mechanical seals

  • Optional external sealing chamber control for the oil barrier chamber

  • Very smooth operation

  • Easy installation via suspension unit or pump base

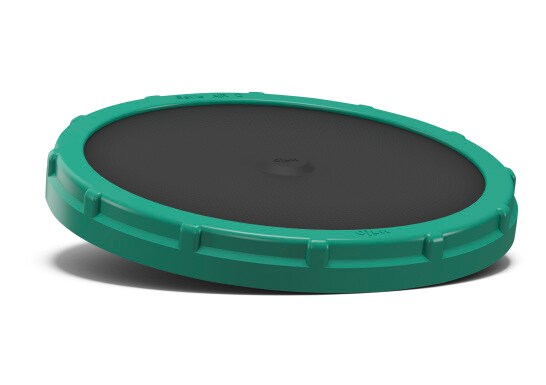

Wilo-Sevio AIR

the system optimiser

Design

Ventilation system with disc aerator

Advantages

  • High operational reliability thanks to integrated non-return valve

  • High system efficiency thanks to increased aeration capacity by means of a full-surface and optimised slot geometry

  • Diaphragm mount with integrated support function

  • Cost-efficient control range from 1.0…8.0 Nm³/h

  • For air temperatures up to 100 °C

  • Robust construction through the use of glass fibre reinforced plastic

  • Simple assembly without gluing and welding

  • Simple diaphragm replacement even after long periods of use

  • Simple retrofitting to existing pipework
