Wilo-Yonos PICO

Description

A visible symbol of the new generation of high-efficiency pumps for heating and air-conditioning systems in residential dwellings is the green operating button, which together with new functions provides maximum convenience in commissioning and maintenance. Defaults for radiators or underfloor heating – symbolised by pictograms – save time during commissioning. The energy efficiency was improved once more and the power consumption is thus even lower and always in view. And thanks to the more compact construction, pump replacement is now even easier.

Your advantages

  • Maximum operating convenience owing to the Green Button Technology with new, intelligent settings, intuitive user interface and new functions
  • Optimised energy efficiency owing to EC motor technology, settings with an accuracy of 0.1 m and display of current power consumption
  • Quick and easy installation and smooth exchange owing to the new, optimised construction
  • Easy maintenance and high degree of operational reliability due to automatically and manually triggered restart or pump venting function
  • Maximum operational reliability owing to proven technology
Installer Sascha

“The Yonos PICO can be installed in no time. I do not even need any tools for the electrical connection. And the settings are made quickly thanks to the green button.”

Less power consumption

With Wilo you will appeal to both your your customers`common sense and sense of responsibility. After all, with high-efficiency pumps homeowners can significantly reduce their houshold expenses. Switching over to these pums is a move that also pays off in terms of environment.

Individual saving calculation.

The "Wilo Assistant", the efficient Wilo-App for smartphones, allows you to calculate your customers`energy and CO2 savings on an individual basis, in seconds flat.

The entire world of pumps in one app

The “Wilo Assistant” makes the entire world of high-efficiency pump technology available on smartphones and tablets for sanitation, heating and air-conditioning specialists and specialist consultants of technical building equipment.
The free “Wilo Assistant” app is an easy-to-use mobile application and offers support in designing, customer consultation and installation. It also delivers a wealth of strong sales arguments for energy-efficient, economical and environmentally friendly pump technology for heating, air conditioning and domestic hot-water circulation.

Download on the App Store (iOS)Android App on Google playmore information about the Wilo Assistant app
Smart phone display with savings calculator of Wilo-Assistant

Series description

Special features/product advantages

  • Maximum operating convenience owing to the Green Button Technology with new, intelligent settings, intuitive user interface and new functions
  • Optimised energy efficiency owing to EC motor technology, settings with an accuracy of 0.1 m and display of current power consumption
  • Quick and easy installation and smooth exchange owing to the new, optimised construction
  • Easy maintenance and high degree of operational reliability due to automatically and manually triggered restart or pump venting function
  • Maximum operational reliability owing to proven technology

Description

A visible symbol of the new generation of high-efficiency pumps for heating and air-conditioning systems in residential dwellings is the green operating button, which together with new functions provides maximum convenience in commissioning and maintenance. Defaults for radiators or underfloor heating – symbolised by pictograms – save time during commissioning. The energy efficiency was improved once more and the power consumption is thus even lower and always in view. And thanks to the more compact construction, pump replacement is now even easier.

Design type

Glandless circulator with screwed connection, blocking-current proof EC motor and integrated electronic power control.

Application

All hot-water heating systems, air-conditioning applications, industrial circulation systems.

Equipment/function

Operating modes

  • Constant differential pressure
  • Variable differential pressure
  • Constant speed (3 control pump curves)

Manual functions

  • Setting the operating mode in accordance with the application
  • Setting of pump output (delivery head)
  • Setting the constant speed
  • Pump venting function
  • Manual restart

Automatic functions

  • Infinitely variable power adjustment according to the operating mode
  • Automatic restart
  • Automatic dry-running detection

Signal and display functions

  • Display of power consumption in W
  • Display of delivery head for setting
  • Indication of fault signals (error codes)
  • Display of manually activated restart or pump venting function

Equipment

  • Wrench attachment point on pump body
  • Quick electrical connection with Wilo-Connector
  • Pump venting function
  • Manual restart
  • Blocking-current proof motor
  • Particle filter

Scope of delivery

  • Pump
  • Wilo-Connector
  • Seals
  • Installation and operating instructions

Type key

Example:

Wilo-Yonos PICO 30/1-4

Yonos PICO

High-efficiency pump (screw-end pump), electronically controlled

30/

Nominal connection diameter

1-4

Nominal delivery head range [m]

130

Port-to-port length

Technical data

  • Fluid temperature -10 °C to +95 °C
  • Mains connection 1~230 V, 50 Hz
  • Protection class IPX2D
  • Screwed connection Rp ½, Rp 1 and Rp 1¼
  • Max. operating pressure 10 bar

Materials

  • Pump housing: Grey cast iron (EN-GJL-200)
  • Impeller: Plastic (PP - 40% GF)
  • Pump shaft: Stainless steel
  • Bearing: carbon, metal impregnated

Duty chart

Yonos PICO

Yonos PICO

Downloads

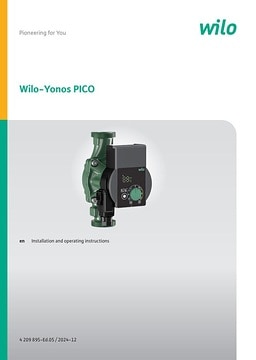

Wilo-Yonos PICO
