Wilo-DrainLift S

Series description

Design

Compact sewage lifting unit as single pump system

Application

Pumping of sewage containing faeces (according to DIN EN 12050-1) that cannot be returned to the sewer system using natural falls, and backflow resistant drainage of discharge points below the backflow level (according to DIN EN 12056-1).

Type key

Example: DrainLift S 1/6T-RV
SSize
1Number of integrated pumps
6Max. delivery head in m
TMains connection version:
M = 1~230 V
T = 3~400 V
RVPressure connection version
without = no non-return valve
RV = with non-return valve

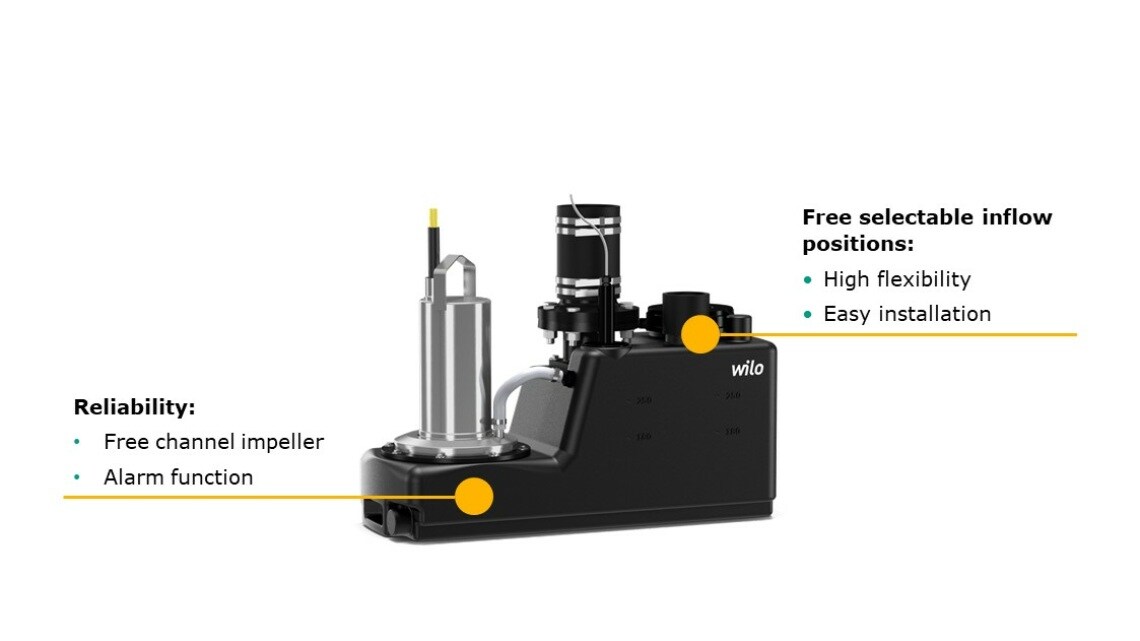

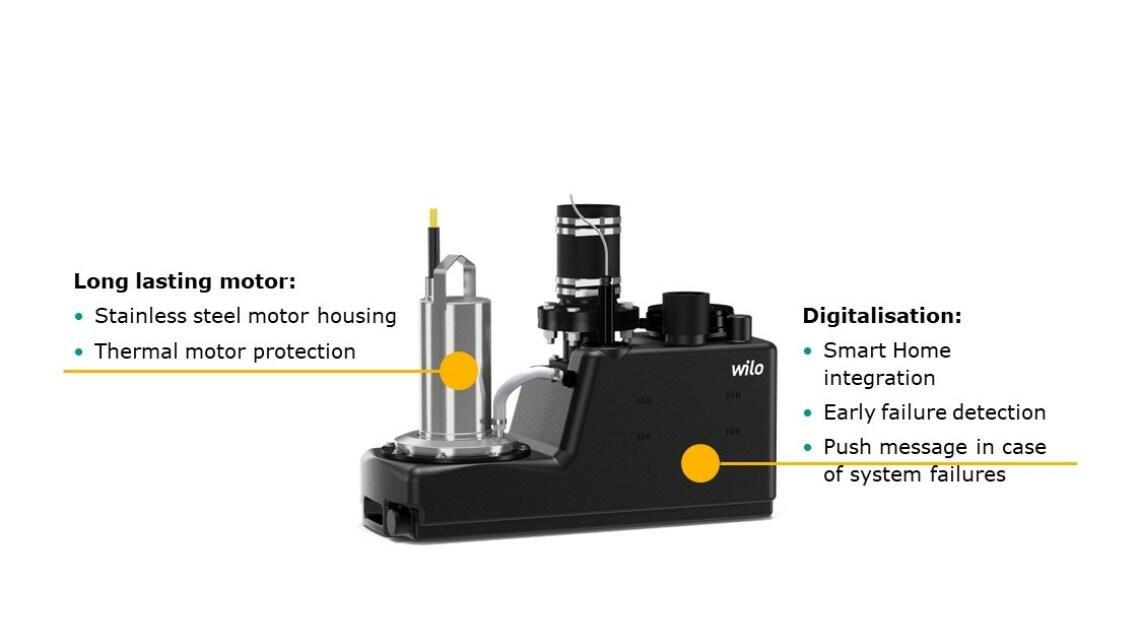

Special features/product advantages

  • Space-saving installation
  • Easy to install thanks to an integrated non-return valve (type “RV”)
  • Flexible due to free selection of inlets
  • Reduced residual water volume

Materials

  • Tank: PE plastic
  • Motor housing: stainless steel 1.4404 (AISI 316L)
  • Hydraulic housing: PE/PUR plastic
  • Impeller: PUR plastic

Technical data

  • Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
  • Operating mode: S3-15%, 120 sec
  • Fluid temperature: 3…40 °C, short-term 60 °C
  • Max. ambient temperature: 40 °C
  • Max. switching volume: 21 l
  • Flooding height: 2 mWs for max. 7 days
  • Pressure connection: DN 80
  • Inlet connections: 1x DN 40 / 1x DN 100 (freely selectable)
  • Ventilation connection: DN 70
  • Lifting unit protection class: IP68
  • Switchgear protection class: IP54

Equipment/function

  • Ready-to-plug
  • Thermal motor monitoring
  • Level control with float switch
  • Switchgear with potential-free output for collective fault signal
  • Non-return valve integrated (“RV” version)

Description/design

Ready for connection, fully submersible sewage lifting unit as single-pump system, with gastight and watertight collection reservoir with diagonally running collection chamber for deposit-free and safe operation, freely selectable inlets, level control with float switch and single-phase or three-phase motor with thermal motor monitoring.

Preinstalled switchgear for automatic operation, with a potential-free contact for the collective fault signal, integrated and mains-independent alarm, adjustable follow-up time and attached plug.

Scope of delivery

Sewage lifting unit ready for connection with connected switchgear and plug:

  • Switchgear with mains-independent alarm and plug:
  • 1x inlet seal DN 100
  • 1x hole saw for inlet connection DN 100
  • 1x non-return valve DN 80 (version “RV”)
  • 1x collar for connection of diaphragm hand pump or inlet connection Ø50 mm
  • 1x collar for ventilation connection DN 70
  • 3x sound absorption strips for sound insulation installation
  • Fixation material
  • Installation and operating instructions

Duty chart

Duty chart

Product

Design

Submersible

Single-pump system

Double-pump system

-

AC motor

Three-phase motor

Pump position: motor components outside the tank

Pump position: outside the tank

-

Pump position: in tank

-

Sealing chamber

Sealing by mechanical seal on fluid side

Seal for rotary shaft seal on fluid side

-

Integrated non-return valve

Sheath current cooling

-

Single-channel impeller

-

Multi-channel impeller

-

Vortex impeller

Macerator

-

Equipment/function

Inlet position freely selectable

Active carbon filter

-

Level control: with float switch

Level control: with level sensor

-

Level control: with pneumatic pressure transducer

Motor leakage monitoring

-

Mains-independent alarm

-

Alarm for potential-free contact

Ready-to-plug

Connection cable detachable

Switchgear

-

Hose connection for diaphragm hand pump

Gasket for suction pipe connection for diaphragm hand pump

-

Hose connection for ventilation

Installation sundries

Fixation material

Kit for pressure pipe connection

-

Curve cutter for inlet borehole

-

Hole saw for inlet borehole

Inlet seal

Soundproofing material

Installation drawings

Installation drawing

Toilet direct connection - floor-mounted toilet

Installation drawing

Toilet direct connection - wall-mounted toilet

Installation drawing

Front wall frame

Installation drawing

Similar to front wall

Installation drawing

Stationary diaphragm hand pump connection
