Comfort COR-3 Helix VE 1004/K/CCe
Data sheet
Hydraulic data
-
ControlWith frequency converter
-
Max. operating pressure p16 bar
-
Pipe connection on the pressure side DNdR 3
-
Pipe connection on the suction side DNsR 3
-
Number of stages4
-
Min. fluid temperature Tmin3 °C
-
Max. fluid temperature Tmax50 °C
-
Min. ambient temperature Tmin5 °C
-
Max. ambient temperature Tmax40 °C
Motor data
-
Voltage tolerance400/50:+/-10%_380/60:+/-10%_460/60:+/-10%
-
Insulation classF
-
Protection classIP55
-
Rated power P22.20 kW
-
Rated current IN5.10 A
-
Motor efficiency ηM 50%88.5
-
Motor efficiency ηM 75%88.5
-
Motor efficiency ηM 100%88.5
Materials
-
Pump housing1.4301
-
Impeller1.4307
-
Shaft1.4301
-
Mechanical sealQ1BE3GG
-
Gasket materialEPDM
Information for order placements
-
BrandWilo
-
Product descriptionComfort COR-3 Helix VE 1004/K/CCe
-
EAN number4048482207926
-
Article number2535972
-
Net weight, approx. m236 kg
-
Gross weight, approx. m261.0 kg
-
Length with packaging1100 mm
-
Height with packaging1890 mm
-
Width with packaging1050 mm
-
Packaging propertyTransport packaging
-
Packaging typeOne-way pallet
-
Minimum order quantity1
Tender text
Compact pressure-boosting system according to DIN 1988 and DIN EN 806, for direct or indirect connection. Consisting of non self-priming, switched in parallel, vertically-mounted stainless steel high-pressure centrifugal pumps in glanded versions, for which each pump is fitted with a frequency converter. Ready for connection with stainless steel pipework, mounted on a base frame, including control device with all necessary measurement and adjustment equipment.
For fully automatic water supply and pressure boosting in residential, commercial and public buildings, hotels, hospitals, department stores and for industrial systems.
For pumping drinking water, process water, cooling water, fire water (apart from fire-extinguishing systems in accordance with DIN 14462 and with the approval of the local fire safety authorities) or other types of industrial water that do not attack the materials either chemically or mechanically and do not contain abrasive or long-fibre constituents.
Special features/product benefits
- Heavy-duty system which satisfies all the requirements of DIN 1988 (EN 806)
- WRAS/ KTW/ ACS approval of the pumps for all parts that come in contact with the fluid (EPDM version)
- High-efficiency pump hydraulics of the Helix VE series in conjunction with IE4 IEC standard motors, fitted with air-cooled built-in frequency converters
- Energy-saving thanks to a super-proportionally wide control range of the frequency converter from 25 Hz up to a maximum of 60 Hz
- Very high degree of control and extremely simple operation with red-button technology
- Integrated dry-running detection with automatic cut-out in event of low water via performance characteristics of the motor control electronics
- Bidirectional mechanical seals in the pumps for easy maintenance
- Flexible lantern design permits direct access to the mechanical seal
- The spacer coupling enables the mechanical seal to be replaced without dismantling the motor (from 7.5 kW)
- Hydraulics of entire system are pressure-loss optimised.
- Parts that come in contact with the fluid are corrosion-resistant
- Comfort control / regulation unit CCe, with extended functions, PLC microcomputer and graphics-capable touchscreen, including analogue outputs for controlling the electronic pumps with frequency converters
- Factory inspection and default setting at optimum operating range (incl. acceptance test certificate based on EN10204 - 3.1)
Equipment/function
- Stainless steel high-pressure centrifugal pumps of the Helix VE series
- Base frame made of electrolytically galvanised steel, with height-adjustable vibration absorbers for insulation against structure-borne noise
- Shut-off valve on the suction and pressure sides of each pump
- Non-return valve on the pressure side of each pump
- 8 litre diaphragm pressure vessel, PN16 including throughflow fitting to DIN 4807, pressure side
- Pressure sensor (4-20 mA), pressure side
- Pressure gauge, pressure side
- Automatic pump control by means of a fully electronic
Comfort Controller (CCe) in a sheet metal enclosure painted RAL 7035, protection class IP 54 consisting of an internal power supply unit, CPU, analogue and digital input and output modules, for controlling electronic pumps with frequency converters.
Operation/ display
- Fully graphics-capable touch screen with 3-colour backlight for indicating the operating status operation/ fault/ acknowledged fault, and supporting symbols and plain text for menu navigation in six languages (out of up to 27 languages, with European and Asiatic characters selectable)
- Menu navigation with plain text and symbol representation
- 3 user levels, display and selection of menu language, passwords, operating parameters, control parameters
- Factory-preset parameters for easy commissioning/start-up
- Three setpoints can be set as standard, setpoints 2 and 3 can be activated by contact or time, external setpoint specification by 0/4-20mA signal
- Display of pump status and actual pressure value
- Lockable main switch
- Operation selectable with / without standby pump
- Elapsed time indicator for each pump
- Elapsed time indicator for entire system
- Switch activation counter for each pump
- Switching cycle counter for entire system
- Fault log for the last 35 faults with timestamp using a real-time clock
Control
- Fully automatic control for 1 to 6 frequency-controlled pumps by means of setpoint/actual value comparison
- Analogue outputs 0-10 Volt for controlling electronic pumps and frequency converters, potentiometers for speed preselection and LED display for emergency operation of each drive
- Day timer, e.g. for 2nd and 3rd Setpoint
- Automatic, load-sensitive cut-in of 1 to n peak-load pump(s) depending on the pressure - constant, p-c control variable
- Operating mode of the pumps freely selectable (manual, off, automatic)
- Manual-0-Automatic switch Preselection of the operating mode of each pump and manual operation in the event of a controller fault "Manual" (emergency/test mode available at mains power, motor protection available), "O" (pump switched off – cannot be switched on using the controller) and "Auto" (pump enabled for automatic mode via the controller)
- Automatic, configurable pump cycling
- Pump cycling by means of service life optimisation over operating hours.
- Alternative: Pump cycling after a set time period, regardless of the operating hours
- Alternatively by impulse: The base-load pump is cycled at each new demand, regardless of operating hours
- Alternatively: with pump preselection: one pump can be permanently defined as the base-load pump. All peak-load pumps are changed on a running time optimisation basis.
- Automatic, configurable pump test run (pump kick)
- Can be activated/deactivated
- Time between two test runs is freely programmable
- Disabling times can be programmed as desired
- Speed can be adjusted as desired
Monitoring
- Actual value of the system is output via a 0-10 Volt analogue signal for external measurement / display applications, 10 Volt depending on the sensor range value
- Continuity monitoring of the sensor cable
- Motor protection switch / contactor combination (from 5.5 kW thermal overload relay)
- Automatic changeover to the standby pump in the event of a operating pump fault
- Monitoring of maximum and minimum system values with adjustable time delays and limits
- Monitoring of maximum and minimum system values with adjustable prominent time display
- Zero-flow test for switching off the system when no water is being drawn off (adjustable parameters)
- Pipe filling function for filling empty pipes (initial filling of the consumer network)
- Protection against low water level via contact e.g. for float switch or pressure switch
Interfaces
- Potential-free contacts for SBM/SSM collective operation and collective fault signals
- Logical reversal can be applied to SBM and SSM
- Contacts for switching external systems ON /OFF and protection against low water
- External on/off via contact for deactivation of the system's automatic mode
- Inputs for thermal winding protection contact (WSK) connection
Optional accessories (factory installation or retrofitting after technical checks)
- Signal converter for 0/ 2-10V to 0/ 4-20mA
- Evaluation relay for PTC motor protection
- Individual run/fault signal
- DDC control module (external pump cycling, external pump test run, external acknowledgement, external switching the peak-load pump on / off)
- Battery-backed power supply unit
- Redundant sensor
- Connection to BMS systems in accordance with VDI 3814
Recommended accessories (to be ordered separately)
- Optional WMS low-water cut-out switchgear kit;
- Flexible connection lines or expansion joints
- Break tank for system separation
- Diaphragm pressure vessel
- Threaded caps for systems with threaded joint tubing
Bus systems (optional)
- BACnet, Profibus, LON bus, CAN bus, Modbus RTU, Web server (Ethernet), GSM modem
- Remote data transmission possible via GPRS modem
Further details on request
Standards followed
- Specifications for drinking water installations (TRWI) DIN 1988 (EN806)
- Diaphragm pressure vessel/ diaphragm expansion tank DIN 4807
- Electronic Equipment for Use in Power Installations EN 50178
- Electrical Equipment of Machines EN 60204-1
- Household and Similar Electrical Appliances - Safety EN 60335-1
- Low-voltage switchgear combinations EN 60439-1/ 61439-1
- EMC - Immunity for Industrial Environments EN 61000-6-2
- EMC - Emission Standard for Residential, Commercial and Light-Industrial Environments (EN 61000-6-3)
Operating data
-
Fluid mediaWater
-
Number of pumps3
-
Maximum operating pressure PN16 bar
-
Maximum inlet pressure p inl10 bar
Motor data
-
Rated power P22.20 kW
-
Rated current IN5.10 A
-
Rated speed n3500 rpm
-
Insulation classF
-
Protection class motorIP55
-
Protection class switchgearIP54
Materials
-
Pump housing1.4301
-
Impeller1.4307
-
Shaft1.4301
-
Shaft sealQ1BE3GG
-
Gasket materialEPDM
-
Pipework material1.4571
Installation dimensions
-
Pipe connection on the suction side DNsR 3
-
Pipe connection on the pressure side DNdR 3
Information for order placements
-
BrandWilo
-
Product descriptionComfort COR-3 Helix VE 1004/K/CCe
-
Net weight, approx. m236 kg
-
Article number2535972

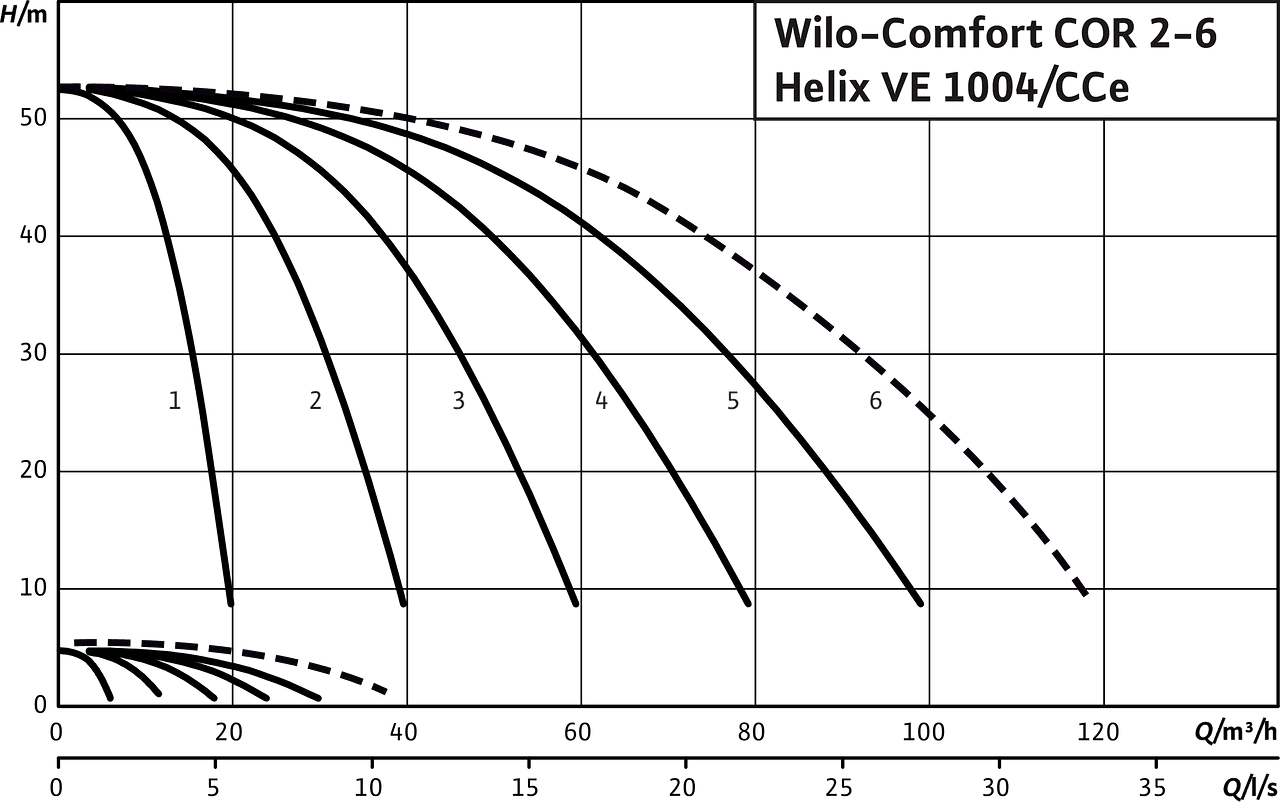

Pump curves
Comfort COR2-6 Helix VE 1004/CCe

---- including standby pump

Wiring diagram
3~400 V ≤7.5 kW


Ordering information
Information for order placements
-
BrandWilo
-
Product descriptionComfort COR-3 Helix VE 1004/K/CCe
-
EAN number4048482207926
-
Article number2535972
-
Gross weight, approx. m261.0 kg
-
Net weight, approx. m236 kg
-
Overall length L900.0 mm
-
Height without packaging H1685 mm
-
ColourGreen/black/silver
-
Packaging propertyTransport packaging
-
Packaging typeOne-way pallet
-
Number per layer1
-
Width without packaging L915.0 mm
-
Minimum order quantity1
-
Pieces per pallet1
