HiSewlift 3-35
Data sheet
Hydraulic data
-
Maximum operating pressure PN1 bar
-
Min. fluid temperature Tmin5 °C
-
Max. fluid temperature Tmax35 °C
-
Min. ambient temperature Tmin5 °C
-
Max. ambient temperature Tmax40 °C
Motor data
-
Mains connection1~230 V, 50 Hz
-
Rated current IN1.90 A
-
Rated speed1
-
Rated speed n2900 rpm
-
Number of poles2
-
Activation typeDirect online (DOL)
-
Max. switching frequency t100 1/h
-
Power consumption P1(Q=max.) of selected impeller * number of pumps P1400 W
-
Insulation classF
-
Protection classIP44
Materials
-
Pump housingPP-GF30
-
ImpellerPA66-GF15
-
Motor housingPP-GF30
Installation dimensions
-
Pipe connection on the suction side DNsDN 40
-
Pipe connection on the pressure side DNdDN 32/28/22
Information for order placements
-
BrandWilo
-
Product descriptionHiSewlift 3-35
-
EAN number4048482454238
-
Article number4191677
-
Net weight, approx. m6 kg
-
Gross weight, approx. m7.4 kg
-
Length with packaging571 mm
-
Height with packaging333 mm
-
Width with packaging239 mm
-
Packaging propertySales packaging
-
Packaging typeCardboard box
-
Minimum order quantity1
Tender text
Ready-to-plug, low-noise and automatic sewage lifting unit in accordance with EN 12050-3, with all required switching and control equipment.
Components of the system:
- Reliable submersible pump with macerator
- Built-in non-return valve
- Active carbon filter
- Overflow protection
- Flexible connecting piece
Connection for a stand-alone toilet and up to three further connection options (wash basin, shower, bidet).
Local standards and directives (e.g. DIN 1986 in Germany) must be complied with during construction work.
A mains-dependent alarm is available as an option.
Operating data
-
Fluid mediaWater
Approved field of application
-
Max. fluid temperature, for short periods up to 5 min T35 °C
-
Maximum operating pressure PN1 bar
Motor data
-
Mains connection1~230 V, 50 Hz
-
Voltage tolerance±10 %
-
Rated power P20.40 kW
-
Rated speed n2900 rpm
-
Rated current IN1.90 A
-
Insulation classF
-
Protection class motorIP44
Materials
-
Pump housingPP-GF30
-
ImpellerPA66-GF15
Information for order placements
-
BrandWilo
-
Product descriptionHiSewlift 3-35
-
Net weight, approx. m6 kg
-
Article number4191677

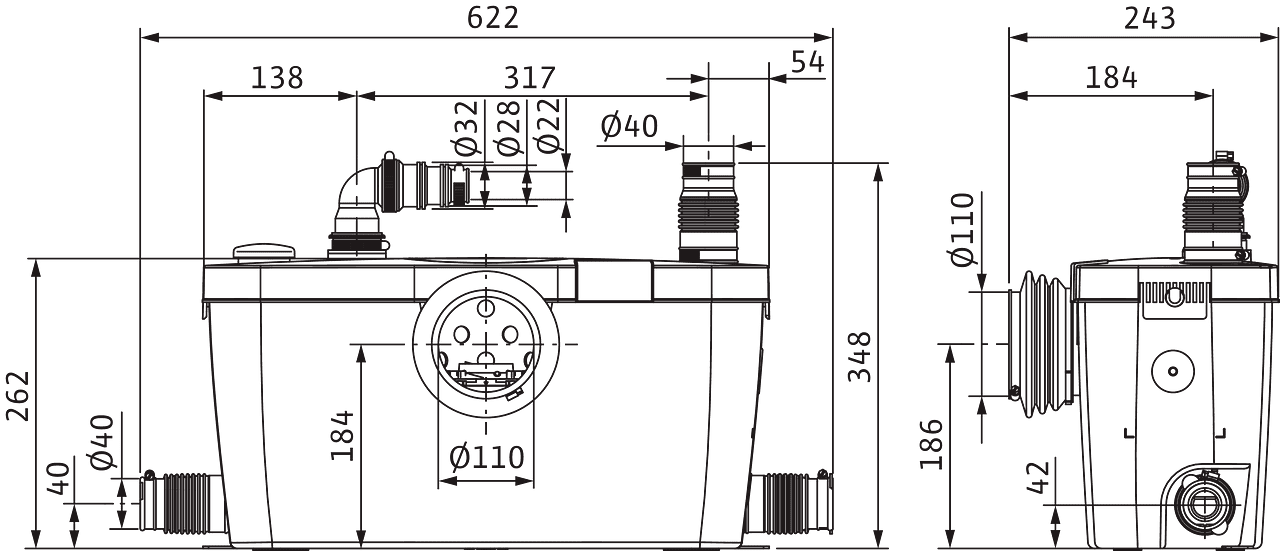

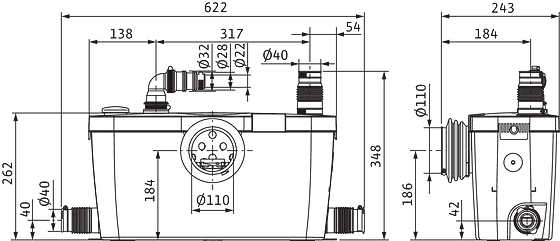

Dimensions and dimensions drawings
HiSewlift 3-35
Pump curves
HiSewlift
Ordering information
Information for order placements
-
BrandWilo
-
Product descriptionHiSewlift 3-35
-
EAN number4048482454238
-
Article number4191677
-
Gross weight, approx. m7.4 kg
-
Net weight, approx. m6 kg
-
Overall length L622.0 mm
-
Height without packaging H353 mm
-
ColourWhite
-
Packaging propertySales packaging
-
Packaging typeCardboard box
-
Number per layer6
-
Width without packaging B243.0 mm
-
Minimum order quantity1
-
Pieces per pallet18
