Comfort-Vario COR-1 MHIE 1602-GE (3~400 V, 50/60 Hz)

Data sheet

Hydraulic data
  • Control
    With frequency converter
  • Max. operating pressure p
    10 bar
  • Pipe connection on the pressure side DNd
    R 1½
  • Pipe connection on the suction side DNs
    Rp 2
  • Number of standby pumps
    0
  • Number of operating pumps
    1
  • Min. fluid temperature T
    3 °C
  • Max. fluid temperature T
    50 °C
  • Min. ambient temperature T
    5 °C
  • Max. ambient temperature T
    40 °C
Motor data
  • Mains connection
    3~400 V, 50/60 Hz
  • Voltage tolerance
    400/50:+/-10%_380/60:+/-10%_440/60:+/-6%
  • Insulation class
    F
  • Protection class
    IP54
  • Rated power P2
    2.20 kW
  • Rated current IN
    5.60 A
  • Motor efficiency ηM 50%
    81
  • Motor efficiency ηM 75%
    84
  • Motor efficiency ηM 100%
    85.5
Materials
  • Pump housing
    1.4301, X5CrNi18-10
  • Impeller
    1.4301, X5CrNi18-10
  • Shaft
    1.4301, X5CrNi18-10
  • Mechanical seal
    BQ1E3GG
  • Gasket material
    EPDM
Information for order placements
  • Net weight, approx. m
    40 kg
  • Brand
    Wilo
  • Product description
    Comfort-Vario COR-1 MHIE 1602-GE (3~400 V, 50/60 Hz)
  • Article number
    2523130

Tender text

Water-supply unit as compact unit for pressure boosting or as water supply unit for connecting to break tank/mains network. Consisting of: non self-priming, horizontal multistage stainless steel high-pressure multistage centrifugal pump of the MHIE series. Shaft sealing with direction of rotation-independent mechanical seal. IE2 motor with integrated, air-cooled frequency converter for variable speed control between 24 Hz and max. 60 Hz.

Set up on galvanised base frame with height-adjustable vibration absorber with diaphragm pressure vessel (volume 8 l) including flow fitting in accordance with DIN 4807, integrated non-return valve, pressure sensor (4 - 20 mA) and pressure gauge for the automatic system control with p = constant function.

Delivery head setpoint continuously adjustable by means of single-button operation available on the frequency converter. Automatic zero-volume detection and deactivation. Built-in motor protection by means of electronic current monitoring. With LCD display for status and actual pressure display, as well as one-button operation for configuring the pressure level and all setpoint defaults, as well as potential-free contacts for the collective fault and collective run signals.

Wired and ready for connection and provided with gear-operated ball cock on the pressure side.

Operating data
  • Fluid media
    Water
  • Maximum operating pressure PN
    16 bar
  • Maximum inlet pressure p inl
    6 bar
Motor data
  • Mains connection
    3~400 V, 50/60 Hz
  • Rated power P2
    2.20 kW
  • Rated current IN
    5.60 A
  • Rated speed n
    3500 rpm
  • Insulation class
    F
  • Protection class motor
    IP54
Materials
  • Pump housing
    1.4301, X5CrNi18-10
  • Impeller
    1.4301, X5CrNi18-10
  • Shaft
    1.4301, X5CrNi18-10
  • Shaft seal
    BQ1E3GG
  • Gasket material
    EPDM
  • Pipework material
    1.4571, X6CrNiMoTi17-12-2
Installation dimensions
  • Pipe connection on the suction side DNs
    Rp 2
  • Pipe connection on the pressure side DNd
    R 1½
Information for order placements
  • Brand
    Wilo
  • Product description
    Comfort-Vario COR-1 MHIE 1602-GE (3~400 V, 50/60 Hz)
  • Net weight, approx. m
    40 kg
  • Article number
    2523130

Dimensions and dimensions drawings

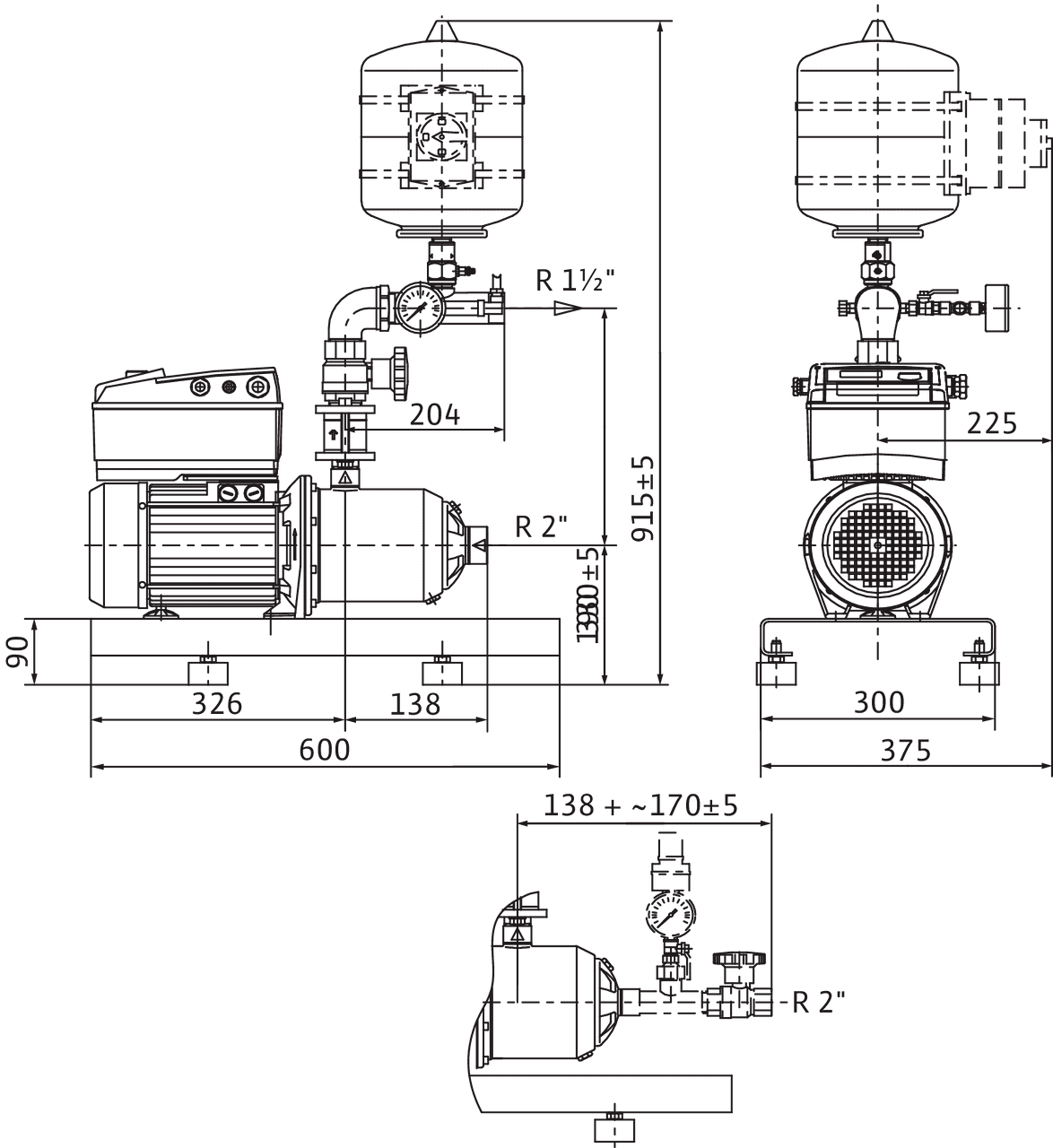

Comfort-Vario COR-1 MHIE GE

Comfort-Vario COR-1 MHIE GE

Sample systems are shown.

Accessories (to be ordered separately): Optional WMS low-water cut-out switchgear kit, main switch

Installation surface: flat and horizontal

Installation location: dry, well ventilated and frost-proof

Comfort-Vario COR-1 MHIE GE

Pump curves

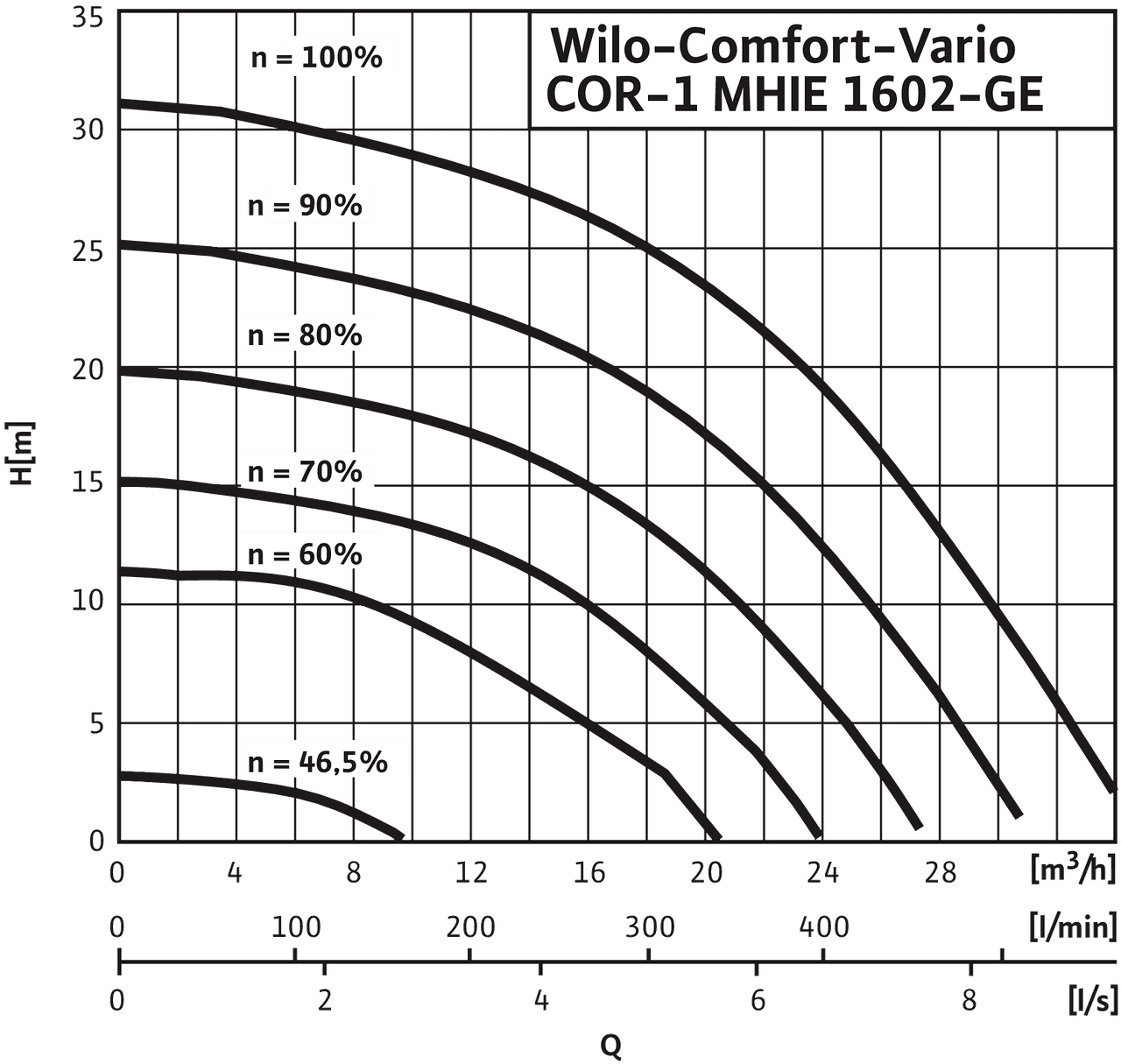

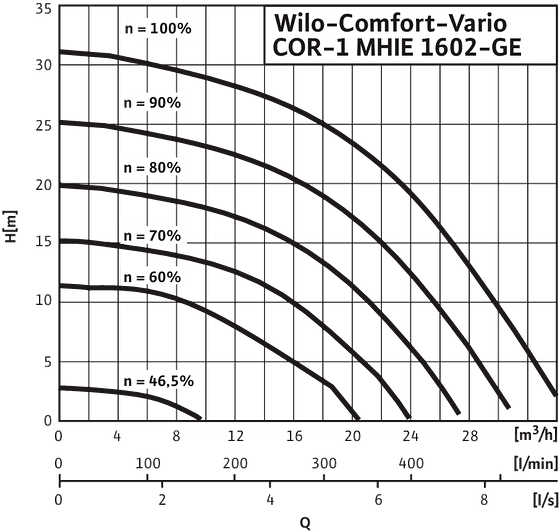

Comfort-Vario COR-1 MHIE1602-2G-GE

Comfort-Vario COR-1 MHIE1602-2G-GE
Comfort-Vario COR-1 MHIE1602-2G-GE

Wiring diagram

3~400 V ≤7.5 kW

3~400 V ≤7.5 kW
3~400 V ≤7.5 kW

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Comfort-Vario COR-1 MHIE 1602-GE (3~400 V, 50/60 Hz)
  • EAN number
    4016322769507
  • Article number
    2523130
  • Gross weight, approx. m
    64.0 kg
  • Net weight, approx. m
    40 kg
  • Overall length L
    600.0 mm
  • Height without packaging H
    915 mm
  • Colour
    Green/black/silver
  • Packaging property
    Transport packaging
  • Packaging type
    Europallet
  • Number per layer
    1
  • Width without packaging L
    375.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1
