Peripheral inline booster - PW 122 / PW 175 / PW 252

Technical Data:
Flow: 40 LPM
Head: 45 mts

Application:
Boosting water pressure at taps and showers / water supply for household use / water transfer for small machines and instruments / sprinkler systems / gardening and car washing

Features:
Self priming function, automatic operation, thermal protector to avoid motor burn out, efficient cooling for motor by specially designed cooling fan and Easy to carry, install and operate

Single pump booster (SS Impeller) - FWJ

Technical Data:
Flow: upto 80 LPM
Head: upto 46 m
Voltage: 1 ~ 230 V, 50 Hz.

Application:
Water transfer in - Bungalows / farm houses / apartments / hostels

Features:
Stainless steel pump body, stainless steel impeller, available with electronic control for automatic operation, high efficient motor suitable for wide voltage fluctuations, anti rust material, component parts insensitive to corrosion, easy to carry, install and operate

Single pump booster (SS impeller) - HWJ

Technical Data:
Flow: upto 80 LPM
Head: upto 46 m
Voltage: 1 ~ 230 V, 50 Hz.

Application:
Water transfer in - Bungalows / farm houses / apartments / hostels

Features:
Stainless steel pump body, stainless steel impeller, available with hydro pneumatic tank for automatic operation, high efficient motor suitable for wide voltage fluctuations, anti rust material, component parts insensitive to corrosion, easy to carry, install and operate

Single pump booster (SS impeller) - HMHIL

Technical Data:
Flow: upto 215 LPM
Head: upto 62 m
Voltage: 1 ~ 230 V, 50 Hz.

Application:
Water transfer in - Bungalows / farm houses/ apartments / hostels

Features:
Silent in operation, stainless steel impeller, wetted parts made up of stainless steel, available with hydro pneumatic tank, high efficient motor suitable for wide voltage fluctuations, silent in operation and easy to carry, install and operate

Single pump booster (SS Impeller) - FMHIL

Technical Data:

Flow: upto 215 LPM
Head: upto 62 m
Voltage: 1 ~ 230 V, 50 Hz.

Application:

Water transfer in - Bungalows / Farm houses / Apartments / Hostels

Features:

Stainless steel impeller, wetted parts made up of stainless steel, available with hydro pneumatic tank / electronic control for automatic operation, high efficient motor suitable for wide voltage fluctuations, silent in operation and easy to carry, install and operate

Multistage pressure booster system with VFD (SS impeller) - VMHIL / VMHI

Technical Data:

Flow: upto 167 LPM
Head: upto 65 m

Application:

The pressure boosting pump with variable frequency drive is used to maintain the constant pressure in water supplies of - Residential buildings / Hotels / Hospitals / Water supply and distribution from a sump or a tank

Features:

Horizontal multistage stainless steel centrifugal pump with electric motor, non return brass valve on delivery, five way connector on delivery line, pressure transmitter and pressure gauge, pump and panel mounting base plate, factory assembled system supplied with pressure tank for ready to use, control panel with built in VFD, built in PLC and PID functions for pumping application, VFD communication through RS 485 Modbus communication through RJ 45 Connector for BMS and built in over voltage, under voltage, short circuit motor overload and dry run protection with float.

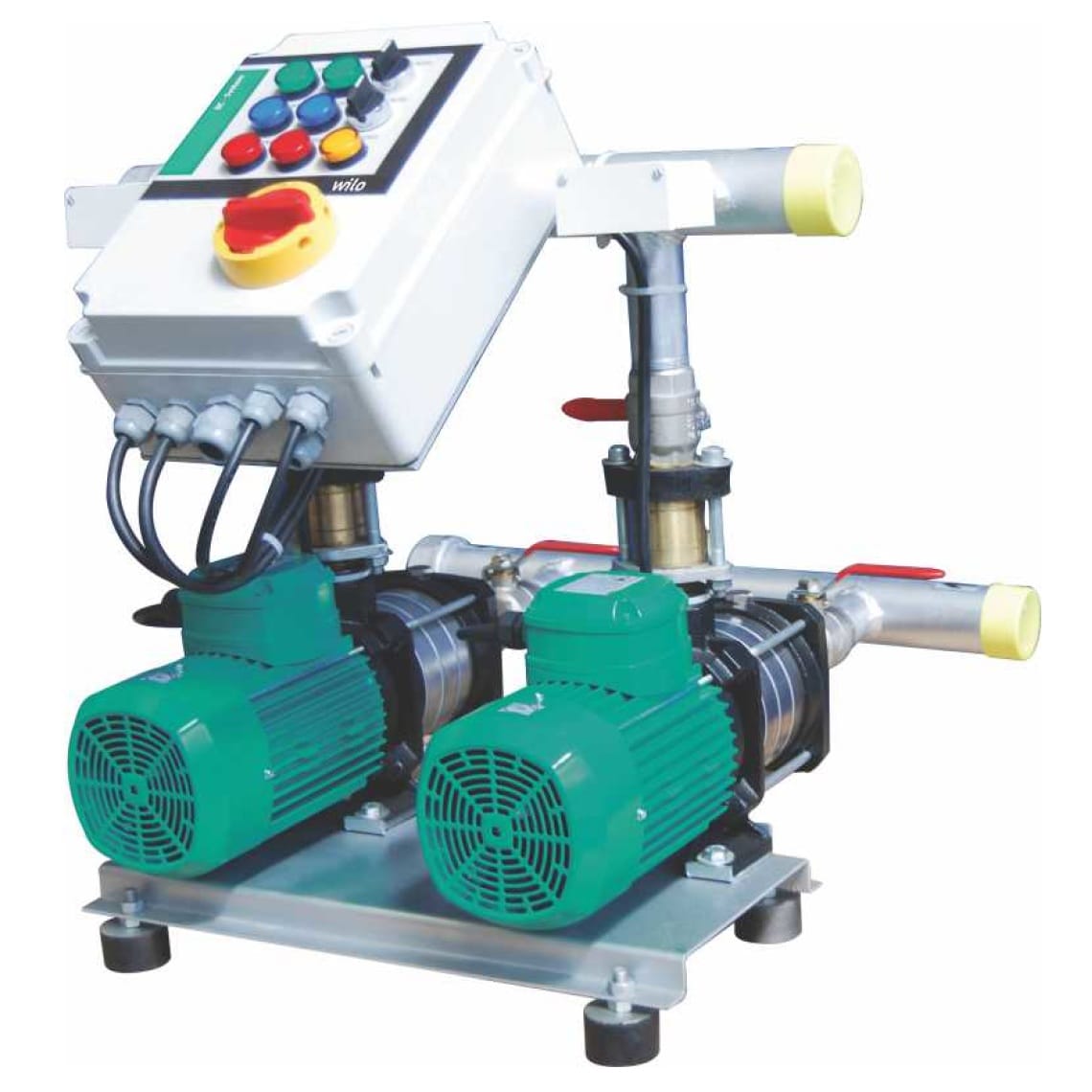

Horizontal twin pump booster (SS impeller) - MHIL / MHI - BC

Technical Data:

Flow: upto 430 LPM
Head: upto 65 m

Application:

Pressure boosting in - Bungalows / farm houses / apartments / hotels

Features:

Horizontal multistage stainless steel centrifugal pump with electric motor, factory assembled system along with control panel supplied for ready to use, automatic pump cascading and alteration, built in over voltage, under voltage, short circuit motor overload and dry run protection with float and easy to install and operate

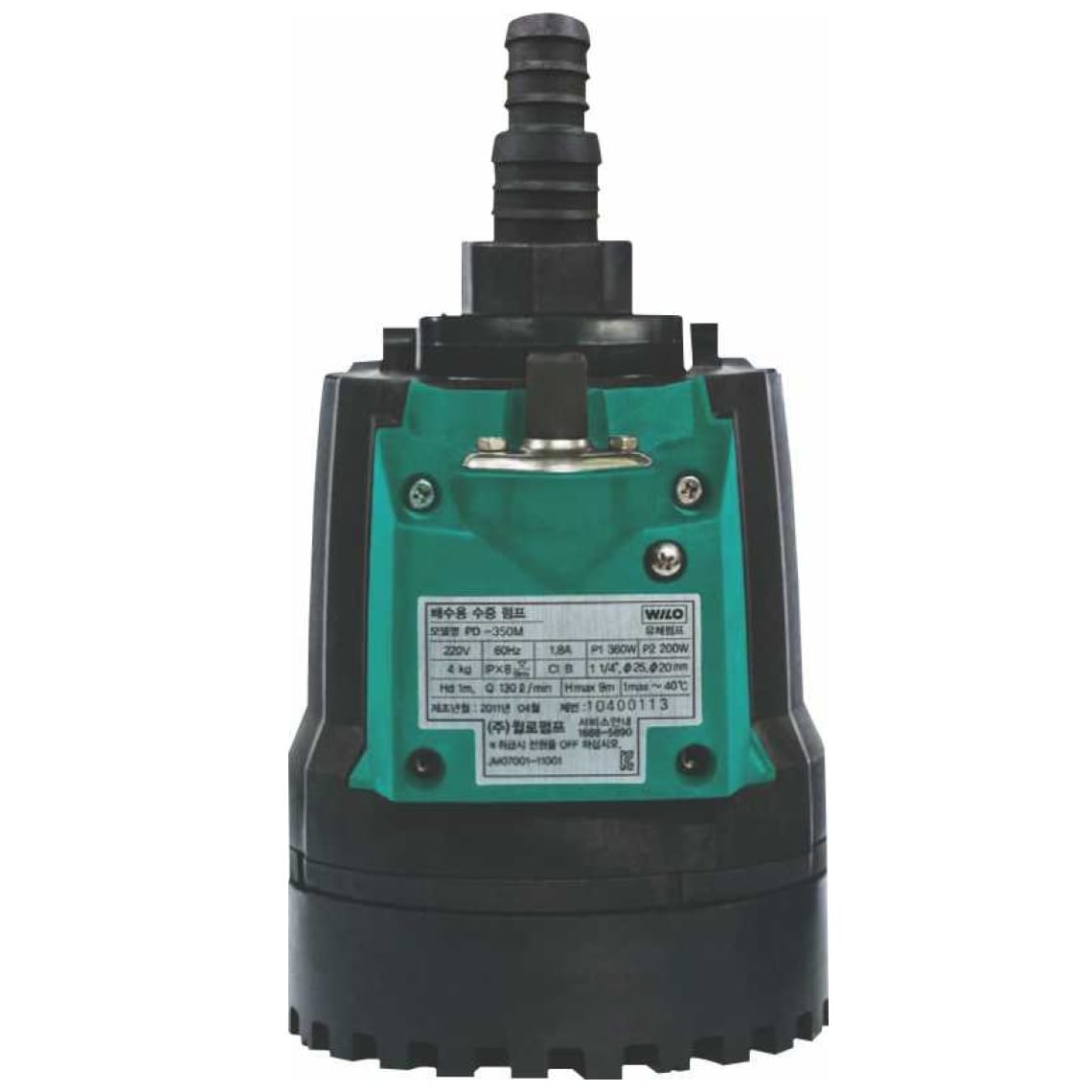

De-watering (Polypropylene) pump - PD 300

Technical Data:

Flow: upto 160 LPM
Head: upto 7.5 m

Application:

Clean public bath / water tanks / building basement / drainage of handy sewage facility and drainage to prevent flooding for small places

Features:

Constantly clean pump sump due to patented integrated turbulator (TMW), minimal residual water level of 2 mm (TMR), for aggressive fluids (HD version), with float switch (A version) and incl. hose connection and 10 m cable

Submersible (Polypropylene) pump - Initial Drain 10.7

Technical Data:

Flow: upto 235 LPM
Head: upto 8 mts
P2: upto 0.75 kW (1hp)
Voltage: 230 V
Phase: Single
Max. immersion depth: 5 m

Application:

Drainage of clear or slightly dirty water / for domestic use and lifting of waste water even with suspended solids / for domestic use

Features:

Pump installation in vertical position with horizontal delivery port, pumps are delivered with elbow for vertical delivery port, pressure Port: G1’’1/2, cable length: 10m, protection class IP68 (up to 5 meters immerged), temperature range: +5 to +35°C, maximum number of starts per hour: 60, density of the fluid: 1 to 1.06, PH of the fluid: 6 to 8, minimum pumping level: Drain/Waste - 20 mm / 40 mm and non non return valve

Submersible (Polypropylene) pump - Initial Waste 14.9

Technical Data:

Flow: upto 235 LPM
Head: upto 8 mts
P2: upto 0.75 kW (1hp)
Voltage: 230 V
Phase: Single
Max. immersion depth: 5 m

Application:

Drainage of clear or slightly dirty water / for domestic use and lifting of waste water even with suspended solids / for domestic use

Features:

Pump installation in vertical position with horizontal delivery port, pumps are delivered with elbow for vertical delivery port, pressure Port: G1’’1/2, cable length: 10m, protection class IP68 (up to 5 meters immerged), temperature range: +5 to +35°C, maximum number of starts per hour: 60, density of the fluid: 1 to 1.06, PH of the fluid: 6 to 8, minimum pumping level: Drain/Waste - 20 mm / 40 mm and non non return valve

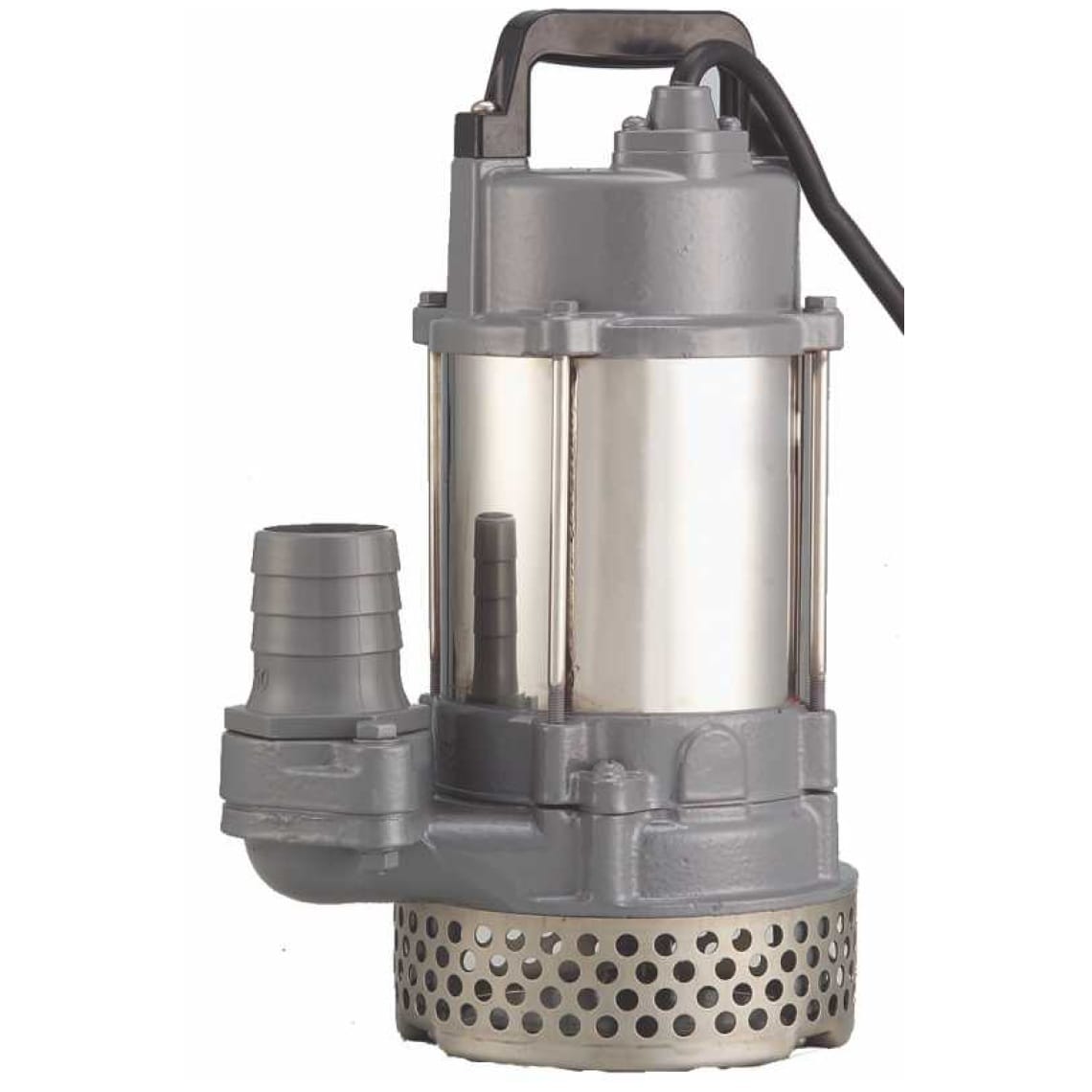

De-watering pump - FAS / FAC

Technical Data:

Flow: upto 1700 LPM
Head: upto 30 m
Solid passage: upto 56 mm

Application:

Dewatering from residential buildings / commercial buildings / industry / hospitals

Features:

Attached float switch (A-model) enables easy operation, robust high efficiency motor, stainless steel motor body with IP 68 protection, AC thermal motor protection, integrated motor control for current overload and high temperature and easy to carry and handle

Sewage pump - STS/PDV/TC

Technical Data:

Flow: upto 1500 LPM
Head: upto 32 m
Solid passage: upto 35 mm

Application:

Sewage disposal from residential buildings / commercial buildings / industry / small hospitals

Features:

Attached float switch (A-model) enables easy operation, robust pump with high efficiency, dry motor construction with sealing chamber, stainless steel motor body with IP 68 protection, AC thermal motor protection, integrated motor control for current overload and high temperature and asy to carry and handle

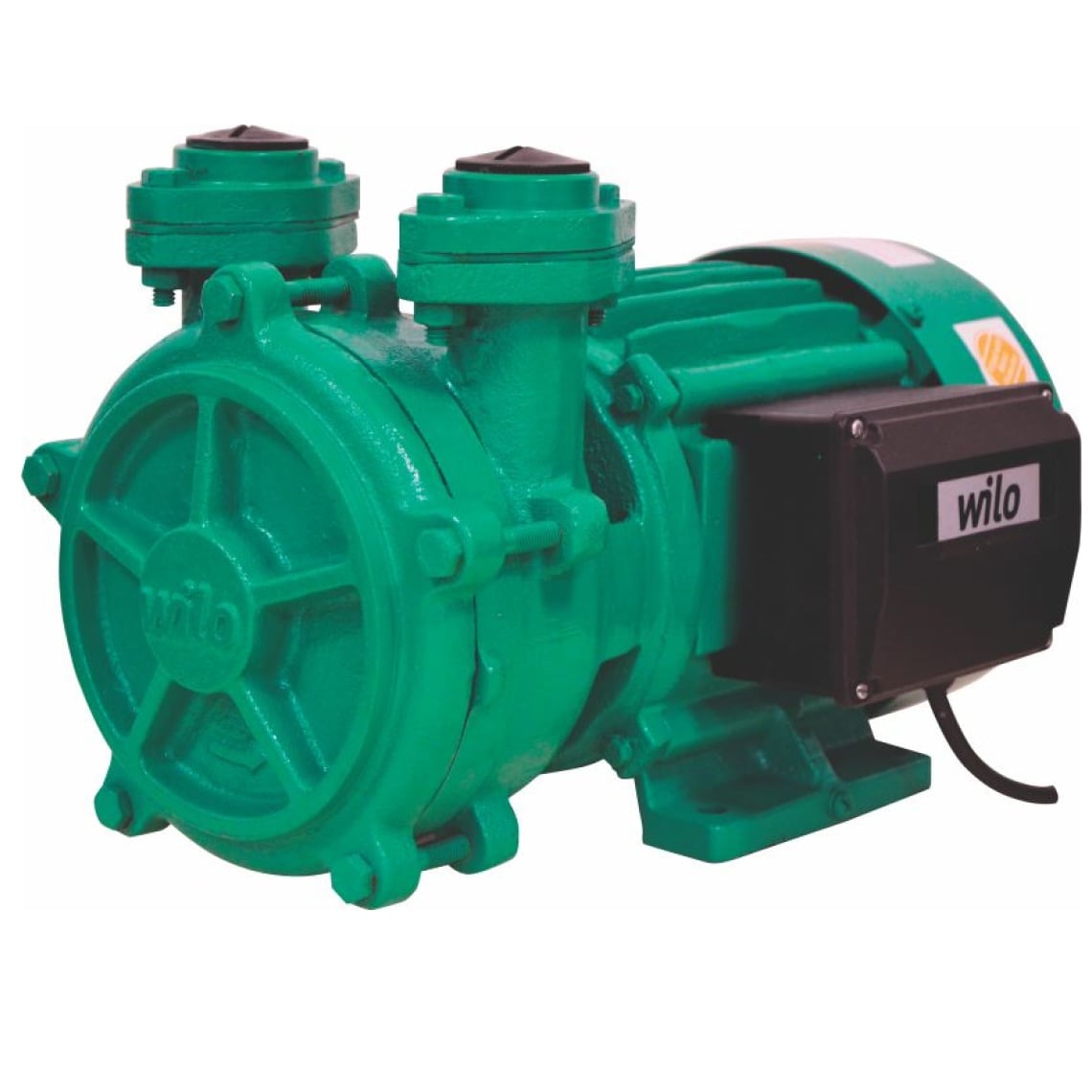

Self-priming mini pumpset - Wilo Mini / Wilo Crown

Technical Data:

Flow: upto 63 LPM
Head: upto 45 m
Power: upto 0.75 kW (1hp)
Voltage: 240 V

Application:

Water transfer in - bungalows / farm houses / apartments / industry Use

Features:

Suitable for wide band of voltage i.e. 160 volts to 250 volts, life long permanent lubricated bearings, built in thermal over-load protection, TEFC, capacitor start & run Motor, insulation class B, high suction lift upto 7.3 m (at 240 V, single phase), high quality aluminium extruded motor body, direction of rotation - anticlockwise, when viewed from drive end and low life cycle cost - low maintenance, low power consumption and easy motor rewinding

Self-priming high suction pumpset - WHS C

Technical Data:

Flow: upto 71 LPM
Head: upto 39 m
Power: upto 1 HP
Voltage: 220 V

Application:

Water transfer in - Water transfer for domestic use in gardening / apartments / bungalows / hotels / washing - garages /laundries / automobiles service station / for lifting water to overhead storage tanks / lawn sprinklers / pressure boosting system

Features:

Sturdy & compact design, high suction lift upto 8 m at 220V, single shaft for pump & motor to ensure permanent correct alignment, suitable for wide band of voltage i.e. 160V to 240V, lifelong permanent lubricated (ZZ) bearings, high performance TEFC, capacitor start capacitor run motor, class of insulation 'B’ built in thermal over-load protection, capacitor fixed inside the terminal box to avoid damage, dynamically balanced rotating parts to ensure min. vibration, noise free operation & long bearing life, sealing arrangement - Mech. seal (high quality for long life), direction of Rotation - CW, from driving end, high quality electric grade stamping are used for better efficiency, high Tensile Brass (HTB-1) Impeller to avoid clogging & increase durability, safety Feature - earthing provision, TOP and low life cycle cost - low maintenance, low power consumption and easy motor rewinding.

Self-priming high suction pumpset - WHS V

Technical Data:

Flow: upto 44 LPM
Head: upto 36 m
Power: upto 0.5 HP
Voltage: 240 V

Application:
Water transfer for domestic use in gardening / apartments / bungalows / hotels / washing - garages / laundries / automobiles service station / circulation of water in solar heater systems / for lifting water to overhead storage tanks / lawn sprinklers / pressure boosting system

Features:
High performance TEFC, capacitor start & run motor, Class of insulation 'B’, high suction lift upto 6 m at 240V, single shaft for pump & motor to ensure permanent correct alignment, sealing arrangement - Mech. seal (high quality for long life), direction of rotation - CW, from driving end, safety feature - earthing provision, TOP and brass impeller to avoid clogging & increase durability

Self-priming high suction pumpset - WHS S / WHS M

Technical Data:

Flow: upto 53 LPM
Head: upto 42 m
Power: upto 1 HP
Voltage: 240 V

Application:
Water transfer in - Gardening / apartments / bungalows / hotels / washing - garages / laundries / automobiles service station / for lifting water to overhead storage tanks / lawn sprinklers / pressure boosting system

Features:
High performance TEFC, capacitor start & run motor, Class of insulation 'B’, high suction lift upto 8.5 m at 240V, single shaft for pump & motor - to ensure permanent correct alignment, sealing arrangement - Mech. seal (high quality for long life), direction of rotation - CW, from driving end, safety feature - earthing provision, TOP and bronze impeller to avoid clogging & increase durability *

Monoblock pumpset- 1 Phase - WMB / MPMS

Technical Data:

Flow: upto 750 LPM
Head: upto 30 m
Power: upto 2 HP
Voltage: 220 V

Application:
Water supply in - Apartments / Hotels / Irrigation / Clear water transfer in Industries

Features:
Suitable for wide band of voltage i.e. 160V to 240V, lifelong permanent lubricated (ZZ) bearings, high performance TEFC, Class of insulation 'F’, built in thermal over-load protection, capacitor fixed inside the terminal box to avoid damage, dynamically balanced rotating parts to ensure min. vibration, noise free operation & long bearing life, sealing arrangement - Mech. Seal (High Quality for long life), designed for automatic air release during priming, direction of Rotation - ACW, when viewed from suction side, safety Feature - Earthing provision, TOP and low life cycle cost - low maintenance, low power consumption and easy motor rewinding

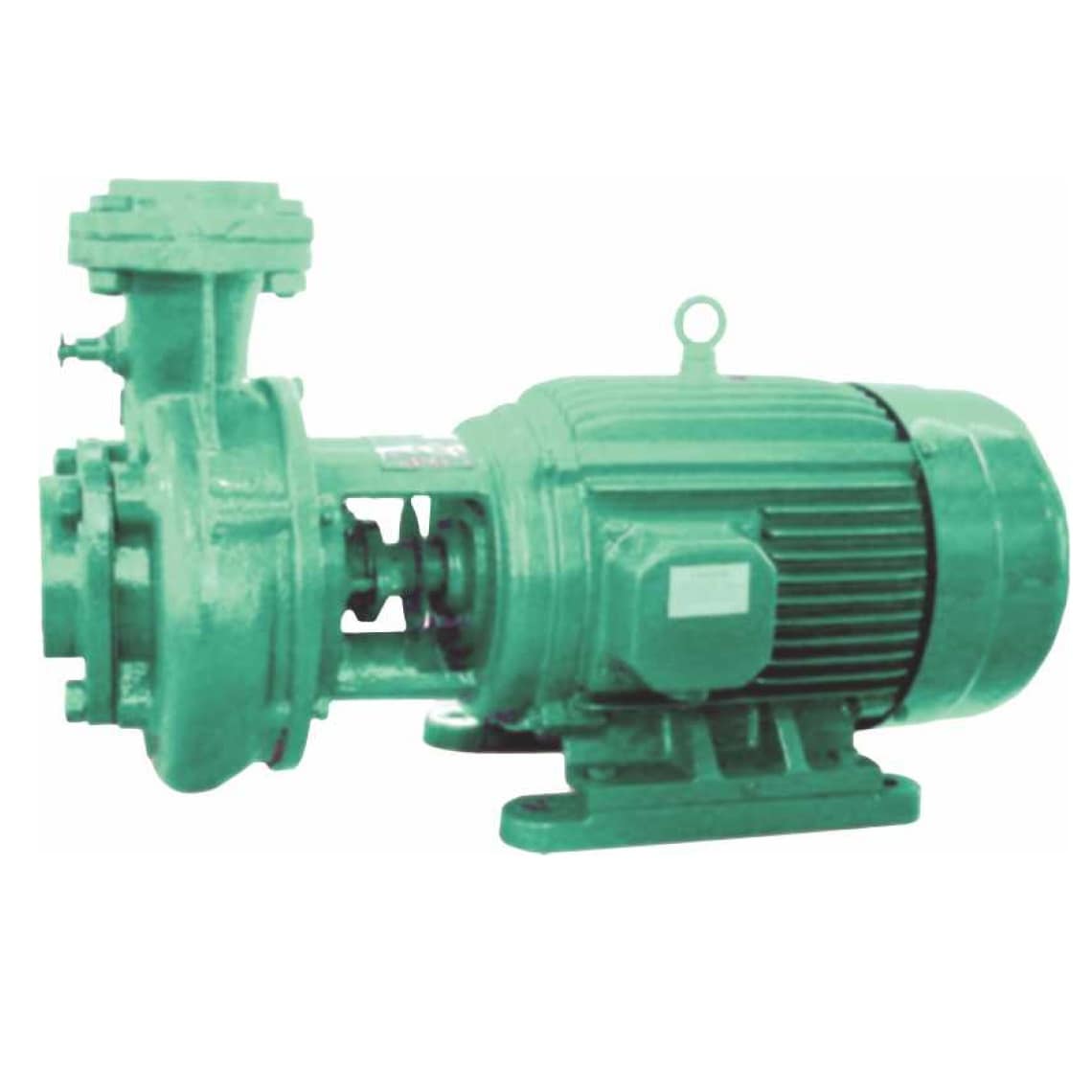

Monoblock pumpset 3 Phase - MPM

Technical Data:

Flow: upto 2300 LPM
Head: upto 78 m
Power: upto 30 HP
Voltage: 230 V (Single phase)
415 V (Three phase)

Application:
Water transfer in - Bungalows / Farm houses / Apartments

Features:
Dynamically balanced rotating parts to ensure min. vibration, noise free operation & long bearing life and designed for wide Voltage fluctuations

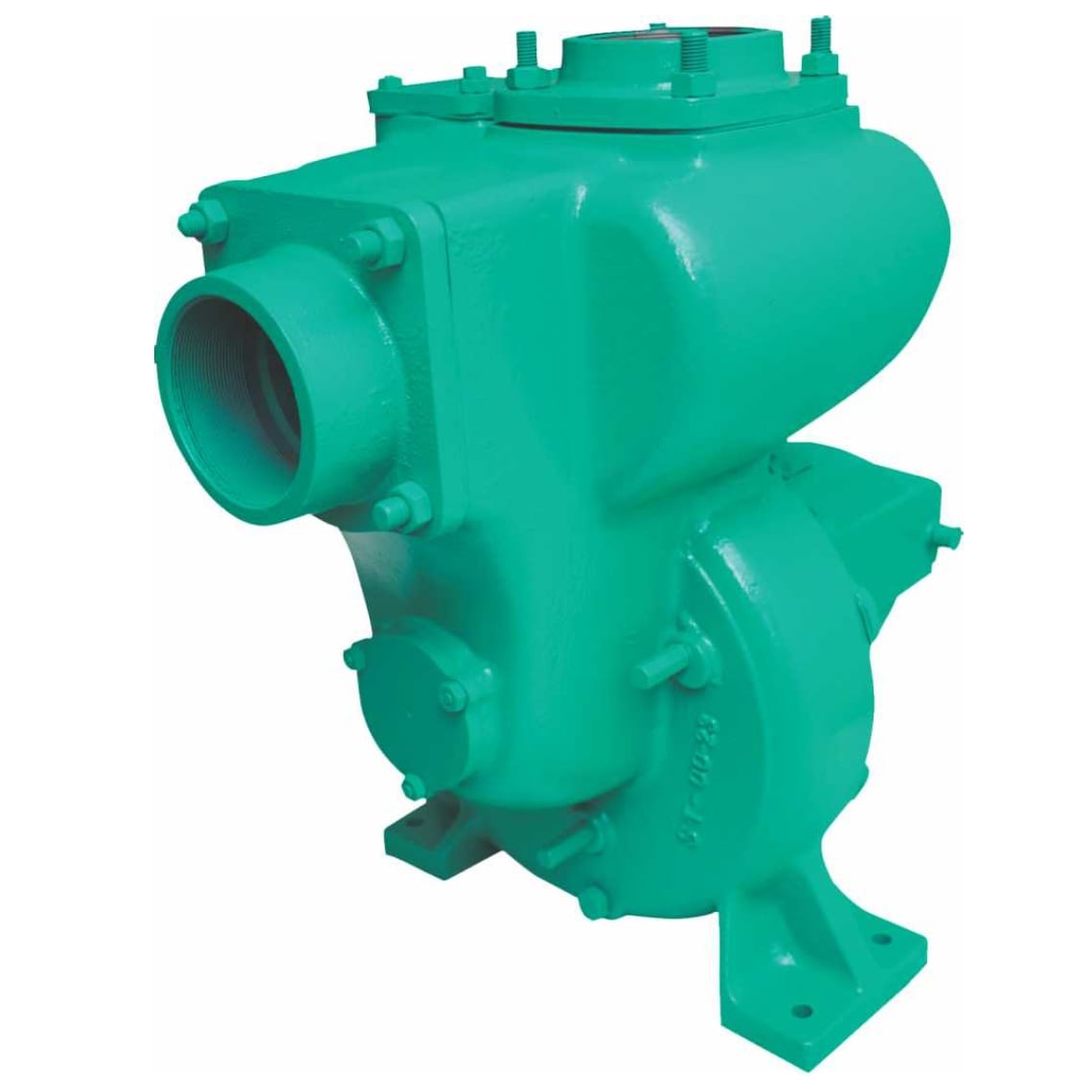

Self-priming non-clog pumpset - MNC

Technical Data:

Flow: upto 4446 LPM
Head: upto 34 m
Power: upto 26 HP
Voltage: 230 V (Single phase)
415 V (Three phase)

Application:
De-watering from trenches / pits / basements / godowns / multistory / shopping malls / hospitals / hotels / sewage pumping / rain water / flooding / mud transfer

Features:
Self priming and back pull out design for easy maintenance, non clog and semi open impeller enables to handle solids up to 40 mm, non asbestos PTFE gland packing along with stuffing box arrangement, motors are with high operating efficiency and suitable for wide voltage fluctuations, replaceable wearing parts and rewind able motor and stator and rotors are coated with rust proof solution for better corrosion resistance.

Self-priming non-clog pump engine driven - MNC

Technical Data:

Flow: upto 4446 LPM
Head: upto 34 m
Power: upto 26 HP
Voltage: 230 V (Single phase)
415 V (Three phase)

Application:
De-watering from trenches / pits / basements / godowns / multistory / shopping malls / hospitals / hotels / sewage pumping / rain water / flooding / mud transfer

Features:
Self priming and back pull out design for easy maintenance, non clog and semi open impeller enables to handle solids up to 40 mm, non asbestos PTFE gland packing along with stuffing box arrangement, motors are with high operating efficiency and suitable for wide voltage fluctuations, replaceable wearing parts and rewind able motor and stator and rotors are coated with rust proof solution for better corrosion resistance.

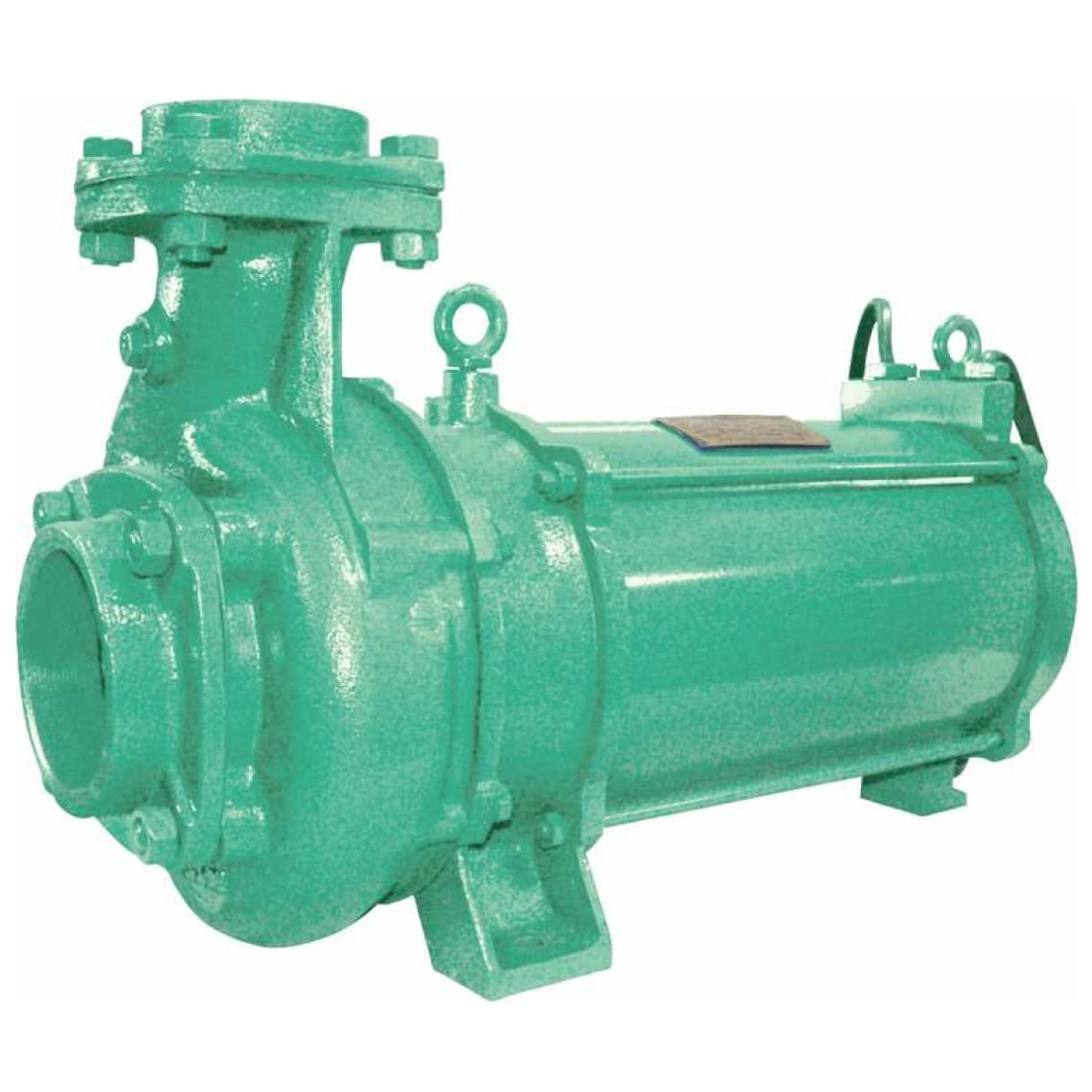

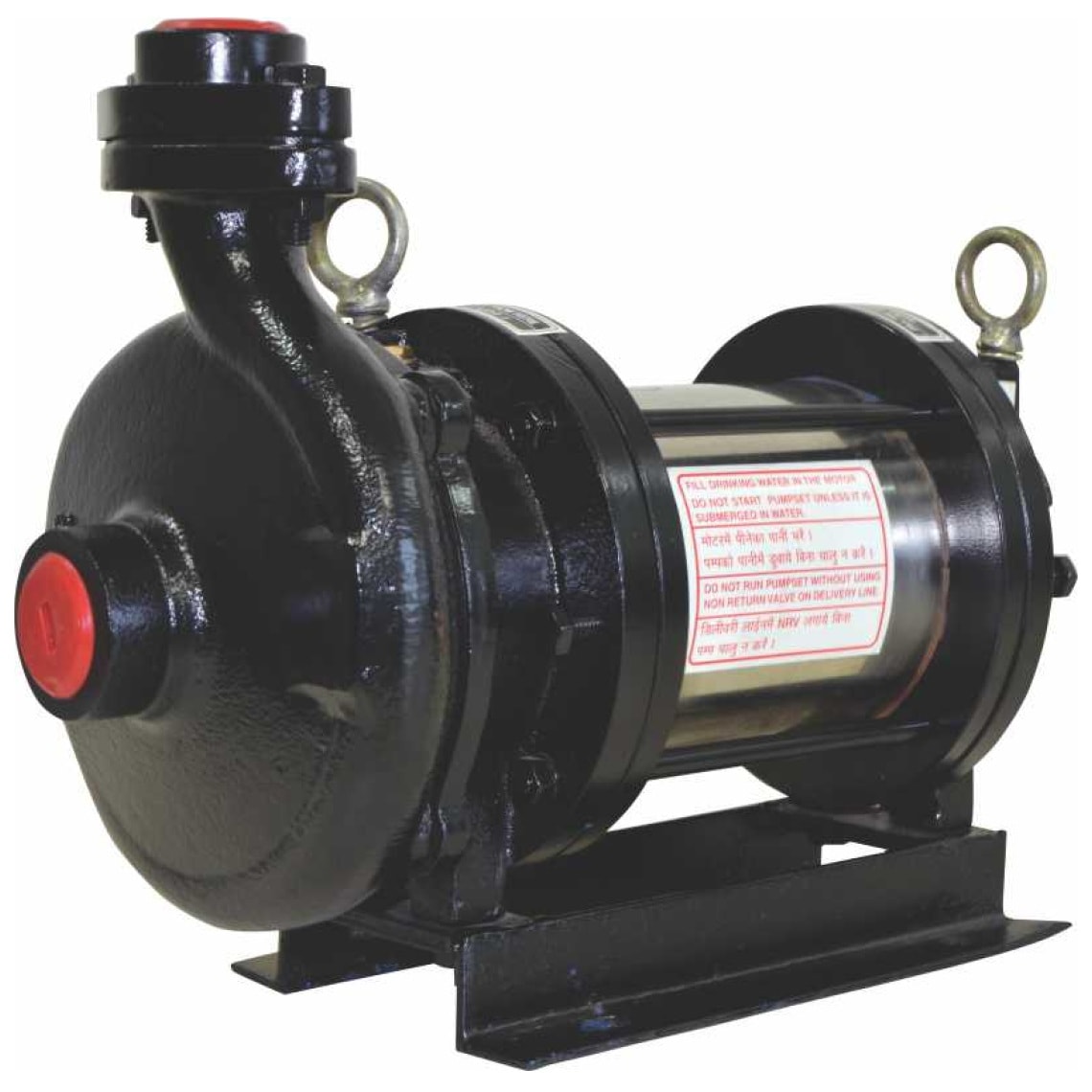

Horizontal Open well Submersible pumpset 1 Phase - WPO / WPO Maxima

Technical Data:

Flow: upto 740 LPM
Head: upto 33 m
Power: upto 3 HP
Voltage: 230 V

Application:
Water transfer in - Bungalows / farm houses / apartments

Features:
Compact mechanical design, highly durable water cooled rewindable motor, designed for underwater applications in submerged condition, designed for wide Voltage fluctuations, dynamically balanced rotating parts to ensure - min. vibration, noise free operation & long bearing life, carbon vs SS thrust bearing pads - for low power consumption & long life, rotors are painted with epoxy paint - to protect from corrosion, all internal parts are specially coated - to prevent internal rusting, no suction & priming problem, high operating efficiencies of pumpset - result into Low power consumption & electric bills and single phase pump set are supplied with starter box

Horizontal Open well Submersible pumpset 3 Phase - MPO

Technical Data:

Flow: upto 2250 LPM
Head: upto 78 m
Power: upto 30 HP
Voltage: available in 3 phase

Application:
Water transfer in - Bungalows / Farm houses / Apartments / Agriculture

Features:
No need of foundation and foot wall as installed under water, SS shaft for long and trouble free life, energy efficient motor design, motor designed to operate in wide voltage range, motor filled with anti corrosive liquid to increase life of internal parts and strong carbon v/s stainless steel thrust bearing for longer life

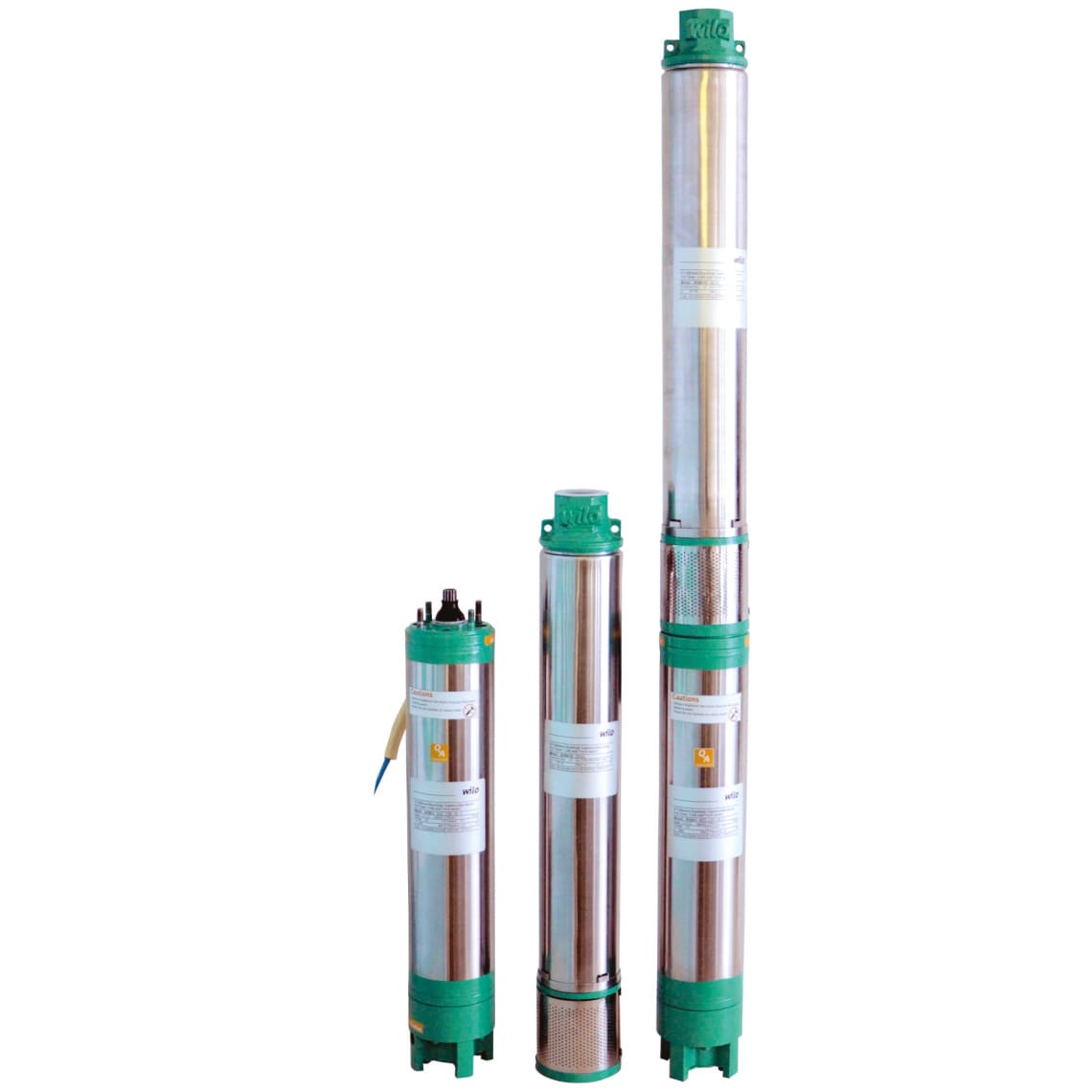

Borewell submersible pumpset 75 mm - (WBW3”) - Water filled

Technical Data:

Flow: upto 95 LPM
Head: upto 246 ft
Power: upto 1 HP

Application:
Domestic household water supply / water supply to high rise building / housing complex / villas / farm houses / gardens and nurseries / wshing - garages / poultry farms , cattle farms and stud farms / fountains

Feature:

Wide voltage range available in single phase, high grade engineered polymer - glass filled virgin noryl, high quality winding wires to ensure reliability and capability to withstand wide voltage fluctuation, adequate bearing supports are provided at top, bottom and middle for better stability, casing are provided with wear ring (SS) for longer life and ease in maintenance, top and suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss, water lubrication and fully rewindable motor with 2.75 m 3 core PVC flat cables along with earthing provision and resistant to corrosion and abrasion

Borewell submersible pumpset 100 mm - (WBW4") - Water filled

Technical Data:

Flow: upto 500 LPM
Head: upto 1142 ft
Power: upto 5 HP

Application:
Domestic household water supply / water supply to high rise building / housing complex / villas / farm houses / gardens and nurseries / washing - garages / poultry farms , cattle farms and stud farms / fountains

Feature:
Discharge upto to 500 LPM, head upto 348 mts (1142 ft), pump form 0.37 kW (0.5 HP) upto 3.7 kW (5 HP), wide voltage range available in single phase and three phase, high grade engineered polymer - glass filled virgin noryl, high quality winding wires to ensure realibility & capability to withstand with voltage fluctuation, adequate bearing supports are provided at top, bottom and middle for better stability, casing are provided with wear ring (SS) for longer life and ease in maintenance, top & suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss, water lubricated and fully rewindable motor with 2.75 m 3 core PVC flat cables along with earthing provision and resistant to corrosion and abrasion

Control Panel for Borewell submersible pumpset - WBW4

Technical Data:

Power: 0.5 HP to 5.0 HP
Phase: 1 Ph & 3 Ph

Application:
Domestic household water supply / water supply to high rise buildings / housing complex / villas / farm houses / gardens & nurseries / washing – garages / poultry farms / cattle farms and stud farms / fountains

Features:
Excellent aesthetically designed & Robust construction, wall mounted/Floor Mounted Powder coated sheet metal enclosure, 1 nos. of earth terminal, easy to install, operate & maintain, fitted with 4 Pole heavy duty contactor it's can operate under wide voltage range, backup O/L Protection by OLR, highly Precise Digital display unit for full fledged motor protection, password protection for security and plug & play- interchangeable parts

Borewell submersible pumpset 125 mm - (WBW5”) - Water filled

Technical Data:

Flow: upto 700 LPM
Head: upto 47 ft
Power: upto 5 HP

Application:
Domestic and community water supply / water supply to high rise building, housing complex, villas and hotels / fountains / farm houses / gardens / nurseries / drip and sprinkler irrigation / washing - garages / poultry farms, cattle farms and stud farms / industrial applications

Fetures:

Wide voltage range available, high quality winding wires to ensure reliability & capability to withstand wide voltage fluctuation, adequate bearing supportsare provided at top, bottom and middle for better stability, top and suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss and water lubricated and fully rewindable motor with 2.75 m 3 core PVC flat cablealong with earthing provision

Borewell submersible pumpset 150 mm - (WBW6”) - Water filled

Technical Data:

Flow: upto 1250 LPM
Head: upto 745 ft
Power: upto 12.5 HP

Application:
Domestic & community water supply, water supply to high rise building, housing complex, villas & hotels, fountains, f arm houses, gardens and nurseries, drip and sprinkler irrigation, washing - garages, poultry farms, cattle farms, and stud farms and Industrial applications

Feature:

Wide voltage range available, high quality winding wires to ensure reliability & capability to withstand wide voltage fluctuation, adequate bearing supportsare provided at top, bottom and middle for better stability, top and suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss, water lubricated and fully rewindable motor with 2.75 m 3 core PVC flat cablealong with earthing provision and WBW6-A to K series with in-built CI diffuser, S S Impeller and S S sleeve with hard chrome plating

Borewell submersible pumpset 175 mm - (WBW7") - Water filled

Technical Data:

Flow: upto 1750 LPM
Head: upto 207 ft
Power: upto 15 HP

Application:
Domestic household water supply, water supply to high rise building, housing complex, villas, farm houses, gardens and nurseries, washing - garages, poultry farms, cattle farms, and stud farms and fountains

Features:

Wide voltage range available in single and three phase, high grade engineered polymer - glass filled virgin noryl, high quality winding wires to ensure reliability & capability to withstand wide voltage fluctuation, adequate bearing supportsare provided at top, bottom and middle for better stability,casing are provided with wear ring (SS) for longer life and ease in maintenance, top and suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss, water lubricated and fully rewindable motor with 2.75 m 3 core PVC flat cablealong with earthing provision and resistant to corrosion and abrasion

Borewell submersible pumpset 200 mm - (WBW8") - Water filled

Technical Data:

Flow: upto 2300 LPM
Head: upto 263 ft
Power: upto 25 HP

Application:
Domestic household water supply, water supply to high rise building, housing complex, villas, farm houses, gardens and nurseries, washing - garages, poultry farms, cattle farms, and stud farms and fountains

Features:

Wide voltage range available in single and three phase, high grade engineered polymer - glass filled virgin noryl, high quality winding wires to ensure reliability & capability to withstand wide voltage fluctuation, adequate bearing supportsare provided at top, bottom and middle for better stability,casing are provided with wear ring (SS) for longer life and ease in maintenance, top and suction bush are protected by proper sand guard arrangement, non return valve designed for minimum friction loss, water lubricated and fully rewindable motor with 2.75 m 3 core PVC flat cablealong with earthing provision and resistant to corrosion and abrasion

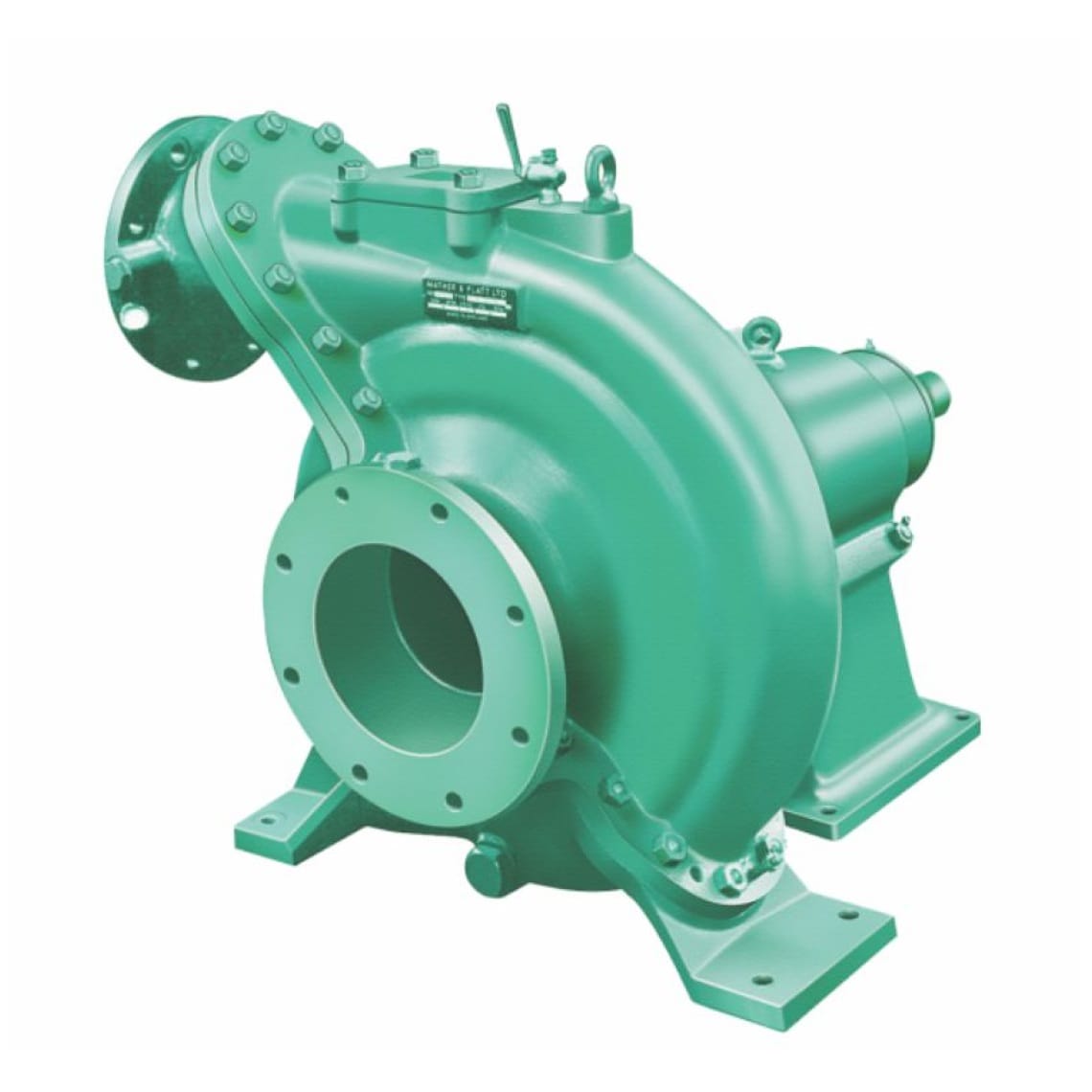

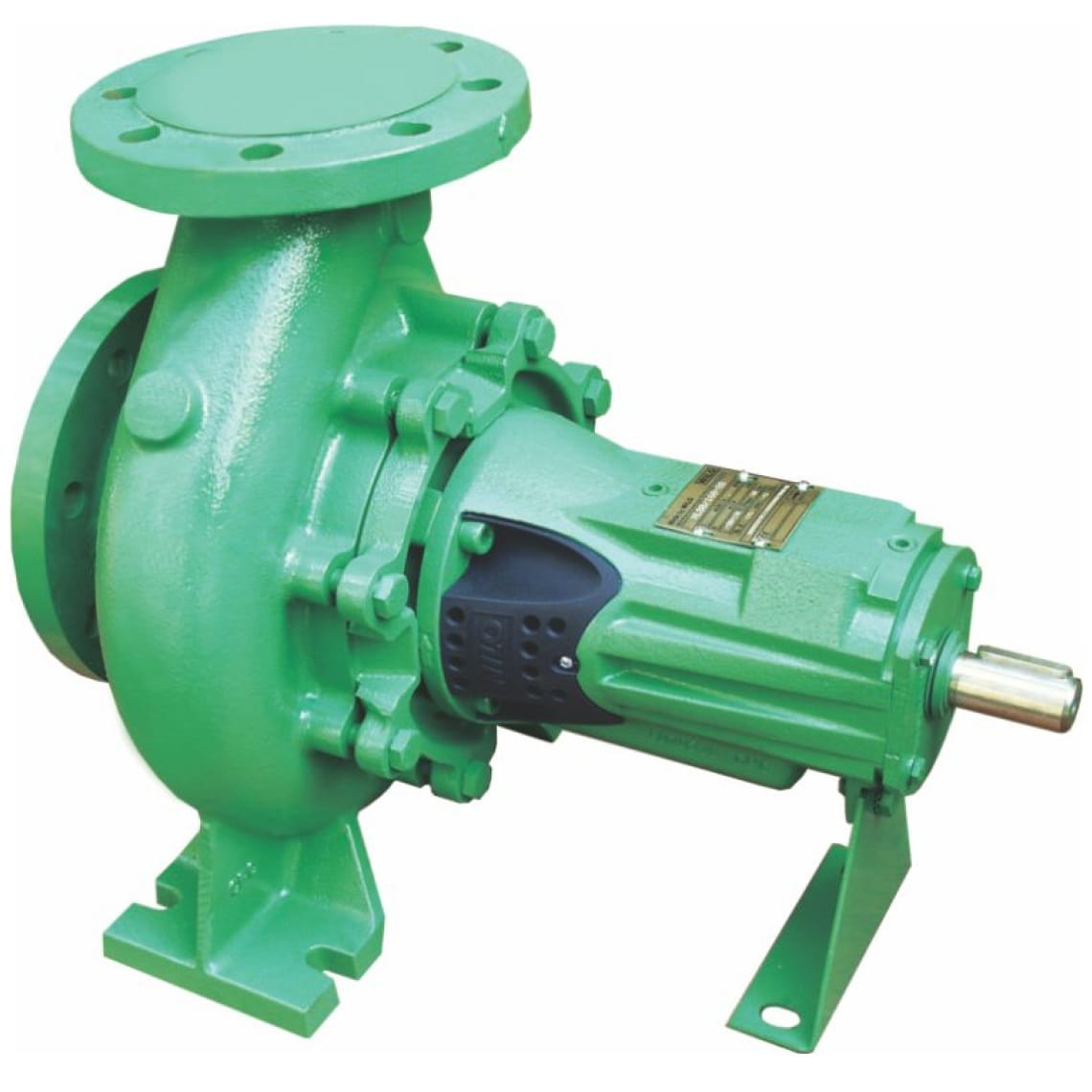

End suction pump engineered / special

Technical:
Qmax: 3400 m3/hr
Hmax: 220 m
Temperature: up to 120°C
Delivery Size: DN 50 - DN 400

Application:
Water supply / general industry, paper and pulp / building service, fire fighting / irrigation / sprinkler system and treated effluent

Feature:
Mounting: Centreline / vertical, delivery flange orientation change possible and bush bearing

Design:
End suction top discharge
Mounting: Horizontal
Stage: Single
Back pullout design
Closed impeller
Mechanical seal/ gland packing grease/oil lubricated antifriction bearings

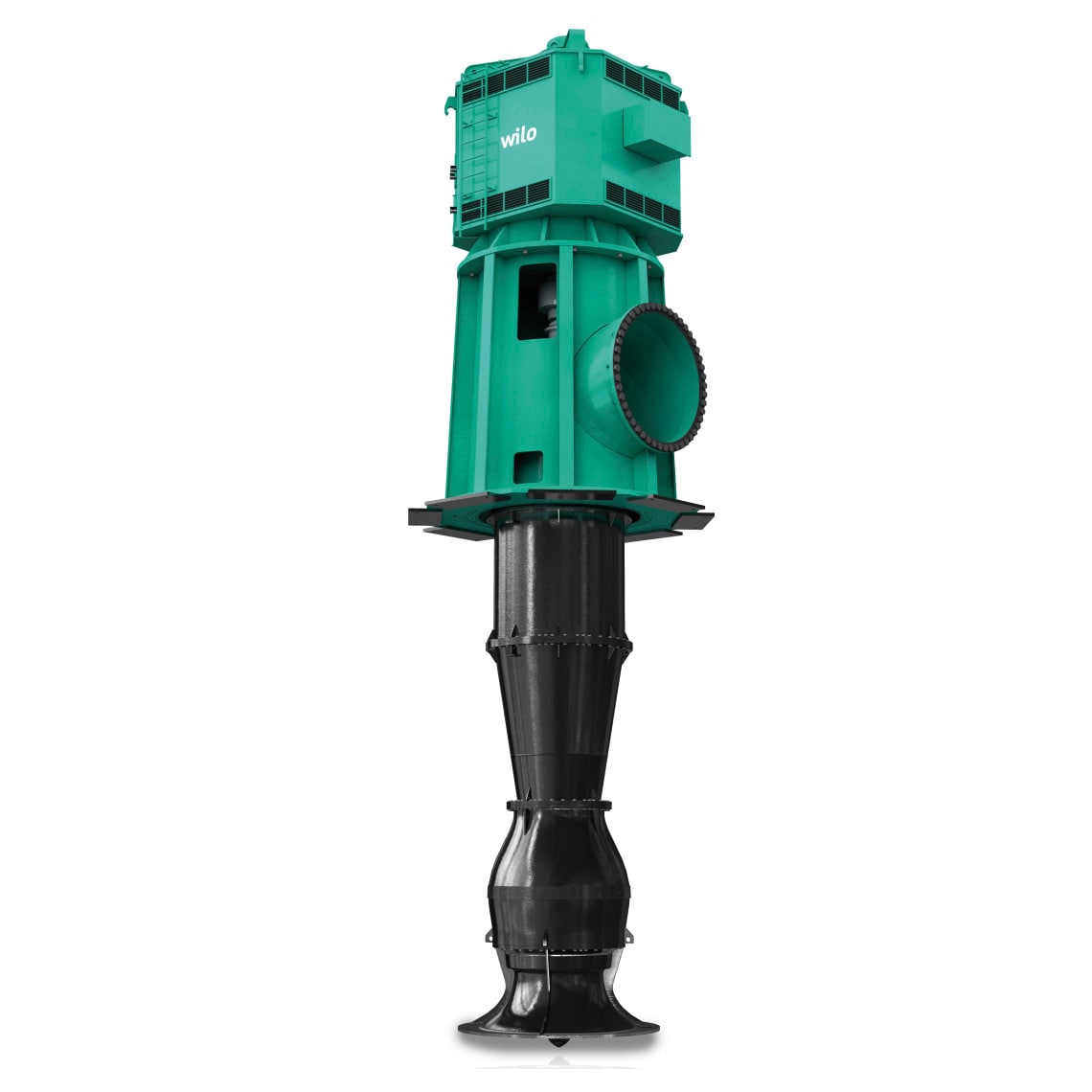

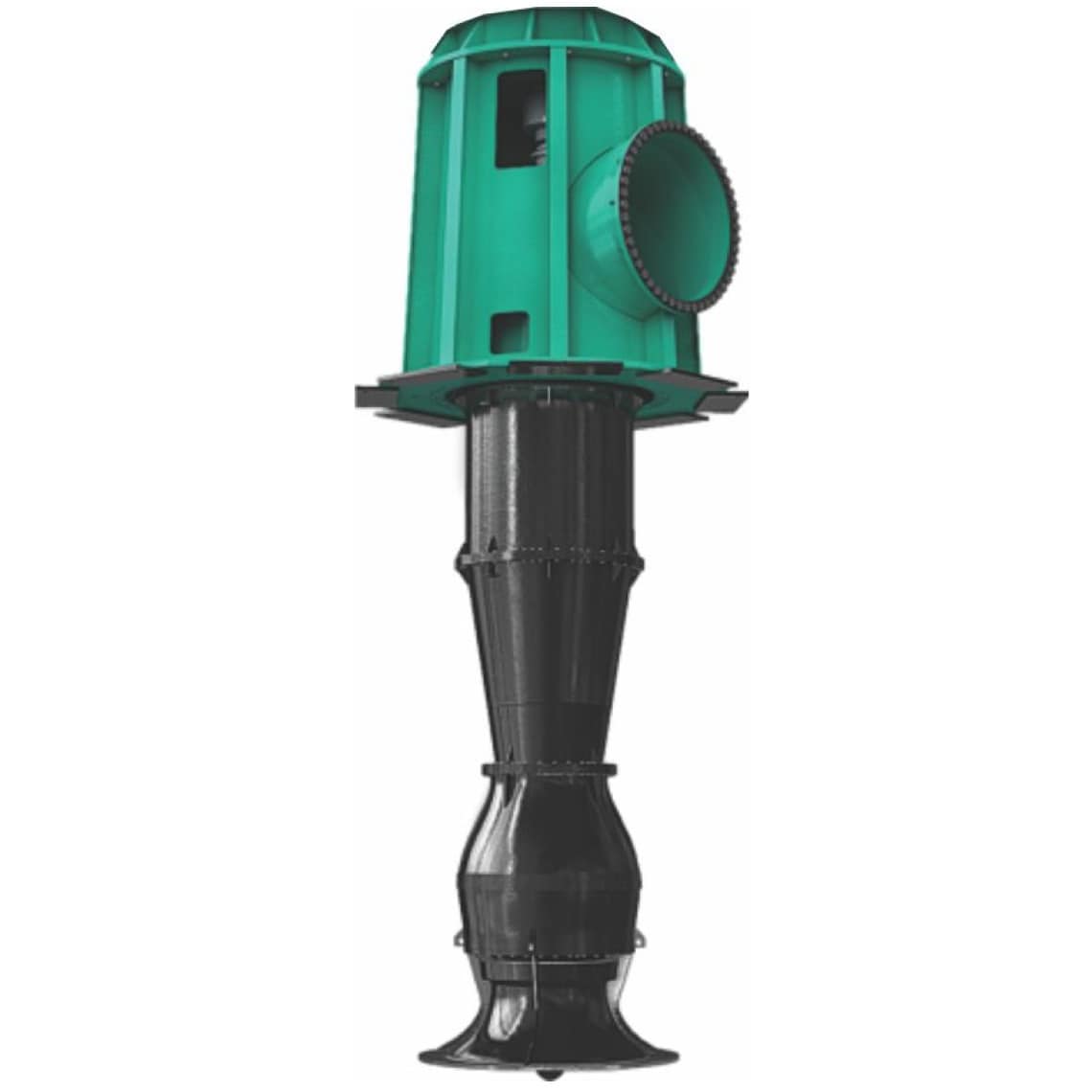

Vertical turbine pump

Technical:
Qmax : 50000 m3 /hr max
Hmax: 450 m
Temperature: up to 800 C - higher on request
Delivery Size: DN 100 - DN 2000

Application:
Water supply/ irrigation / cooling water for power plant / flood control / condensate extraction general industry / fire fighting

Feature:
Caission/ cannister construction , tilted pad thrust bearings with cooling arrangement, semi-open impellers, oil / external water lubricated line, shaft bearings, pull out rotating element and instrumentation & controls

Design:

  • Vertical wet pit
  • Stages: Single / multistage
  • Closed impeller
  • Above or below floor discharge
  • Pumped medium lubricated line
  • shaft bearings
  • Non pull out bowl/ rotating
  • Element antifriction bearings

Standard horizontal split case pump

Technical:
Qmax: m3/hr max 3400
Hmax: 235 m
Temperature: up to 120°C; Higher on request
Delivery Size: DN 50 - DN 400

Application:
Water supply / general industry / building service / fire fighting and spray irrigation / district heating

Feature:
Mounting: Vertical

Design:

  • Mounting: Inline horizontal
  • Stages : Single/ double, single/ double suction Impellers shaft with sleeves
  • Grease lubricated anti-friction bearing
  • Mechanical seal/ gland packing

Engineered horizontal split case pump (HSC)

Technical:
Qmax: m3/hr max 18000
Hmax: 270 m
Temperature: up to 120°C; Higher on request
Delivery Size: DN 50 - DN 400

Application:
Water supply/ general industry / ports and docks / fire fighting and irrigation / marine desalination

Feature:
Mounting: Centre line / vertical, drive connection: direct / cardan shaft bush bearing,
Staggered vane design for fan pump application and special suction / delivery orientation* instrumentation and controls

Design:

  • Mounting: Inline horizontal
  • Stages: One/ two/ three stage single/ double suction impellers
  • Grease/ Oil lubricated antifriction bearings
  • Mechanical seal/ gland packing

Multistage ring section pump

Technical:
Qmax: 1000 m3/hr
Hmax: 1800m
Temperatur: up to 1600 C
Delivery Size: DN 32 - DN 250

Application:
Mine dewatering / descaling in steel mills / boiler feed application / reverse osmosis for desalination plants water supply / general industry and fire fighting

Feature:
Mounting: Centreline / vertical, multi-outlet design and balance valve design for axial thrust bush bearing / roller bearing

Design:

  • Mounting: Horizontal
  • Stages: 3 to 15
  • Radial flow impellers with vane diffusers mechanical seal/ gland packing
  • Grease lubricated antifriction bearings

Norm pump as per EN733

Technical:
Qmax: 600 m3 /hr
Hmax: 150 m
Temperature: up to 1200C
Delivery Size: DN 32 - DN 150

Application:
Building service / sprinkler systems / water supply / general industry

Design:

  • End suction top discharge
  • Mounting: Horizontal
  • Stage: Single
  • Back pullout design
  • Closed impeller
  • Mechanical seal/ gland packing
  • Grease lubricated antifriction bearings

End suction pump as per ISO 2858 - MISO / PISO

Technical:
Flow: upto 750 m3/hr
Head: upto 170 m
Temperature: -20ºC to 120ºC
Delivery Size: 32 - 200

Application:
HVAC systems / water transfer / distribution systems / fire fighting / cooling tower

Feature:
Bearing Housing - Unique design for grease & oil lubrication and provisions for temperature gauge / vibration probe. Bearings - NR type replaced with standard type

Design:

  • Standards as per ISO 2858
  • End suction top discharge
  • Stage single
  • Back pullout design
  • Closed Impeller
  • Gland packing/Mechanical seal

Sewage / wastewater pump (Drypit Non Clog)

Technical:
Qmax: 8000 m3/hr
Hmax: 70 m
Temperature: up to 70°C
Delivery Size: DN 50 - DN 800

Application:
Municipal raw sewage transfer / sewage treatment plants / effluent treatment plants / dirty water in industry and sugar mills

Feature:
Mounting: Vertical, delivery flange orientation, change possible and bush bearing

Design:

  • End suction top discharge
  • End suction top discharge
  • Mounting: Horizontal
  • Stage: Single
  • Casing with hand hole inspection cover mechanical seal/ gland packing large free passage up to 200 mm
  • Grease lubricated antifriction bearing

Vertical sump pump

Technical:
Qmax: 750 m3/hr
Hmax: 220 m
Temperature: up to 80°C
Delivery Size: DN 32 - DN 200

Application:
Emergency oil pump and dewatering

Design:

  • Vertical wet pit volute pump with
  • Dry motor
  • Stage: Single
  • Closed impeller
  • Oil lubricated bearing arrangement antifriction bearing
  • Mechanical seal/ gland packing

End suction pump engineered / special

Technical:
Qmax: 3400 m3/hr
Hmax: 220 m
Temperature: up to 120°C
Delivery Size: DN 50 - DN 400

Application:
Water supply / general industry, paper and pulp / building service, fire fighting / irrigation / sprinkler system and treated effluent

Feature:
Mounting: Centreline / vertical, delivery flange orientation change possible and bush bearing

Design:

  • End suction top discharge
  • Mounting: Horizontal
  • Stage: Single
  • Back pullout design
  • Closed impeller
  • Mechanical seal/ gland packing grease/oil lubricated antifriction bearings

Sewage / wastewater pump (Drypit Non Clog)

Technical:
Qmax: 8000 m3/hr
Hmax: 70 m
Temperature: up to 70°C
Delivery Size: DN 50 - DN 800

Application:
Municipal raw sewage transfer / sewage treatment plants / effluent treatment plants / dirty water in industry and sugar mills

Feature:
Mounting: Vertical / delivery flange orientation / change possible and bush bearing

Design:

  • End suction top discharge
  • End suction top discharge
  • Mounting: Horizontal
  • Stage: Single
  • Casing with hand hole inspection cover mechanical seal/ gland packing large free passage up to 200 mm
  • Grease lubricated antifriction bearing

Standard horizontal split case pump

Technical:
Qmax: m3/hr max 3400
Hmax: 235 m
Temperature: up to 120°C; Higher on request
Delivery Size: DN 50 - DN 400

Application:
Water supply / general industry / building service / fire fighting and spray irrigation / district heating

Feature:
Mounting: Vertical

Design:

  • Mounting: Inline horizontal
  • Stages : Single / double, single / double suction Impellers shaft with sleeves
  • Grease lubricated anti-friction bearing
  • Mechanical seal / gland packing

Engineered horizontal split case pump

Technical:
Qmax: m3/hr max 18000
Hmax: 270 m
Temperature: up to 120°C; Higher on request
Delivery Size: DN 50 - DN 400

Application:
Water supply/ general industry / ports and docks / fire fighting and irrigation / marine desalination

Feature:
Mounting: Centre line / vertical, drive connection: direct / cardan shaft bush bearing,
Staggered vane design for fan pump application and special suction/ delivery orientation* instrumentation & controls

Design:

  • Mounting: Inline horizontal
  • Stages: One / two / three stage single/ double suction impellers
  • Grease / Oil lubricated antifriction bearings
  • Mechanical seal / gland packing

Vertical turbine pump

Technical:
Qmax: 50000 m3 /hr max
Hmax: 450 m
Temperature: up to 800 C - higher on request
Delivery Size: DN 100 - DN 2000

Application:
Water supply / irrigation / cooling water for power plant / flood control / condensate extraction general industry / fire fighting

Feature:
Caission / cannister construction , tilted pad thrust bearings with cooling arrangement, semi-open impellers, oil / external water lubricated line, shaft bearings, pull out rotating element and instrumentation and controls

Design:

  • Vertical wet pit
  • Stages: Single / multistage
  • Closed impeller
  • Above or below floor discharge
  • Pumped medium lubricated line
  • shaft bearings
  • Non pull out bowl / rotating
  • Element antifriction bearings

Multistage ring suction pump

Technical:
Qmax: 1000 m3/hr
Hmax: 1800m
Temperatur: up to 1600 C
Delivery Size: DN 32 - DN 250

Application:
Mine dewatering, descaling in steel mills, boiler feed application, reverse osmosis for desalination plants water supply / general industry and fire fighting

Feature:
Mounting: Centreline / vertical, multi-outlet design and balance valve design for axial thrust bush bearing / roller bearing

Design:

  • Mounting: Horizontal
  • Stages: 3 to 15
  • Radial flow impellers with vane diffusers mechanical seal/ gland packing
  • Grease lubricated antifriction bearings

Norm pump as per EN733

Technical:
Qmax: 600 m3 /hr
Hmax: 150 m
Temperature: up to 1200C
Delivery Size: DN 32 - DN 150

Application:
Building service / sprinkler systems / water supply / general industry

Design:

  • End suction top discharge
  • Mounting: Horizontal
  • Stage: Single
  • Back pullout design
  • Closed impeller
  • Mechanical seal/ gland packing
  • Grease lubricated antifriction bearings

End suction pump as per ISO 2858 - MISO / PISO

Technical:
Flow: upto 750 m3/hr
Head: upto 170 m
Temperature: -20ºC to 120ºC
Delivery Size: 32 - 200

Application:
HVAC systems / water transfer / distribution systems / fire fighting / cooling tower

Feature:
Bearing Housing - Unique design for grease & oil lubrication and provisions for temperature gauge / vibration probe. Bearings - NR type replaced with standard type

Design:

  • Standards as per ISO 2858
  • End suction top discharge
  • Stage single
  • Back pullout design
  • Closed Impeller
  • Gland packing/Mechanical seal
