Drain LPC 80/29

Data sheet

Materials
  • Pump housing
    5.1301, EN-GJL-250
  • Motor housing
    Al Aluminium
  • Gasket material
    NBR
  • Impeller
    5.1301, EN-GJL-250
Operating data
  • Min. fluid temperature T
    3 °C
  • Max. fluid temperature T
    80 °C
  • Maximum operating pressure p
    40 bar
  • Max. ambient temperature T
    40 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    4.00 kW
  • Rated current IN
    8.40 A
  • Protection class motor
    IP55
Installation dimensions
  • Pipe connection on the suction side
    G 3
  • Pipe connection on the pressure side
    G 3
Information for order placements
  • Net weight, approx. m
    86 kg
  • Brand
    Wilo
  • Product description
    Drain LPC 80/29
  • Article number
    2081693

Dimensions and dimensions drawings

Wilo-Drain LPC 80/29

Wilo-Drain LPC 80/29
Wilo-Drain LPC 80/29

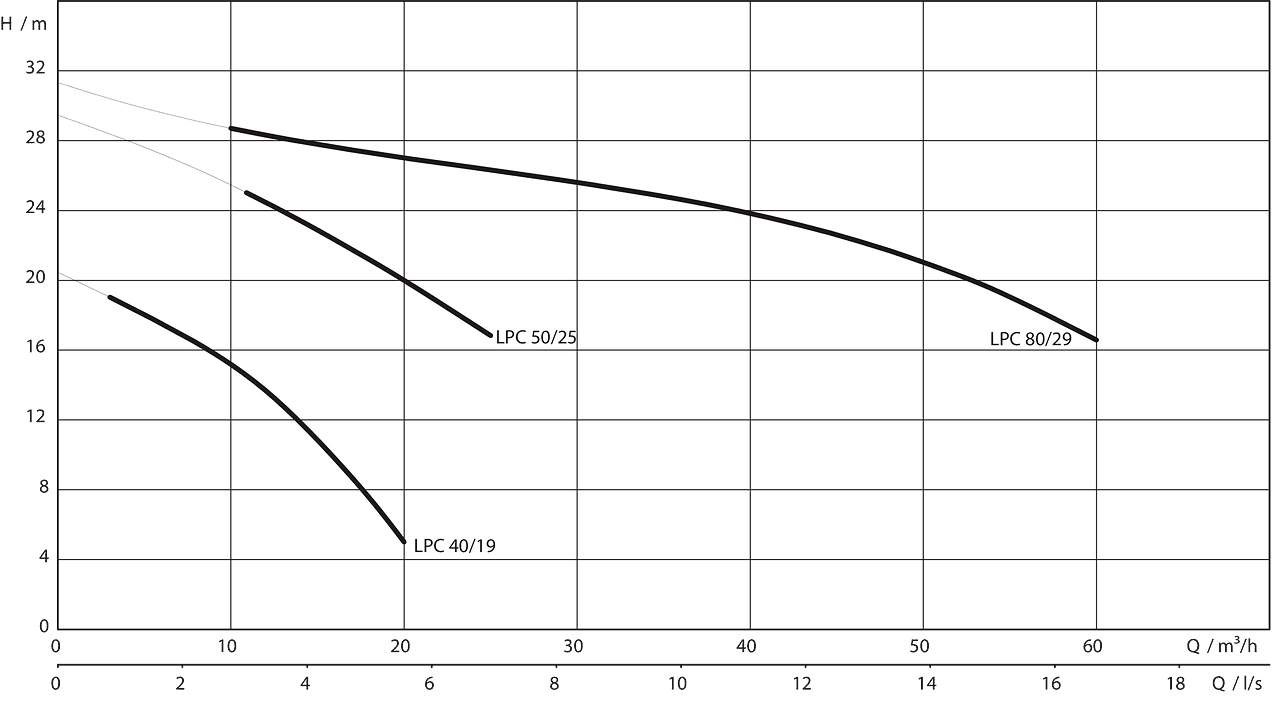

Pump curves

Wilo-Drain LPC

Wilo-Drain LPC
Wilo-Drain LPC

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Drain LPC 80/29
  • EAN number
    4016322895961
  • Article number
    2081693
  • Gross weight, approx. m
    89.0 kg
  • Net weight, approx. m
    86 kg
  • Overall length L
    608.0 mm
  • Height without packaging H
    363 mm
  • Colour
    Green
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    283.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Tender text

Self-priming drainage pump for the transportable and stationary dry well installation for pumping clean and lightly contaminated water. Hydraulics with a horizontal suction connection and a vertical pressure connection and threaded connection. An inspection opening on the hydraulics facilitates the cleaning of the impeller and the pump housing. A multi-channel impeller is used as the impeller. Hydraulics and impeller made of cast iron. Drive is provided by a three-phase current version standard motor that features a motor housing made of aluminium. The connection cable must be provided by the customer. The hydraulics and motor have a common shaft. Stable installation is carried out using a low-vibration baseplate.

Operating data
  • Fluid media
    Water
  • Max. delivery head H
    2.84 m
Product data
  • Free ball passage of the hydraulics
    12 mm
  • Maximum operating pressure PN
    3 bar
  • Min. fluid temperature T
    3 °C
  • Max. fluid temperature T
    80 °C
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Voltage tolerance
    ±5 % %
  • Rated power P2
    4.00 kW
  • Power consumption P1 max
    5000 W
  • Rated current IN
    8.40 A
  • Activation type
    Direct online (DOL)
  • Max. switching frequency t
    50 1/h
  • Insulation class
    F
  • Protection class
    IP55
Materials
  • Pump housing
    5.1301, EN-GJL-250
  • Impeller
    5.1301, EN-GJL-250
  • Shaft
    1.4104, X14CrMoS17
  • Gasket material
    NBR
  • Motor housing
    Al Aluminium
Installation dimensions
  • Pipe connection on the suction side
    G 3
  • Pipe connection on the pressure side
    G 3
Information for order placements
  • Brand
    Wilo
  • Product description
    Drain LPC 80/29
  • Net weight, approx. m
    86 kg
  • Article number
    2081693
