EMU KS 24D

Data sheet

Materials
  • Pump housing
    5.1301, EN-GJL-250
  • Motor housing
    EN AC-47000, AlSi12
  • Gasket material
    FKM
  • Impeller
    5.3200, EN-GJS-500-7
Operating data
  • Min. fluid temperature T
    3 °C
  • Max. fluid temperature T
    40 °C
  • Maximum operating pressure p
    10 bar
  • Max. immersion depth
    12.50 m
Motor data
  • Rated power P2
    2.40 kW
  • Rated current IN
    4.65 A
  • Power factor cos φ
    0.88
  • Protection class motor
    IP68
Cable
  • Cable type
    H07RN-F
  • Cable cross-section
    4G1,5 mm²
  • Connection cable length
    20.0 m
Installation dimensions
  • Pipe connection on the pressure side
    Storz B
Information for order placements
  • Net weight, approx. m
    34 kg
  • Brand
    Wilo
  • Product description
    EMU KS 24D
  • Article number
    6001204

Dimensions and dimensions drawings

Wilo-EMU KS 24

Wilo-EMU KS 24
Wilo-EMU KS 24

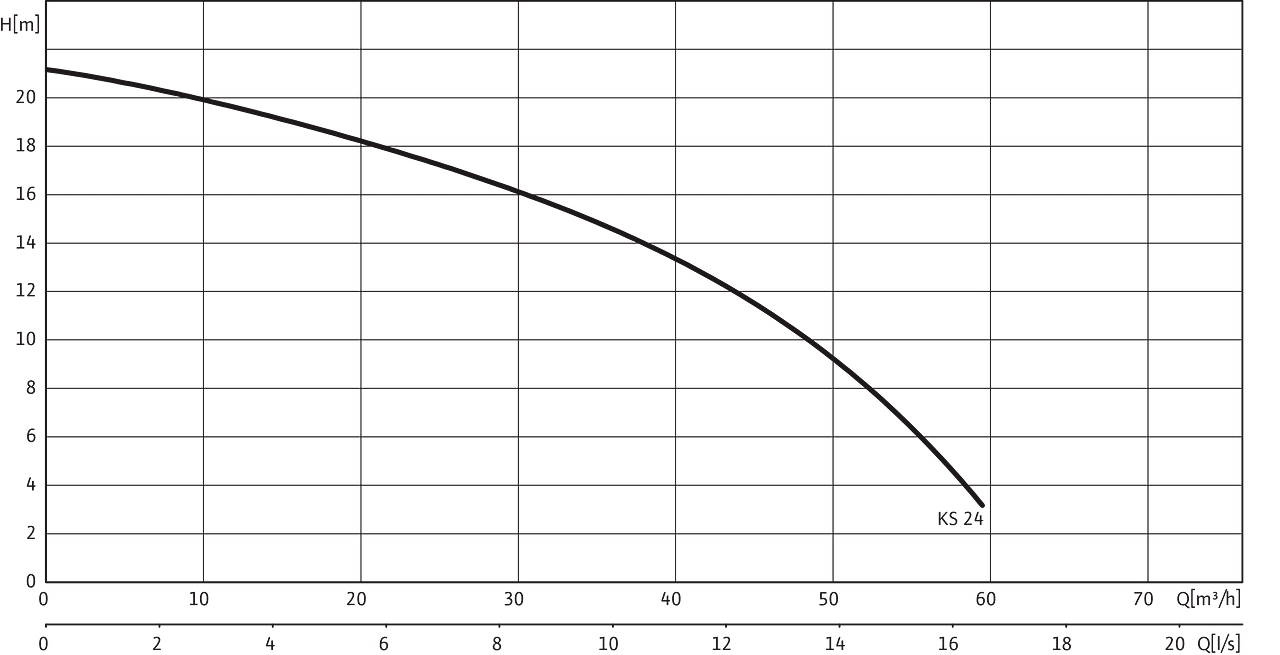

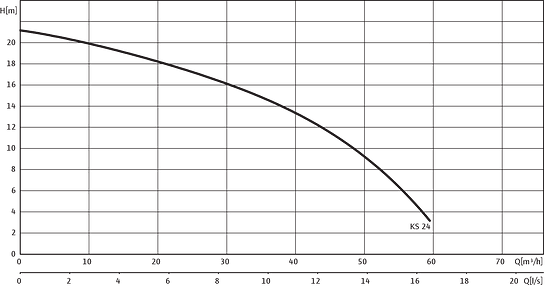

Pump curves

Wilo-EMU KS 24

Wilo-EMU KS 24
Wilo-EMU KS 24

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    EMU KS 24D
  • EAN number
    4044966091241
  • Article number
    6001204
  • Gross weight, approx. m
    39.0 kg
  • Net weight, approx. m
    34 kg
  • Overall length L
    226.0 mm
  • Height without packaging H
    477 mm
  • Colour
    Green
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    304.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Tender text

Fully submersible drainage pump for vertical wet well installation for pumping contaminated and sandy water. Hydraulics housing and impeller made of cast iron, motor housing made of aluminium. Pressure connection with centric and vertical pressure outlet and Storz coupling. Surface-cooled motor in three-phase current version with sheath flow cooling and sealing chamber. Detachable connection cable with CEE plug. The seal employs two bidirectional mechanical seals. The unit can be used without limits in slurping operation.

Operating data
  • Fluid media
    Water
  • Max. delivery head H
    21.00 m
Product data
  • Free ball passage of the hydraulics
    5 mm
  • Maximum operating pressure PN
    2 bar
  • Max. immersion depth
    12.50 m
  • Min. fluid temperature T
    3 °C
  • Max. fluid temperature T
    40 °C
Motor data
  • Voltage tolerance
    ±10 % %
  • Power factor cos φ
    0.88
  • Rated power P2
    2.40 kW
  • Power consumption P1 max
    2850 W
  • Rated current IN
    4.65 A
  • Starting current I
    24 A
  • Activation type
    Direct online (DOL)
  • Max. switching frequency t
    15 1/h
  • Insulation class
    F
  • Protection class
    IP68
  • Operating mode (immersed)
    S1
  • Operating mode (non-immersed)
    S1
Cable
  • Connection cable length
    20.0 m
  • Cable type
    H07RN-F
  • Cable cross-section
    4G1,5 mm²
Equipment/function
  • Explosion protection type
    no
  • Motor protection
    no
Materials
  • Pump housing
    5.1301, EN-GJL-250
  • Impeller
    5.3200, EN-GJS-500-7
  • Shaft
    1.4021, X20Cr13
  • Gasket material
    FKM
  • Motor housing
    EN AC-47000, AlSi12
Installation dimensions
  • Pipe connection on the suction side
    -
  • Pipe connection on the pressure side
    Storz B
Information for order placements
  • Brand
    Wilo
  • Product description
    EMU KS 24D
  • Net weight, approx. m
    34 kg
  • Article number
    6001204
