Jet WJ 203 X (3~230/400 V)

Data sheet

Materials
  • Pump housing
    1.4301, X5CrNi18-10
  • Shaft
    1.4305, X8CrNiS18-9
  • Gasket material
    NBR
  • Impeller
    1.4301, X5CrNi18-10
Operating data
  • Min. fluid temperature T
    5 °C
  • Max. fluid temperature T
    35 °C
  • Maximum operating pressure p
    10 bar
  • Pressure port
    G 1
  • Max. ambient temperature T
    40 °C
Motor data
  • Mains connection
    3~230 V, 3~400 V, 50 Hz
  • Rated power P2
    0.75 kW
  • Rated current IN
    3.10 A
  • Protection class motor
    IP44
  • Insulation class
    B
Installation dimensions
  • Pipe connection on the suction side
    G 1
  • Pipe connection on the pressure side
    G 1
Information for order placements
  • Net weight, approx. m
    10 kg
  • Brand
    Wilo
  • Product description
    Jet WJ 203 X (3~230/400 V)
  • Article number
    4212734

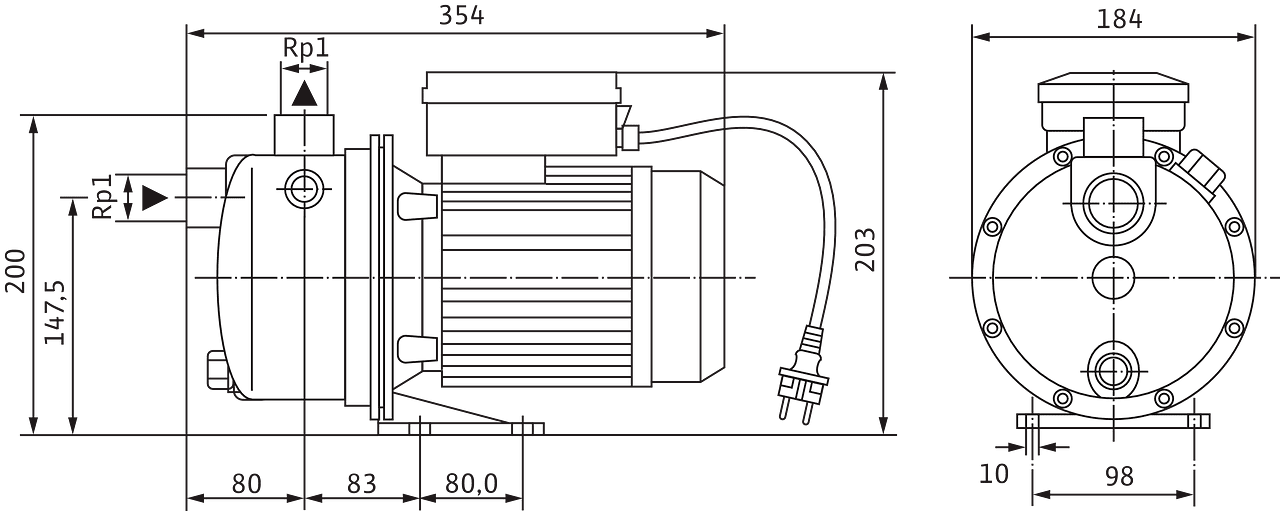

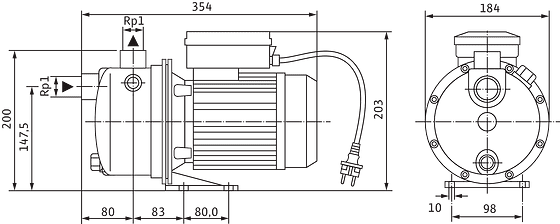

Dimensions and dimensions drawings

Jet-WJ

Jet-WJ
Jet-WJ

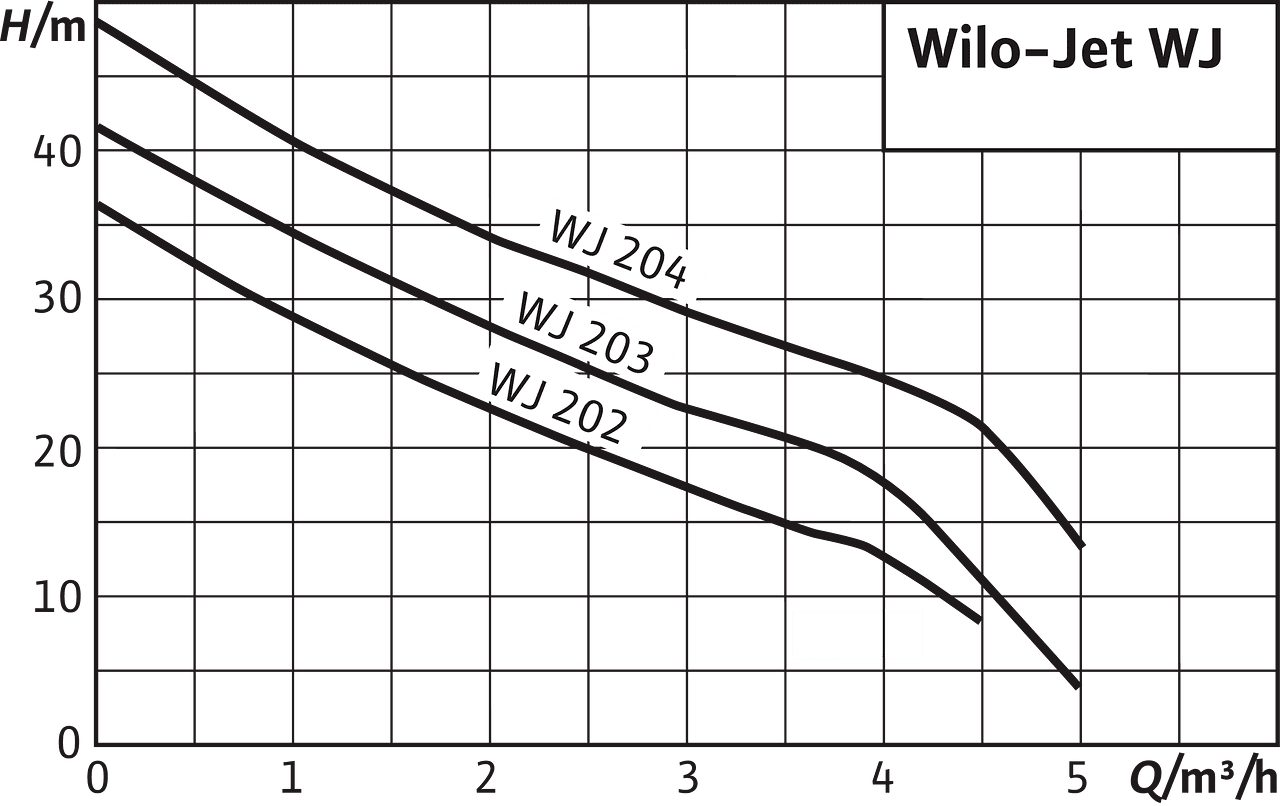

Pump curves

Jet WJ

Jet WJ
Jet WJ

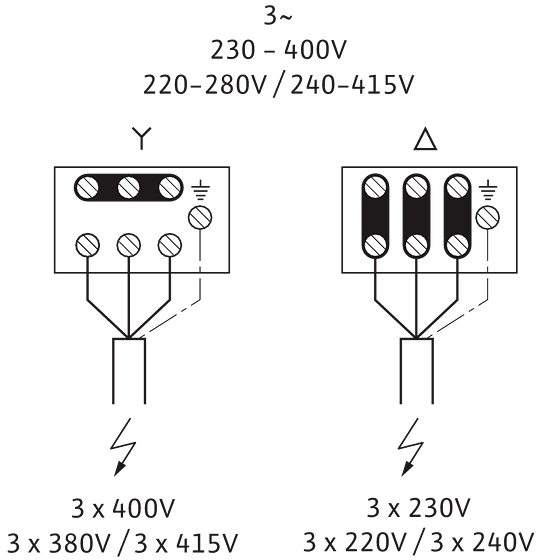

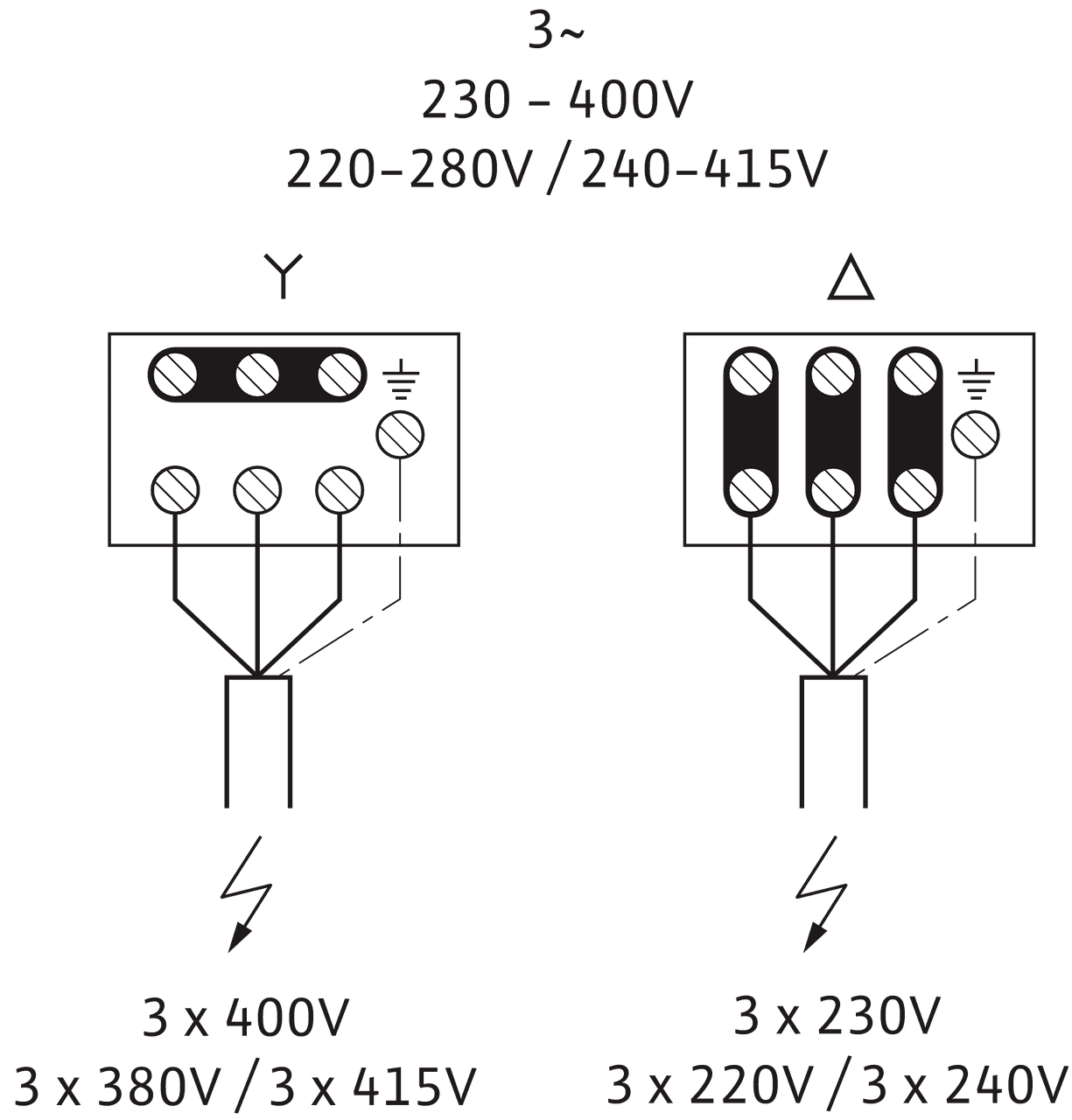

Wiring diagram

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Jet WJ 203 X (3~230/400 V)
  • EAN number
    4048482705637
  • Article number
    4212734
  • Gross weight, approx. m
    10.6 kg
  • Net weight, approx. m
    10 kg
  • Overall length L
    203.0 mm
  • Height without packaging H
    203 mm
  • Colour
    green/silver
  • Packaging property
    Sales packaging
  • Packaging type
    Cardboard box
  • Number per layer
    1
  • Width without packaging L
    184.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Tender text

Wilo-WJ-X

Self-priming single stage jet pump for water supply, irrigation and rainwater re-use applications.

Self-priming capacity up to 8m thanks to integrated Venturi system.

Wilo-WJ-X is easy to use thanks to its embedded ON/OFF switch.

Ready for connection thanks to its already connected 2 meters electrical cable with shock-proof Schuko plug.

Connection via terminal box for three-phase versions.

All parts that come into contact with the fluid are corrosion-proof.

Wilo-WJ

Self-priming single stage jet pump for water supply, irrigation and rainwater re-use applications.

Self-priming capacity up to 8m is done with integrated Venturi system.

Wilo-WJ is designed for mobile use thanks to its embedded ON/OFF switch and its embedded handle.

Ready for connection thanks to its already connected 2 meters electrical cable with shock-proof Schuko plug.

Connection via terminal box for three-phase versions.

All parts that come into contact with the fluid are corrosion-proof.

Materials
  • Pump housing
    1.4301, X5CrNi18-10
  • Shaft
    1.4305, X8CrNiS18-9
  • Gasket material
    NBR
  • Impeller
    1.4301, X5CrNi18-10
Operating data
  • Fluid media
    Water
  • Min. fluid temperature T
    5 °C
  • Max. fluid temperature T
    35 °C
  • Maximum operating pressure p
    10 bar
  • Pressure port
    G 1
  • Max. ambient temperature T
    40 °C
Motor data
  • Mains connection
    3~230 V, 3~400 V, 50 Hz
  • Shaft power P2(Q=max.) of selected impeller * number of pumps
    750 W
  • Rated current IN
    3.10 A
  • Protection class motor
    IP44
  • Insulation class
    B
Installation dimensions
  • Pipe connection on the suction side
    G 1
  • Pipe connection on the pressure side
    G 1
Information for order placements
  • Net weight, approx. m
    10 kg
  • Brand
    Wilo
  • Product description
    Jet WJ 203 X (3~230/400 V)
  • Article number
    4212734
