Jet WJ 204 (1~230 V)

Article number: 4262914
Technical data
Hydraulic data
Maximum operating pressure PN 6 bar
Discharge port G 1
Min. fluid temperature Tmin 5 °C
Max. fluid temperature Tmax 35 °C
Min. ambient temperature Tmin -15 °C
Max. ambient temperature Tmax 40 °C
Motor data
Mains connection 1~230 V, 50 Hz
Voltage tolerance ±6 %
Rated power P2 1 kW
Rated current IN 5.3 A
Rated speed n 2900 1/min
Insulation class B
Protection class motor IP44
Materials
Pump housing Stainless steel
Shaft Stainless steel
Shaft seal CVPFF
Gasket material NBR
Impeller Stainless steel

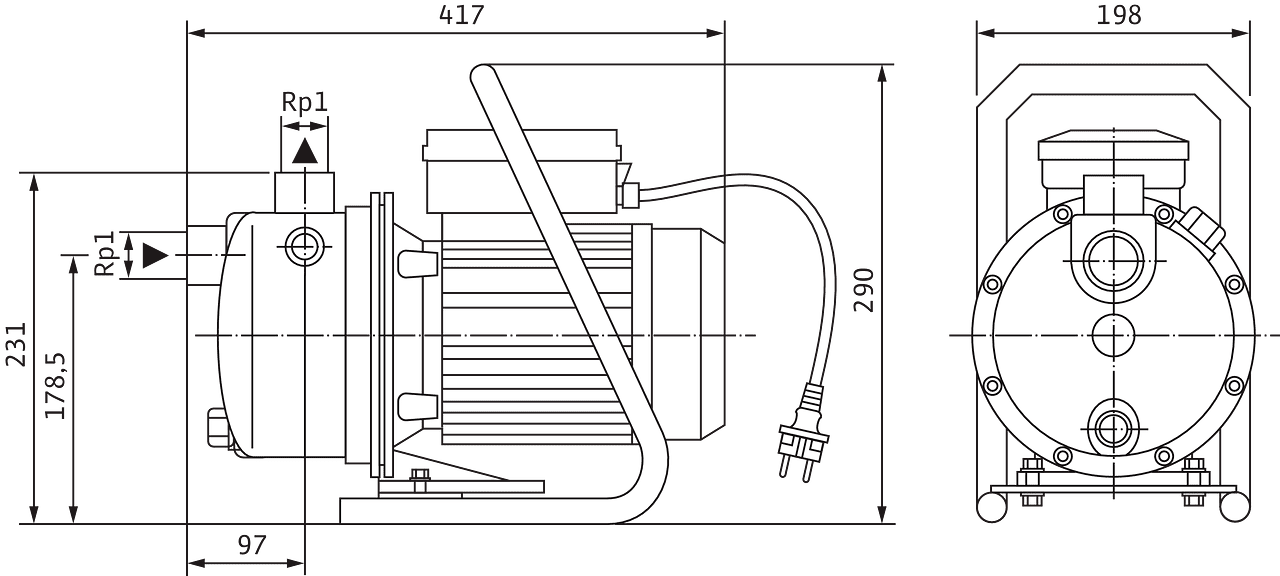

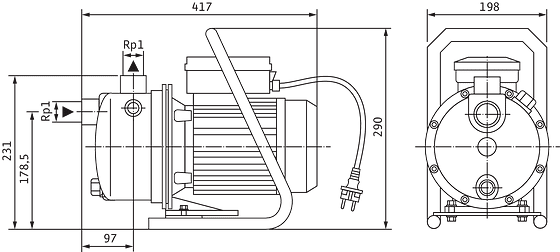

Installation dimensions
Pipe connection on the suction side DNs G 1
Pipe connection on the discharge side DNd G 1

Jet WJ 204 (1~230 V)

Product data
Brand Wilo
Product description Jet WJ 204 (1~230 V)
Article number 4262914
EAN number 4062679329215
Colour green/silver
Minimum order quantity 1
Date of sales availability 2024-01-31
Packaging
Packaging type One-way pallet
Packaging property Sales packaging
Dimension, weight
Length with packaging 490 mm
Length L 448 mm
Height with packaging 345 mm
Height H 300 mm
Width with packaging 215 mm
Width W 199 mm
Gross weight, approx. m 14.6 kg
Net weight, approx. m 13.5 kg
Tender text
  • Self-priming single stage jet pump for water supply, irrigation and rainwater re-use applications.
  • Self-priming capacity up to 8m thanks to integrated Venturi system.
  • The pump is easy to use thanks to its embedded ON/OFF switch.
  • Wilo-WJ is supplied with integrated handle, Wilo-WJ-X is supplied without handle.
  • Ready for connection thanks to its already connected 2 meters electrical cable with shock-proof Schuko plug.
  • Connection via terminal box for three-phase versions.
  • All parts that come into contact with the fluid are corrosion-proof.
Materials
Pump housing Stainless steel
Shaft Stainless steel
Shaft seal CVPFF
Gasket material NBR
Impeller Stainless steel
Operating Data
Min. fluid temperature Tmin 5 °C
Max. fluid temperature Tmax 35 °C
Maximum operating pressure p 10.0 bar
Discharge port G 1
Max. ambient temperature Tmax 40 °C
Motor data
Mains connection 1~230 V, 50 Hz
Voltage tolerance ±6 %
Rated power P2 1 kW
Rated current IN 5.3 A
Rated speed n 2900 1/min
Insulation class B
Protection class IP44
Installation dimensions
Pipe connection on the suction side DNs G 1
Pipe connection on the discharge side DNd G 1
Ordering information
Net weight, approx. m 13.5 kg
Brand Wilo
Product description Jet WJ 204 (1~230 V)
Article number 4262914
Documents

Installation and operating instructions

Wilo-Jet-WJ

Article Number 2050754
Edition 2017-08
Number of pages 68
Language cs, de, el, en, es, fr, it, nl, ru, tr
PDF (2 MB)
Download
