Separator MODU-NS10-3

Data sheet

Product data
  • Nominal size NS
    10 NS
  • Break tank volume V
    2270 l
  • Grease reservoir volume
    400 l
  • Sludge trap volume
    1000 l
  • Net weight, approx.
    327.00 kg
  • Filling weight
    2597 kg
  • Mains connection
    3~400 V, 50 Hz
Dimensions
  • Length L
    1600.0 mm
  • Width W
    1600.0 mm
  • Height H
    680 mm
  • Installation dimension incl. maintenance space
    3400 mm x 2250 mm x 2400 mm
  • Connection input
    Ø 160
  • Connection output
    Ø 160
  • Inlet height
    1505 mm
  • Discharge height
    1435 mm
  • Water connection
    Rp ¾
  • Operating side in direction of flow (from inlet to outlet)
    left/right
Technical data mixer
  • Mixer/stirrer motor power consumption
    1100 W
  • Mixer/stirrer motor rated current
    2.7 A
  • Mixer/stirrer motor speed
    1380 1/min
  • Protection class mixer
    IP55
  • Mixer/stirrer motor weight
    11 kg
Technical data for draining
  • Connection for drainage pipe
    Storz B, PN10
Information for order placements
  • Make
    Wilo
  • Product description
    Separator MODU-NS10-3
  • Number of pallets
    2
  • Net weight, approx.
    327.00 kg
  • Item no.
    2553214

Tender text

Product data
  • Nominal size NS
    10 NS
  • Break tank volume V
    2270 l
  • Grease reservoir volume
    400 l
  • Sludge trap volume
    1000 l
  • Net weight, approx.
    327.00 kg
  • Filling weight
    2597 kg
  • Mains connection
    3~400 V, 50 Hz
Dimensions
  • Length L
    1600.0 mm
  • Width W
    1600.0 mm
  • Height H
    680 mm
  • Installation dimension incl. maintenance space
    3400 mm x 2250 mm x 2400 mm
  • Connection input
    Ø 160
  • Connection output
    Ø 160
  • Inlet height
    1505 mm
  • Discharge height
    1435 mm
  • Water connection
    Rp ¾
  • Operating side in direction of flow (from inlet to outlet)
    left/right
Technical data mixer
  • Mixer/stirrer motor power consumption
    1100 W
  • Mixer/stirrer motor rated current
    2.7 A
  • Mixer/stirrer motor speed
    1380 1/min
  • Protection class mixer
    IP55
  • Mixer/stirrer motor weight
    11 kg
Technical data for draining
  • Connection for drainage pipe
    Storz B, PN10
Information for order placements
  • Make
    Wilo
  • Product description
    Separator MODU-NS10-3
  • Number of pallets
    2
  • Net weight, approx.
    327.00 kg
  • Item no.
    2553214

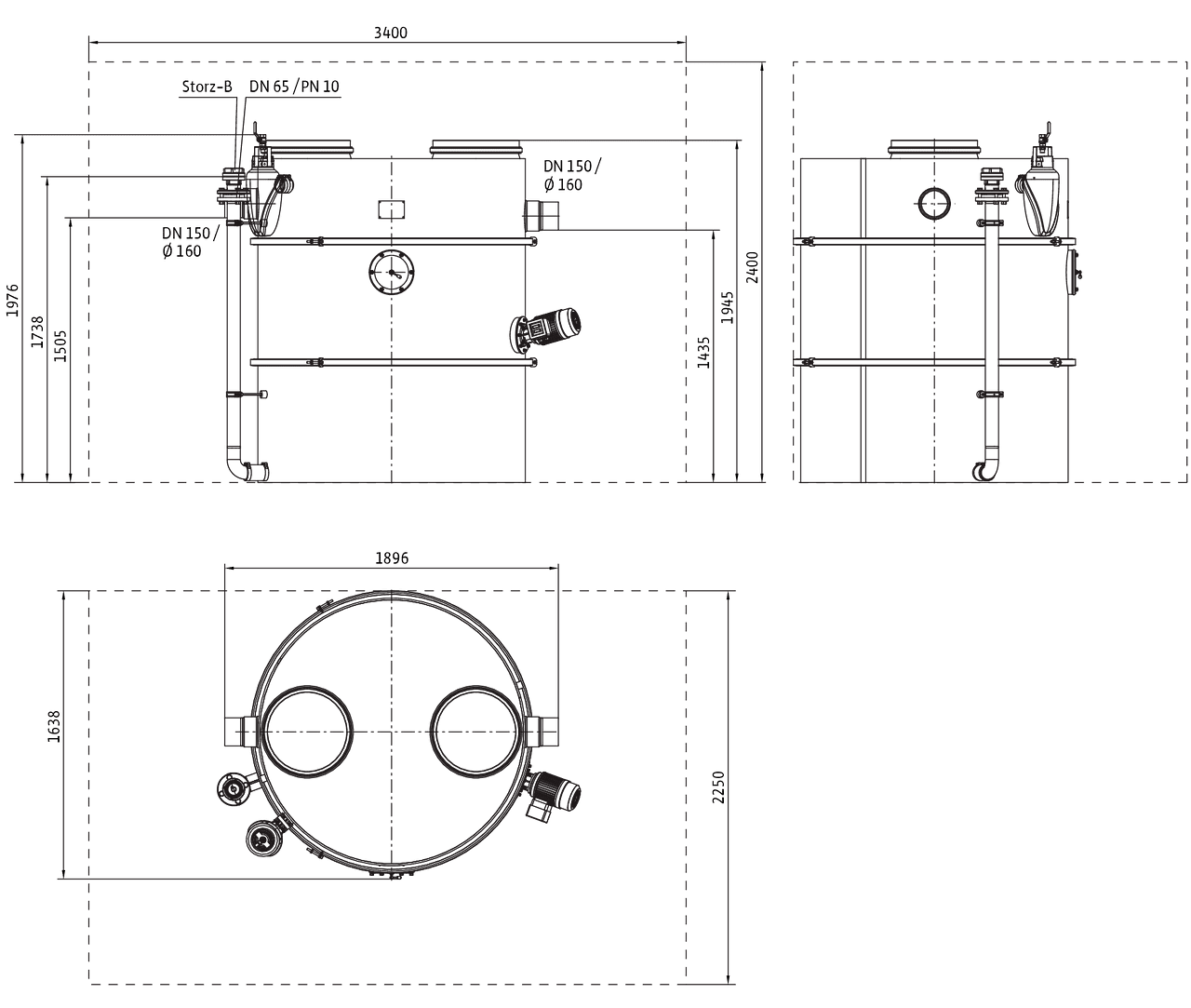

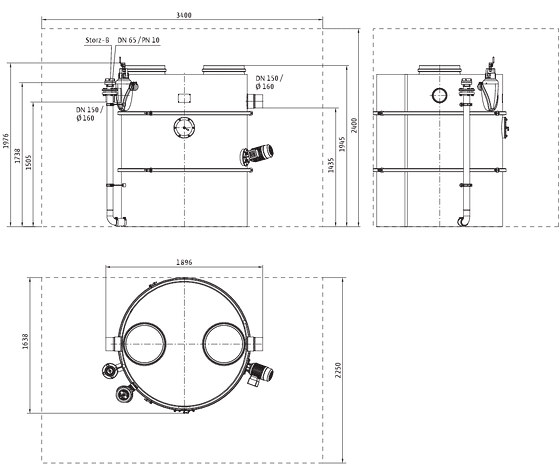

Dimensions and dimensions drawings

Wilo-Separator MODU-NS10-3

Wilo-Separator MODU-NS10-3
Wilo-Separator MODU-NS10-3

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Separator MODU-NS10-3
  • Article number
    2553214
  • Gross weight, approx. m
    379.0 kg
  • Net weight, approx. m
    327 kg
  • Overall length L
    1600.0 mm
  • Height without packaging H
    680 mm
  • Colour
    silver/black
  • Packaging property
    Transport packaging
  • Packaging type
    One-way pallet
  • Number per layer
    1
  • Width without packaging B
    1600.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1
  • Date of sales availability
    2020-03-31
  • Date of introduction
    2020-03-31
