Stratos 30/1-6

Data sheet

Hydraulic data
  • Max. volume flow Q
    7.6 m³/h
  • Max. delivery head H
    6.00 m
  • Energy efficiency index (EEI)
    0.20
Product data
  • Maximum operating pressure PN
    10 bar
  • Max. ambient temperature T
    40 °C
  • Min. ambient temperature T
    -10 °C
  • Max. fluid temperature T
    110 °C
  • Min. fluid temperature T
    -10 °C
Motor data
  • Mains connection
    1~230 V ±10%, 50/60 Hz
  • Power consumption P1 max
    80 W
  • Power consumption P1 min
    9 W
  • Max current Imax
    0.70 A
  • Min current Imin
    0.13 A
  • Max. speed nmax
    3400 rpm
  • Min. speed nmin
    1400 rpm
  • Insulation class
    F
  • Protection class
    IPX4D
  • Emitted interference
    EN 61800-3;2004+A1;2012 /residential area (C1)
  • Interference resistance
    EN 61800-3;2004+A1;2012 /industrial environment (C2)
Installation dimensions
  • Pipe connection on the pressure side
    G 2
  • Pipe connection on the suction side
    G 2
  • Port-to-port length l0
    180 mm
Materials
  • Bearing
    Carbon, metal impregnated
  • Impeller
    PPE-GF30
  • Pump housing
    5.1300, EN-GJL-200
  • Shaft
    1.4122, X39CrMo17-1
Information for order placements
  • Brand
    Wilo
  • Product description
    Stratos 30/1-6
  • Article number
    2069760
  • Net weight, approx. m
    4 kg

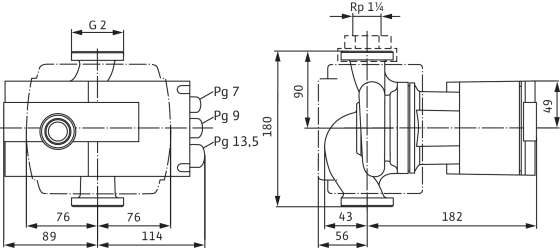

Dimensions and dimensions drawings

Stratos (2069760)

Stratos (2069760)
Stratos (2069760)

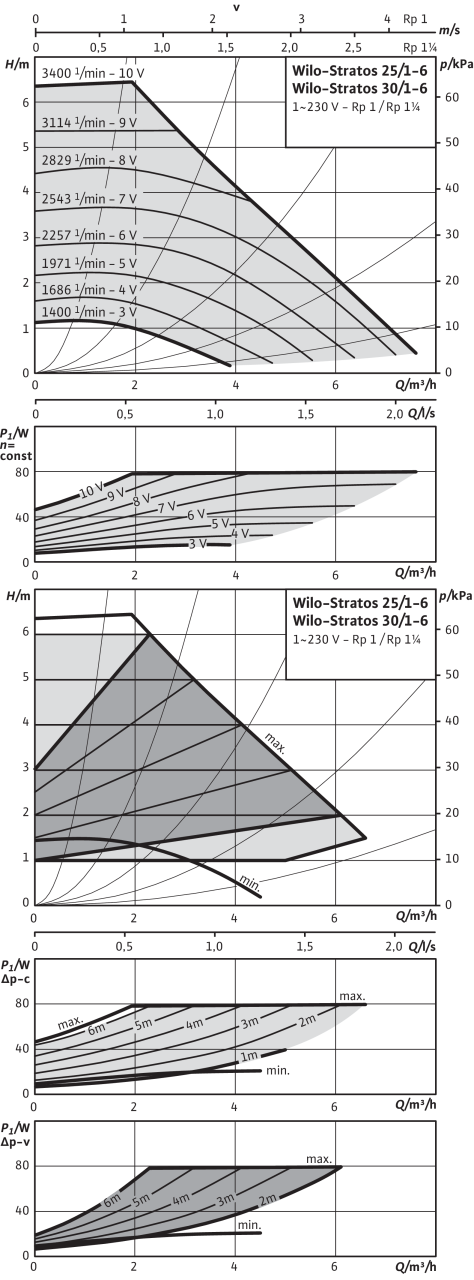

Pump curves

Stratos 25/1-6, 30/1-6

Stratos 25/1-6, 30/1-6
Stratos 25/1-6, 30/1-6

Wiring diagram

1~230V, 50/60 Hz; 1~230 V, 50/60 Hz

1~230V, 50/60 Hz; 1~230 V, 50/60 Hz

SSM:Collective fault signal

(NC contact in accordance with VDI 3814, load capacity 1 A, 250 V ~)

Standard: 1~230 V, 50/60 Hz

Option: 3~230 V, 50/60 Hz

1~230V, 50/60 Hz; 1~230 V, 50/60 Hz

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Stratos 30/1-6
  • EAN number
    4016322891819
  • Article number
    2069760
  • Gross weight, approx. m
    4.8 kg
  • Net weight, approx. m
    4 kg
  • Overall length L
    180.0 mm
  • Height without packaging H
    260 mm
  • Colour
    green/black
  • Packaging property
    Transport packaging
  • Packaging type
    Cardboard box
  • Number per layer
    6
  • Width without packaging L
    203.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    30

Tender text

Wilo-Stratos high-efficiency pump

electronically controlled,

Glandless circulation pump with minimum operating costs, for pipe installation. Can be used for all HVAC applications (-10 °C to +110 °C). With built-in electronic power control for constant/variable differential pressure. Standard-equipped thermal insulation shells. One-button manual operation level as standard, for:

  • Pump On/Off
  • Selecting the control mode:
    • dp-c (differential pressure constant )
    • dp-v (differential pressure variable)
    • dp-T (differential pressure temperature-controlled) by means of IR-Monitor/IR-Module/IR-Stick, Modbus, BACnet, LON or Can
    • Q-Limit to restrict the maximum volume flow (setting only via IR-Stick)
    • Manual control mode (setting constant speed)
  • Automatic setback operation (self-learning)
  • Setpoint or speed adjustment

Graphical pump display with rotatable display horizontal and vertical module mounting, for display of:

  • Operating status
  • Control mode
  • Differential pressure or rotation speed setpoint
  • Fault and alarm signals

Synchronous motor using ECM technology with very high efficiency and high starting torque, automatic deblocking function and built-in full motor protection.

Fault signal light, potential-free collective fault signal, infrared interface for wireless communication with Wilo IR-Monitor/IR-Stick operating and service device.

Plug-in slot for Wilo Stratos IF-modules with interfaces for building automation (BA) or dual pump management (accessories: IF-modules Stratos Modbus, BACnet, LON, CAN, PLR, Ext.Aus, Ext.Min, SBM, Ext.Aus/SBM or DP).

Pump housing made of cast iron with cataphoretic coating, impeller made of glass-fibre reinforced plastic, stainless steel shaft with metal impregnated carbon plain bearings.

For flange-end pumps - flange versions:

  • Standard version for pumps DN 32 to DN 65: Combination flange PN 6/10 (flange PN 16 acc. to EN 1092-2) for counter flanges PN 6 and PN 16
  • Standard version for pumps DN 80 / DN 100: Flange PN 6 (configured for PN 16 acc. to EN 1092-2) for counter flange PN 6
  • Special version for pumps DN 32 to DN 100: Flange PN 16 (acc. to EN 1092-2) for counter flange PN 16
Materials
  • Pump housing
    5.1300, EN-GJL-200
  • Impeller
    PPE-GF30
  • Shaft
    1.4122, X39CrMo17-1
  • Bearing
    Carbon, metal impregnated
Operating data
  • Fluid media
    Water
  • Min. fluid temperature T
    -10 °C
  • Max. fluid temperature T
    110 °C
  • Maximum operating pressure PN
    10 bar
  • Minimum suction head at 50 °C
    3
  • Minimum suction head at 95 °C
    10
  • Minimum suction head at 110 °C
    16
  • Max. ambient temperature T
    40 °C
Motor data
  • Energy efficiency index (EEI)
    0.20
  • Emitted interference
    EN 61800-3;2004+A1;2012 /residential area (C1)
  • Interference resistance
    EN 61800-3;2004+A1;2012 /industrial environment (C2)
  • Mains connection
    1~230 V, 50/60 Hz
  • Power consumption P1 max
    80 W
  • Min. speed nmin
    1400 rpm
  • Max. speed nmax
    3400 rpm
  • Protection class motor
    IPX4D
  • Threaded cable connection
    1 x PG7
Installation dimensions
  • Pipe connection on the suction side
    G 2
  • Port-to-port length l0
    180 mm
Information for order placements
  • Net weight, approx. m
    4 kg
  • Brand
    Wilo
  • Product description
    Stratos 30/1-6
  • Article number
    2069760
