Stratos GIGA 65/3-40/11

Data sheet

Materials
  • Pump housing
  • Impeller
    5.1300, EN-GJL-200
  • Lantern
  • Shaft
    1.4122, X39CrMo17-1
Operating data
  • Min. fluid temperature T
    -20 °C
  • Max. fluid temperature T
    140 °C
  • Maximum operating pressure p
    16 bar
  • Max. ambient temperature T
    40 °C
  • Minimum efficiency index (MEI)
    0.4
Motor data
  • Mains connection
    3~400 V, 50 Hz
  • Motor efficiency class
    IE5
  • Emitted interference
    EN 61800-3
  • Interference resistance
    EN 61800-3
  • Rated power P2
    11.00 kW
  • Rated current IN
    18.50 A
  • Rated speed n
    2950 rpm
  • Max. speed nmax
    2950 rpm
  • Protection class motor
    IP55
Installation dimensions
  • Pipe connection on the suction side
    DN 65
  • Pipe connection on the pressure side
    DN 65
Information for order placements
  • Net weight, approx. m
    134 kg
  • Brand
    Wilo
  • Product description
    Stratos GIGA 65/3-40/11
  • Article number
    2191916

Dimensions and dimensions drawings

Stratos GIGA 65/3-40/11

Stratos GIGA 65/3-40/11

Stratos GIGA 65/3-40/11-R1

Stratos GIGA 65/3-40/11-R1
Stratos GIGA 65/3-40/11
Stratos GIGA 65/3-40/11-R1

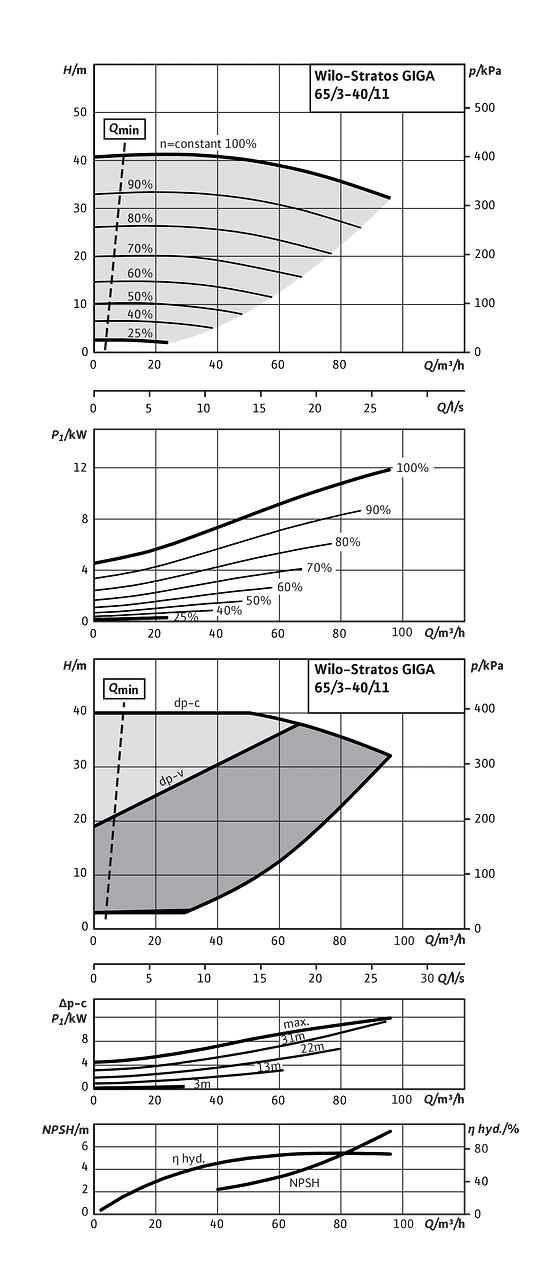

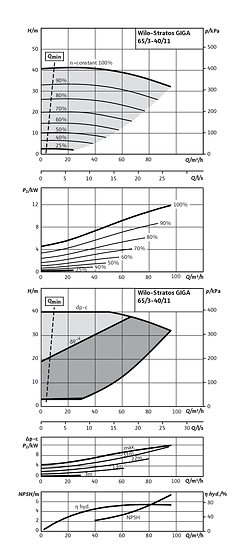

Pump curves

Stratos GIGA 65/3-40/11

Stratos GIGA 65/3-40/11
Stratos GIGA 65/3-40/11

Ordering information

Information for order placements
  • Brand
    Wilo
  • Product description
    Stratos GIGA 65/3-40/11
  • EAN number
    4048482819815
  • Article number
    2191916
  • Gross weight, approx. m
    159.4 kg
  • Net weight, approx. m
    134 kg
  • Overall length L
    841.7 mm
  • Height without packaging H
    603 mm
  • Colour
    green/silver
  • Packaging property
    Transport packaging
  • Packaging type
    Package
  • Number per layer
    1
  • Width without packaging L
    380.0 mm
  • Minimum order quantity
    1
  • Pieces per pallet
    1

Tender text

High-efficiency in-line pump with EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2 and electronic power adjustment in glanded pump construction. The pump is configured as a single-stage low-pressure centrifugal pump with flange connection and mechanical seal. The Stratos GIGA has been predominantly designed for pumping heating water (acc. to VDI 2035), cold water and water-glycol mixtures without abrasive substances in heating, air-conditioning and cooling systems.

Design:

  • Single-stage low-pressure centrifugal pump with one-piece shaft in monobloc design
  • Spiral housing in in-line design (suction and pressure ports with the same flanges in a line)
  • PN 16 flange – drilled according to EN 1092-2
  • Pressure measuring connections (R 1/8) for mounted differential pressure sensor (version ...-R1 without differential pressure sensor)
  • Pump housing and motor flange with cataphoretic coating as standard
  • Mechanical seal for pumping water up to Tmax. = +140 °C. A glycol admixture of 20 % to +40 % by volume is permitted up to T ≤ +40 °C. An alternative mechanical seal must be provided in water-glycol mixtures with glycol proportions > 40 % up to maximum 50 % by volume and a fluid temperature of > +40 °C up to maximum +120 °C or fluids other than water.
  • Connection voltages: 3~480 V ±10 % 50/60 Hz; 3~440 V ±10 % 50/60 Hz; 3~400 V ±10 % 50/60 Hz; 3~380 V -5 % +10 % 50/60 Hz

Accessories:

  • Mounting brackets for fixing to the foundation
  • Differential pressure sensor sets 0 – 10 V for pumps in ...–R1 version
  • IR-Monitor
  • IR-Stick
  • IF module PLR
  • IF module LON
  • IF module Modbus
  • IF module BACnet
  • IF module CAN

Standard equipment:

  • Green button manual operation level for:
    • Pump On/Off
    • Selecting the control mode: Δp-c (constant differential pressure), Δp-v (variable differential pressure), PID controller, n-constant (constant speed)
    • Setpoint and speed adjustment
    • Configuration of operating parameters
    • Fault acknowledgement
  • Pump display for displaying:
    • Control mode
    • Setpoint (e.g. differential pressure or speed)
    • Error and warning messages
    • Actual values (e.g. power consumption, actual value of the sensor)
    • Operating data (e.g. operating hours, energy consumption)
    • Status data (e.g. status of SSM and SBM relay)
    • Device data (e.g. pump name)
    • Operating mode (only for twin-head pump operation: main/standby operation, parallel operation)
    • Status of the pressure values correction

Additional functions:

  • Analogue interfaces 0 – 10 V, 2 – 10 V, 0 – 20 mA, 4 – 20 mA, built-in dual pump management, two configurable signalling relays for operating and fault messages, configurable fault response adapted to HVAC applications, access disable on the pump, built-in full motor protection (PTC thermistor sensor) with trip electronics, condensation drain holes in the motor housing as standard (sealed in delivered condition), infrared interface for wireless communication with the operating and service unit Wilo-IR Monitor and Wilo IR-Stick, plug-in position for Wilo IF modules Modbus, BACnet, CAN, PLR, LON for connecting to the building automation.
Materials
  • Pump housing
  • Impeller
    5.1300, EN-GJL-200
  • Lantern
  • Shaft
    1.4122, X39CrMo17-1
Operating data
  • Fluid media
    Water
  • Min. fluid temperature T
    -20 °C
  • Max. fluid temperature T
    140 °C
  • Maximum operating pressure p
    16 bar
  • Max. ambient temperature T
    40 °C
  • Minimum efficiency index (MEI)
    0.4
Motor data
  • Emitted interference
    EN 61800-3
  • Interference resistance
    EN 61800-3
  • Mains connection
    3~400 V, 50 Hz
  • Rated power P2
    11000 W
  • Max. speed nmax
    2950 rpm
  • Rated current IN
    18.50 A
  • Protection class motor
    IP55
  • Insulation class
    F
  • Integrated full motor protection
    yes
Installation dimensions
  • Pipe connection on the suction side
    DN 65
  • Pipe connection on the pressure side
    DN 65
Information for order placements
  • Net weight, approx. m
    134 kg
  • Brand
    Wilo
  • Product description
    Stratos GIGA 65/3-40/11
  • Article number
    2191916
