CronoBloc-BL 32/85-1,1/2
Data sheet
Hydraulic data
-
Minimum efficiency index (MEI)0.4
-
Max. operating pressure p16 bar
-
Maximum operating pressure PN16 bar
-
Min. fluid temperature Tmin-20 °C
-
Max. fluid temperature Tmax140 °C
-
Max. ambient temperature Tmax40 °C
-
Note on dimensioning16 bar to 120°C, 13 bar to 140°C
Motor data
-
Mains connection3~400 V, 50 Hz
-
Voltage tolerance±10 %
-
Rated power P21.10 kW
-
Rated current IN2.40 A
-
Rated speed n2900 1/min
-
Power factor cos φ0.80
-
Motor efficiency ηM 50%78.9 Percentage
-
Motor efficiency ηM 75%82.1 Percentage
-
Motor efficiency ηM 100%82.7 Percentage
-
Motor winding up to 3 kW-
-
Motor winding from 4 kW-
-
Insulation classF
-
Protection class motorIP55
-
Motor protectionno
Materials
-
Pump housing5.1301/EN-GJL-250 KTL-coated
-
ImpellerCast iron
-
ShaftStainless steel
-
Mechanical sealAQ1EGG
Installation dimensions
-
Pipe connection on the suction side DNsDN 50
-
Pipe connection on the pressure side DNdDN 32
Information for order placements
-
BrandWilo
-
Product descriptionCronoBloc-BL 32/85-1,1/2
-
EAN number4048482862057
-
Article number9126730
-
Net weight, approx. m45 kg
-
Gross weight, approx. m62.0 kg
-
Length with packaging800 mm
-
Height with packaging890 mm
-
Width with packaging600 mm
-
Packaging propertyTransport packaging
-
Packaging typeWooden box
-
Minimum order quantity1
Tender text
Single-stage glanded centrifugal pump in monobloc design for installation on a base.
Low-vibration and low-noise monobloc design with lantern and rigidly connected standard motor.
With force-flushed, bidirectional bellows mechanical seal (from 37 kW/4-pole optionally available with a cartridge mechanical seal in back pull-out design for mechanical seal replacement without dismantling the motor) and cavitation-reducing impeller.
Flange with R 1/8 pressure measuring connections. Pump housing and lantern are cataphoretic-coated.
Motors in IE3 technology as standard. Pump with motor ≥ 5.5 kW are equipped as standard with a PTC thermistor sensor for motor protection.
Operating data
-
Fluid mediaWater
-
Maximum operating pressure PN16 bar
-
Minimum efficiency index (MEI)0.4
Motor data
-
Mains connection3~400 V, 50 Hz
-
Voltage tolerance±10 %
-
Rated power P21100.0 W
-
Rated speed n2900 rpm
-
Rated current IN2.40 A
-
Power factor cos φ0.80
-
Motor efficiency ηM 50%78.9
-
Motor efficiency ηM 75%82.1
-
Motor efficiency ηM 100%82.7
-
Insulation classF
-
Protection classIP55
Materials
-
Pump housing5.1301/EN-GJL-250 KTL-coated
-
ImpellerCast iron
-
ShaftStainless steel
-
Shaft sealAQ1EGG
Installation dimensions
-
Pipe connection on the suction side DNsDN 50
-
Pipe connection on the pressure side DNdDN 32
Information for order placements
-
BrandWilo
-
Product descriptionCronoBloc-BL 32/85-1,1/2
-
Net weight, approx. m45 kg
-
Article number9126730
Dimensions and dimensions drawings
CronoBloc-BL 32/85-1,1/2

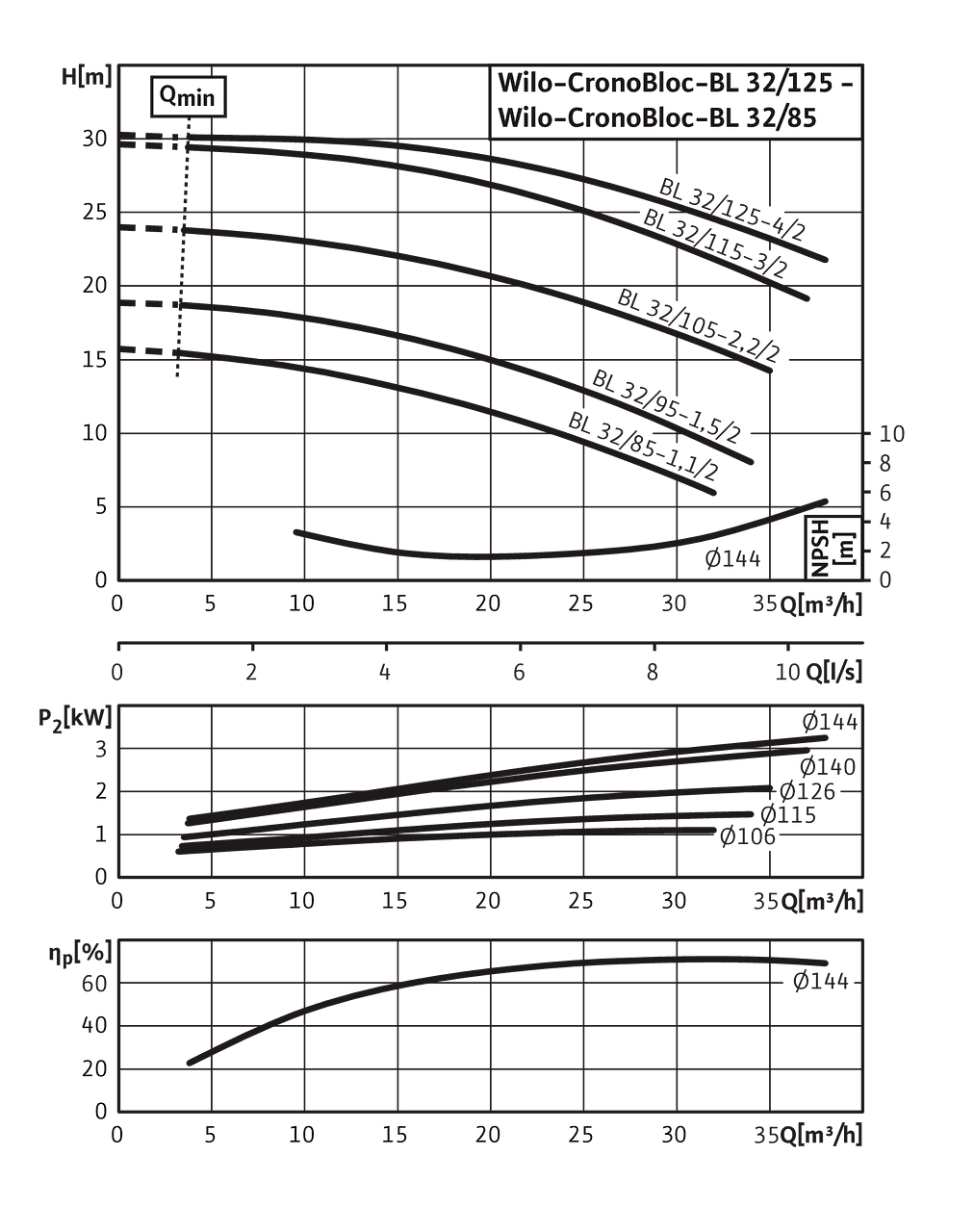

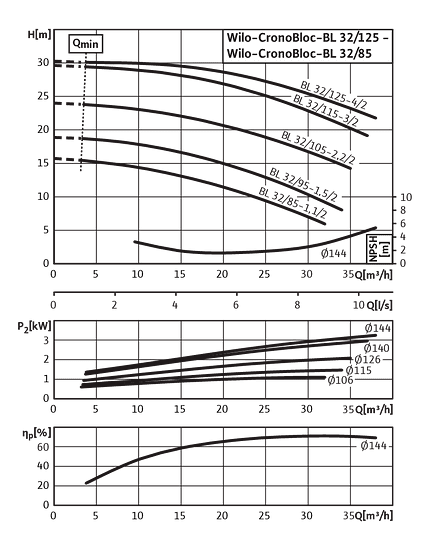

Pump curves
Wilo-CronoBloc-BL 32/85-125/2


Wiring diagram

∆: Connection diagram delta connection
Y: Connection diagram star connection
Motor protection switch required on-site. Check the direction of rotation! To change the direction of rotation, exchange any two phases.
P2≤ 3 kW | 3~400 V Y |
3~230 V ∆ | |
P2≥ 4 kW | 3~690 V Y |
3~400 V ∆ |
After removing the bridges, Y-∆ start is possible.

Ordering information
Information for order placements
-
BrandWilo
-
Product descriptionCronoBloc-BL 32/85-1,1/2
-
EAN number4048482862057
-
Article number9126730
-
Gross weight, approx. m62.0 kg
-
Net weight, approx. m45 kg
-
Overall length L503.0 mm
-
Height without packaging H252 mm
-
ColourGreen
-
Packaging propertyTransport packaging
-
Packaging typeWooden box
-
Number per layer1
-
Width without packaging B216.0 mm
-
Minimum order quantity1
-
Pieces per pallet1
-
Date of sales availability2018-09-01
-
Date of introduction2018-09-01
