Recycling
Recycling and disposal of WILO products
Wilo aims for a comprehensive life cycle assessment, i.e. delivering excellent products is not enough: we think ahead - already during the product design phase - by considering what to do with worn-out products. The disposal or recycling of materials and components is an important matter to us. That is why we check thoroughly not only if the materials and components we use are environmentally compatible in general but also if they can be reused and recycled.
We're not only promising the motto "Reduce. Reuse. Recycle." - we live it. All returned products are thoroughly analysed, so they provide hints for product optimisation in our product development. Then the products are disassembled and returned into the "material cycle" in an ecologically and economically sensible way in our Recycling Center and our "extended workbench" in the CJD Dortmund (Christian Association of Youth Villages).
The potential recycling rate of a WILO pump lies between 90 and 98 per cent, i.e. that nearly each component of a pump that is no longer in use can directly enter the "material-cycle". Metals make up the largest part of the total weight. Already today, a Wilo pump consists to a large part of reused materials.
As a consequence of the ecodesign guidelines regarding pumps, the number of electronic pumps in Europe is going to increase. This trend isn't all that new: the share of electronics and highly developed materials in our products has been growing constantly. In turn, by using these technologies in our products, we reduce their total weights and their total power consumption. Of course these changes mean also challenges for the recycling process; but Wilo is willing to accept and overcome them.
When considering the information given in this document, only 2.5 per cent of the total pump weight cannot be recycled, because it isn't yet technologically possible. The Wilo group is committed to a constant improvement process also with regard to the recyclability of our products; As a consequence, we always strive to improve the environmental compatibility of our products.
Hence we would like to ask all our customers to give us back old Wilo products that are no longer in operation and to actively support the preservation of resources. Ecological and economical resource preservation needs you!

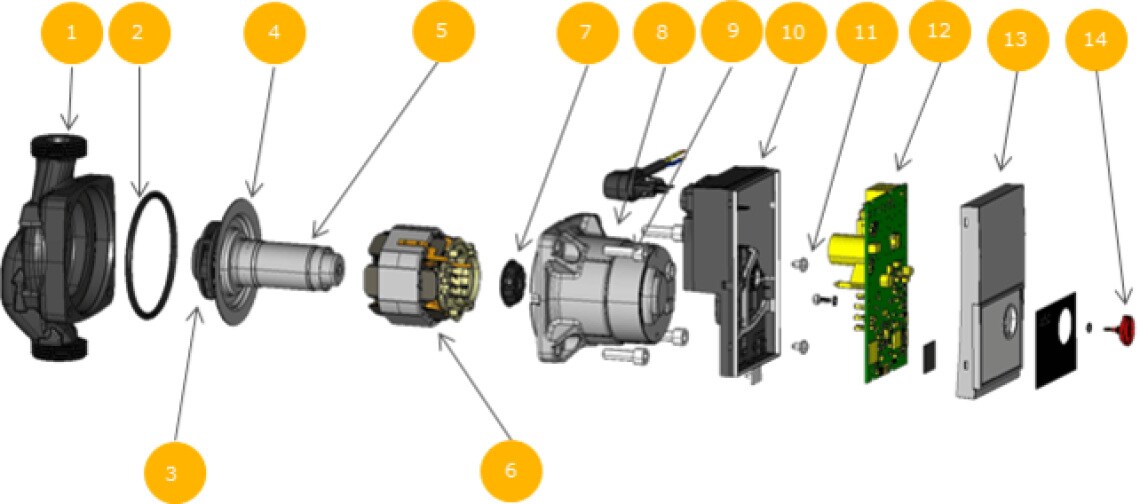

No. | Designation | Material |
---|---|---|
1 | Pump Housing | Cast iron GG2 |
2 | Flat gasket | EPDM |
3 |
Impeller Impeller insert |
Composite PP Brass |
4 |
Rotor pack Rotor shaft |
Neodymium iron bore Martensitic Stainless steel |
5 | Rotor cartridge | Stainless steel |
6 |
Stator winding Stator lamination Stator caps |
Copper wire Laminated iron Composite PBT |
7 | Damper | EPDM |
8 | Motor housing | Aliminium Silicium |
9 | Screw | Steel |
10 | Base | Composite PC |
11 | Base screw | Steel |
12 | Motor control | PCB wit THT and AMD components |
13 |
Base cover Heat sink |
Composite Aluminium |
14 | Red button | Composite PA |

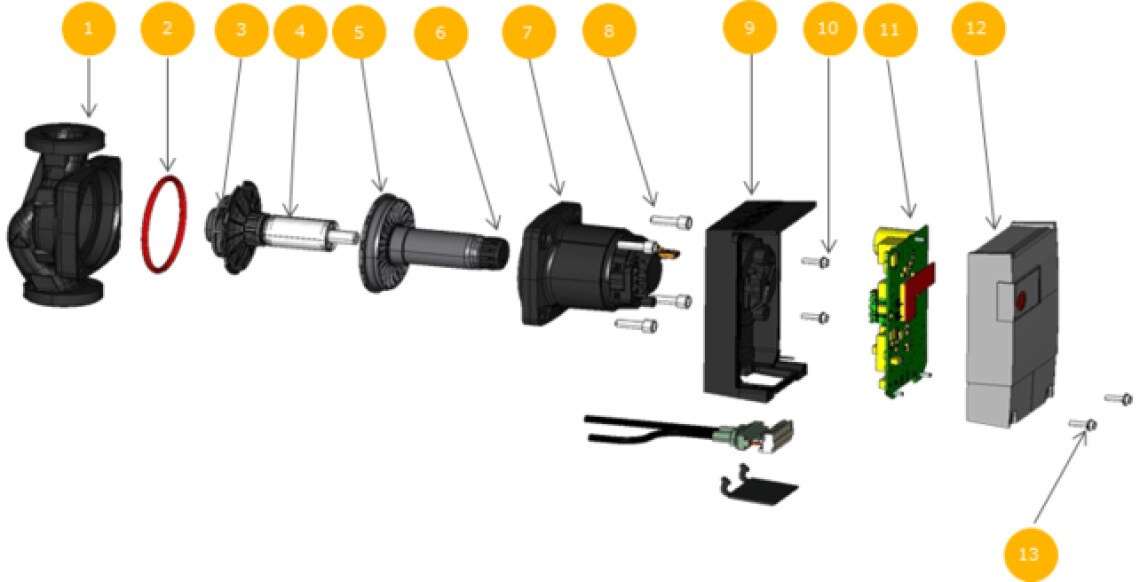

No | Designation | Material per motor type | ||
---|---|---|---|---|
1-7, 1-9, 1-11, 5 | 1-8, 1-11 | 1-12 | ||
1 | Pump Housing | Cast iron GG20 | Cast iron GG20 | Cast iron GG20 |
2 | O'ring gasket | EPDM | EPDM | EPDM |
3 |
Impeller Impeller insert |
Composite PP Brass |
Composite PP Brass |
Composite PP Brass |
4 |
Rotor pack Rotor shaft |
Neodymium iron bore Martensitic Stainless steel |
Neodymium iron bore Martensitic Stainless steel |
Neodymium iron bore Martensitic Stainless steel |
5 | Rotor cartridge | Composite PPS | Composite PPS | Composite PPS |
6 | Damper | EPDM | EPDM | EPDM |
7 |
Stator winding Stator lamination Stator caps Motor Housing |
Copper wire Laminated iron Composite PBT Composite PPO |
Copper wire Laminated iron Composite PBT Composite PPO |
Copper wire Laminated iron Composite PBT Composite PPO |
8 | Screw | Steel | Steel | Steel |
9 | Base | Composite PC | Composite PC | Composite PC |
10 | Base screw | Steel | Steel | Steel |
11 | Motor control | PCB with THT and SMD components | PCB with THT and SMD components | PCB with THT and SMD components |
12 |
Base cover Heat sink Red button |
Aluminium Aluminium Composite PA |
Aluminium Aluminium Composite PA |
Aluminium Aluminium Composite PA |
13 | Base cover screw | Steel | Steel | Steel |

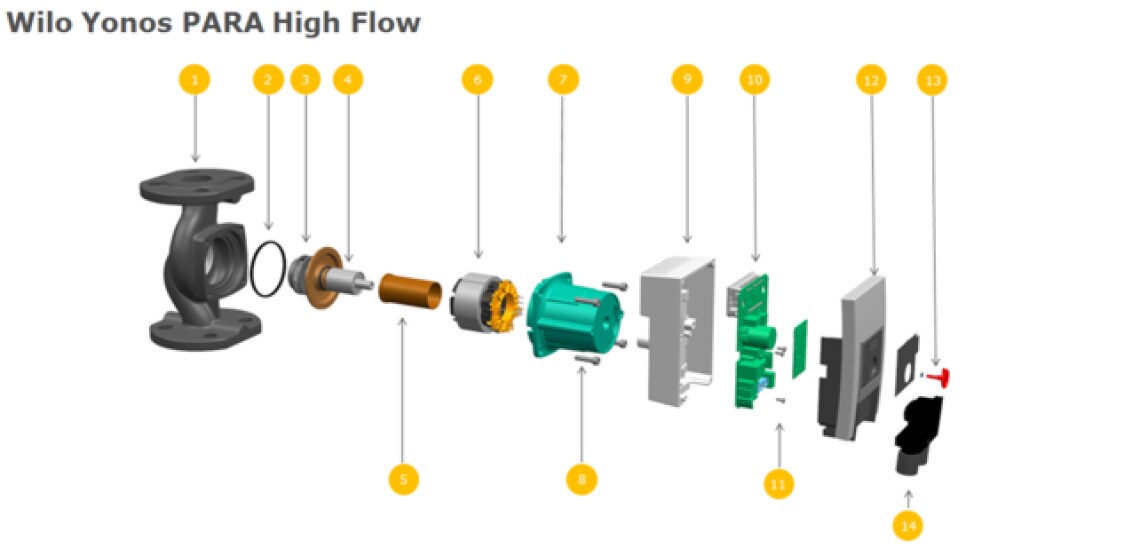

No | Designation | Material |
---|---|---|
1 | Pump Housing | Cast iron EN-JGL 200-250 with cataphoresis treatement |
2 | O'ring gasket | EPDM |
3 |
Impeller Impeller insert |
Plastic PPS Brass |
4 |
Rotor pack rotor shaft |
Electric lamination with neodymium iron boron magnets Martensitic stainless steel |
5 | Gap tube | Composite PPS/CFK |
6 |
Stator winding Stator lamination Stator caps |
Copper wire Electric lamination Composite PET |
7 | Motor housing | Aluminium GD-ALSi9Cu3 |
8 | Screw | Coated steel |
9 | Module bottompart | Aluminium GD-ALSi9Cu3 |
10 | Motor control | PCB with THT and SMD components |
11 | Base screw | Coated steel |
12 |
Module upperpart Modul cover |
Plastic PC Plastic ABS |
13 | Red knob | Plastic PA6 |
14 | Power/ fault indication plug | Plastic PC |
