Wilo-Para MAXO

Design

Glandless circulator with screwed connection, EC motor, automatic power adjustment and self-protecting modes

Application

Hot-water heating systems of all kinds, solar applications

Special features / product benefits

  • Maximum flexibility thanks to the integration of self-control and external control modes: Δp-v, Δp-c, n-constant, 0-10V, iPWM, Modbus or LIN extended
  • Immediate information on the pump status by green/red LED
  • Maximum convenience for electrical installation thanks to a quick electrical connection plug
  • Easy product identification in OEM environment with all product data displayed on the front
  • Energy savings due to high-efficiency hydraulics and motors

Wilo Para MAXO-Z

Design

Glandless circulator with screwed connection, EC motor, automatic power adjustment and self-protecting modes.Design certified for the use of drinking water

Application

Domestic hot water circulation systems of all kinds

Special features / product benefits

  • Maximum flexibility thanks to the integration of self-control and external control modes: Δp-v, Δp-c, n-constant, 0-10V, iPWM, Modbus or LIN extended
  • Highest standard of drinking water hygiene with pump housing in stainless steel
  • Immediate information on the pump status by green/red LED
  • Maximum convenience for electrical installation thanks to a quick electrical connection plug
  • Easy product identification in OEM environment with all product data displayed on the front

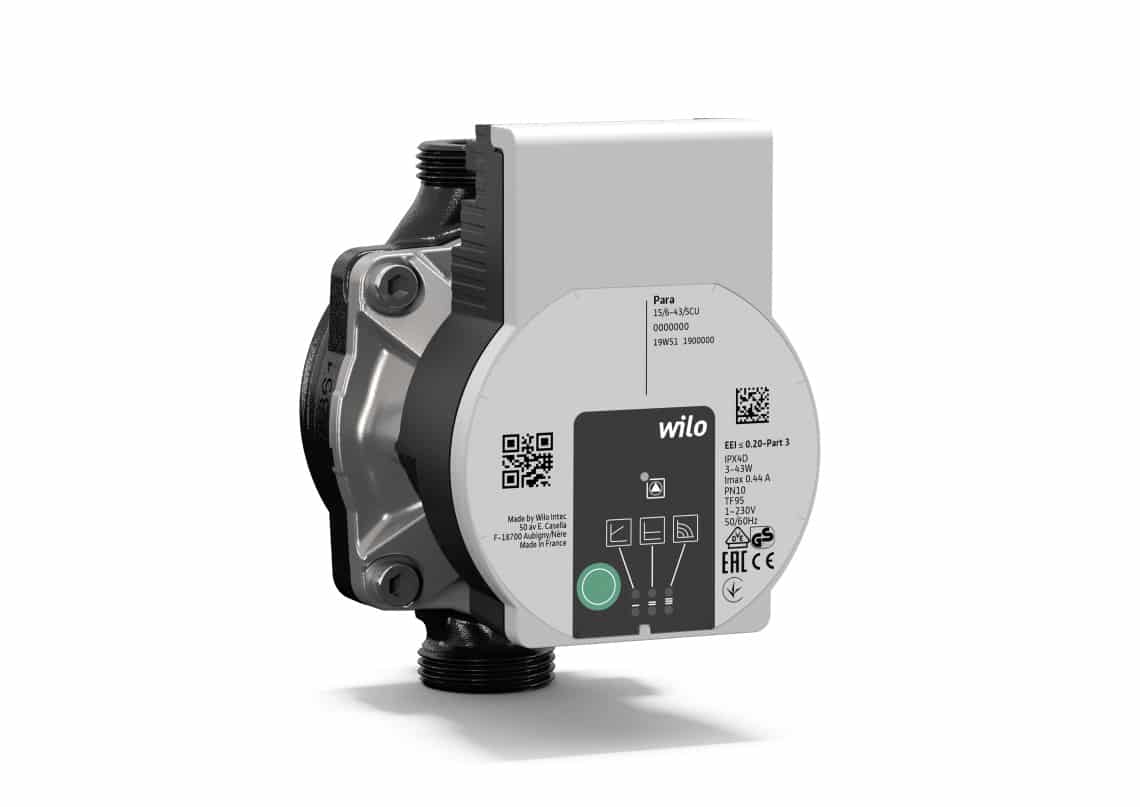

Wilo-Para

Design

Glandless circulation pump with a cast iron pump housing and threaded connection. High-efficiency motor with automatic power adjustment and self-protecting modes.

Application

Hot water heating systems of all kinds, cooling applications

Special features / product benefits

  • High integration flexibility due to backwards compatibility with former asynchronous and synchronous series and a wide range of specific pump housings
  • Easy installation thanks to a compact and standardised design with a front access to the signal connector and screws
  • Easy handling and commissioning with the green push button and LED interface
  • Maximum flexibility for the OEM achieved by late customisation of factory settings
  • High system protection due to integrated functionalities such as air venting, manual restart as well as reset to factory settings


Wilo-Para SCA

Design type

Glandless circulation pump with a cast iron pump housing and threaded connection. EC motor with automatic power adjustment and self-protecting modes.

Application

Hot water heating systems of all kinds, cooling applications. Specially dedicated to the replacement of standard efficiency circulators

Special features/product advantages

  • High integration flexibility due to backwards compatibility with former asynchronous and synchronous series and a wide range of specific pump housings
  • Easy boiler installation thanks to a compact and standardised design with a front access to the signal connector and screws
  • High EMC protection for integration in existing appliances
  • Easy handling and commissioning with adjusted predefined nine constant speeds, the green push button and an LED interface
  • High system protection due to integrated functionalities such as air venting, manual restart as well as return to factory settings

Wilo-Para SCU

Design type

Glandless circulation pump with a cast iron pump housing and threaded connection. EC motor with automatic power adjustment and self-protecting modes.

Application

Hot water heating systems of all kinds, cooling applications. Specially dedicated to low head loss systems in heating applications.

Special features/product advantages

  • Easy handling and commissioning with adjusted predefined settings, the green push button and an LED interface
  • Flexible integration thanks to a large choice of pump housings
  • Easy installation thanks to a compact and standardised design with a front access to the signal connector and screws
  • High system protection due to integrated functionalities such as air venting, manual restart as well as reset to factory settings

Wilo-Para Z

Design type

Glandless circulation pump with either a bronze, a composite or a stainless steel pump housing and threaded connection. High-efficiency motor with automatic power adjustment and self-protecting modes. Mechanical design dedicated to sanitary applications

Application

Secondary hot water circulation systems of all kinds, hot water heating systems of all kinds

Special features/product advantages

  • A large range of specific pump housings with bronze, stainless steel or composite for the use in sanitary applications
  • Easy installation thanks to a front access to the signal connector and screws
  • Easy handling and commissioning with the the green push button and an LED interface
  • High system protection due to integrated functionalities such as manual restart as well as reset to factory settings

Wilo-Yonos PARA High Flow

Design

Glandless circulation pump with threaded connection or flange connection, EC motor with automatic power adjustment.

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems

Special features/product advantages

The Yonos PARA High Flow is a high efficiency product for replacing standard pumps. The range covers nearly all ranges of the standard pump hydraulic ranges.

  • Self regulating electronic pump with Delta P variable / Delta P constant / n_const
  • Medium temperature range: from -20°C up to +110°C
    The replacement solution!
  • No additional balancing needed
  • Easiness for installer
  • Short power cable with overmoulded Molex connector on demand
  • No interface to control the pump by external signals
  • Pressure rating: PN10

Wilo-Stratos MAXO

Design

Smart glandless circulator with screwed connection or flange connection, EC motor with integrated electronic power adjustment.

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Special features/product advantages

  • Intuitive operation by means of application-guided settings with the Setup Guide plus the combination of a new display and operating button using Green Button Technology.
  • Maximum energy efficiency thanks to the combination of optimised and innovative energy-saving functions (e.g. No-Flow Stop).
  • Optimum system efficiency thanks to new and innovative intelligent control functions, such as Dynamic Adapt plus, Multi-Flow Adaptation, T-const. and ΔT-const.
  • Latest communication interfaces (e.g. Bluetooth) for connection to mobile devices and direct pump networking for multiple pump control via Wilo Net.
  • Maximum convenience in electrical installation thanks to a clearly arranged and spacious terminal room and the optimised Wilo-Connector.

Wilo-Stratos MAXO-Z

Design

Smart glandless circulator with screwed connection or flange connection, EC motor with integrated electronic power adjustment

Application

Domestic hot water circulation systems of all kinds, hot-water heating systems of all kinds, air-conditioning, closed cooling circuits, industrial circulation systems

Special features/product advantages

  • Intuitive operation by means of application-guided settings with the Setup Guide plus the combination of a new display and operating button using Green Button Technology.
  • Highest standard of drinking water hygiene and energy efficiency with the new, innovative, intelligent T-const. control function.
  • Optimum hygiene promotion through thermal disinfection detection.
  • Latest communication interfaces (e.g. Bluetooth) for connection to mobile devices and direct pump networking for multiple pump control via Wilo Net.
  • Maximum convenience in electrical installation thanks to a clearly arranged and spacious terminal room and the optimised Wilo-Connector.

Wilo-Stratos

Phasing out program

After 19 successful years, the Wilo-Stratos high-efficiency pump will be removed from our product range at the end of the year. It will be fully superseded by the new Wilo-Stratos MAXO smart pump. The successful era of the Stratos series will continue with the Stratos MAXO’s new pump technology.

Design type

Glandless circulation pump with threaded connection or flange connection, EC motor with automatic power adjustment.

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Special features/product advantages

  • Energy savings through greater system efficiency with the Q-Limit function (volume flow limiter)
  • Improved Energy Efficiency Index (EEI) ≤0.20 for all single pumps.
  • Optimised display for better readability and operation
  • Space-saving installation due to compact design and location-dependent LC display
  • Modular concept for connection of all conventional bus systems (e.g. Modbus, BACnet, CAN, LON and PLR)
  • Tried and tested quality and reliability

Wilo-Stratos PARA

Design type

Glandless circulator with screwed connection. EC motor with automatic power adjustment.

Supplied as standard with cable for easy electrical connection.

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems, circulation in solar thermal technology and geothermal systems.

Special features/product advantages

  • Energy efficiency class A
  • Maximum efficiency thanks to ECM technology
  • Up to 80% electricity savings compared to uncontrolled
    circulation pumps
  • High starting torque for reliable starting
  • For all heating and cooling systems in the temperature
    range of -10 °C to +110 °C
  • Prevention of flow noise
  • Safety and comfort during installation and operation
  • Functions and space-saving design were specially adapted to the requirements of the OEM market. Optimum output even in narrow installation situations
  • Standard delivery with cable for an easy electrical connection
  • Convenient setting of the pump via external control signals or the operating button
  • Cast iron pump housing with cataphoretic (KTL) coating for the prevention of corrosion from condensation formation

Wilo-Stratos PARA Z

Design type

Glandless circulator with screwed connection. EC motor with automatic power adjustment.

Supplied as standard with cable for easy electrical connection.

Application

Domestic hot water circulation systems of all versions, hot-water heating systems of all versions, air-conditioning, closed cooling circuits, industrial circulation systems, circulation in solar thermal energy and geothermal energy systems.

Special features/product advantages

  • Utilisation in fluid temperature range -10 °C to +80 °C (+110 °C)
  • Electronic power control via external control signals 0 – 10 V or PWM
  • Easy adjustment of pump with Red Button Technology with Δp-c and Δp-v controls
  • Supplied as standard with cable for easy electrical connection
