Wilo-VeroLine- IPL

Design type

Glanded pump in in-line design with screwed connection or flange connection

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

  • High standard of corrosion protection thanks to cataphoretic coating
  • Standard condensate drainage holes in the motor housings and lanterns
  • Series design: motor with one-piece shaft
  • Version N: Standard motor V1 with stainless steel plug shaft
  • Bidirectional, force-flushed mechanical seal

Wilo-VeroLine- IP- E

Design type

Electronically controlled glanded single pump in in-line design with flange connection and automatic power adjustment

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

  • Energy savings due to integrated
  • electronic power adjustment
  • Optional interfaces for bus communication using plug-in IF-Modules
  • Simple operation with Green Button Technology and display
  • Integrated dual pump management
  • Integrated full motor protection (PTC thermistor sensor) with trip electronics

Wilo-Yonos PARA High Flow

Design

Glandless circulation pump with threaded connection or flange connection, EC motor with automatic power adjustment.

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems

Special features/product advantages

The Yonos PARA High Flow is a high efficiency product for replacing standard pumps. The range covers nearly all ranges of the standard pump hydraulic ranges.

  • Self regulating electronic pump with Delta P variable / Delta P constant / n_const
  • Medium temperature range: from -20°C up to +110°C
    The replacement solution!
  • No additional balancing needed
  • Easiness for installer
  • Short power cable with overmoulded Molex connector on demand
  • No interface to control the pump by external signals
  • Pressure rating: PN10

Wilo-Stratos

Design type

Glandless circulation pump with threaded connection or flange connection, EC motor with automatic power adjustment.

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Special features/product advantages

  • Energy savings through greater system efficiency with the Q-Limit function (volume flow limiter)
  • Improved Energy Efficiency Index (EEI) ≤0.20 for all single pumps.
  • Optimised display for better readability and operation
  • Space-saving installation due to compact design and location-dependent LC display
  • Modular concept for connection of all conventional bus systems (e.g. Modbus, BACnet, CAN, LON and PLR)
  • Tried and tested quality and reliability

Wilo-Economy MHI

Design type

Non-self-priming multistage pump

Application

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Washing system
  • Irrigation
  • Water treatment

Special features/product advantages

  • IE3 IEC three-phase AC motor (≥ 0.75 kW)
  • All parts that come in contact with the fluid are made of stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316L)
  • Space-saving, compact design
  • Drinking water approval (ACS, KTW, WRAS) for all components in contact with the fluid (EPDM version)

Wilo-Economy MHIE

Design type

Non-self-priming multistage pump with integrated frequency converter

Application

  • Water supply and pressure boosting
  • Fire extinguishing systems
  • Industrial circulation systems
  • Process engineering
  • Cooling water circulation systems
  • Washing and sprinkling systems

Special features/product advantages

  • Easy operation and compact design
  • All parts in contact with fluid are made of stainless steel
  • IEC three-phase motor (level IE2) with integrated frequency converter (frequency converter for 3~motors have optional interfaces for bus communication using plug-in IF-Modules)
  • Full motor protection
  • Drinking water approval (ACS, KTW, WRAS) for all components in contact with the fluid (EPDM version)

Wilo-Economy- MHIL

Design type

Non-self-priming multistage pump

Application

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Washing systems
  • Irrigation
  • Water treatment

Special features/product advantages

  • IE3 IEC three-phase AC motor (≥ 0.75 kW)
  • Impellers and stage housing made of stainless steel
  • Pump housing made of EN-GJL-250 cast iron, KTL coating
  • Single-phase and three-phase versions available

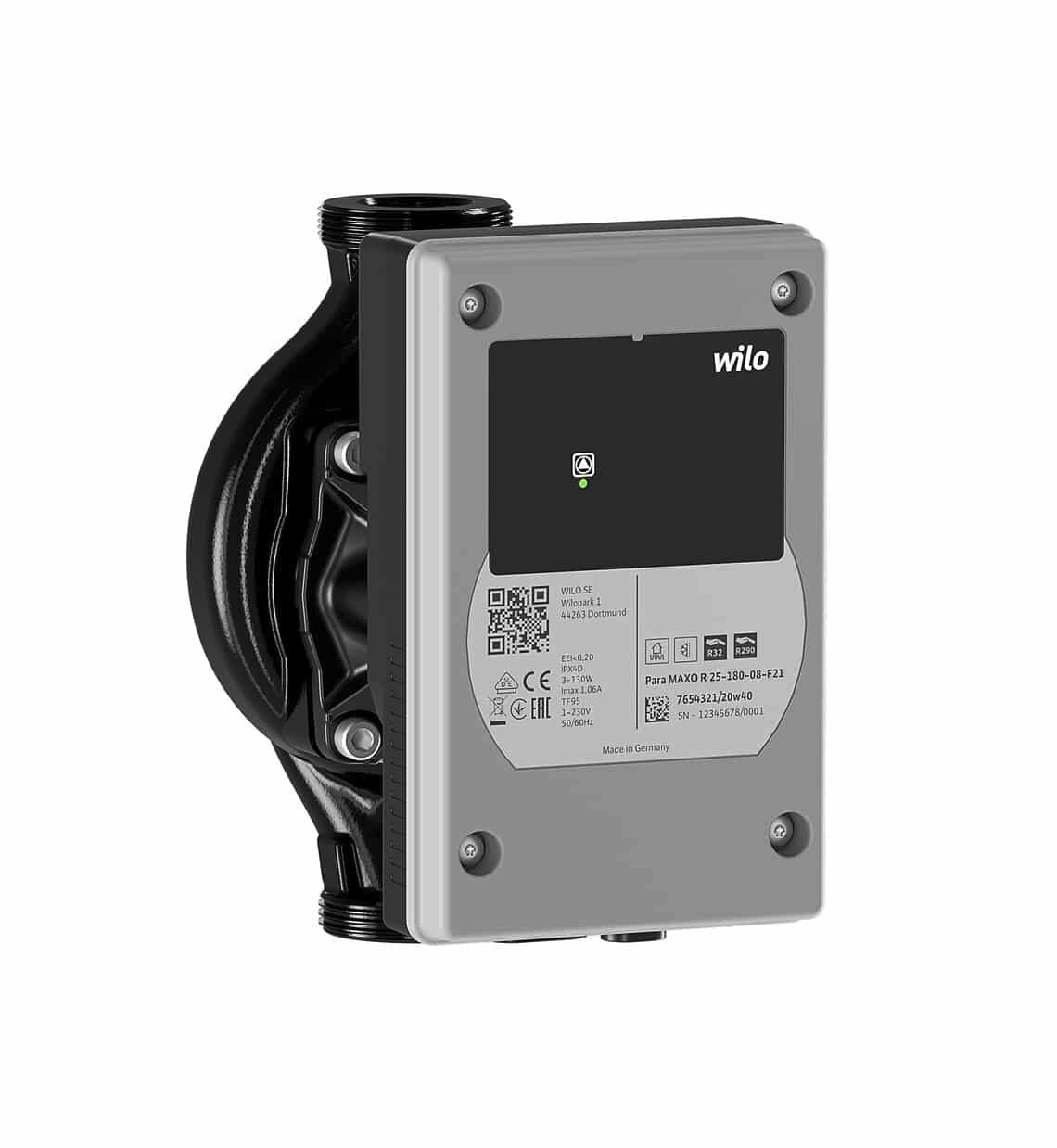

Wilo-Para

Design

Glandless circulation pump with a cast iron pump housing and threaded connection. EC motor with automatic power adjustment and self-protecting modes.

Application

Heating, cooling and air-conditioning - Residential

Special features / product benefits

  • Self-controlled pump (Green Button technology) or externally controlled (iPWM1 or LIN bus)
  • Unique LED user interface
  • Self-protecting modes
  • Designed for optimised integration
