Industrial processing

Wilo-VeroLine- IPL

Design type

Glanded pump in in-line design with screwed connection or flange connection

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

High standard of corrosion protection thanks to cataphoretic coating
Standard condensate drainage holes in the motor housings and lanterns
Series design: motor with one-piece shaft
Version N: Standard motor V1 with stainless steel plug shaft
Bidirectional, force-flushed mechanical seal

Wilo-VeroLine- IP- E

Design type

Electronically controlled glanded single pump in in-line design with flange connection and automatic power adjustment

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

Energy savings due to integrated
electronic power adjustment
Optional interfaces for bus communication using plug-in IF-Modules
Simple operation with Green Button Technology and display
Integrated dual pump management
Integrated full motor protection (PTC thermistor sensor) with trip electronics

Wilo-Yonos PARA High Flow

Design

Glandless circulation pump with threaded connection or flange connection, EC motor with automatic power adjustment.

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems

Special features/product advantages

The Yonos PARA High Flow is a high efficiency product for replacing standard pumps. The range covers nearly all ranges of the standard pump hydraulic ranges.

Self regulating electronic pump with Delta P variable / Delta P constant / n_const
Medium temperature range: from -20°C up to +110°C
The replacement solution!
No additional balancing needed
Easiness for installer
Short power cable with overmoulded Molex connector on demand
No interface to control the pump by external signals
Pressure rating: PN10

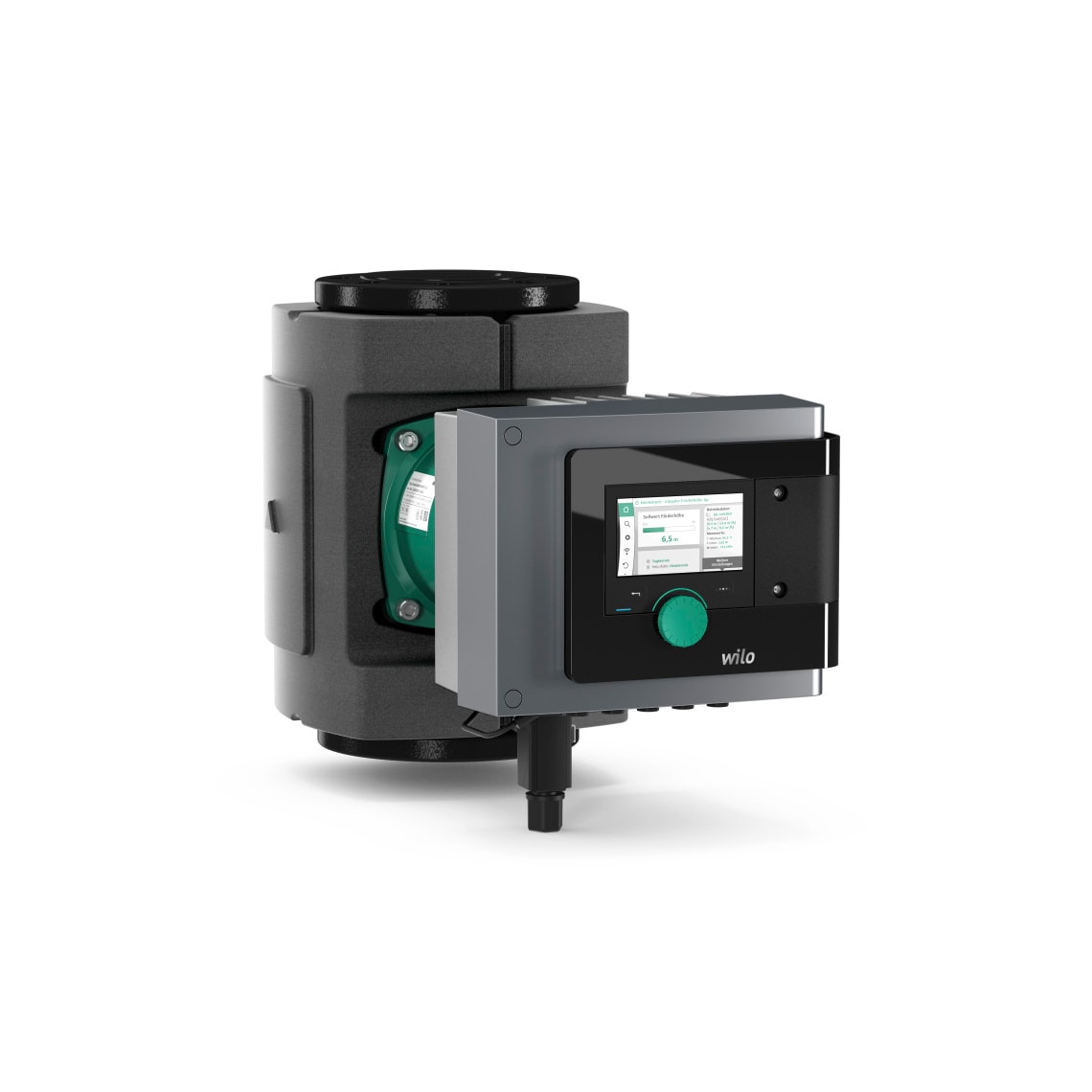

Wilo-Stratos Maxo

Design

Smart glandless circulator with screwed connection or flange connection, EC motor with integrated electronic power adjustment.

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Special features/product advantages

Intuitive operation by means of application-guided settings with the Setup Guide plus the combination of a new display and operating button using Green Button Technology.
Maximum energy efficiency thanks to the combination of optimised and innovative energy-saving functions (e.g. No-Flow Stop).
Optimum system efficiency thanks to new and innovative intelligent control functions, such as Dynamic Adapt plus, Multi-Flow Adaptation, T-const. and ΔT-const.
Latest communication interfaces (e.g. Bluetooth) for connection to mobile devices and direct pump networking for multiple pump control via Wilo Net.
Maximum convenience in electrical installation thanks to a clearly arranged and spacious terminal room and the optimised Wilo-Connector.

Wilo-Stratos GIGA

Design type

High-efficiency in-line pump with EC motor and electronic power adjustment in glanded pump design. Version as single-stage low-pressure centrifugal pump with flange connection and mechanical seal.

Application

The pumping of heating water (in accordance with VDI 2035), cold water and water-glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

Innovative high-efficiency pump for maximum overall efficiency levels
High-efficiency EC motor with efficiency class IE5 according to IEC 60034-30-2
Optional interfaces for connection to building automation using insertable IF modules

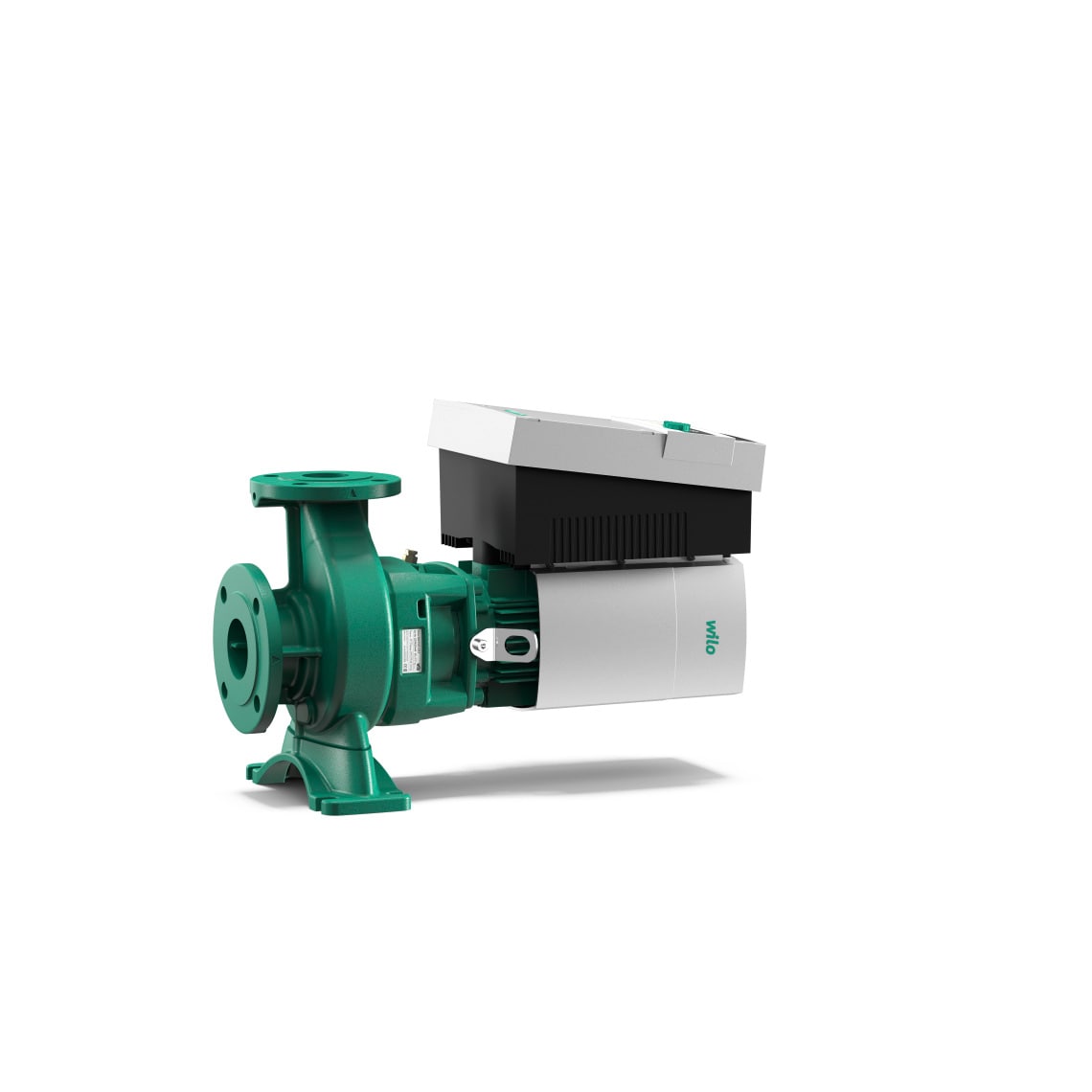

Wilo-Stratos GIGA B

Design type

High-efficiency monobloc pump with EC motor and electronic power adjustment in glanded pump design Version as single-stage low-pressure centrifugal pump with flange connection and mechanical seal.

Application

The pumping of heating water (in accordance with VDI 2035), cold water and water-glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

Innovative, high-efficiency pump for maximum overall efficiency with principal dimensions in accordance with EN 733
High-efficiency EC motor with efficiency class IE5 according to IEC 60034-30-2
High-efficiency hydraulics, optimally adapted to the EC motor technology, with optimised efficiency, minimum efficiency index (MEI) ≥ 0.7
Control range is up to three times higher than that of conventional electronically controlled pumps
Optional interfaces for bus communication using plug-in IF-Modules

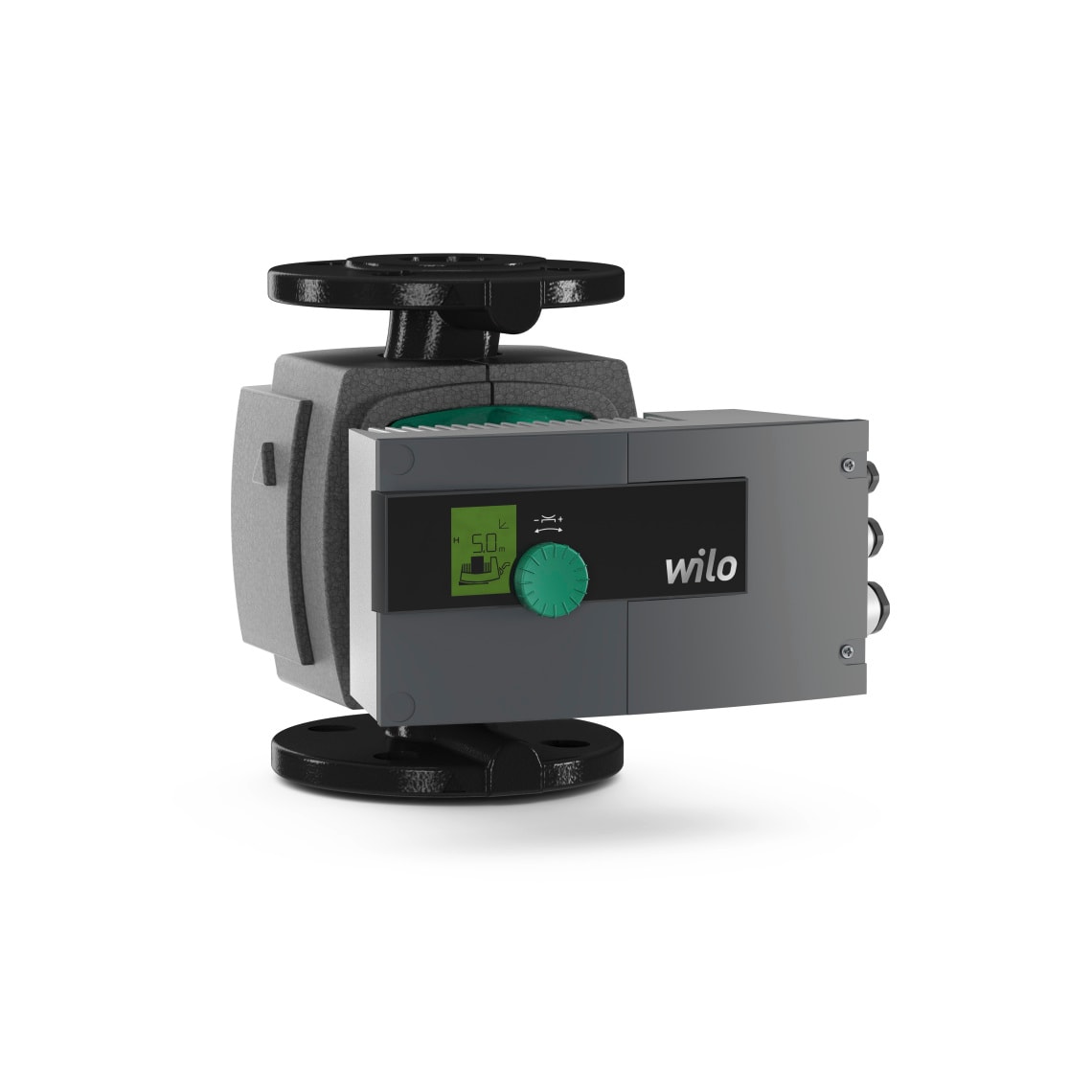

Wilo-Stratos

Phasing out program

After 19 successful years, the Wilo-Stratos high-efficiency pump will be removed from our product range at the end of the year. It will be fully superseded by the new Wilo-Stratos MAXO smart pump. The successful era of the Stratos series will continue with the Stratos MAXO’s new pump technology.

Design type

Glandless circulation pump with threaded connection or flange connection, EC motor with automatic power adjustment.

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems.

Special features/product advantages

Energy savings through greater system efficiency with the Q-Limit function (volume flow limiter)

Improved Energy Efficiency Index (EEI) ≤0.20 for all single pumps.
Optimised display for better readability and operation
Space-saving installation due to compact design and location-dependent LC display
Modular concept for connection of all conventional bus systems (e.g. Modbus, BACnet, CAN, LON and PLR)
Tried and tested quality and reliability

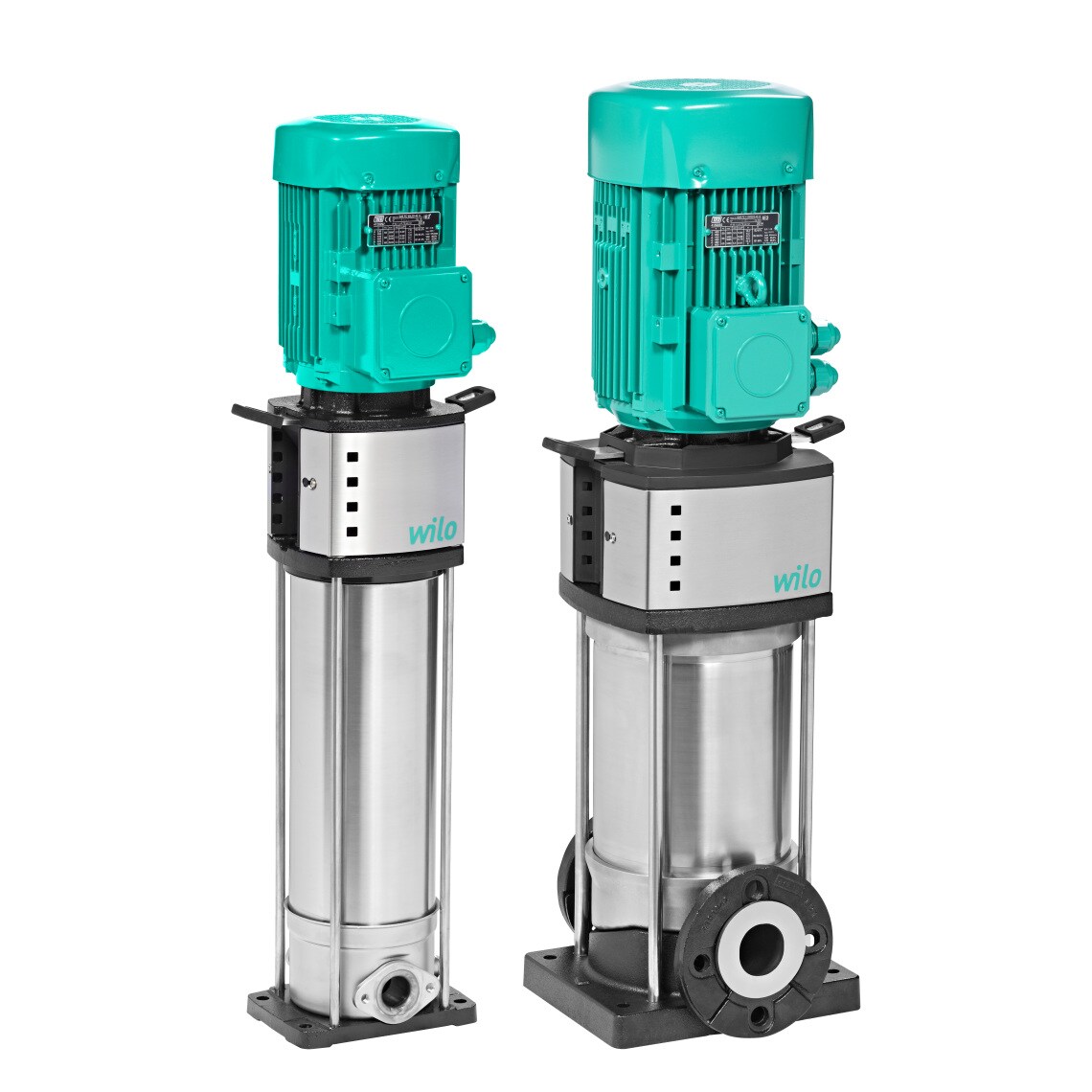

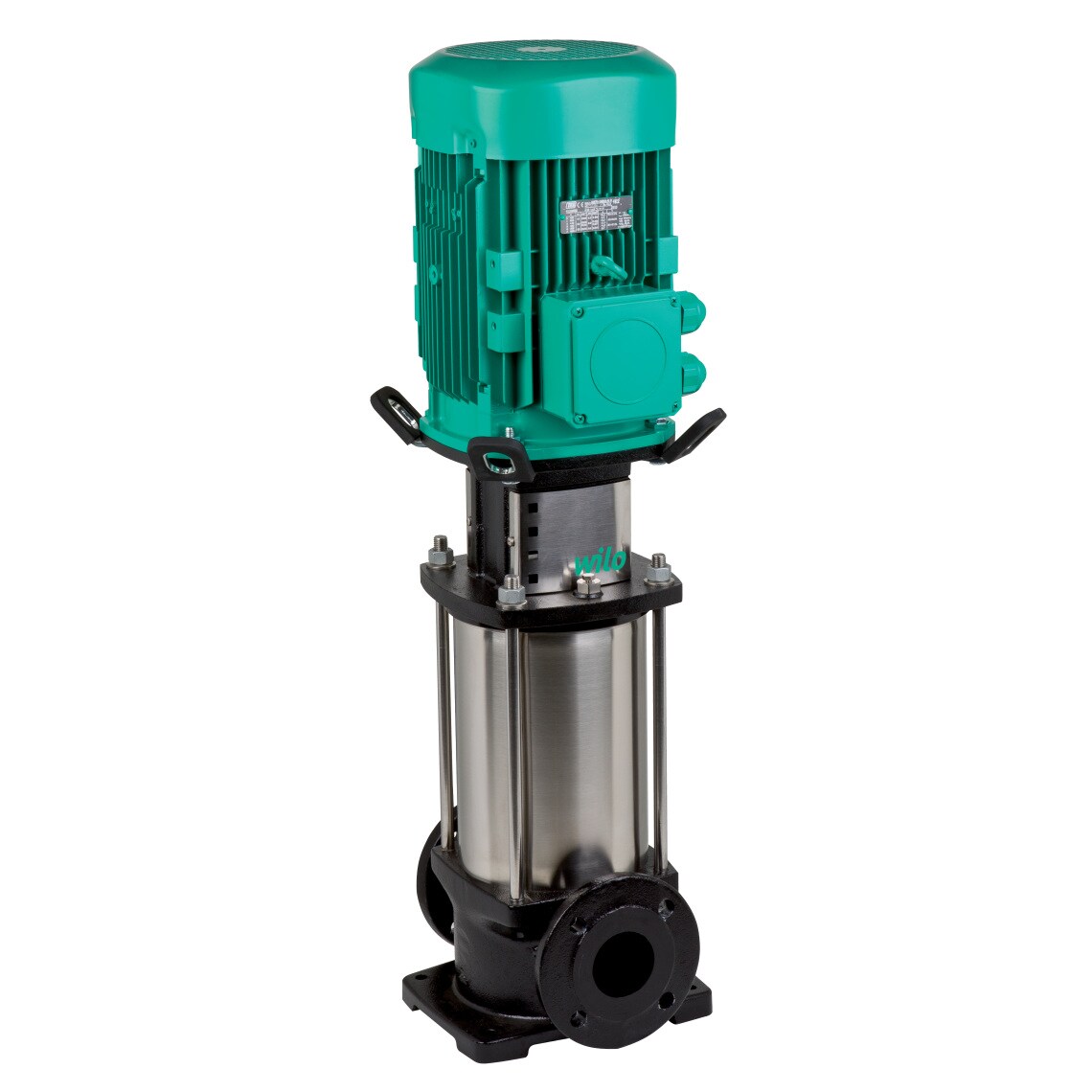

Wilo-Helix V

Design type

Non-self-priming, high-efficiency multistage high-pressure centrifugal pump in vertical design with in-line connections

Application

Water supply and pressure boosting
Industrial circulation systems
Process water
Closed cooling circuits
Fire extinguishing systems
Washing systems
Irrigation

Special features/product advantages

Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
Corrosion-resistant impellers, guide vanes and stage housings
Flow and NPSH-optimised pump housing
Maintenance-friendly design with particularly robust coupling guard
Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)

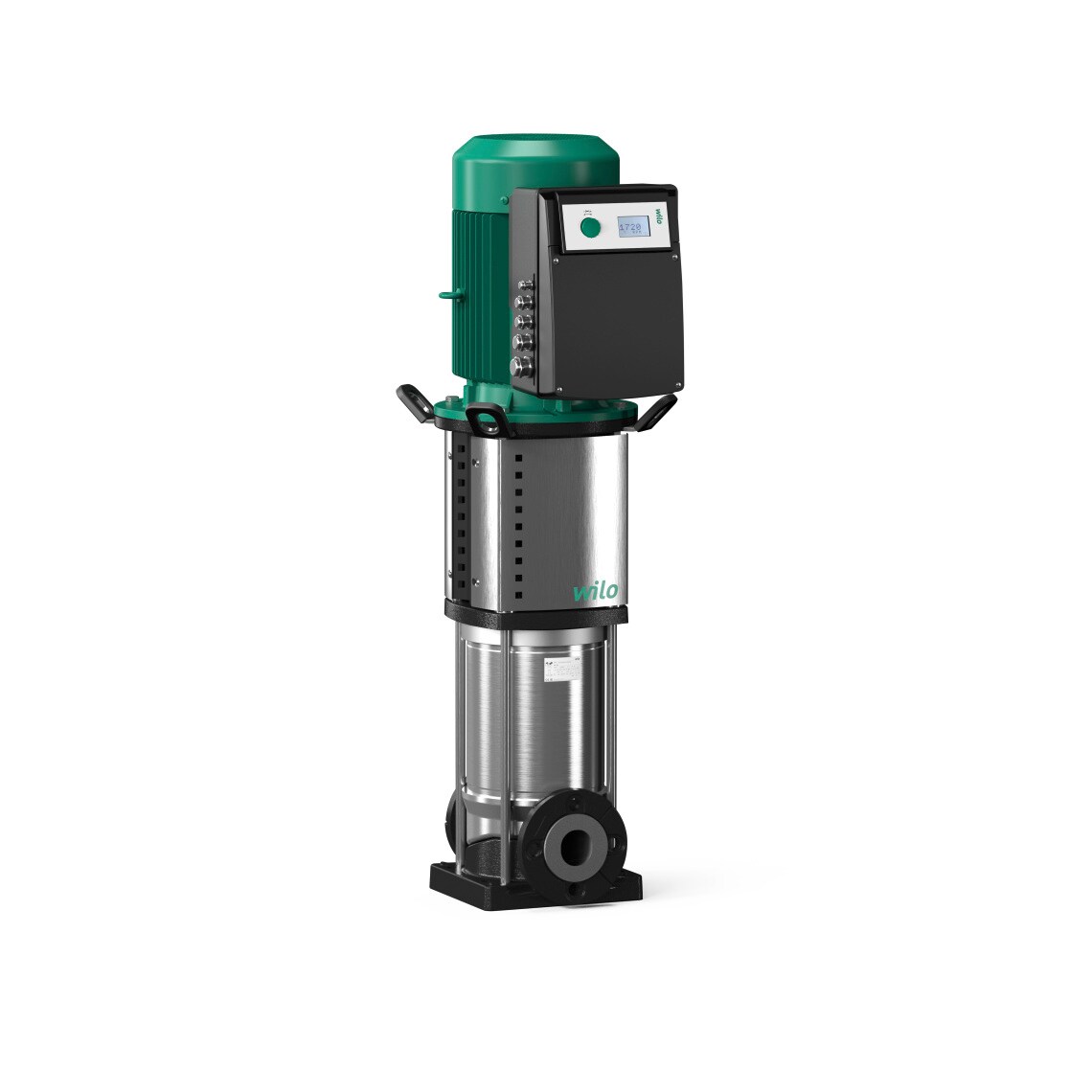

Wilo-Helix Excel

Design type

Non-self-priming, highly efficient fully stainless-steel high-pressure multistage centrifugal pump with EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2, in vertical design with integrated high-efficiency drive and in-line connections

Application

Water supply and pressure boosting
Industrial circulation systems
Process water
Closed cooling circuits
Washing systems
Irrigation

Special features/product advantages

Highly efficient EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2
Integrated electronic control “High-Efficiency Drive”
Simple operation thanks to tried-and-tested Green Button Technology and a clearly arranged display
User-friendly "X-Seal" cartridge mechanical seal and spacer coupling (from 5.5 kW) for fast and easy maintenance
Flexible integration into building automation
Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)

Wilo-Helix VE

Design type

Electronically controlled, non-self-priming high-pressure multistage centrifugal pump in vertical design, with in-line connections

Application

Water supply and pressure boosting
Industrial circulation systems
Process water
Closed cooling circuits
Fire extinguishing systems
Washing systems
Irrigation

Special features/product advantages

Multistage, speed-configurable stainless steel high-efficiency pump with 2D/3D hydraulics and standard motor
Optimised design for easy operation, transportation and installation with handles, lantern adjustment and rotatable free flanges
User-friendly display with Green Button Technology and full text menu
IF plug-in module for quick communication with the BMS
Quick maintenance due to innovative cartridge mechanical seal and spacers
Lower life cycle costs due to new Helix design

Wilo-Helix FIRST V

Design type

Non-self-priming, high-efficiency multistage high-pressure centrifugal pump in vertical design with in-line connections

Application

Water distribution and pressure boosting
Industrial circulation systems
Process water
Closed cooling circuits
Fire extinguishing systems
Washing systems
Irrigation

Special features/product advantages

Efficiency-optimised, laser-welded, optimised 2D/3D hydraulics
Corrosion-resistant impellers, guide vanes and stage housings
Flow and degassing-optimised hydraulic parts
Reinforced pump housing, flow and NPSH optimised
Space-saving and easy maintenance thanks to compact design
Particularly sturdy coupling guard

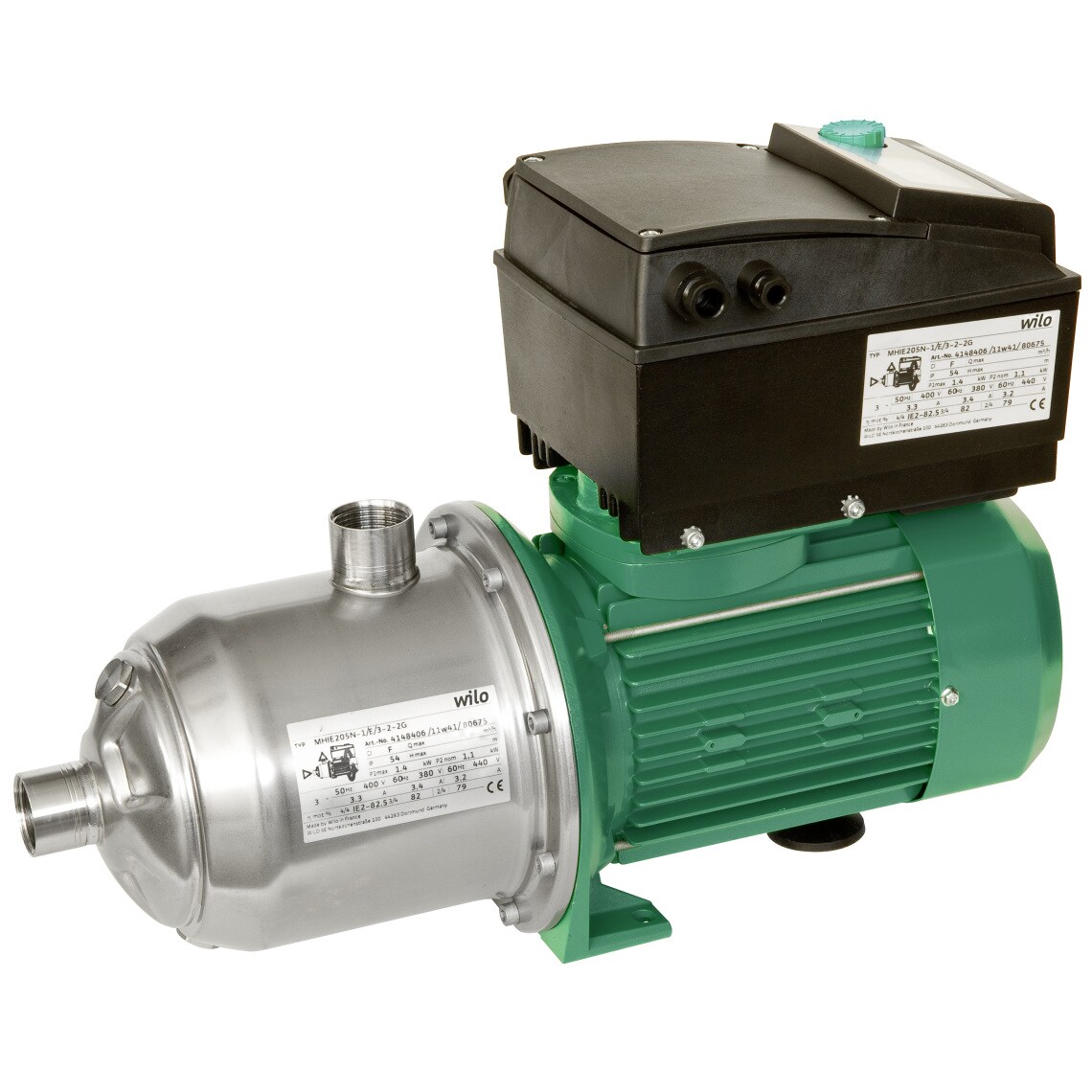

Wilo-Economy MHIE

Design type

Non-self-priming multistage pump with integrated frequency converter

Application

Water supply and pressure boosting
Irrigation
Heating
In industrial systems: Cooling and washing system

Special features/product advantages

Easy operation and compact design
All parts in contact with fluid are made of stainless steel
IEC three-phase motor (level IE2) with integrated frequency converter (frequency converter for 3~motors have optional interfaces for bus communication using plug-in IF-Modules)
Full motor protection
Drinking water approval (ACS, KTW, WRAS) for all components in contact with the fluid (EPDM version)

Wilo-Economy MHI

Design type

Non-self-priming multistage pump

Application

Water supply and pressure boosting
Industrial circulation systems
Process water
Closed cooling circuits
Washing system
Irrigation
Water treatment

Special features/product advantages

IE3 IEC three-phase AC motor (≥ 0.75 kW)
All parts that come in contact with the fluid are made of stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316L)
Space-saving, compact design
Drinking water approval (ACS, KTW, WRAS) for all components in contact with the fluid (EPDM version)

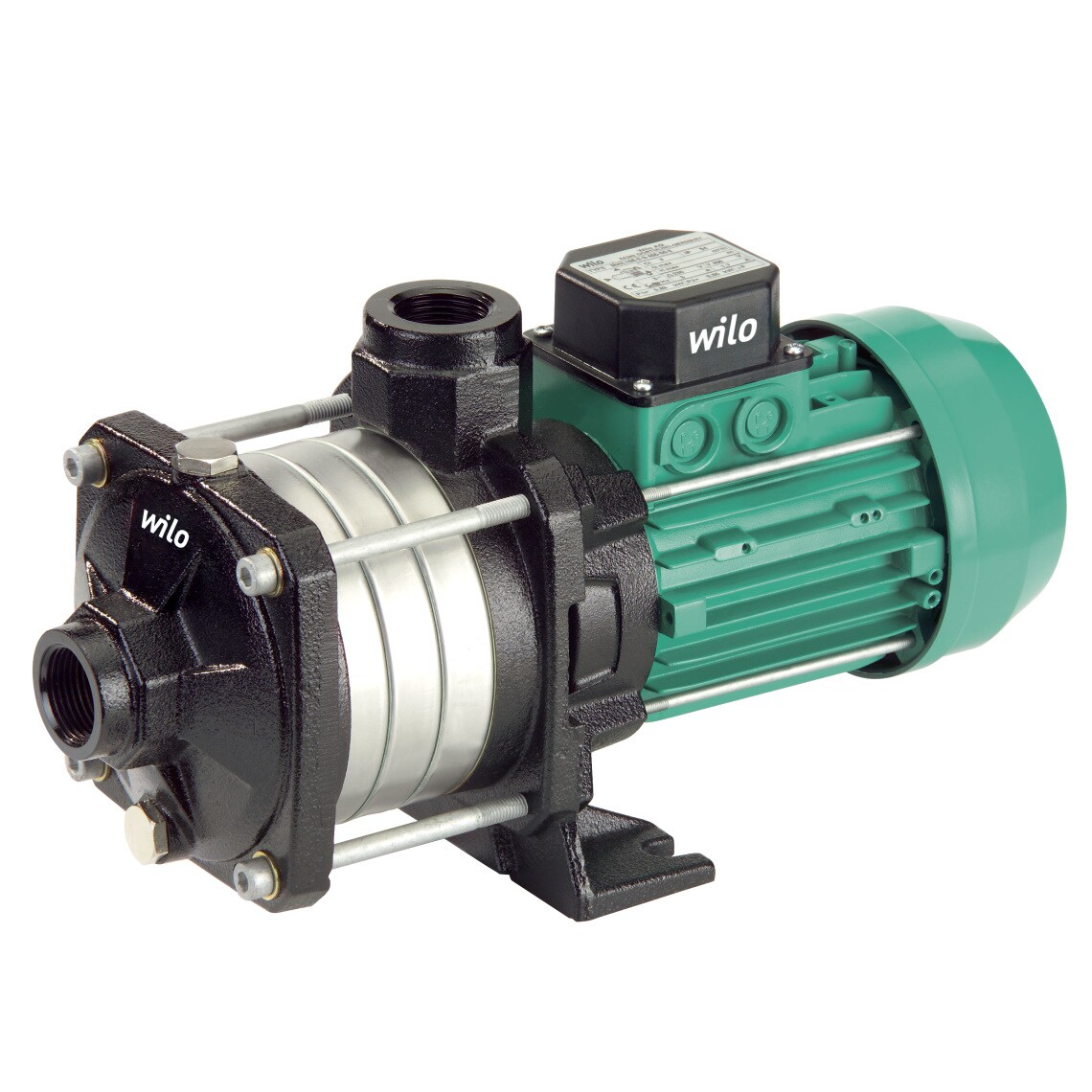

Wilo-Economy- MHIL

Design type

Non-self-priming multistage pump

Application

Water supply and pressure boosting
Industrial circulation systems
Process water
Closed cooling circuits
Washing systems
Irrigation
Water treatment

Special features/product advantages

IE3 IEC three-phase AC motor (≥ 0.75 kW)
Impellers and stage housing made of stainless steel
Pump housing made of EN-GJL-250 cast iron, KTL coating
Single-phase and three-phase versions available

Wilo-CronoNorm- NLG

Design type

Single-stage, low-pressure centrifugal pump with axial suction, mounted on a baseplate.

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.
Applications for irrigation, building services, general industry, power stations, etc.

Special features/product advantages

Reduced life cycle costs thanks to optimized efficiency
Bidirectional, force-flushed mechanical seal
Interchangeable casing wear rings
Permanently lubricated, generously dimensioned roller bearings
Low NPSH, best cavitation properties

Wilo-CronoBloc- BL

Design type

Glanded pump in block design with flange connection

Aplication

For pumping heating water (in accordance with VDI 2035), water-glycol mixtures, cooling water and cold water without abrasive substances in heating, cold water and cooling water systems.

Special features/product advantages

Energy-efficient due to state-of-the-art pump hydraulics and the use of IE3 motors
Cataphoretic coating of all cast iron components ensures high resistance to corrosion and long service life
Universal use in diverse applications thanks to different impeller materials, several motor options as well as different mechanical seals
Easy installation due to standard pump support feet and optional supporting blocks
Easy maintenance and user-friendly design with optional “back pull-out” design and cartridge mechanical seal for large pump types

Wilo-CronoBloc-BL-E

Design type

Electronically controlled glanded single pump in monobloc design with flange connection and automatic power adjustment.

Application

The pumping of heating water (in accordance with VDI 2035), cold water and water-glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

Energy savings due to integrated electronic power adjustment

Optional interfaces for bus communication using plug-in IF-Modules

Simple operation due to tried-and-tested Green Button Technology and display

Integrated full motor protection (PTC thermistor sensor) with trip electronics

Wilo-CronoLine IL

Design type

Glanded pump in in-line design with flange connection

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

Reduced life cycle costs thanks to optimized efficiency
Standard condensate drainage holes in the motor housings
Can be used flexibly in air-conditioning and cooling systems, with application benefits due to direct draining of condensate via optimised lantern design (patented)
High standard of corrosion protection thanks to cataphoretic coating
High worldwide availability of standard motors (according to Wilo specifications) and standard mechanical seals

Wilo-CronoLine- IL- E

Design type

Electronically controlled glanded single pump in in-line design with flange connection and automatic power adjustment

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

Energy savings due to integrated electronic power adjustment
Optional interfaces for bus communication using plug-in IF-Modules
Simple operation with Green Button Technology and display
Integrated dual pump management
Integrated full motor protection (PTC thermistor sensor) with trip electronics

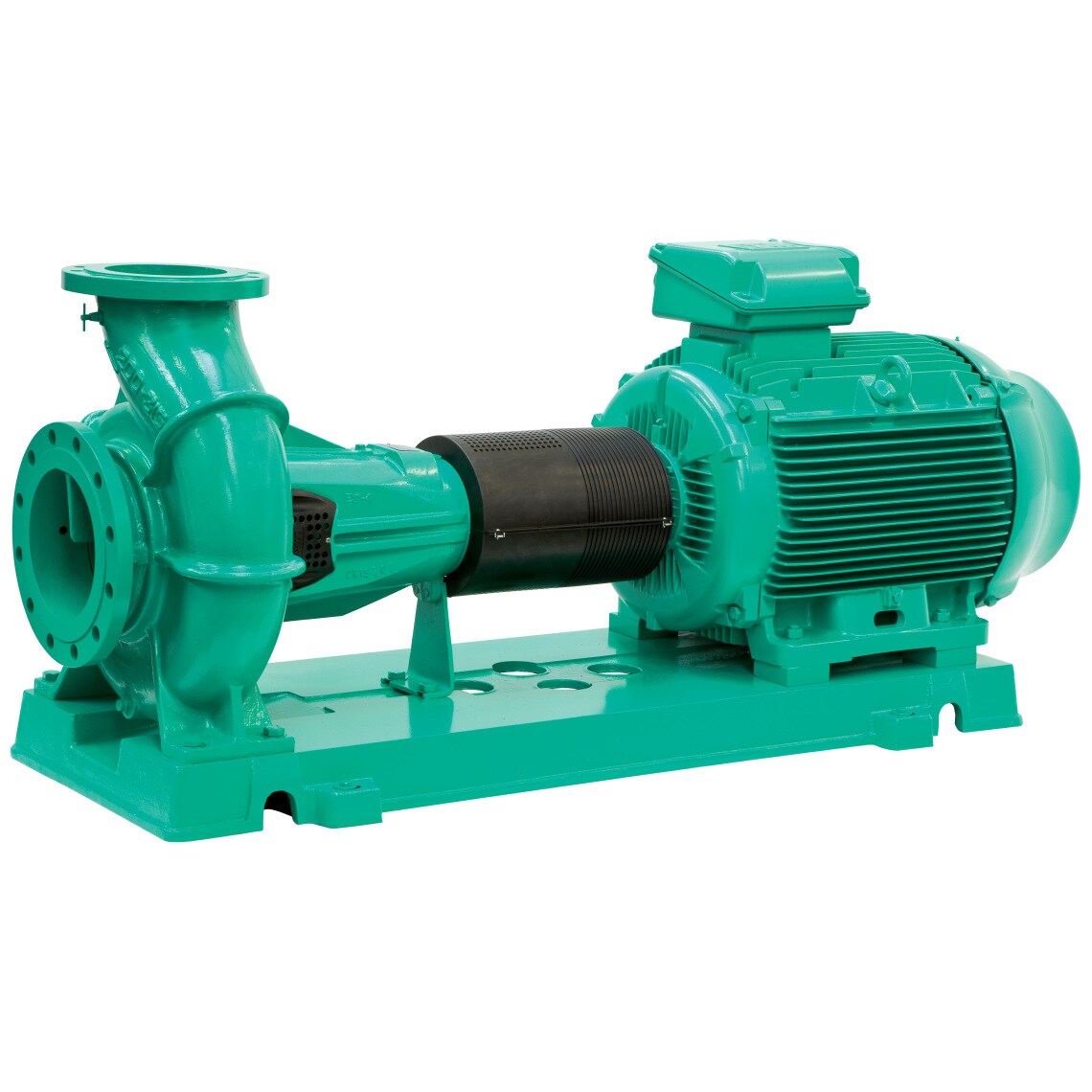

Wilo-CronoNorm- NL

Design type

Single-stage, low-pressure centrifugal pump with axial suction, mounted on a baseplate.

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.
Applications for irrigation, building services, general industry, power stations, etc.

Special features/product advantages

Reduced life-cycle costs through optimised efficiency levels
Bidirectional, force-flushed mechanical seal
Low NPSH values, best cavitation properties
Shaft coupling with or without spacer coupling
