Wilo-VeroLine- IPL

Design type

Glanded pump in in-line design with screwed connection or flange connection

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

  • High standard of corrosion protection thanks to cataphoretic coating
  • Standard condensate drainage holes in the motor housings and lanterns
  • Series design: motor with one-piece shaft
  • Version N: Standard motor V1 with stainless steel plug shaft
  • Bidirectional, force-flushed mechanical seal

Wilo-VeroLine- IP- E

Design type

Electronically controlled glanded single pump in in-line design with flange connection and automatic power adjustment

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

  • Energy savings due to integrated
  • electronic power adjustment
  • Optional interfaces for bus communication using plug-in IF-Modules
  • Simple operation with Green Button Technology and display
  • Integrated dual pump management
  • Integrated full motor protection (PTC thermistor sensor) with trip electronics

Wilo-Yonos PARA High Flow

Design

Glandless circulation pump with threaded connection or flange connection, EC motor with automatic power adjustment.

Application

Hot-water heating systems of all kinds, air-conditioning systems, closed cooling circuits, industrial circulation systems

Special features/product advantages

The Yonos PARA High Flow is a high efficiency product for replacing standard pumps. The range covers nearly all ranges of the standard pump hydraulic ranges.

  • Self regulating electronic pump with Delta P variable / Delta P constant / n_const
  • Medium temperature range: from -20°C up to +110°C
    The replacement solution!
  • No additional balancing needed
  • Easiness for installer
  • Short power cable with overmoulded Molex connector on demand
  • No interface to control the pump by external signals
  • Pressure rating: PN10

Wilo-Stratos GIGA

Design type

High-efficiency in-line pump with EC motor and electronic power adjustment in glanded pump design. Version as single-stage low-pressure centrifugal pump with flange connection and mechanical seal.

Application

The pumping of heating water (in accordance with VDI 2035), cold water and water-glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

  • Innovative high-efficiency pump for maximum overall efficiency levels
  • High-efficiency EC motor with efficiency class IE5 according to IEC 60034-30-2
  • Optional interfaces for connection to building automation using insertable IF modules

Wilo-Stratos GIGA B

Design type

High-efficiency monobloc pump with EC motor and electronic power adjustment in glanded pump design Version as single-stage low-pressure centrifugal pump with flange connection and mechanical seal.

Application

The pumping of heating water (in accordance with VDI 2035), cold water and water-glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

  • Innovative, high-efficiency pump for maximum overall efficiency with principal dimensions in accordance with EN 733
  • High-efficiency EC motor with efficiency class IE5 according to IEC 60034-30-2
  • High-efficiency hydraulics, optimally adapted to the EC motor technology, with optimised efficiency, minimum efficiency index (MEI) ≥ 0.7
  • Control range is up to three times higher than that of conventional electronically controlled pumps
  • Optional interfaces for bus communication using plug-in IF-Modules

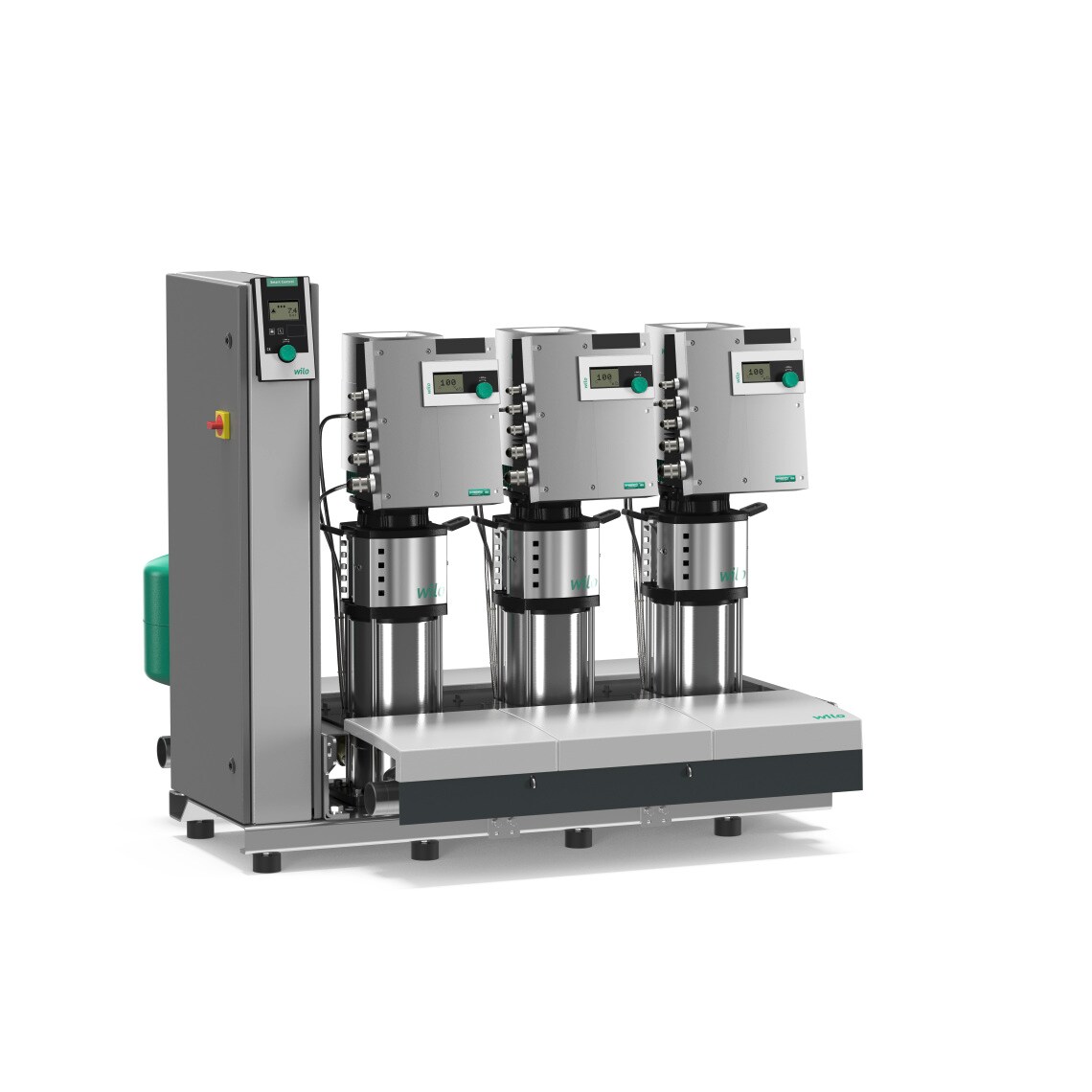

Wilo-SiBoost Smart Helix VE

Design type

Highly efficient water supply unit ready for connection (non self-priming). With 2 to 4 vertically arranged Helix VE series stainless steel high-pressure centrifugal pumps in glanded version switched in parallel; every pump is equipped with an integrated air-cooled frequency converter, incl. Smart Controller SCe

Application

  • Fully automatic water supply and pressure boosting in residential, commercial and public buildings, hotels, hospitals, department stores and for industrial systems.
  • Pumping of drinking water and process water, cooling water, fire water (apart from fire-extinguishing systems in accordance with DIN 14462 and with the approval of the local fire safety authorities) or other types of industrial water that do not attack the materials either chemically or mechanically and do not contain abrasive or long-fibre constituents.

Special features/product advantages

  • Sturdy system with to Helix VE series stainless-steel high-pressure multistage centrifugal pumps with integrated frequency converter
  • Over-proportionally wide control range from 25 Hz up to a maximum of 60 Hz
  • Entire system is pressure-loss optimised
  • Integrated dry-running detection with automatic deactivation via the motor control electronics
  • Maximum degree of control using the SCe control device with LC display, simple navigation and configuration using rotary knob

Wilo- SiBoost Smart Helix EXCEL

Description

In densely populated rural areas, the transportation of water is often associated with leakage risks. This results in high operating costs. Our solution: the Wilo-SiBoostSmart Helix EXCEL significantly reduces overall power consumption thanks to its top-quality components (hydraulics and motors) as well as a switchgear which supports leakage detection via an optional communication interface.

Your advantages

  • Heavy-duty system featuring stainless steel high-pressure multistage centrifugal pump from the Helix EXCEL series with integrated frequency converter from 25 Hz to a maximum of 60 Hz
  • High-efficiency EC motor (energy efficiency class IE5 in accordance with IEC 60034-30-2)
  • Pressure-loss optimised overall system with highly efficient pump hydraulics
  • Optimum load adjustment of the system to the overall system through the extra control mode Δp-v
  • Improved monitoring and leakage detection via optional interface with SCADA connection
  • Maximum degree of control thanks to use of an SCe control device with LCD display, simple navigation and adjustment using rotary knob
  • Integrated dry-running detection with automatic deactivation via the motor control electronics

Wilo-Jet HWJ

Design type

Self-priming water-supply unit

Application

  • Water supply
  • Sprinkling
  • Irrigation and spraying
  • Pumping water from wells and out of low-lying tanks

Special features/product advantages

  • Ideal for outdoor applications (hobby, garden)
  • Rust-free stainless steel prevents corrosion, even with prolonged service periods
  • Reduction of switch-on frequency and avoidance of fluid hammer, thanks to diaphragm pressure vessel with 20/50 l capacity
  • Electrical and hydraulic connections already in place, quick and safe to install

Wilo-SCP

Design type

Axially spilt case pump mounted on a baseplate

Application

  • Pumping heating water in accordance with VDI 2035 water/glycol mixtures, cooling/cold water and domestic hot water
  • Applications in municipal water supply, irrigation, building services, general industry, power stations, etc.

Special features/product advantages

  • Efficient hydraulics for high flow rat
  • es up to 17,000 m³/h
  • Low NPSH thanks to double suction impeller
  • High process reliability and easy maintenance without removing the pressure or suction lines
  • Decreased noise level and reduced vibrations
  • Options: energy efficient IE3-/IE4 motors, drinking water approval (KTW, ACS), innovative Ceram CT coating

Wilo-Helix V

Design type

Non-self-priming, high-efficiency multistage high-pressure centrifugal pump in vertical design with in-line connections

Application

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Fire extinguishing systems
  • Washing systems
  • Irrigation

Special features/product advantages

  • Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
  • Corrosion-resistant impellers, guide vanes and stage housings
  • Flow and NPSH-optimised pump housing
  • Maintenance-friendly design with particularly robust coupling guard
  • Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)

Wilo-Helix Excel

Design type

Non-self-priming, highly efficient fully stainless-steel high-pressure multistage centrifugal pump with EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2, in vertical design with integrated high-efficiency drive and in-line connections

Application

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Washing systems
  • Irrigation

Special features/product advantages

  • Highly efficient EC motor of energy efficiency class IE5 in accordance with IEC 60034-30-2
  • Integrated electronic control “High-Efficiency Drive”
  • Simple operation thanks to tried-and-tested Green Button Technology and a clearly arranged display
  • User-friendly "X-Seal" cartridge mechanical seal and spacer coupling (from 5.5 kW) for fast and easy maintenance
  • Flexible integration into building automation
  • Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)

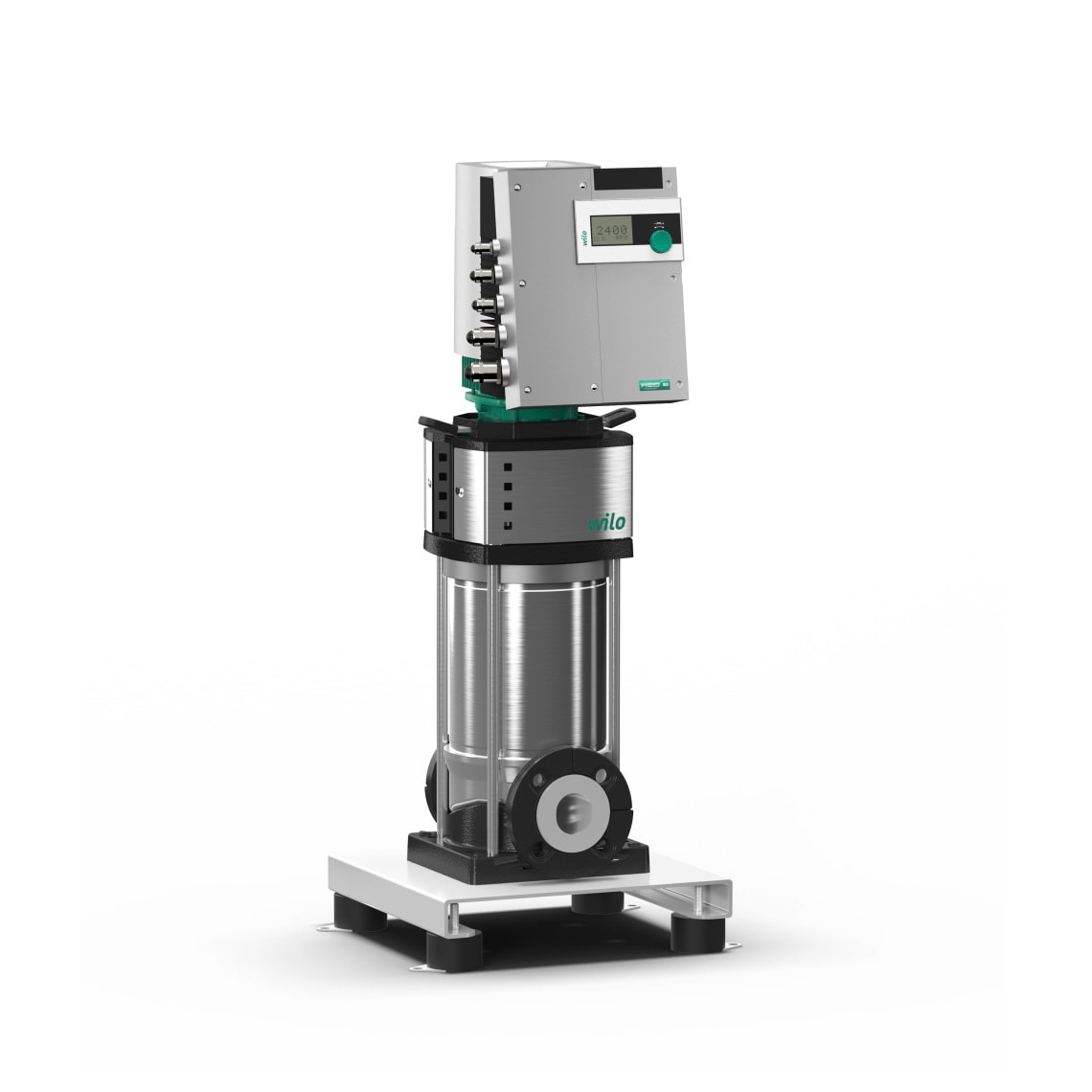

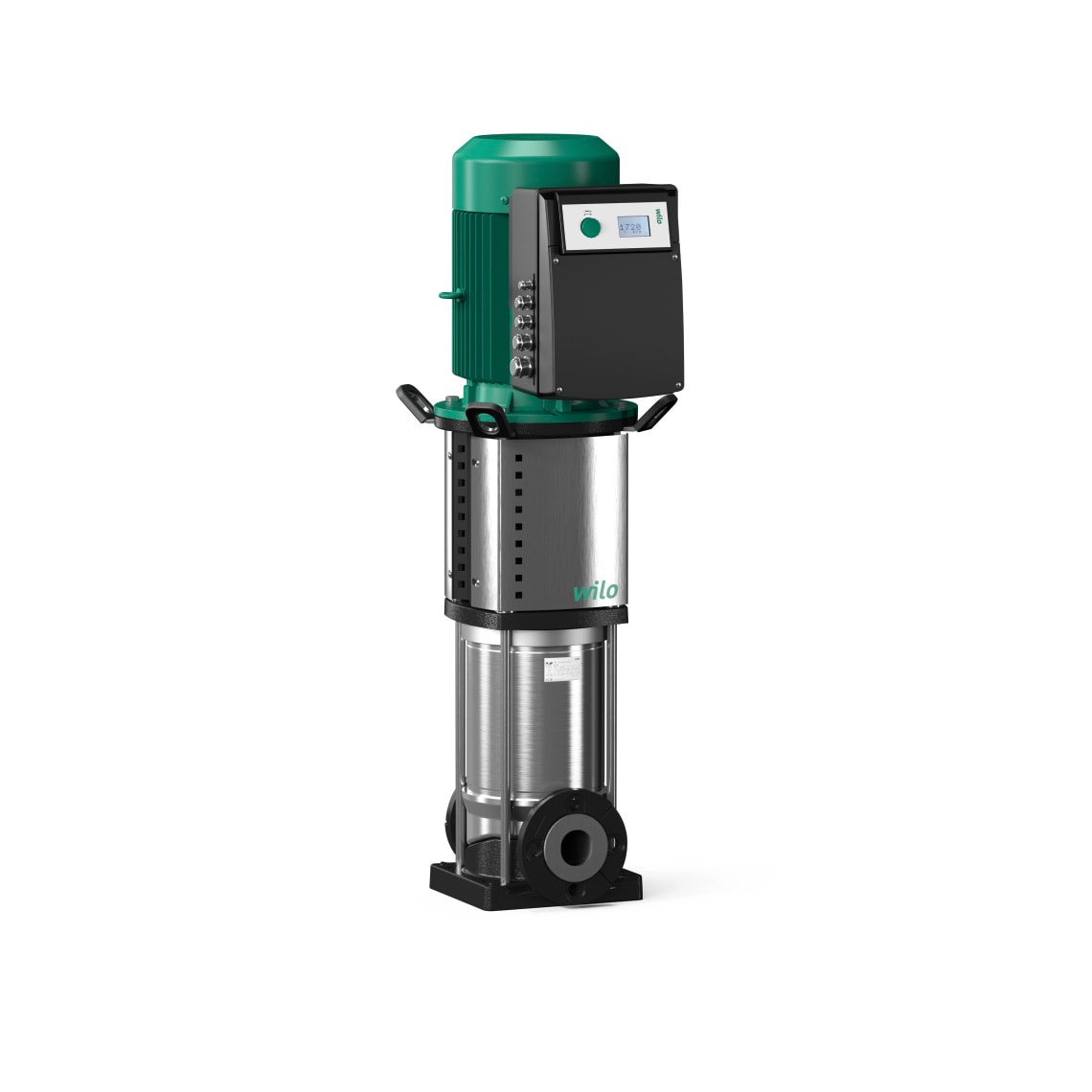

Wilo-Helix VE

Design type

Electronically controlled, non-self-priming high-pressure multistage centrifugal pump in vertical design, with in-line connections

Application

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Fire extinguishing systems
  • Washing systems
  • Irrigation

Special features/product advantages

  • Multistage, speed-configurable stainless steel high-efficiency pump with 2D/3D hydraulics and standard motor
  • Optimised design for easy operation, transportation and installation with handles, lantern adjustment and rotatable free flanges
  • User-friendly display with Green Button Technology and full text menu
  • IF plug-in module for quick communication with the BMS
  • Quick maintenance due to innovative cartridge mechanical seal and spacers
  • Lower life cycle costs due to new Helix design

Wilo-Helix FIRST V

Design type

Non-self-priming, high-efficiency multistage high-pressure centrifugal pump in vertical design with in-line connections

Application

  • Water distribution and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Fire extinguishing systems
  • Washing systems
  • Irrigation

Special features/product advantages

  • Efficiency-optimised, laser-welded, optimised 2D/3D hydraulics
  • Corrosion-resistant impellers, guide vanes and stage housings
  • Flow and degassing-optimised hydraulic parts
  • Reinforced pump housing, flow and NPSH optimised
  • Space-saving and easy maintenance thanks to compact design
  • Particularly sturdy coupling guard

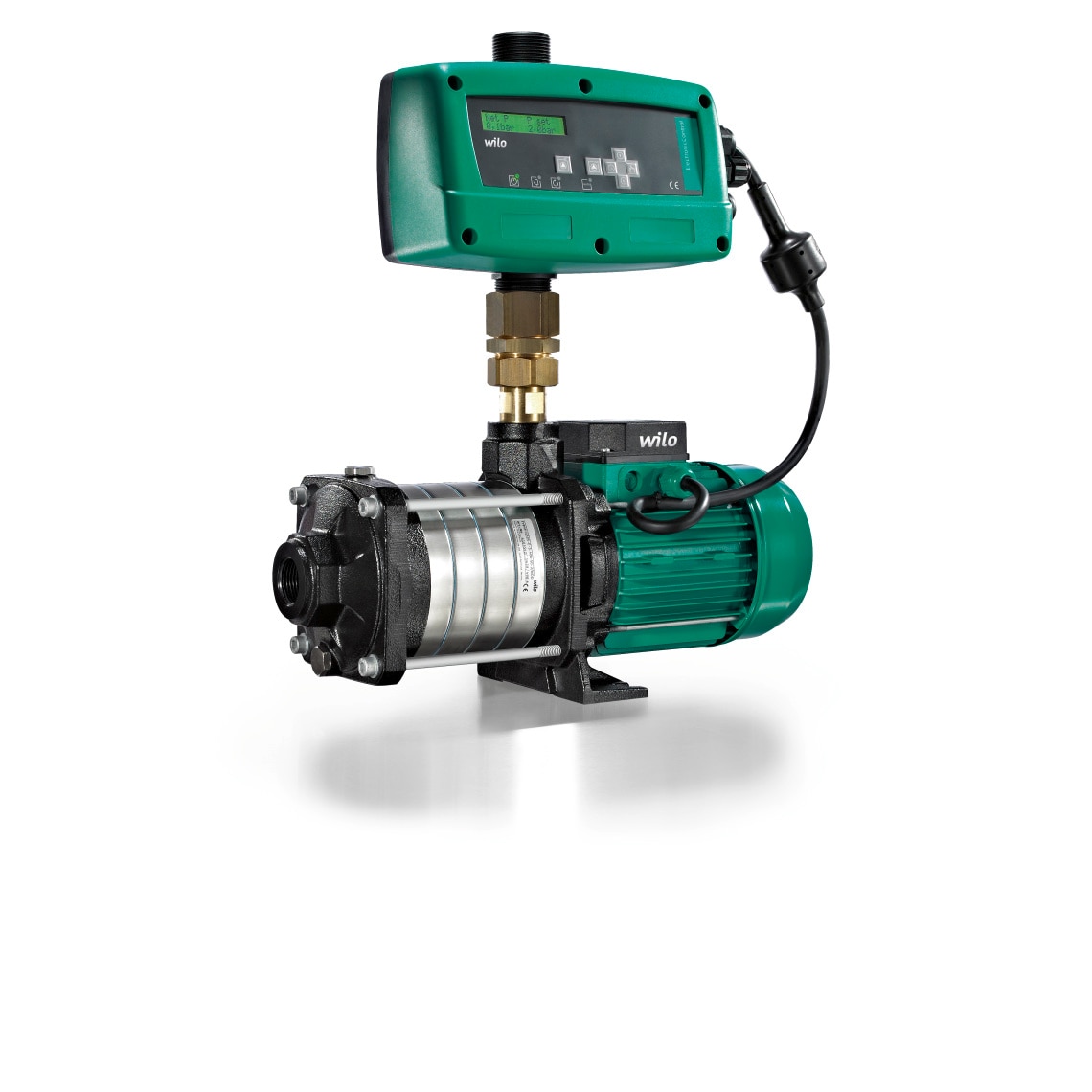

Wilo-EMHIL

Design type

Non-self-priming water supply unit with frequency converter

Application

  • Water supply
  • Rainwater utilisation
  • Irrigation and spraying

Special features/product advantages

  • Heavy-duty multistage pump with stainless steel hydraulics
  • Simple operation and adjustment via display with plain text display, status indicator, analysis function, adjustment of the control parameters (PID), freeze protection
  • Plug & Pump, pre-assembled and fitted with connecting cable
  • Meets the EMC standards for domestic use (EN 61000-6-2 and EN 61000-6-3)
  • Float switch can be connected optionallly

Wilo-Economy MHIE

Design type

Non-self-priming multistage pump with integrated frequency converter

Application

  • Water supply and pressure boosting
  • Fire extinguishing systems
  • Industrial circulation systems
  • Process engineering
  • Cooling water circulation systems
  • Washing and sprinkling systems

Special features/product advantages

  • Easy operation and compact design
  • All parts in contact with fluid are made of stainless steel
  • IEC three-phase motor (level IE2) with integrated frequency converter (frequency converter for 3~motors have optional interfaces for bus communication using plug-in IF-Modules)
  • Full motor protection
  • Drinking water approval (ACS, KTW, WRAS) for all components in contact with the fluid (EPDM version)

Wilo-Economy MHI

Design type

Non-self-priming multistage pump

Application

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Washing system
  • Irrigation
  • Water treatment

Special features/product advantages

  • IE3 IEC three-phase AC motor (≥ 0.75 kW)
  • All parts that come in contact with the fluid are made of stainless steel 1.4301 (AISI 304) or 1.4404 (AISI 316L)
  • Space-saving, compact design
  • Drinking water approval (ACS, KTW, WRAS) for all components in contact with the fluid (EPDM version)

Wilo-Economy- MHIL

Design type

Non-self-priming multistage pump

Application

  • Water supply and pressure boosting
  • Industrial circulation systems
  • Process water
  • Closed cooling circuits
  • Washing systems
  • Irrigation
  • Water treatment

Special features/product advantages

  • IE3 IEC three-phase AC motor (≥ 0.75 kW)
  • Impellers and stage housing made of stainless steel
  • Pump housing made of EN-GJL-250 cast iron, KTL coating
  • Single-phase and three-phase versions available

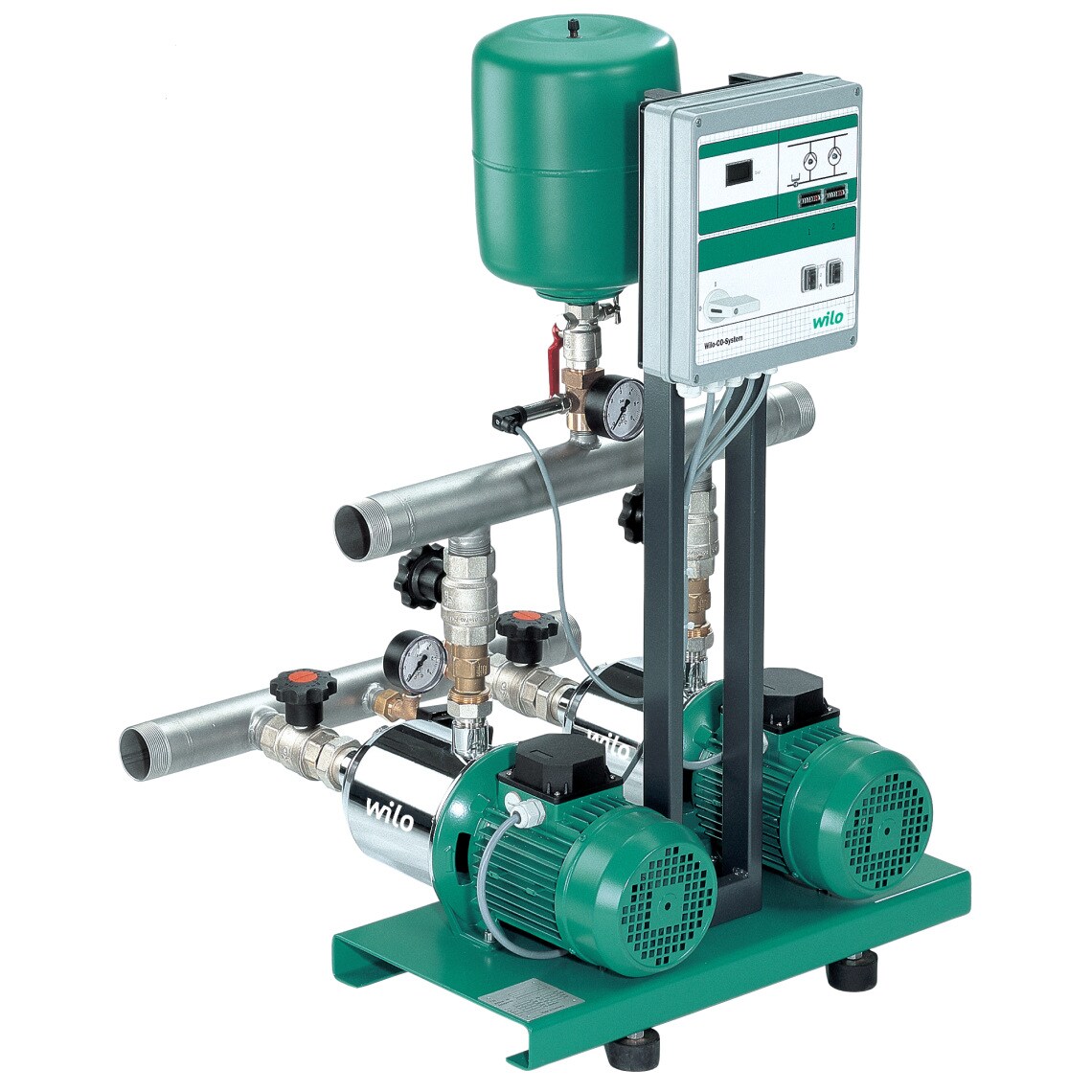

Wilo-Economy CO- MHI

Design type

Pressure boosting system with 2 to 4 parallel-switched, non-self-priming, horizontal high-pressure multistage centrifugal pumps made of stainless steel

Application

  • Fully automatic water supply and pressure boosting in residential, commercial and public buildings, hotels, hospitals, department stores and for industrial systems.
  • Pumping of drinking water and process water, cooling water, fire water (apart from fire-extinguishing systems in accordance with DIN 14462 and with the approval of the local fire safety authorities) or other types of industrial water that do not attack the materials either chemically or mechanically and do not contain abrasive or long-fibre constituents.

Special features/product advantages

  • Compact system with outstanding price/performance ratio in compliance with the requirements of DIN 1988
  • 2 - 4 horizontal MHI series full stainless steel high-pressure multistage centrifugal pumps switched in parallel
  • Easily adjustable and operationally reliable thanks to integrated ER 2 to ER 4 switchgears

Wilo-CronoNorm- NLG

Design type

Single-stage, low-pressure centrifugal pump with axial suction, mounted on a baseplate.

Application

  • Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.
  • Applications for irrigation, building services, general industry, power stations, etc.

Special features/product advantages

  • Reduced life cycle costs thanks to optimized efficiency
  • Bidirectional, force-flushed mechanical seal
  • Interchangeable casing wear rings
  • Permanently lubricated, generously dimensioned roller bearings
  • Low NPSH, best cavitation properties

Wilo-CronoBloc- BL

Description

The legal requirements and regulations pertaining to drinking water are becoming ever more stringent, especially in highly-developed countries. Increasing demands are therefore being placed on the materials in the pumps and systems that are used. At the same time, global megatrends such as urbanisation are escalating the need to rely on ever more efficient systems. The Wilo-CronoBloc is our solution due to its high efficiency and drinking water approval.

Your advantages

  • Energy-saving thanks to state-of-the-art pump hydraulics and the use of IE3 motors
  • Suitable for drinking water supply (ACS approved)
  • Can be globally used in a wide variety of applications thanks to various impeller materials, several motor options as well as different mechanical seals
  • Easy installation due to standard pump support feet and optional supporting blocks
  • Easy maintenance and user-friendly design with “back pull-out” design and cartridge mechanical seal for large pump types

Wilo-CronoBloc-BL-E

Design type

Electronically controlled glanded single pump in monobloc design with flange connection and automatic power adjustment.

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

  • Energy savings due to integrated electronic power adjustment
  • Optional interfaces for bus communication using plug-in IF-Modules
  • Simple operation due to tried-and-tested Green Button Technology and display
  • Integrated full motor protection (PTC thermistor sensor) with trip electronics
  • Meets user requirements due to performance and main dimensions in accordance with EN 733 (DIN for standard pumps)

Wilo-CronoLine IL

Design type

Glanded pump in in-line design with flange connection

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

  • Reduced life cycle costs thanks to optimized efficiency
  • Standard condensate drainage holes in the motor housings
  • Can be used flexibly in air-conditioning and cooling systems, with application benefits due to direct draining of condensate via optimised lantern design (patented)
  • High standard of corrosion protection thanks to cataphoretic coating
  • High worldwide availability of standard motors (according to Wilo specifications) and standard mechanical seals

Wilo-CronoLine- IL- E

Design type

Electronically controlled glanded single pump in in-line design with flange connection and automatic power adjustment

Application

Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.

Special features/product advantages

  • Energy savings due to integrated electronic power adjustment
  • Optional interfaces for bus communication using plug-in IF-Modules
  • Simple operation with Green Button Technology and display
  • Integrated dual pump management
  • Integrated full motor protection (PTC thermistor sensor) with trip electronics

Wilo-CronoNorm- NL

Design type

Single-stage, low-pressure centrifugal pump with axial suction, mounted on a baseplate.

Application

  • Pumping of heating water (acc. to VDI 2035), cold water and water/glycol mixtures without abrasive substances in heating, cold water and cooling systems.
  • Applications for irrigation, building services, general industry, power stations, etc.

Special features/product advantages

  • Reduced life-cycle costs through optimised efficiency levels
  • Bidirectional, force-flushed mechanical seal
  • Low NPSH values, best cavitation properties
  • Shaft coupling with or without spacer coupling
