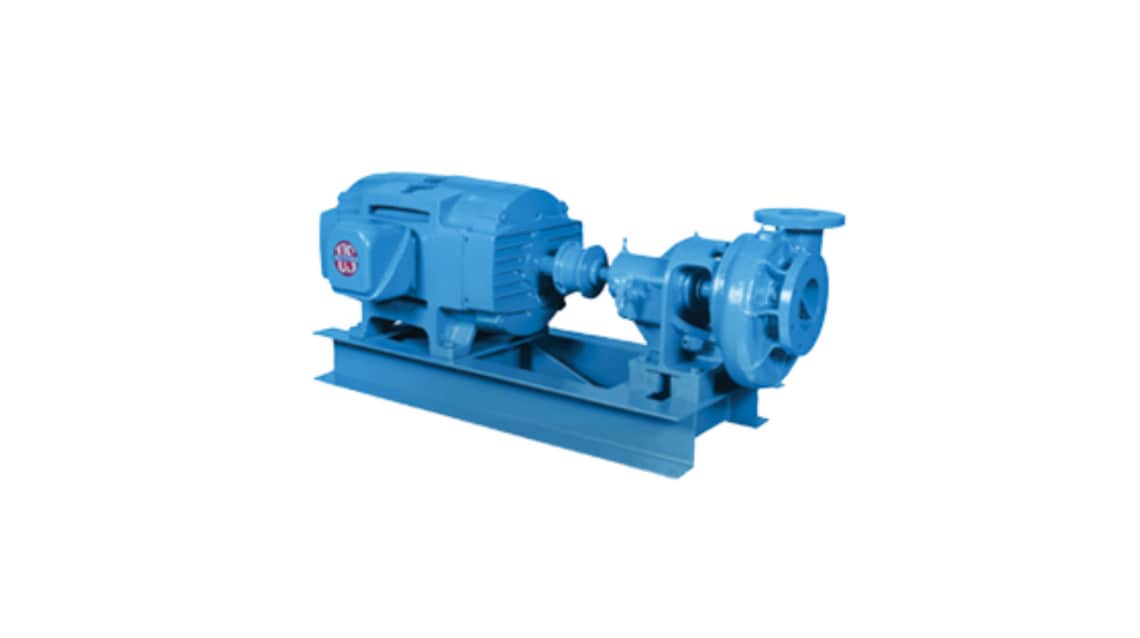

Plad type BM End-Suction, Single stage, Frame mounted horizontal centrifugal pumps serves as the industry standards for compactness, quality, durability and versatility of applications.

Available in many sizes to 8“ and assembled with heavy steel frames featuring a flexible coupled drive, Plad type BM End-Suction base mounted pumps are ideal for reliable heavy duty service.

• Sizes to 8”
• Flows to 2500 GPM
• Heads to 400 ft
• Horse power to 125HP

The back pull-out feature allows for pump maintenance without disconnecting system piping.

Technical Data

• Pump Sizes: 1.0" - 8"
• Max 175 PSI
• Fluid Temp Range: -23°F to 275°F
• 1750 or 3500 RPM Options
• Horse Power to 125 HP

Features & Benefits

• Back pull out design for quick removal
• Double volute design
• 95% recyclable material
• Replaceable wear rings

Materials of Construction

• Cast Iron Casing ASTMA48, CL30
• Impeller Stainless Steel 304
• Sleeve Bronze SAE 660
• Wear Ring Tin Bronze ASTM B584-90500

Applications

• Heating and Cooling Systems
• Municipal Water Supply
• Air Conditioning
• Pressure Boosting
• Raw Water Intake
• Irrigation/Agriculture
• Industrial Processes
