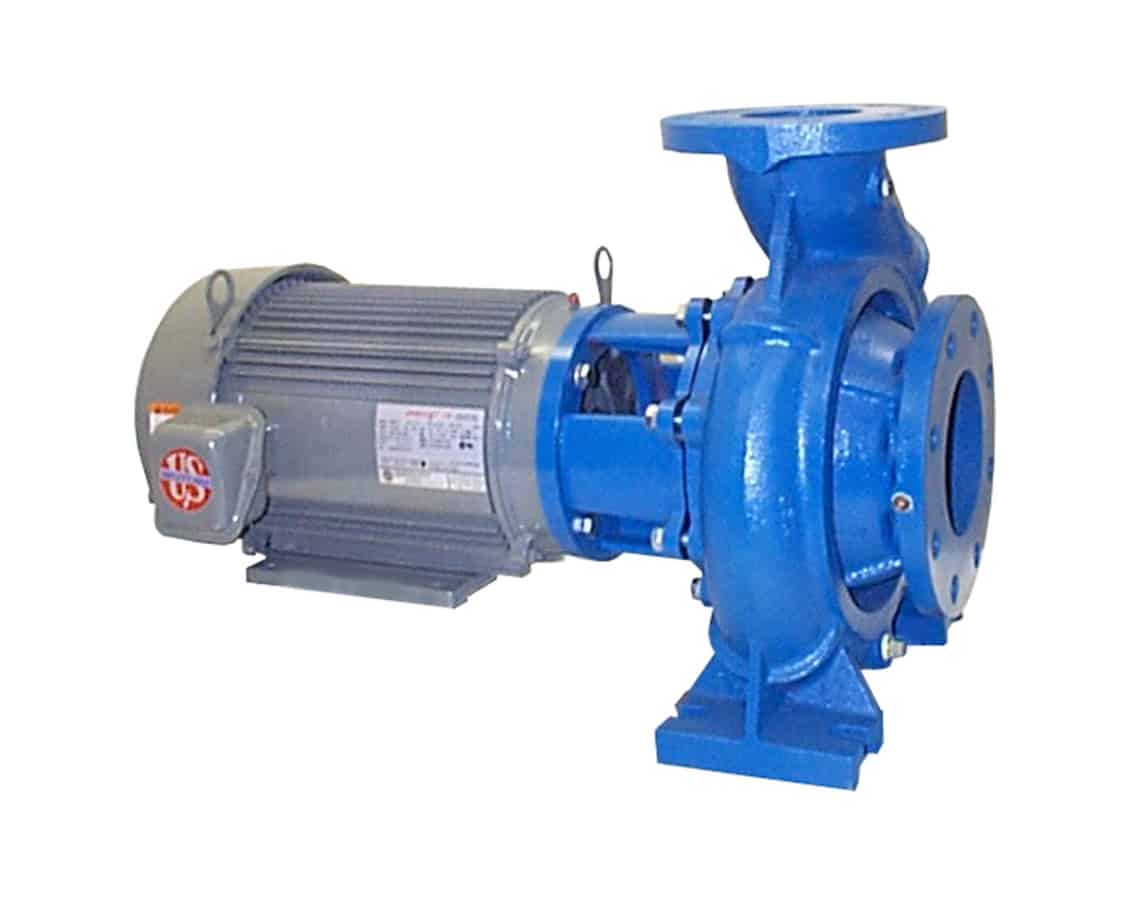

MotorPump™ LFE Series

Cast Iron, Close-Coupled Pumps

Application

  • Irrigation
  • Fertilization Transfer
  • Bulk Tank Systems

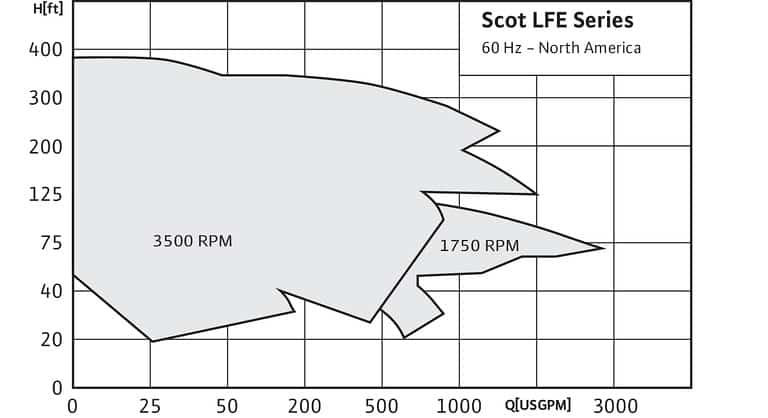

Max. Flow: 2,500 GPM

Max. Head: 375 feet

Features & Benefits

  • Up to 100 HP and 6" Discharge
  • Heavy-Duty Cast Iron construction
  • Close-Coupled Back-Pullout design

Technical Data

  • NEMA 60HZ J56, JM, JP Frames
  • TEFC, Explosion-proof enclosures
  • 4.50” – 11.00” Max Impeller
  • Max working pressure 175 PSI

Materials of Construction

  • NPT and Flange connections
  • All Cast Iron construction
  • Viton Carbon Ceramic Seal standard
  • Viton SiC/SiC Mechanical Seals optional
