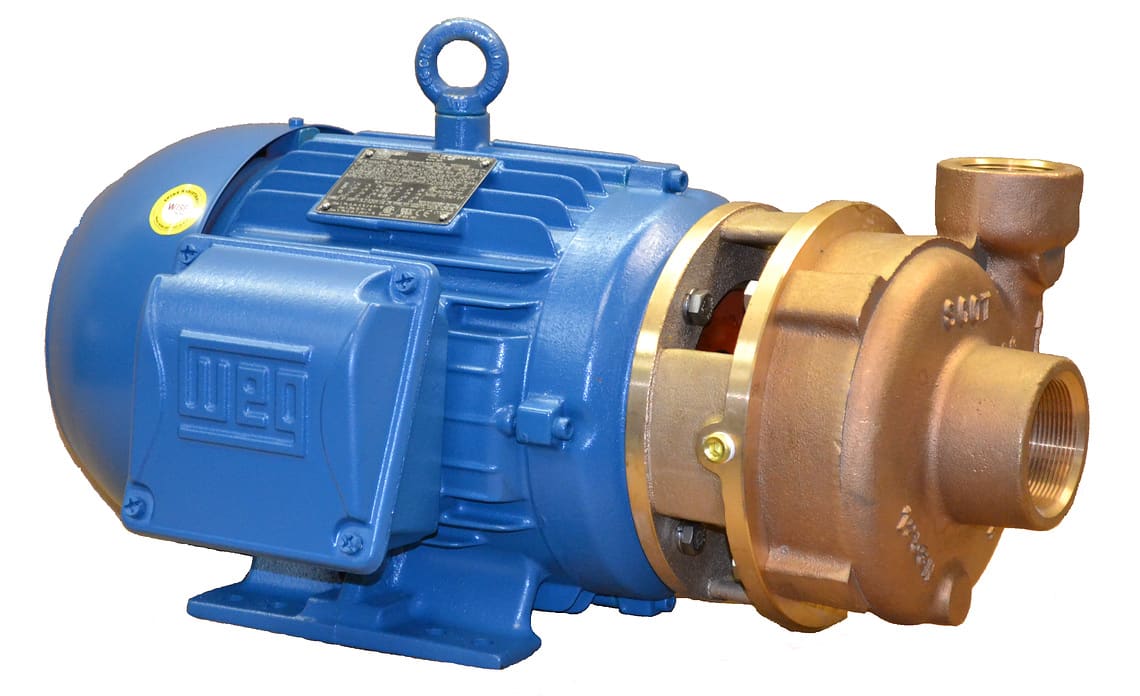

All Bronze, Close-Coupled Pumps

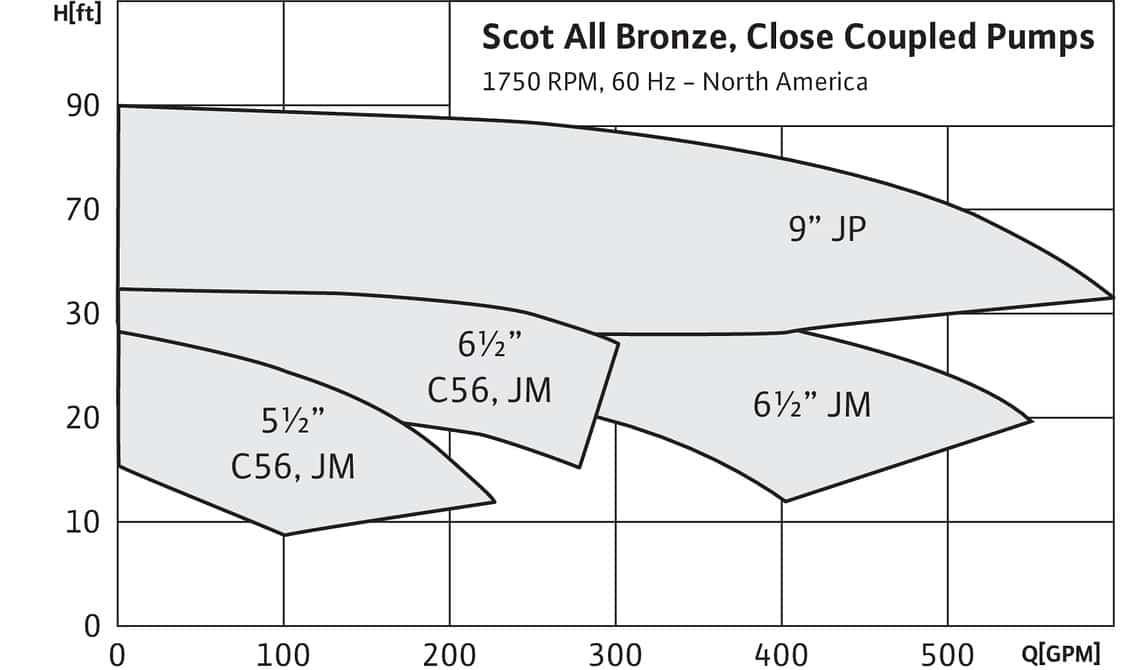

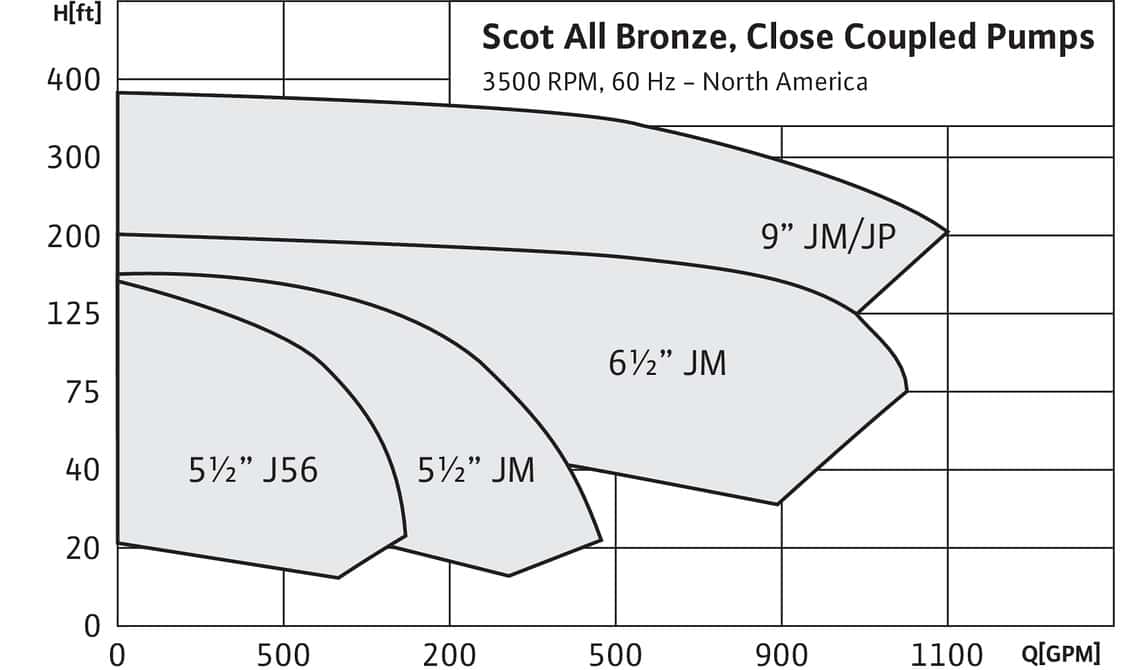

1750 & 3500 RPM

Application

  • Induction Heating Cooling Water
  • Heat Exchanger
  • Water Recirculation Systems
  • Raw Water Supply

Max. Flow: 500 GPM

Max. Head: 95 feet

Features & Benefits

  • Up to 20 HP and 4” Discharge
  • Heavy-Duty Construction
  • Close-Coupled Back-Pullout design
  • Mechanical Seal

Technical Data

  • NEMA 60HZ C56, JM Frames
  • ODP, TEFC, Explosion-proof enclosures
  • 5.50” – 9.00” Max Impeller
  • Temp range: 0°F to 250°F
  • Max working pressure 175 PSI

Materials of Construction

  • NPT and ANSI Flange connections
  • 836 Bronze Case Impeller and Adapter
  • Buna Carbon Ceramic Seal is standard
  • EPDM, Viton & Silicon Carbide available

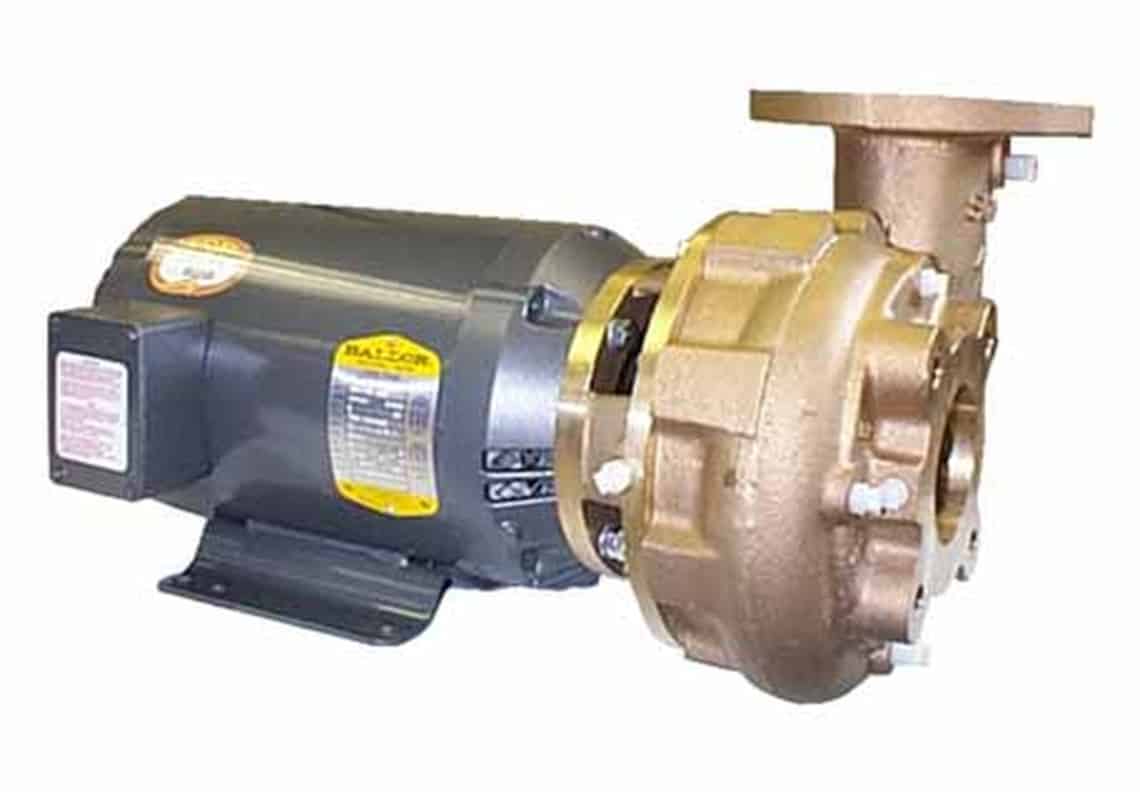

Application

  • Induction Heating Cooling Water
  • Heat Exchanger
  • Pressure Boosting
  • Raw Water Supply

Max. Flow: 1,000 GPM

Max. Head: 375 feet

Features & Benefits

  • Up to 40 HP and 3” Discharge
  • Heavy-Duty construction
  • Close-Coupled Back-Pullout design
  • Mechanical Seal

Technical Data

  • NEMA 60HZ J56, JM Frames
  • ODP, TEFC, Explosion-proof enclosures
  • 5.00” – 9.00” Max Impeller
  • Temp range: 0°F to 250°F
  • Max working pressure 175 PSI

Materials of Construction

  • NPT and ANSI Flange connections
  • 836 Bronze Case Impeller and Adapter
  • Buna Carbon Ceramic Seal is standard
  • EPDM, Viton & Silicon Carbide available
