Elite Cast, Close-Coupled Pumps

304 & 316 Stainless Steel

Applications

  • Booster Systems
  • Chillers
  • Injection Molding Cooling
  • Process Cooling Water
  • Dishwashing Equipment
  • Induction Heating Cooling Water
  • Potable Water

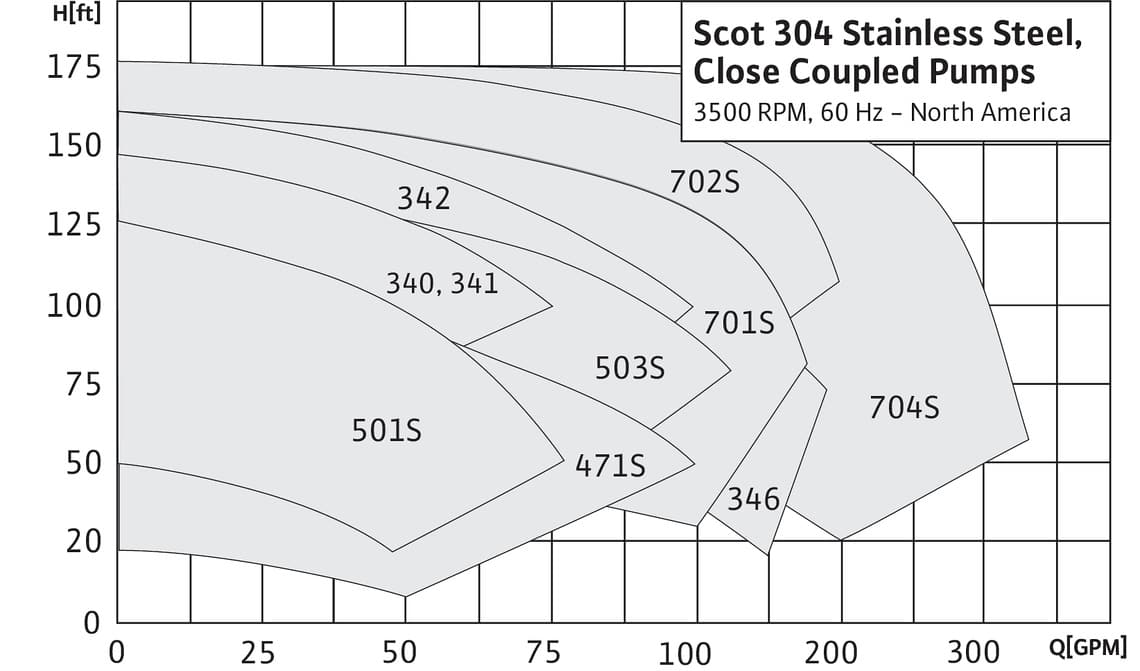

Max. Flow: 325 GPM

Max. Head: 175 feet

Features & Benefits

  • NSF/ANSI 61 & 372 certification pending
  • Up to 3 HP and 2” Discharge
  • Cast Iron Adapter supports seal and prevents flexing of pump
  • Close Coupled-Back Pullout design
  • Mechanical Seal

Technical Data

  • NEMA 60HZ J56 Frames
  • ODP, TEFC, Explosion-proof enclosures
  • 4.50” – 6.50” Max Impeller
  • Temp range: 0°F to 225°F
  • Max working pressure 150 PSI

Materials of Construction

  • NPT connections
  • 304 Stainless Steel Casing and Adapter
  • 400 Series: 304 Stainless Steel Impeller
  • 340, 500, 700 Series: Composite Impeller
  • Buna Carbon Ceramic Seal is standard
  • EPDM, Viton & Silicon Carbide available

Application

  • Chiller
  • Dishwashers
  • Washing Equipment
  • Process Cooling Water

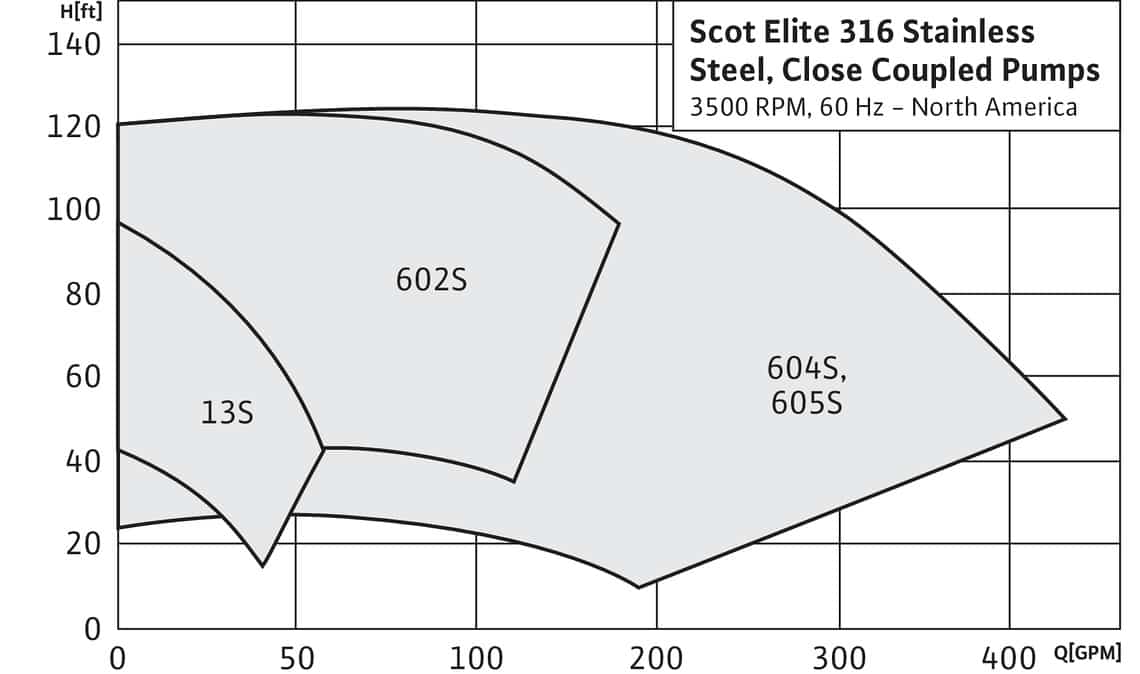

Max. Flow: 450 GPM

Max. Head: 125 feet

Features & Benefits

  • NSF/ANSI 61 & 372 certification pending
  • Up to 15 HP and 3” Discharge
  • Heavy-Duty construction
  • Close-Coupled Back-Pullout design
  • Mechanical Seal

Technical Data

  • NEMA 60HZ J56, TC Frames
  • ODP, TEFC, Explosion-proof enclosures
  • 5.63” Max Impeller
  • Temp range: 0°F to 250°F
  • Max working pressure 175 PSI

Materials of Construction

  • NPT Connections
  • 316 Stainless Steel wetted components
  • Viton Silicon Carbide Seal is standard
