Application

• Cooling Towers
• Chillers
• Plastic Injection Molding
• Process Water Filtration & Circulation
• Condensate Return
• Heat Treating

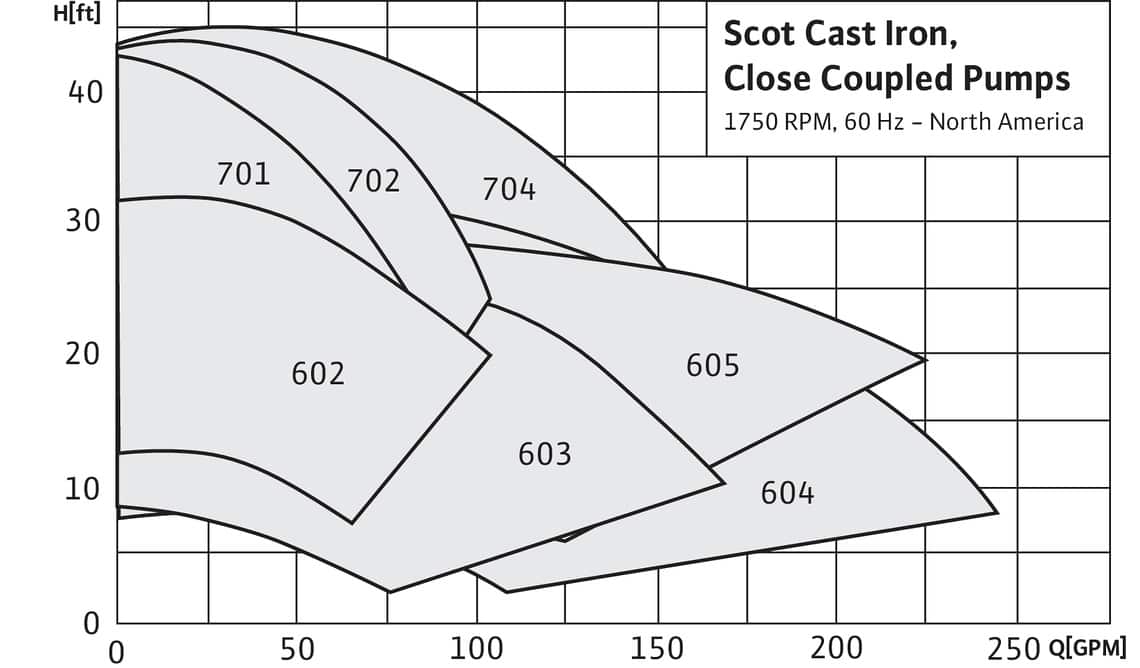

Max. Flow: 250 GPM

Max. Head: 42 feet

Features & Benefits

• Up to 2 HP and 3” Discharge
• Heavy-Duty construction
• Close-Coupled Back pull-out design
• Mechanical Seal

Technical Data

• NEMA 60HZ J56 Frame
• ODP, TEFC, Explosion-proof enclosures
• 5.5"-6.5” Max Impeller
• Temp range: 0°F to 250°F
• Max working pressure 175 PSI

Materials of Construction

• NPT connections
• Standard fitted
• 600 Series: 304 Stainless Steel Impeller
• 700 Series: Composite Impeller
• All Iron
• Buna Carbon Ceramic Seal standard
• EPDM, Viton & Silicon Carbide available
