Elite Cast Iron, Close-Coupled Pumps

3500 RPM

Application

  • Cooling Towers
  • Chillers
  • Plastic Injection Molding
  • Process Water Filtration & Circulation
  • Condensate Return
  • Heat Treating

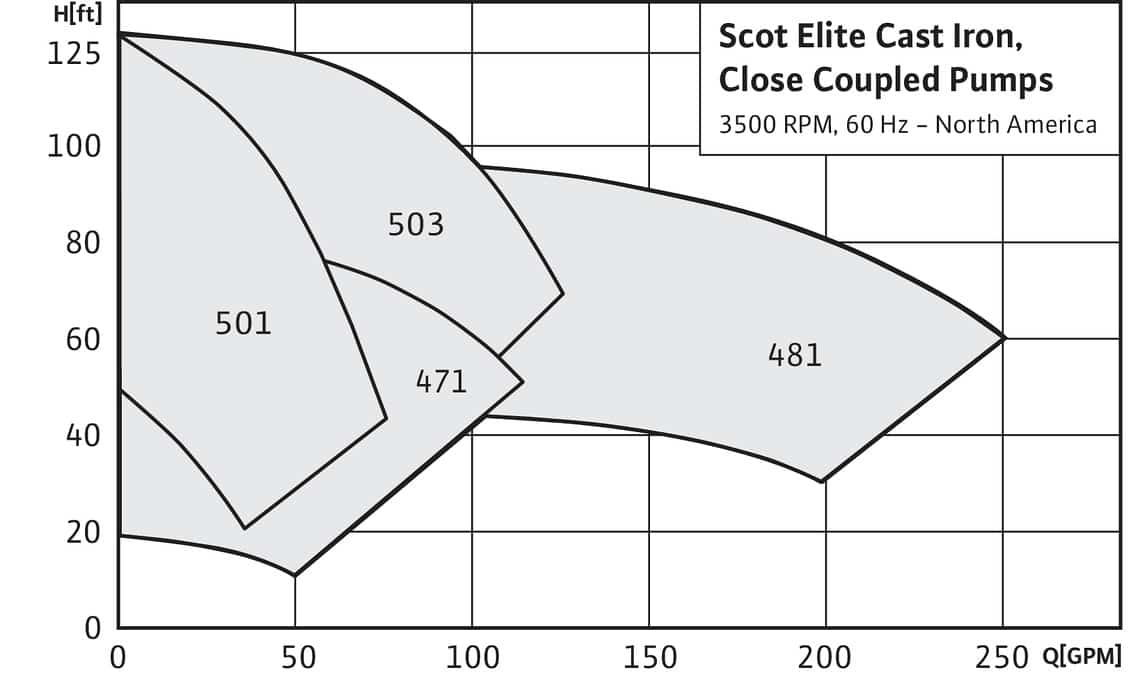

Max. Flow: 250 GPM

Max. Head: 125 feet

Features & Benefits

  • Up to 5 HP and 2” Discharge
  • Heavy-Duty construction
  • Close-Coupled Back-Pullout Design
  • Mechanical Seal

Technical Data

  • NEMA 60HZ J56 Frames
  • ODP, TEFC, Explosion-proof enclosures
  • 5½” Max Impeller
  • Temp range: 0°F to 250°F
  • Max working pressure 150 PSI

Materials of Construction

  • NPT connections
  • Standard fitted
  • 400 Series: 304 Stainless Steel Impeller
  • 500 Series: Composite Impeller
  • All Iron
  • Buna Carbon Ceramic Seal standard
  • EPDM, Viton & Silicon Carbide available

Application

  • Cooling Towers
  • Chillers
  • Plastic Injection Molding
  • Process Water Filtration & Circulation
  • Condensate Return
  • Heat Treating

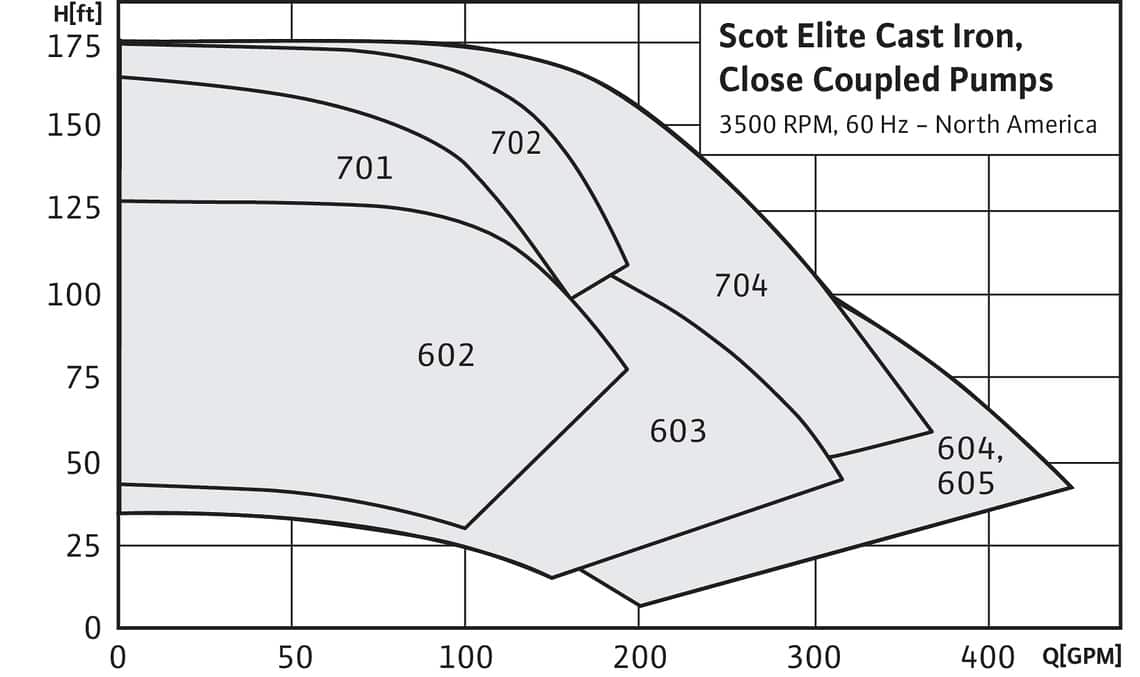

Max. Flow: 450 GPM

Max. Head: 175 feet

Features & Benefits

  • Up to 15 HP and 3” Discharge
  • Heavy-Duty construction
  • Close-Coupled Back-Pullout design
  • Mechanical Seal

Technical Data

  • NEMA 60HZ, JM Frames
  • ODP, TEFC, Explosion-proof enclosures
  • 6½” Max Impeller
  • Temp range: 0°F to 250°F
  • Max working pressure 175 PSI

Materials of Construction

  • NPT connections
  • Standard fitted
  • 600 Series: 304 Stainless Steel Impeller
  • 700 Series: Composite Impeller
  • All Iron
  • Buna Carbon Ceramic Seal standard
  • EPDM, Viton & Silicon Carbide available
