Welded Stainless Steel, Close-Coupled Pumps

3500 RPM

Applications

  • Booster Systems
  • Chillers
  • Plastic Injection Molding
  • Process Cooling Water
  • Dishwashing Equipment
  • Induction Heating / Cooling
  • Potable Water

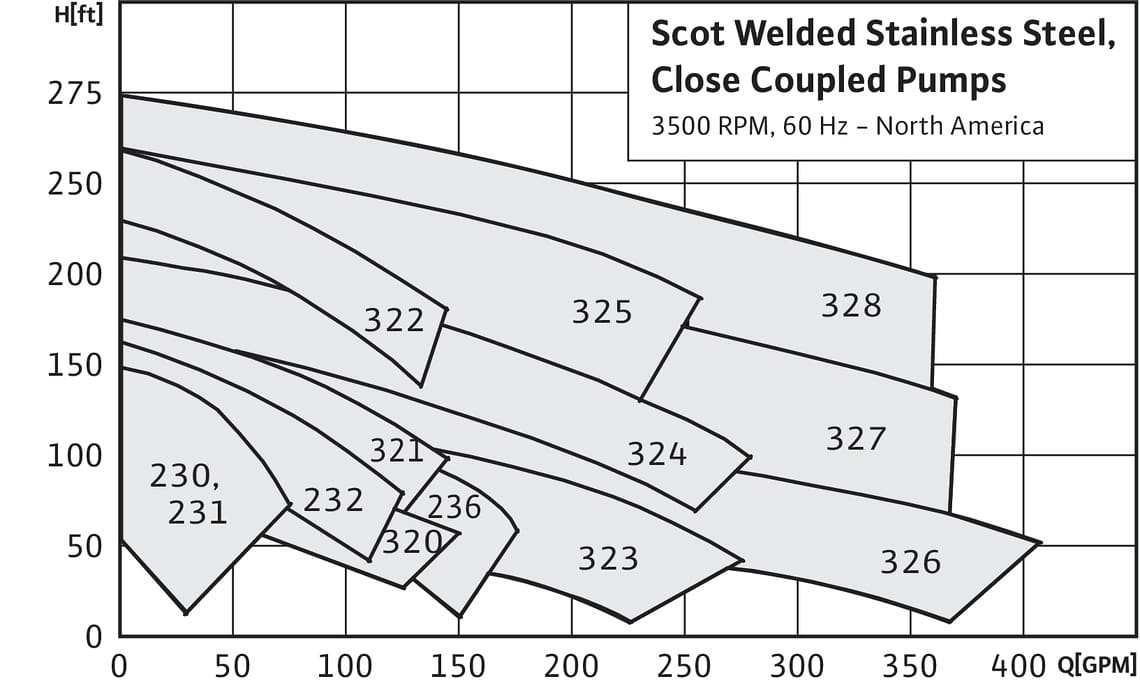

Max. Flow: 400 GPM

Max. Head: 275 feet

Features & Benefits

  • NSF/ANSI 61 & 372 certified
  • Up to 25 HP and 2” Discharge
  • Cast Iron Adapter supports seal and prevents flexing of pump
  • Close-Coupled Back-Pullout design
  • Centerline Discharge
  • Mechanical Seal

Technical Data

  • NEMA 60HZ J56, JM, TC Frames
  • ODP, TEFC, Explosion-proof enclosures
  • 4.50” – 8.00” Max Impeller
  • Temp range: 0°F to 225°F
  • Max working pressure 175 PSI

Materials of Construction

  • NPT and Flange connections
  • 304 Stainless Steel Casing, Impeller and SealPlate. Cast Iron Adapter
  • Buna Carbon Ceramic Seal standard
  • EPDM, Viton & Silicon Carbide available
