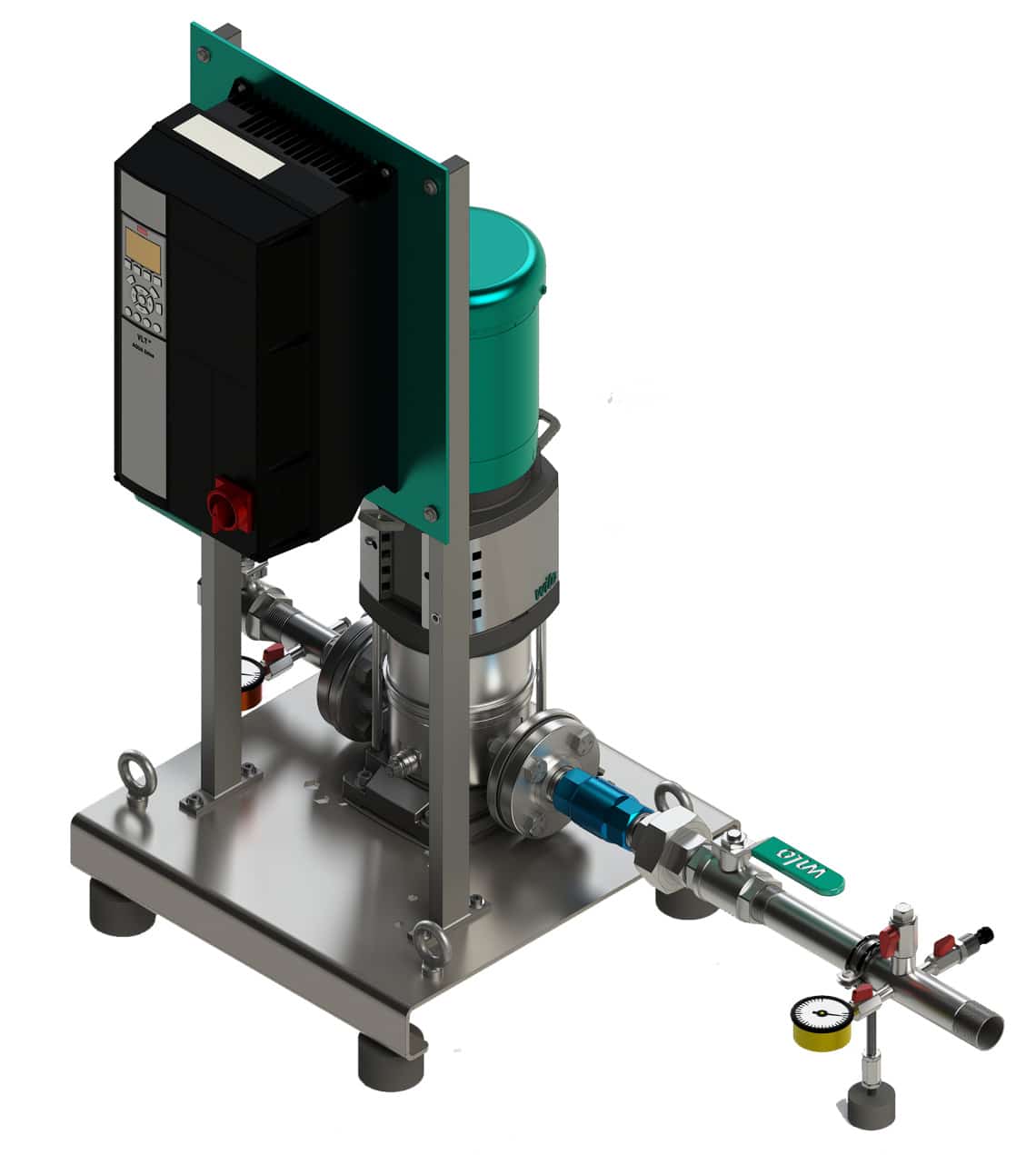

Helix Complete
Pressure Boosting Systems

Application
- Water Supply / Pressure Boosting
- Condensate Return
- Boiler Feed
- Washing / Sprinkling
- Process Engineering
- Cooling Circuits

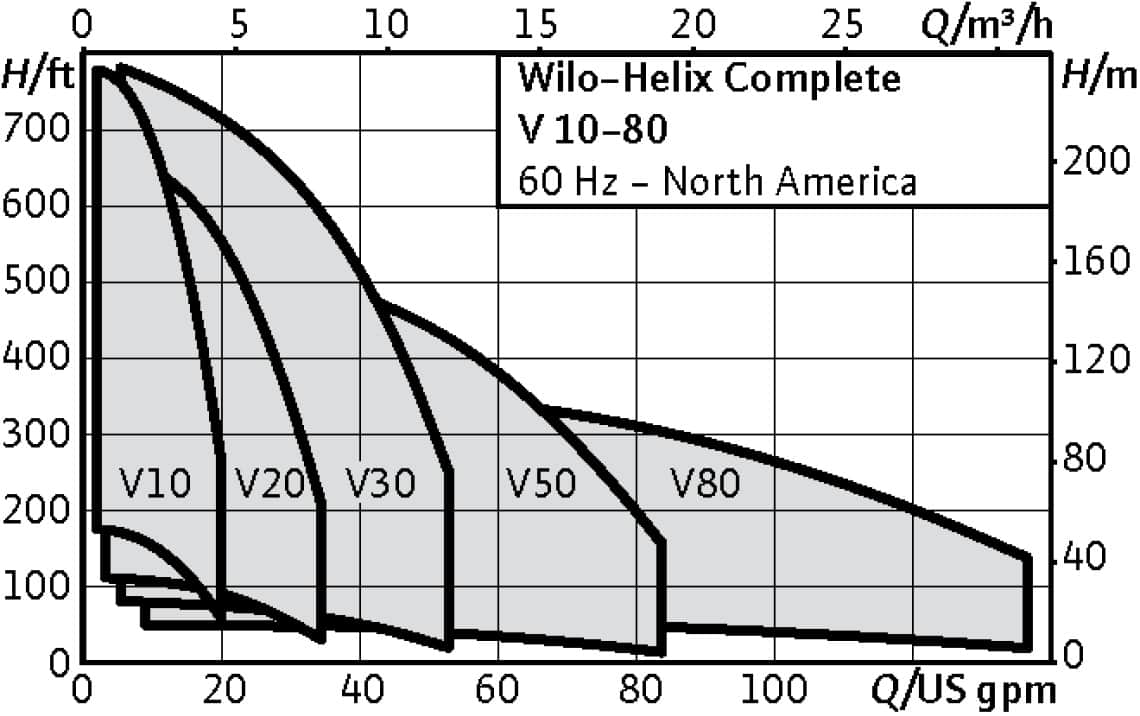

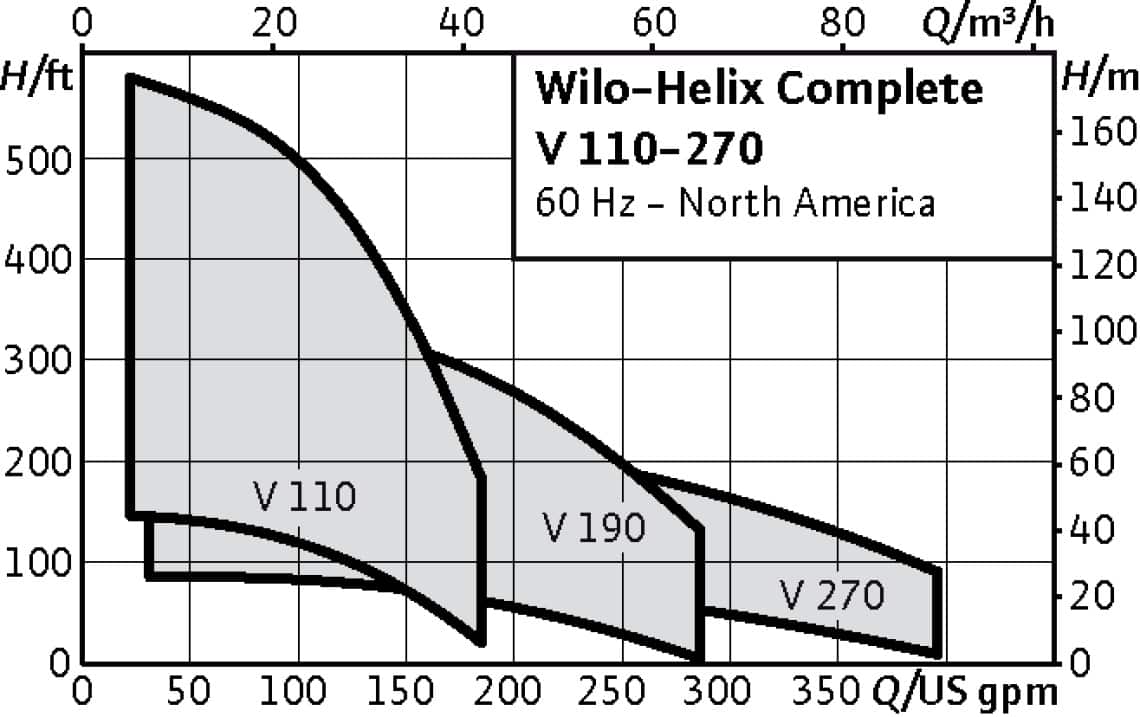

Max. Flow: 400 USGPM
Max. Head: 780 feet
Features & Benefits
- NSF 61 and 372 rated for Water Quality
- UL QCZJ rated as a complete pumping package
- Optimizes energy consumption based on system requirements
- End of curve detection
- Dry run prevention
- Low flow protection
- Pipe fill mode
- Warnings & Alarm indication
Technical Data
- Liquid Temp Range 4°F to 180°F (-15°C to 82°C) with a minimum of 32°F for domestic water
- Electrical Connections: 3~208/230/460/575V
- ANSI CLASS 300 Flange Connection
Materials of Construction
- Stainless Steel AISI 304 pump volute, flanges, impeller, stage housing and diffusers
- Stainless Steel AISI 304 or AISI 318LN shaft
- Stainless Steel AISI 316L shaft sleeve


Installation & Operation Manual
Helix V IOM
Specifications
Helix Complete Specifications
Packaged Pumping Systems_UL Product iQ
QCZJ.MH60113
Submittal Data Sheets
Helix Complete - EFC
Helix Complete - DISC
