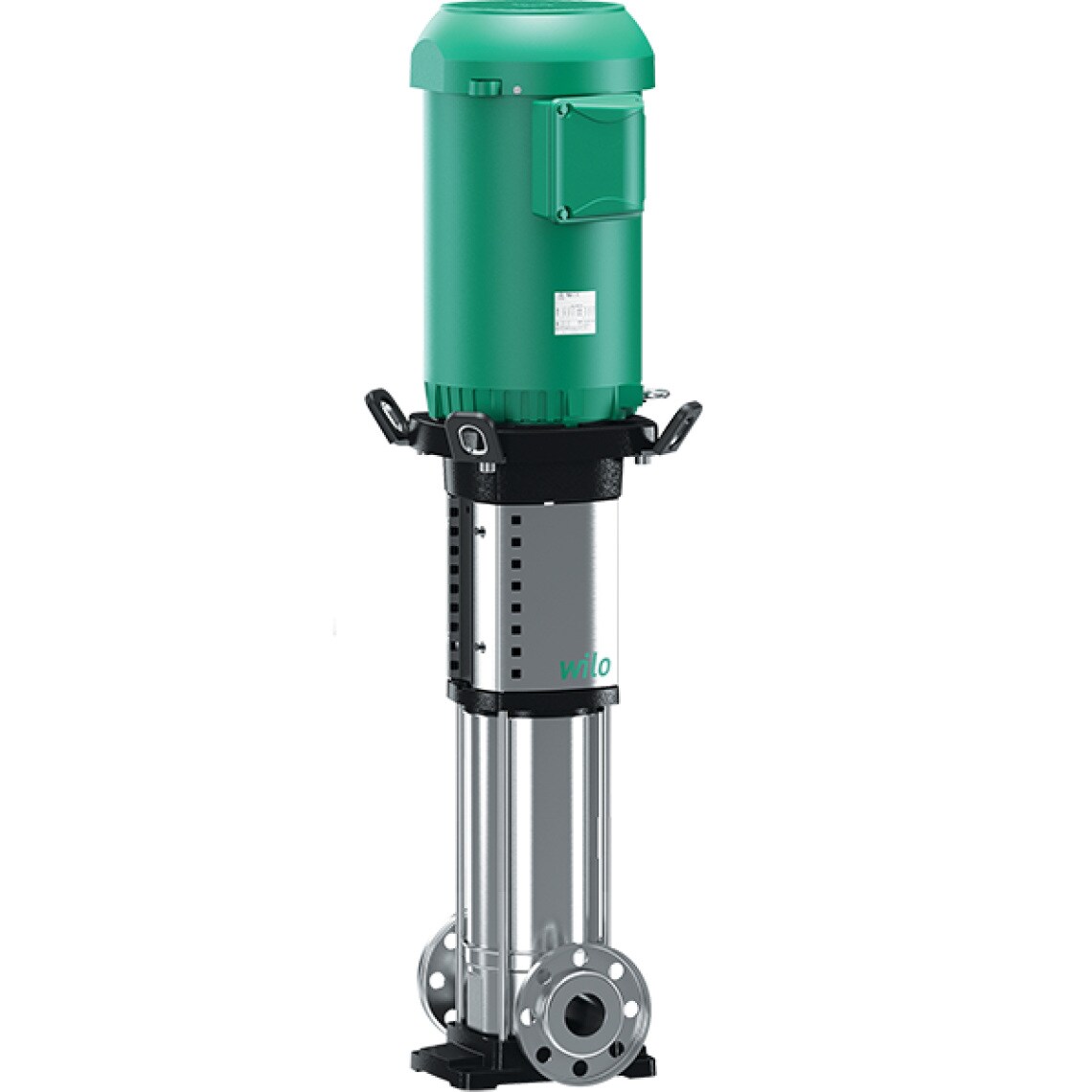

Helix V 10-80
6" Vertical Multistage Pumps

Application
- Water Supply / Pressure Boosting
- Condensate Return
- Boiler Feed
- Washing / Sprinkling
- Process Engineering
- Cooling Circuits

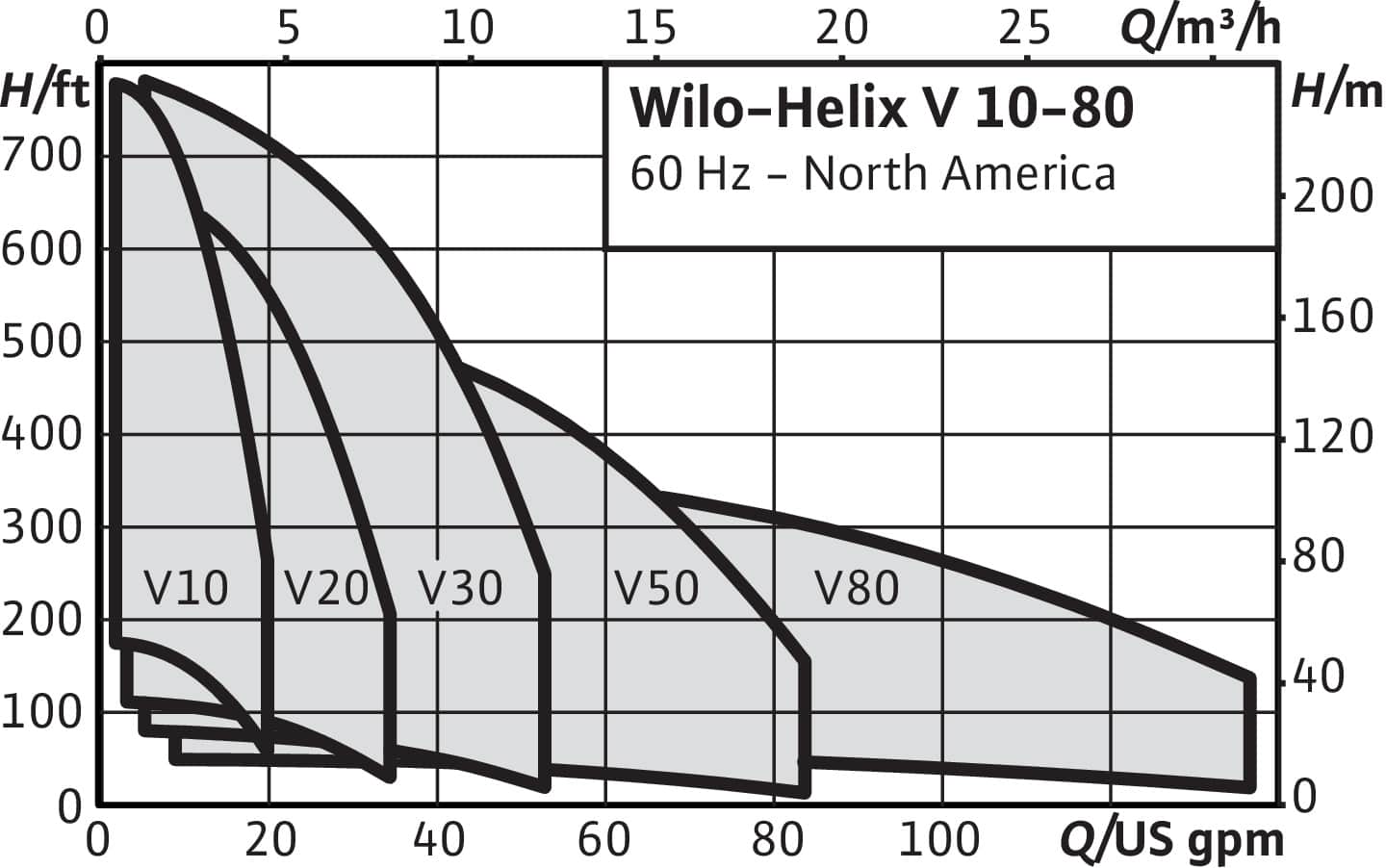

Max. Flow: 130 USGPM
Max. Head: 750 feet
Features & Benefits
- Cartridge seal design for easy serviceability
- 3D Laser welded Impellers for improved hydraulic efficiency
- Integrated thrust bearings for reduced motor stress
- Pump lifting lugs
- Heavy duty pump base
Technical Data
- NEMA Premium Efficiency Motors
- Temp Range: -5°F to 250°F (-20°C to 121°C)
- Electrical Connections: 3~208-230/460/575V
- Flange Connection: 300-class ANSI
- Pressure Range: 232 PSI or 363 PSI
Materials of Construction
- 304 Stainless Steel Construction Certified to NSF/ANSI 61
- Stainless Steel Volute, Impeller & Shaft
- Tungsten Carbide/EPDM, or optional Viton®/FKM Mechanical Seal

Installation & Operation Manual
Helix V 10-270 IOM
Brochure
Helix Brochure
Multistage Pumps & Pressure Booster Systems Brochure
Helix Brochure
Agriculture and Groundwater Brochure
Pumps and systems for agriculture, groundwater, irrigation and water supply.
Specifications
Helix V Specifications
