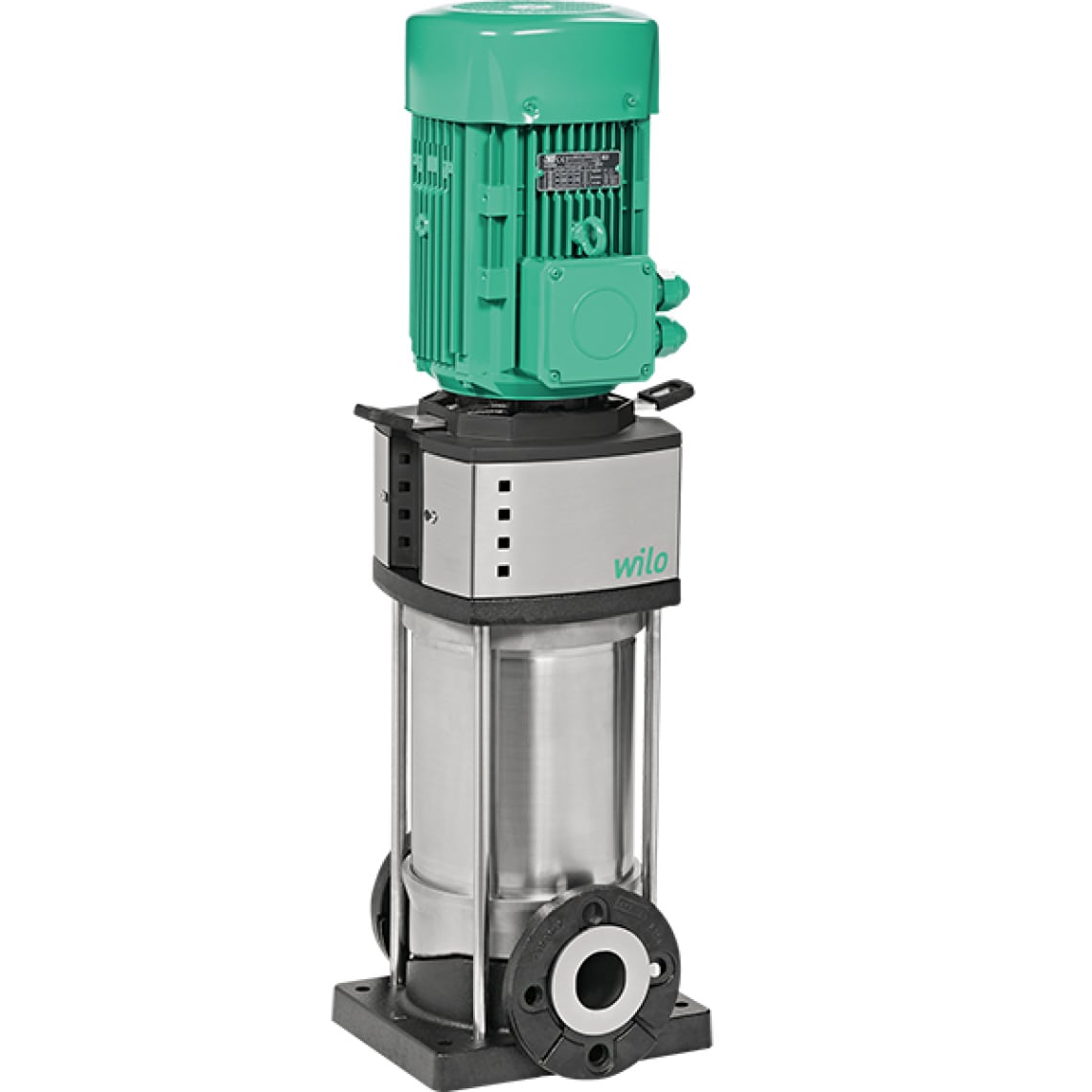

Helix V 110-270
8" Vertical Multistage Pumps

Application
- Water Supply / Pressure Boosting
- Condensate Return
- Boiler Feed
- Washing / Sprinkling
- Process Engineering
- Cooling Circuits
Max. Flow: 380 USGPM
Max. Head: 800 feet
Features & Benefits
- Up to 33% more head, and 10% more flow per stage!
- Rebuildable cartridge seal system reduces maintenance time by up to 70%
- Floating flanges for easy installation
- Standard EISA compliant TEFC motors
- Integrated thrust bearing reduces motor stress
Technical Data
- 3~ 230v TEFC motors standard (ODP available on request)
- Liquid Temp Range 4°F to 248°F (-15°C to 120°C)
- Electrical Connections: 3~230/460/575v
- Flange Connection: 250# ANSI
Materials of Construction
- Cast Iron, Cataphoresis Coated Volute
- Stainless Steel Impeller, Shaft, Pressure Shroud & Pump Base
- EPDM/FKM Elastomers
- Optional Mechanical Seals Available
- Tungsten Carbide/Ceramic Bearing

Installation & Operation Manual
Helix V 10-270 IOM
Brochure
Helix V Brochure
Multistage Pumps & Pressure Booster Systems Brochure
Helix Brochure
Agriculture and Groundwater Brochure
Pumps and systems for agriculture, groundwater, irrigation and water supply.
Specifications
Helix V Specifications
