ICL

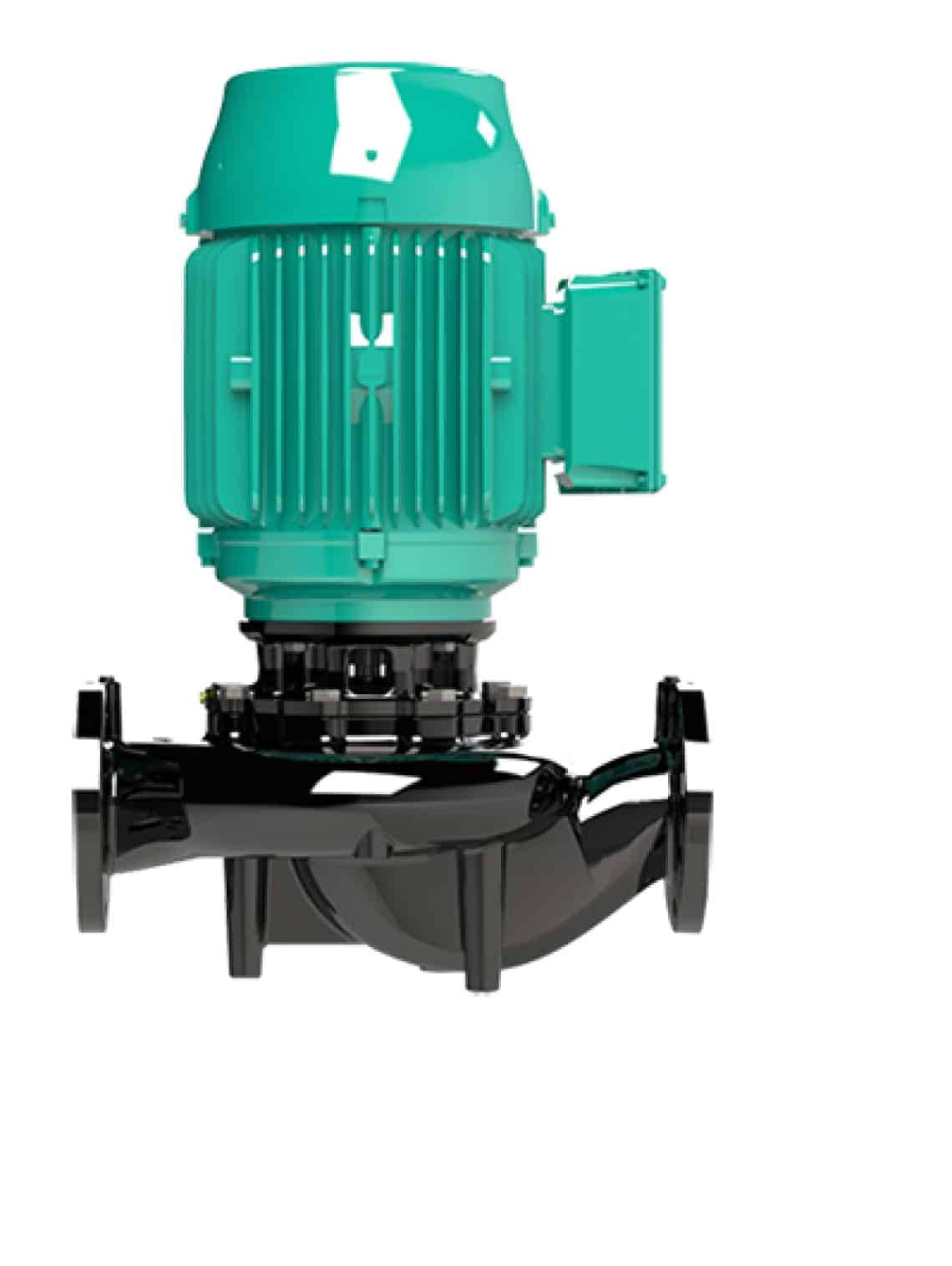

Inline Close-Coupled Pumps

Application

  • Hot Water Heating systems
  • Industrial Circulation Systems
  • Air Conditioning
  • Solar Systems
  • Closed Cooling Circuits
  • Geothermal Systems

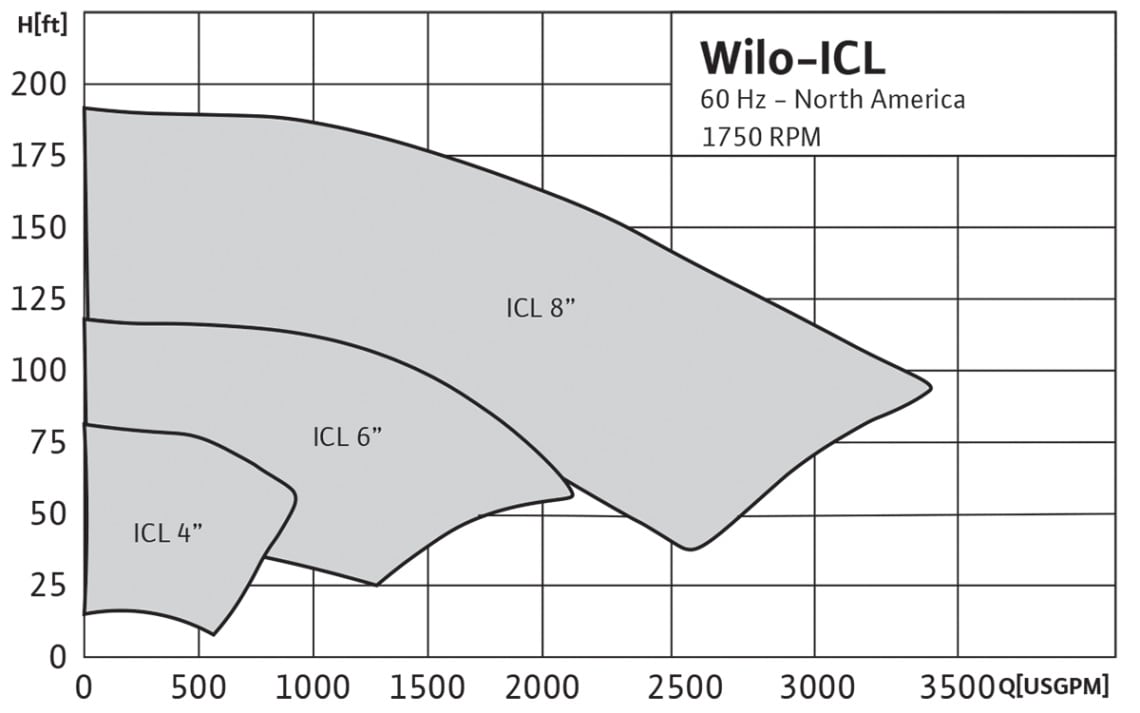

Max. Flow: 3330 USGPM

Max. Head: 180 feet

Features & Benefits

  • Maximum working pressure: 300 psi
  • NEMA Inverter-duty TEFC 3~ motors
  • Optimized suction passage for best inlet flow quality

Technical Data

  • Liquid Temperature Range: -4°F to 248°F (-20°C to 140°C)
  • Max. Ambient Temperature: 104°F (40°C)
  • 460V
  • TEFC Motor

Materials of Construction

  • Cast Iron Pump Volute
  • Trimmable Bronze Impeller
  • Stainless Steel AISI 420 Shaft
  • Silicon Carbide, EPDM or Viton Mechanical Seal
