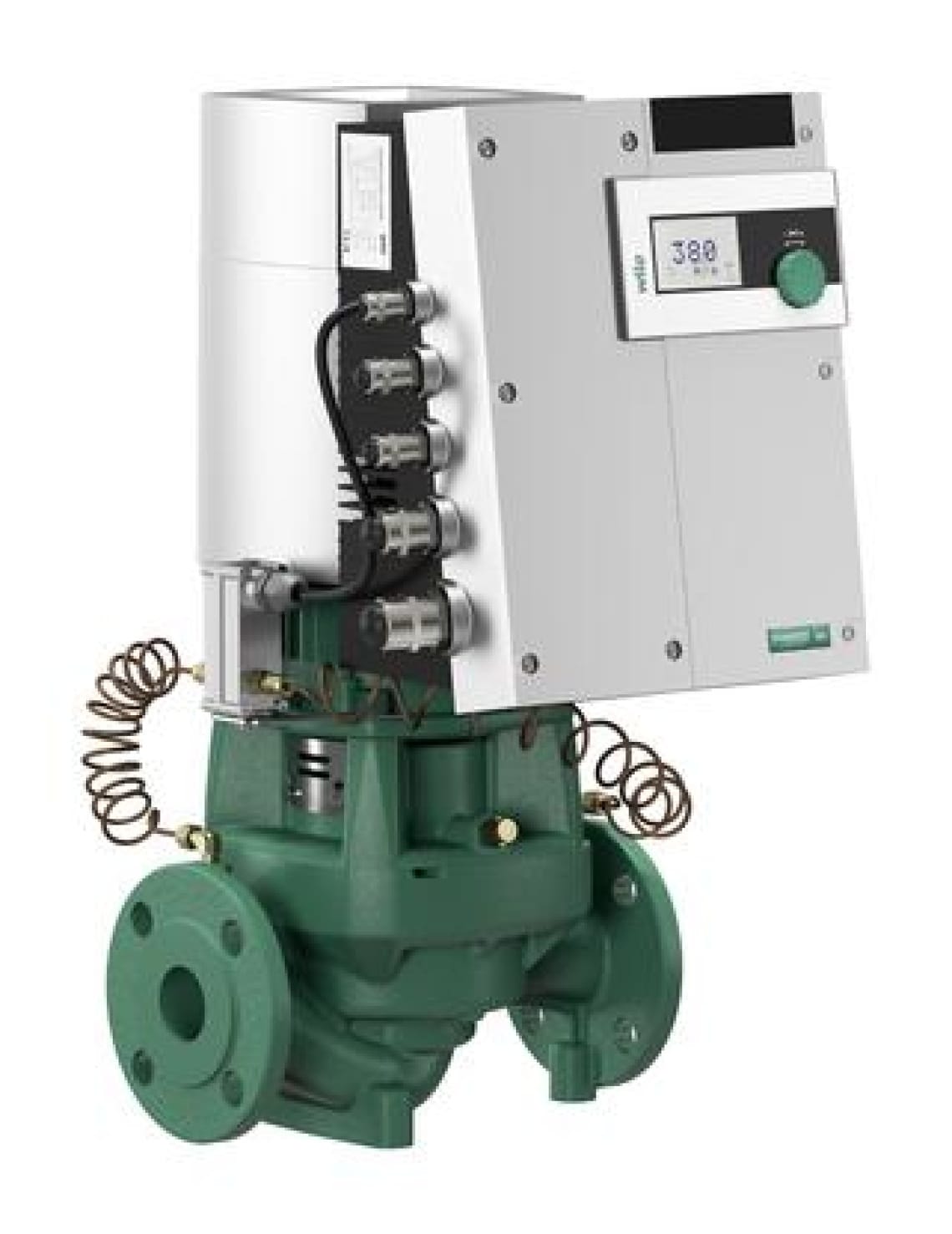

Stratos GIGA

High Efficiency Inline Pumps

Application

  • Hot Water Heating Systems
  • Industrial Circulation
  • Closed Cooling Circuits
  • Air Conditioning Systems
  • Solar
  • Geothermal

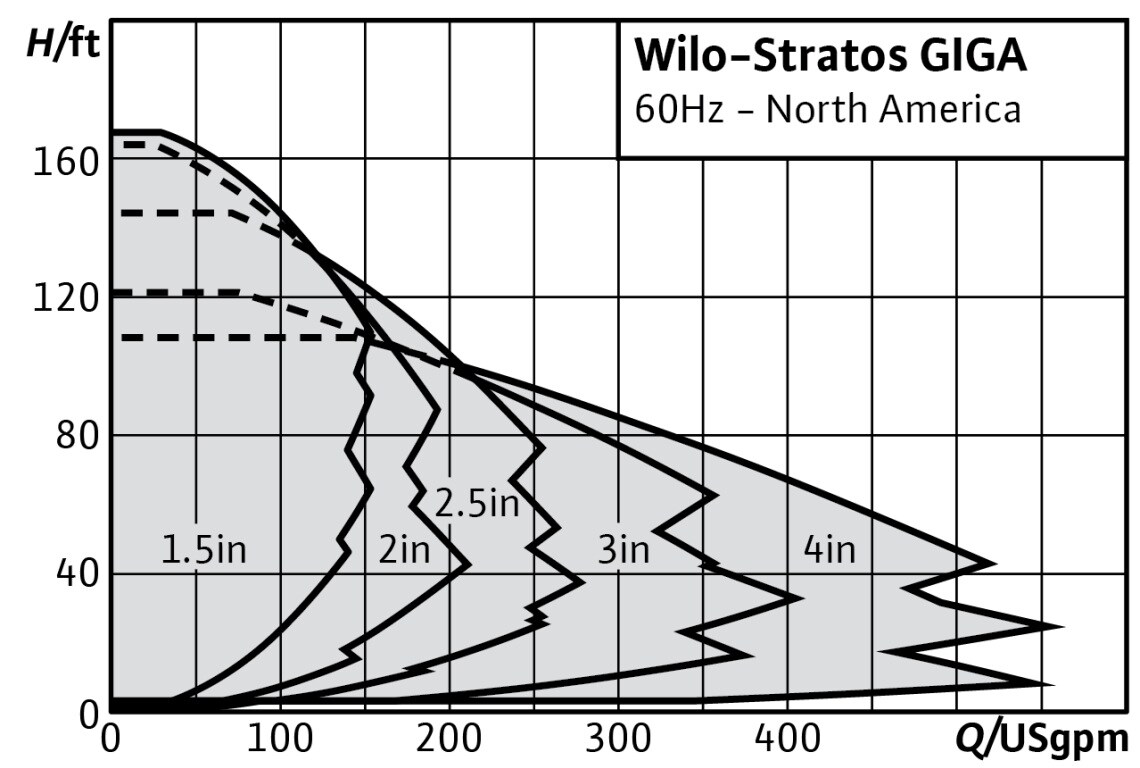

Max. Flow: 550 USGPM

Max. Head: 167 feet

Features & Benefits

  • Single-stage, low pressure, in-line centrifugal pump
  • Highest efficiency motor-drive combination on the market – up to 11HP with motor efficiencies up to 96%
  • Easy to operate ‘Green Button’ technology and LED display
  • Extremely compact and space-saving design
  • Integrated electronic power adjustment
  • Control range is up to three times as high as conventional electronically-controlled pumps
  • Integrated full motor protection
  • Multiple control modules available for integration with building management systems

Technical Data

  • High corrosion protection due to cataphoretic coating
  • Power supply 380/480V~3, 50/60Hz, (±10%)
  • Temp Range: -4°F (-20°C) to 248°F (120°C)
  • Ambient Temp Range: 32°F (0°C) to 104°F (40°C)
  • Max Operating Pressure: 232 PSI
  • IP55 enclosure, insulation class F
  • Various control modes: ΔPV, ΔPC, constant speed, PID

Materials of Construction

  • Cast Iron, Cataphoresis Coated Volute
  • Cast Iron Volute & Lantern
  • Polypropylene Impeller
  • Stainless Steel Pump Shaft
  • Various Mechanical
