Stratos Z

High Efficiency DHW Circulators

stratos z namex inox pic 01

Application

  • Domestic Hot Water
  • Closed Cooling Circuits
  • HVAC Systems
  • Industrial Circulation
  • Solar
  • Geothermal

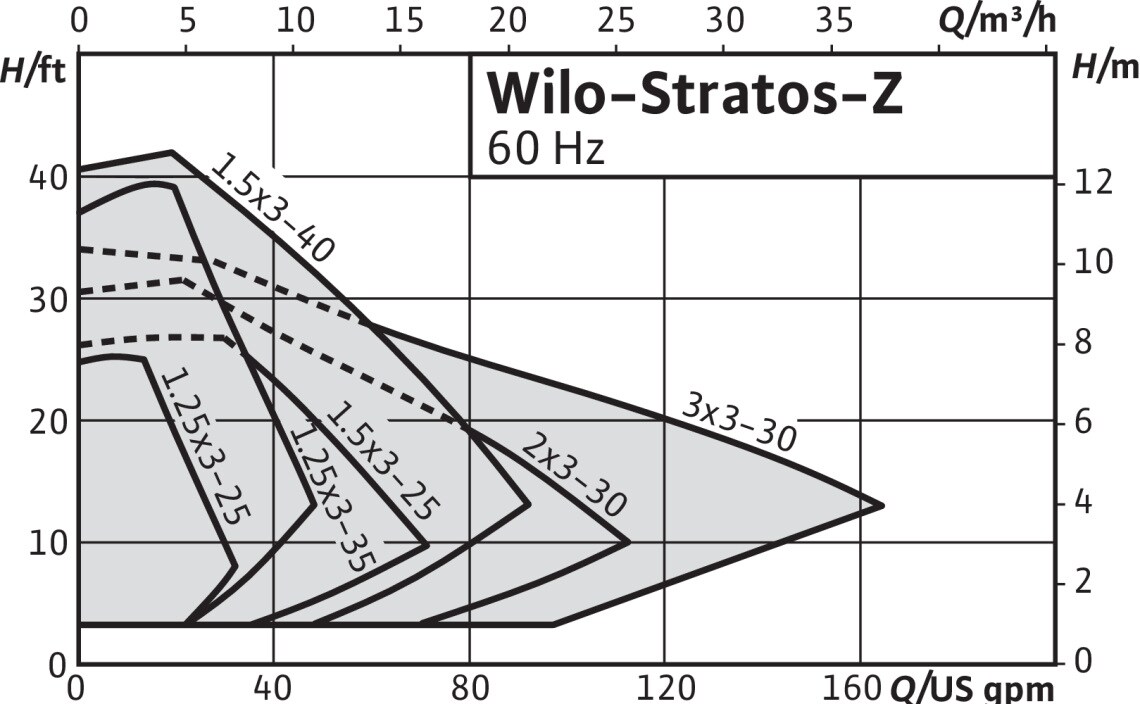

Max. Flow: 180 USGPM

Max. Head: 43 feet

Features & Benefits

  • NSF 61 Certified
  • ECM motor technology reduces energy consumption by up to 80%
  • ‘Red Button’ technology and LED display
  • Interface modules available for external control
  • Remote access to on-board data logger with optional USB infra-red device
  • Built-in overload fault contacts

Technical Data

  • ΔP-V or ΔP-C constant speed control modes standard. ΔP-T available with IR device
  • Temp Range: 14°F to 230°F (-10°C to 110°C)
  • Electrical Connection: 1~208/230v (+/- 10%)

Materials of Construction

  • Stainless Steel Volute
  • Composite Impeller
  • Stainless Steel Shaft
  • Carbon, Synthetic Resin Impregnated Bearing
stratos z namex dut 01

Installation & Operation Manual

Stratos IOM

Catalog Pages

Stratos Z Catalog Pages

High Efficiency Brochure

Stratos Brochure

Engineering Specification

Startos Z Specification
