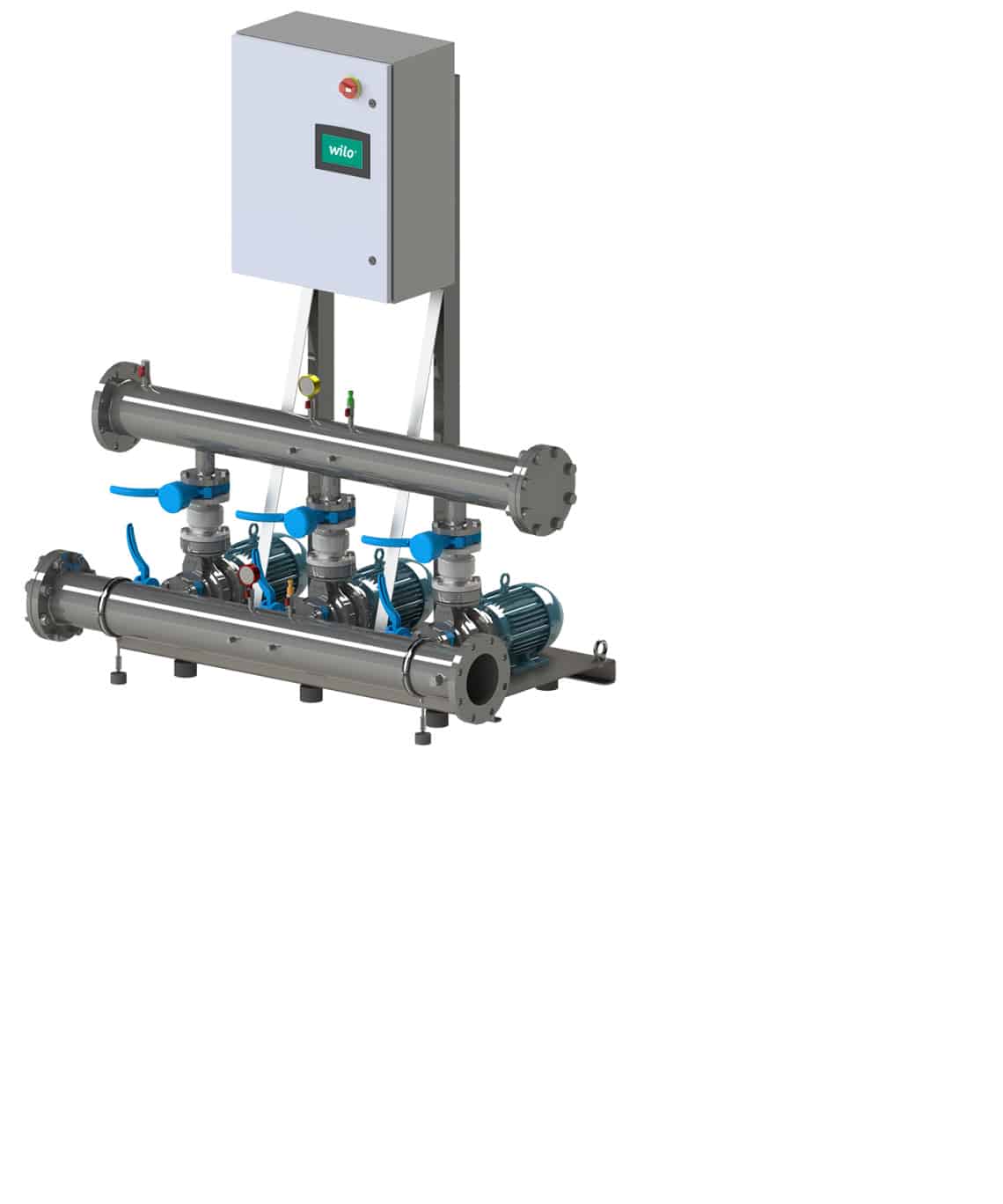

WiBooster
1-4 Pump Pressure Boosting Systems



Application
- Water Supply
- Pressure Boosting
- Agriculture
- Washing / Sprinkling Systems
- Cooling Circuits
- Condensate Return

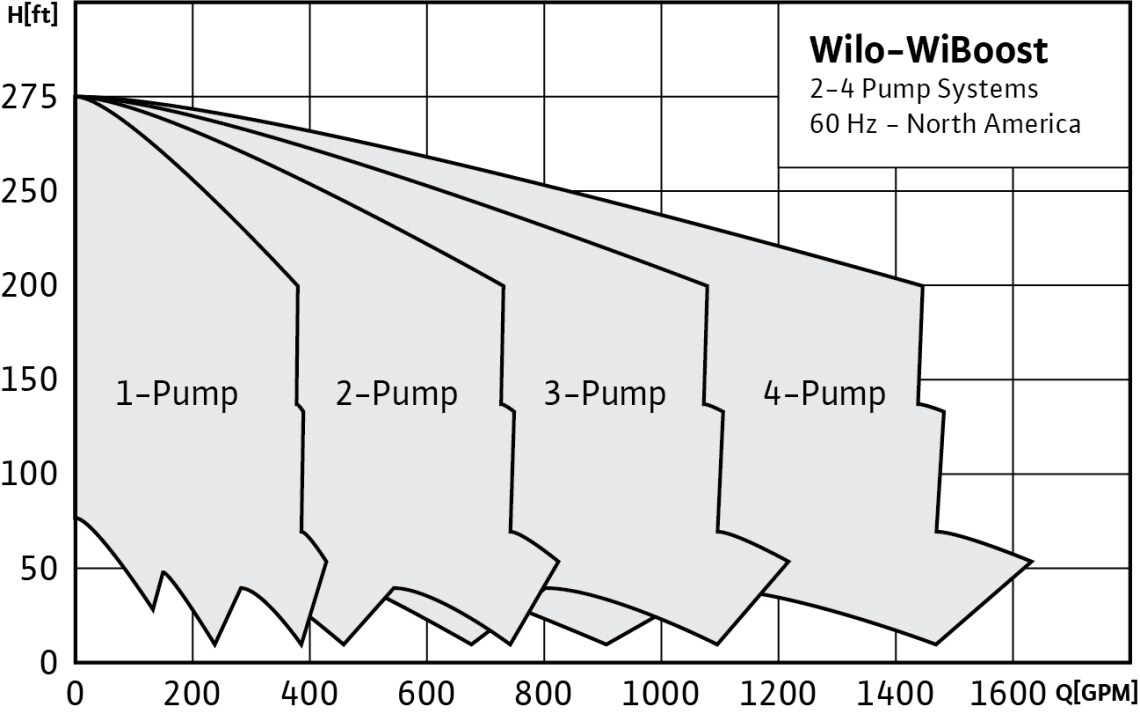

Max. Flow: 1,600 GPM
Max. Head: 275 feet
Features & Benefits
- Includes Scot 320-328 series stainless steel pumps
- Real-time diagnostics and remote monitoring
- Full system kWh energy reporting
- Easy to use 7" touchscreen interface
- Onboard MODbus and optional BACnet and LONworks interface
- Adjustable low pressure cut-out
- Balanced run time for all pumps
Technical Data
- Wetted components certified to NSF/ANSI 61 & 372
- Fluid Temp Range: 40°F to 140°F (4°C to 60°C)
- Premium efficient NEMA motors
- VFD-Controlled system operation
- 4-20 mA, ¼" SS Pressure Transducers
- Max System Pressure: 150 PSI
Materials of Construction
- All 304 Stainless Steel Construction
- EPDM/FKM Elastomers
- Type 21 Mechanical Seal
