Helix EXCEL

High Efficiency Multistage Pumps

Application

  • Water Supply and Pressure Boosting
  • Process Water
  • Pressure Washing Systems / Sprinkling Systems
  • Industrial Circulation Systems
  • Cooling Circuits & Condensate Return
  • Agriculture / Irrigation

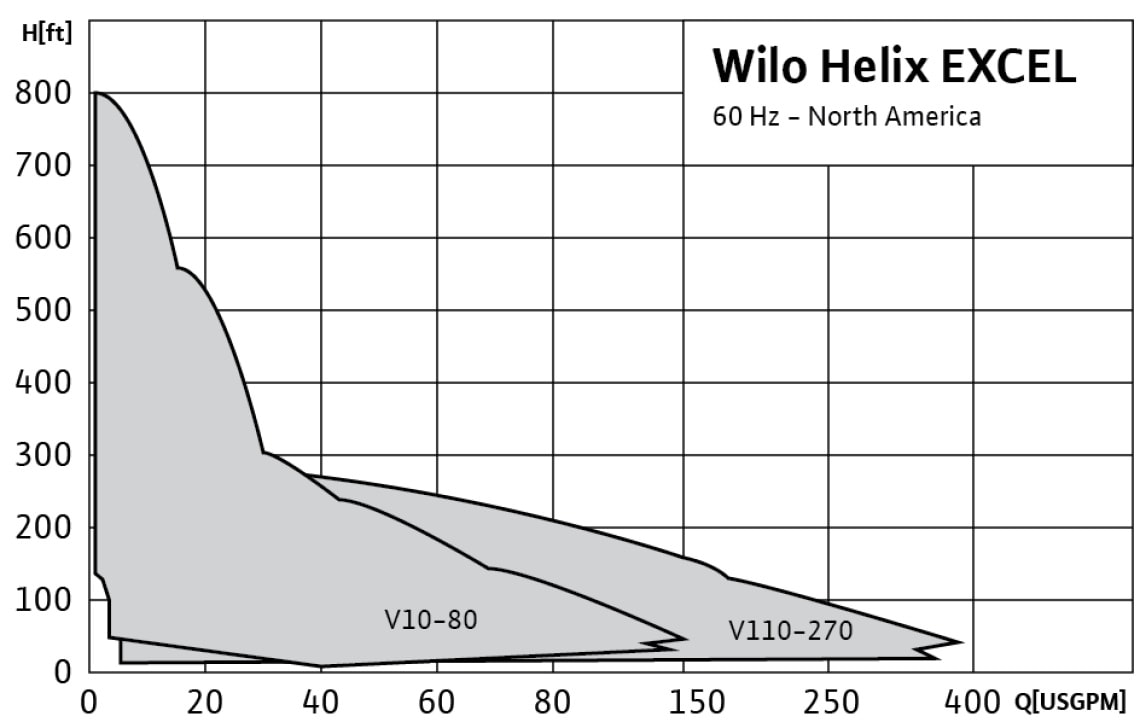

Max. Flow: 395 GPM

Max. Head: 807 feet

Features & Benefits

  • High efficient EC motor (IE5)
  • High efficiency controller offers up to 70%speed reduction
  • Optimized 3D impellers for improved head andflow per stage
  • Cartridge mechanical seal for quick and easymaintenance
  • Variable pressure, constant pressure and variablespeed control modes
  • Optional BACnet™, Modbus, LonWorks®interface modules

Technical Data

  • Voltage: 460V (+/- 10%), 60Hz
  • Fluid temp range:
  • Models 10-80: -22 to 248°F (-30 to 120°C)
  • Models 110-270: -4 to 248°F (-20 to 120°C)
  • Max operating pressure: 232/362 PSI
  • Class 300 ANSI Flanges standard on models ≥ 2"
  • Control modes: ΔPV*¹, ΔPC*², constant speed,PID*¹ = Differential Transducer Kit available*² = Discharge Transducer available

Materials of Construction

  • Stainless steel construction certified to NSF 61 (Models 10-80)

Installation & Operation Manual

Helix EXCEL V10-80 IOM

Installation & Operation Manual

Helix EXCEL V110-270 IOM

Catalog Pages

Helix EXCEL Catalog Pages

High Efficiency Multistage Brochure

Helix EXCEL Brochure

Engineering Specification

Helix EXCEL Engineering Specification
