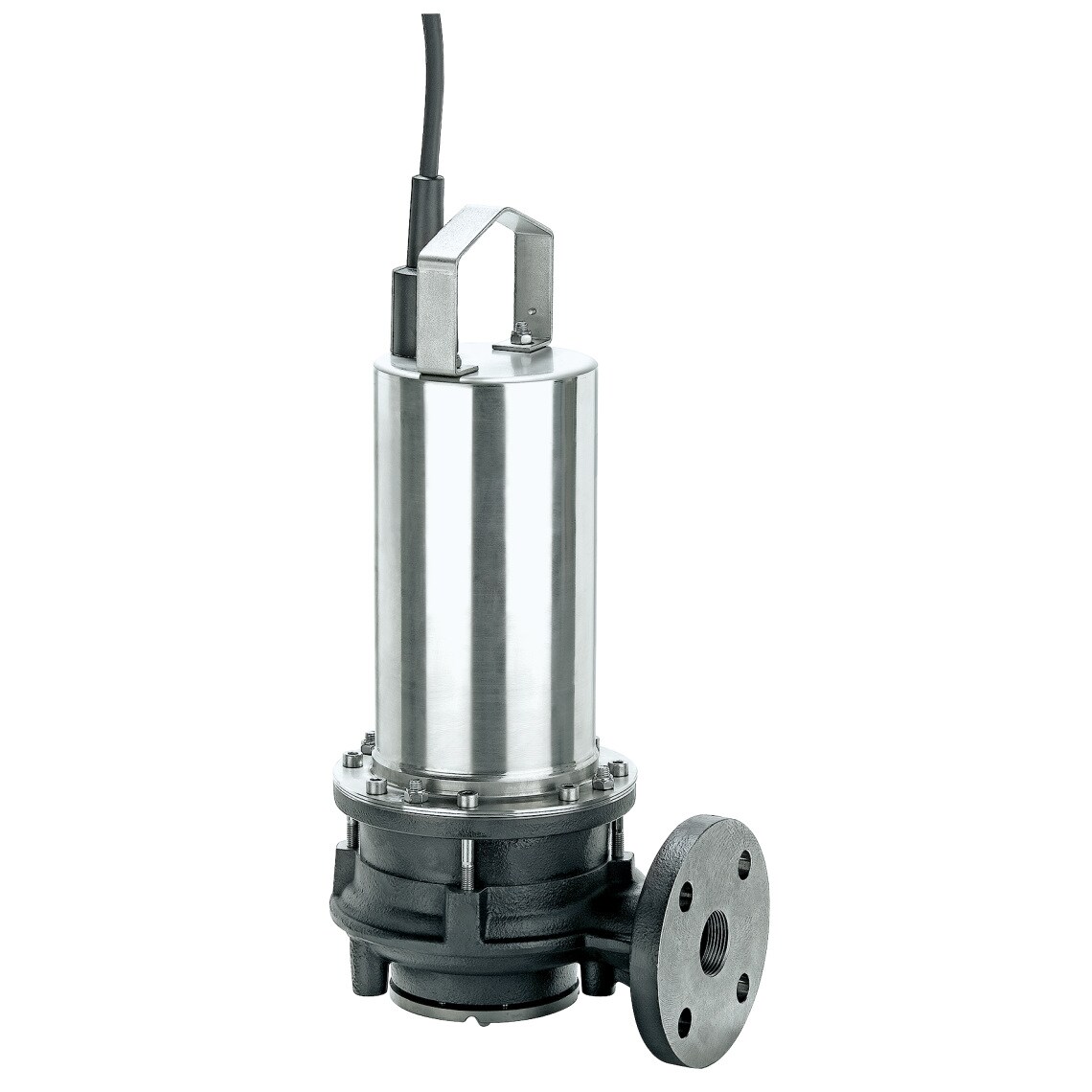

Submersible Sewage Grinder Pumps with Macerator

drain mts 40 27 pic 01


  • Potable Water Supply
  • Irrigation
  • Municipal
  • Pressure Boosting
  • Agriculture
  • Industrial Process

Max. Flow: 110 GPM

Max. Head: 1,250 feet

Features & Benefits

  • Motors certified to NSF/ANSI 61
  • Noryl impellers for maximum wear and abrasive resistance
  • High quality shaft bearings for long life and easy installation
  • Optional VFD’s and control boxes available
  • NEMA standard mounting specifications
  • Vertical and horizontal installation possible
  • Check valve standard on all models
  • Additional models available on request

Technical Data

  • Electrical Connection: 1~115/230v3~230/460/575v
  • Temp Range: 37°F to 95°F (3°C to 35°C)
  • Max Sand Content: 50 ppm
  • Max Immersion Depth: 1000’
  • Protection Class: IP 68

Materials of Construction

  • Stainless Steel Construction
  • Noryl Impellers & Shaft Sleeve
  • Glass-Filled Polycarbonate Bearing Spider & Diffuser
  • NBR O-Ring
  • Polyacetal Bearing
