TOP-S 40/15 2-SPEEDS
Data sheet
Hydraulic data
-
Maximum operating pressure PN10 bar
-
Min. fluid temperature Tmin-20 °C
-
Max. fluid temperature Tmax130 °C
Materials
-
Pump housingCast iron
-
ImpellerPP-LGF50
-
ShaftStainless steel
-
BearingCarbon-graphite
Motor data
-
Mains connection1~230 V, 50 Hz
-
Rated current IN4.57 A
-
Max. speed nmax2800 1/min
-
Power consumption P1(Q=max.) of selected impeller * number of pumps P1945 W
-
Emitted interferenceEN 61000-6-3
-
Interference resistanceEN 61000-6-2
-
Protection class motorIPX4D
Installation dimensions
-
Pipe connection on the suction side DNsDN 40
-
Port-to-port length L0250 mm
Information for order placements
-
BrandWilo
-
Product descriptionTOP-S 40/15 2-SPEEDS
-
EAN number4048482638140
-
Article number2165526
-
Net weight, approx. m21 kg
-
Gross weight, approx. m22.6 kg
-
Length with packaging470 mm
-
Height with packaging385 mm
-
Width with packaging320 mm
-
Packaging propertyTransport packaging
-
Packaging typeCardboard box
-
Minimum order quantity1
Tender text
Can be used for hot-water heating systems of all kinds, industrial circulation systems, air-conditioning systems and closed cooling circuits.
Maintenance-free glandless circulation pump with threaded or flange connection, pre-selectable speed stages for power adjustment.
Equipment and function
- Manual power adjustment with 3 speed stages
- Pumps with 1~ motor:
- P2 up to 90 W: internal protection against unacceptably high winding temperatures
- P2 ≥180W: Full motor protection with thermal winding contacts in conjunction with tripping unit (optional: SK 602N/SK 622N)
- Pumps with 3~ motor:
- P2 up to 90 W: internal protection against unacceptably high winding temperatures
- P2 ≥ 180 W: Full motor protection with thermal winding contacts in conjunction with tripping unit (optional: SK 602N/SK 622N)
- Mains connection 3~, 230 V with optional switching plug
- Cataphoretic-coated pump housing for optimal corrosion protection
- PN 6/PN 10 combination flange (for DN 40 to DN 65)
- Thermal insulation shell for heating applications
Operating data
-
Fluid mediaWater
-
Fluid temperature T-20 °C
-
Ambient temperature T-20 °C
-
Maximum operating pressure PN10 bar
Motor data
-
Emitted interferenceEN 61000-6-3
-
Interference resistanceEN 61000-6-2
-
Mains connection1~230 V, 50 Hz
-
Power consumption P1 max945.0 W
-
Max. speed nmax2800 1/min
-
Rated current IN4.57 A
-
Protection class motorIPX4D
Materials
-
Pump housingCast iron
-
ImpellerPP-LGF50
-
ShaftStainless steel
-
BearingCarbon-graphite
Installation dimensions
-
Pipe connection on the suction side DNsDN 40
-
Pipe connection on the pressure side DNdDN 40
-
Port-to-port length L0250 mm
Information for order placements
-
BrandWilo
-
Product descriptionTOP-S 40/15 2-SPEEDS
-
Net weight, approx. m21 kg
-
Article number2165526

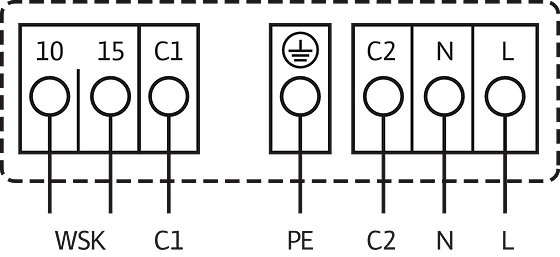

Wiring diagram

Mains connection, 1~230 V, 50 Hz
WSK = thermal winding contact
Full motor protection at all speed stages with optional tripping unit
SK 602N/SK 622N or other switchgear/control devices with WSK connection option
Triggering: External tripping at switchgear/control device
Reset: Automatic fault acknowledgement after cooling off of the motor
Automatic

Ordering information
Information for order placements
-
BrandWilo
-
Product descriptionTOP-S 40/15 2-SPEEDS
-
EAN number4048482638140
-
Article number2165526
-
Gross weight, approx. m22.6 kg
-
Net weight, approx. m21 kg
-
Overall length L250.0 mm
-
Height without packaging H341 mm
-
Colourgreen/black
-
Packaging propertyTransport packaging
-
Packaging typeCardboard box
-
Number per layer4
-
Width without packaging B274.0 mm
-
Minimum order quantity1
-
Pieces per pallet12
-
Date of sales availability2016-03-01
-
Date of introduction2016-03-01
