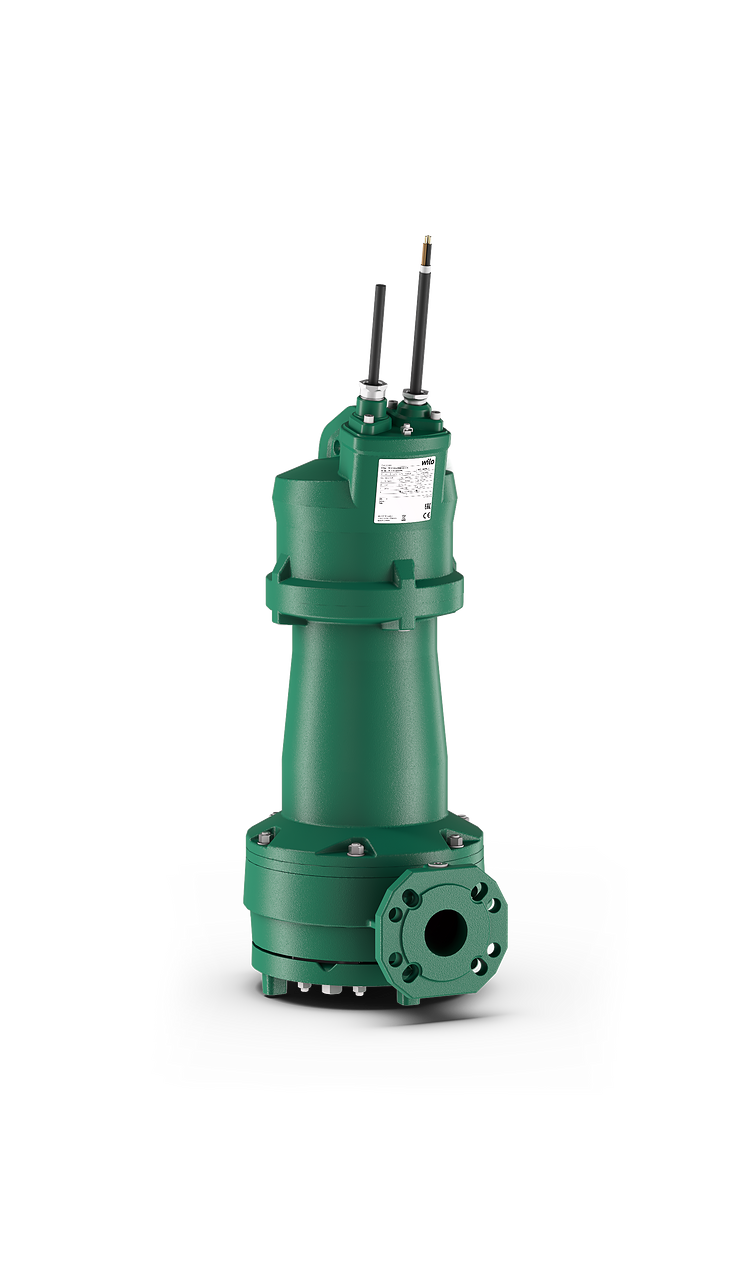

Rexa SOLID
Submersible pump
Wilo-Rexa SOLID – intelligent system solutions for smart sewage pumping stations
- Clogging detection algorithm and self-cleaning properties enable outstanding operational reliability and reduced service effort
- High hydraulic efficiency and up to IE4 / IE5 motor technology in wet and dry installation (based on IEC TS 60034-30-2) result in lower energy costs
- Integrated vibration monitoring, data logger, web server and digital rating plate for convenient monitoring and system integration
- Nexos Intelligence can be integrated for pump and system optimisation
- Standardised network interface and open communication protocols for easy connection
- Corrosion protection provided by an optional Ceram coating for a long service life in aggressive fluids
Logos/Certifications
Recommended services
Water 4.0
Wilo-Rexa SOLID-Q: Connecting water management to the future.
This is Water 4.0
- Water 4.0 is the key word that sums up intelligent, connected systems as the fourth level of the water sector revolution.
- Water 4.0 is putting the spotlight on digitalisation and automation
- Objective: Enabling a future-proof water infrastructure with the environment and water circuit through connecting water users with components
- High transparency for water users, meeting current needs
That’s why Wilo-Rexa SOLID-Q is Water 4.0
- Connectivity and the transfer and analysis of data are key elements of Water 4.0.
In the sewage pump station, reliability, efficiency and convenient connectivity are currently the main focus. - The integrated Nexos Intelligence takes account of digitalisation and automation by recognising clogging and starting rinsing cycles automatically.
- The Wilo-Rexa SOLID-Q with Nexos Intelligence combines the latest developments in hydraulics, motor technology and electrics with intelligent control software.
- It is characterised by operational reliability, energy efficiency and the highest level of digital networking.
- Connecting with the communication network via in-built Ethernet interface with standard network protocols and control through integrated web servers.
- Remote monitoring and documentation of pumps, maintenance and sensor data through the Digital Data Interface.
- It can manage a pumping station with up to four pumps independently in a master/slave arrangement and includes an automatic mode for reducing pipe friction losses and energy-optimised control.
- With the Ethernet interface, installed in the pump for the very first time, the system can communicate with other components of the smart sewage pump station and pass on the data for further analysis to a control system or cloud.
Nexos Intelligence
Discover Wilo-Rexa SOLID-Q product features here
- Comprehensive, cutting-edge sensors to ideally monitor conditions and identify faults at an early stage
- High-efficiency SOLID-Q hydraulics with self-cleaning characteristics
- Integrated Nexos Intelligence with vibration monitor
- IE5* motor technology (*Based on IEC TS 60034-30-2)
- Motor temperature monitoring
- Bearing temperature monitoring
- Integrated leakage detection
Key Facts
2,440,000 t
Over 2,440,000 t of non-woven fabric are produced for wet wipes in Europe every year.
11,000
Children of nappy-wearing age need baby wipes.
10%
Pumps account for up to 10 % of the global energy requirement.
50,000,000,000
Over 50,000,000,000 devices will be connected to each other in 2020.
48%
48 % fewer system losses in comparison to similar vortex systems with the same operational reliability
20%
20 % maximum additional energy savings due to reduced pipe friction loss thanks to Nexos LSI
The 1.
The first sewage pump with integrated Ethernet interface and full graphic web interface for pump monitoring and control
Data security
“You have full control over your data.”
In smart networks, the security of sensitive data is also always key.
- The Wilo-Rexa SOLID-Q with Nexos Intelligence is a communicative pump which also ensures full data security.
- The operator decides for themselves at all times which data they approve for transfer and therefore has full control over their own system data.
- With its standardised network interface, the system offers all connection options for modern communications, in combination with individual accessories, from purely local communications in the pumping stations and external VPN access to cloud communications, always on the right level for the security needs and requirements in question.
Nexos LPI for systems with external control.
- Each pump features its own dedicated web interface
- Setpoint specification using external PLC
- The pumps adjust automatically to pressure and flow
- Each pump controls its own frequency converter and I/O modules
- Also suitable for restorations and compatible with external PLC systems
- Each pump operates individually
- Easy integration
Nexos LSI for systems without external control.
- Nexos system specifies the setpoint.
- Master pump controls up to three additional pumps.
- Each pump controls its own frequency converter.
- One master online interface plus individual interfaces.
- No additional PLC control system required.
- Comprehensive automatic modes.
Tips & Info
For consultants
- Whether it’s restoration works or a new development, with or without an existing control system – everything is possible
The Wilo-Rexa SOLID-Q with Nexos Intelligence is available in different development levels to suit application requirements perfectly. Depending on the type of project and the scope of the new development or restoration, the system can be easily integrated in the Nexos LPI development level in systems with existing control systems or take over control in the Nexos LSI development level itself directly. So you always have the right scope on hand. - The right choice every time
Essentially, the Wilo-Rexa SOLID-Q is speed-controlled, i.e. the impellers are not mechanically adjusted to the duty point. This has the advantage of the hydraulic efficiency remaining virtually consistent in duty point adjustment and the system still showing higher flexibility at a later stage. In contrast to trimming, the operational reliability of the impeller is maintained. Even if the exact duty point is not known, with this system, you’re on the safe side.
- The right pump for system restoration
The combination of highly efficient hydraulics and motor goes hand in hand with a much higher level of system efficiency with the same functional safety, in comparison to the vortex pump. The electronic functions boost the energy efficiency further, as do the hydraulics made even cleaner through rinsing cycles and the intelligent high-efficiency control system in the Nexos LSI version. For system restorations with a focus on energy efficiency, this therefore results in an optimal one-stop-shop solution.
- We make planning simple
The Nexos LSI development level provides the multi-pump control system in the pump. You do not need to plan any external PLC. For your customers, you therefore are also increasing the level of redundancy, as each of the pumps has a control system that is automatically switched from one control system to another in an emergency. Take advantage of the opportunity to combine simplified planning with increased functional safety.
- Save energy
With Nexos LSI, you also have access to an automatic program for energy-efficient pump management. The high-efficiency (HE) controller sets the pump to the ideal speed in terms of energy in application. The friction loss in the pipe reduced as a consequence contribute additional savings of up to 20 per cent. We are happy to calculate the actual saving in your specific case for you.
For operators
- Always complete control
With Wilo-Rexa SOLID-Q with Nexos Intelligence, you always have an overview of everything. For the first time, a submersible sewage pump has an integrated Ethernet interface with integrated full graphic web server as an operating interface. This provides you with all sensor data and parameters but also the operating hours and all rating plate data. You can even display the attached sensor data including the built-in vibration monitor as a graphic, making it easy to draw conclusions about the condition of your system. The intuitive menu design with embedded help text enables you for the first time to access the full range of pump control functions via a touch screen or your PC on site and remotely. - Equipped for the future
Want to modernise and increase the operational reliability of your system, overhaul its energy efficiency and bring its control technology bang up to date? As a combined system with Nexos Intelligence, the Wilo-Rexa SOLID-Q offers all these advantages in one product. You can bring your sewage pump station up to date in just one go.
- Simple customer data integration into the control system
The Wilo-Rexa SOLID-Q with Nexos Intelligence offers a previously unequalled sensor system in this size class – from leakage and winding and storage temperatures to integrated vibration measurement. The data can be clearly viewed and evaluated in the integrated web interface. Thanks to the integrated Ethernet interface and the standard protocols used, it is also extremely easy to integrate this data into your operating system - or your cloud application. The single wiring of the sensors is eliminated.
- Reduced operating costs
As a system solution, the Rexa SOLID-Q with Nexos Intelligence offers you particularly low operating costs. Thanks to the very high level of system efficiency and the optional energy efficiency control, you save energy costs in comparison to a similar conventional system. The especially high operational reliability also results in significantly reduced maintenance and repair costs for you. Thanks to the integrated clogging recognition with automatic rinsing cycles, the pump does not only become clogged less often, it also cleans itself continually and therefore runs much more frequently with the configured hydraulic efficiency than other pump systems.
For system designers and service
- Easy commissioning
The Wilo-Rexa SOLID-Q with Nexos Intelligence is particularly easy to commission thanks to the integrated Ethernet interface and the standard protocols applied. The single wiring of the sensors is eliminated, as the signals are digitally transmitted via the bus cable. Only the IP addresses of the components are set up in this way. The other set-up is performed entirely via the pump’s web server, including the otherwise laborious parameterisation of the frequency converter. - Monitoring made easy
The new Rexa SOLID-Q with Nexos Intelligence offers a previously unequalled sensor system in this size class – from leakage and winding and bearing temperatures to integrated vibration measurement. The data can be clearly viewed and evaluated in the integrated web interface. Thanks to the integrated Ethernet interface and the standard protocols used, you can easily connect the system with other components in the wider system and integrate the data in the control systems - or your cloud application. This means detailed analysis is also easy remotely - the ideal basis for your monitoring and service options. - All data in one place – thanks to the maintenance logbook
As well as control and monitoring functions, the web server of the Wilo-Rexa SOLID-Q with Nexos Intelligence also offers an integrated installation and maintenance logbook where you can enter all important events and even store photos or videos. This ensures that the entire maintenance history is clearly and comprehensibly assigned in the pump even if this is in your workshop for revision purposes.
FAQ
Is the product compatible with my system?
Yes, the new system also fits the Wilo suspension system in mechanical terms. With the use of the Ethernet standard Modbus TCP or OPC UA via a data cable compatible with the usual standards, a high level of electrical compatibility is also guaranteed. If the system does not yet have any Ethernet components, the system can also be controlled via analogue or digital inputs on the frequency converter or another external I/O module.
Do I really need a frequency converter?
Yes, the permanent magnet motor (which can be identified by the addition P4 or P5) really requires a frequency converter per pump to operate. The pump can also only implement the Nexos Intelligence intelligent control functions integrated in the pump using a frequency converter.
Do I need additional external components for the control system?
Depending on which development level and functionality you would like to use, external components such as I/O modules, level probes etc. are deployed. The system can also be expanded in many different ways so that various system modules can be integrated according to your preferred scope of control.
Can I connect the system to my existing control technology?
Yes, you can connect the system to an IP-based control system using a data cable with the network protocols Modbus TCP or optional OPC UA. There is also the option of connecting the system to older control technology using bus converters or I/O modules with relay outputs.
Do I really need to connect the system to a cloud?
No, in terms of pure operation, the system is designed for a local network and does not really require an external connection. However, you have the option of using the system via VPN connections or a cloud gateway for remote access or monitoring.
What is the level of IT security in this system?
In principle, the system does not permit any parameter changes without password authentication. In the event that something goes wrong with a firmware update, the electronic module should be equipped with a second system partition to ensure that the control system remains able to run. And even in the event of a complete electronic module breakdown, emergency operation is also possible via the frequency converter, even in an environment at risk of explosion, thanks to a standalone excess temperature deactivator.
How laborious is commissioning for all the electronics?
It’s easier than almost any other control system. All you need to do is assign the IP addresses and enter your setpoints for the level control if applicable. The pump handles the parameterisation of the frequency converter for you – fully automatically, at the touch of a button. However, should you wish to make further manual adjustments to settings, you can adapt virtually all system parameters individually.
What do I do if my application changes?
In the Wilo-Rexa SOLID-Q with Nexos Intelligence, the duty point is set above the speed, so you can stay flexible without having to replace the impeller even in drastically changing conditions. The electronic functions and Nexos Intelligence can also be upgraded using software – if your requirements change, you can adapt your functionality to your new needs.
The Wilo-Assistant - The app for everyone
The redesigned Wilo-Assistant app makes the entire world of high-efficiency pump technology available on smartphones and tablets for HVAC installers, technical building equipment consultants and pump operators.
The new design and the intuitive user experience provide even better support for your day-to-day work. New functions and connective solutions add to the range of features already offered by the previous Wilo-Assistant. That way, users can find what they need even faster, and get support with:
- Consultation and selection
- Customer consultation
- Installation and commissioning
- Remote control and maintenance
Download on the App Store (iOS)Android App on Google play
Design
This submersible pump is designed for stationary and portable wet and stationary dry installations. The motors are designed for continuous duty. Includes Nexos Intelligence, from easy pump control up to intelligent system control.Application
undefinedLiquid
For pumping in commercial areas of:
- Untreated sewage
- Sewage containing faeces
- Process sewage
Equipment/function
- Heavy-duty cast iron design.
- Sealing chamber to collect any leakage from the mechanical seal on the fluid side.
- Leakage chamber to collect any leakage from the mechanical seal on the motor side (motor size 20 only).
- Motor monitoring with integrated Digital Data Interface:
- Winding temperature with PTC and Pt100 sensors.
- Leakage detection for sealing chamber and leakage chamber with capacitive sensor.
- Vibration sensor
- Data logger
- Web server
- Ethernet interface
- Nexos Intelligence, from easy pump monitoring to an intelligent pump control system with up to four pumps:
- LPI system mode: control mode for pump and external frequency converter (controlled by the pump) with clogging detection.
- LSI system mode: Full control of an overall pumping station with up to four pumps, including clogging detection. A frequency converter drives each pump. One pump operates as the primary pump. The primary pump controls all other pumps depending on the system parameters.
- The standard LPI system mode is free of charge. The LSI system mode can be enabled with a licence key.
Type key
Example: | Wilo-Rexa SOLID-Q15-52A + FKT 20.2M-4/32GEx-P4 |
Hydraulics: | Wilo-Rexa SOLID-Q15-52A |
Rexa | Submersible sewage pump |
SOLID | Series with Nexos Intelligence |
Q | Impeller type: semi-open two-channel impeller |
15 | Nominal diameter of discharge port, e.g. DN 150 |
52 | Performance indicator |
A | Identifier for material and coating type |
Motor: | FKT 20.2M-4/32GEx-P4 |
FKT | Motor design:
|
20 | Size |
2 | Internal model code |
M | Shaft design
|
4 | Number of poles |
32 | x10 = package length in mm |
G | Seal design:
|
Ex | Ex approval in accordance with ATEX or FM |
P | Motor design: Permanent magnet motor |
4 | Motor efficiency class (derived from IEC 60034-30)
|
Technical data
- Mains connection: 3~400 V, 50 Hz
- Submerged operating mode: continuous duty (S1)
- Non-immersed operating mode:
- T motor: 15 minutes short-time duty (S2-15) or 30 minutes short-time duty (S2-30)
- FKT motor: continuous duty (S1)
- IP rating: IP68 (permanently submerged)
- Insulation class: H
- Fluid temperature: 3 … 40 °C (37 … 104 °F)
- Max. immersion depth: 20 m (66 ft)
Materials
- Hydraulic housing: EN-GJL-250 (ASTM A48 Class 35/40B) or EN-GJS-500-7 (ASTM A536 70-50-05)
- Impeller: EN-GJS-500-7 (ASTM A536 70-50-05)
- Motor housing: EN-GJL-250 (ASTM A48 Class 35/40B)
- Seals:
- Static: FPM (FKM)
- On the fluid side: SiC/SiC
- On motor side: SiC/SiC
- Shaft: Stainless steel 1.4021 (AISI 420)
Construction
Hydraulics
Discharge port with horizontal flange connection. Maximum dry solids content is 8 %. The impeller type used is a semi-open two-channel impeller.
T motor
Surface-cooled high efficiency submersible permanent magnet motor without cooling system for wet installation. The housing parts transmit the waste heat of the motor directly to the fluid. The motor itself is dry. Permanently lubricated rolling bearings are used for the motor bearings. The power cable is longitudinally watertight and has bare cable ends. Depending on the motor size and the motor power, the motors can be installed dry and operate in short-time duty.
FKT motor
Self-cooling high efficiency submersible permanent magnet motor with active cooling system for wet and dry installation. The cooling system is designed with a closed cooling circuit. The filled coolant is a mixture of water and glycol. An impeller driven by the motor shaft continuously circulates the coolant. The cooling system is unpressurised when cold. A built-in pressure relief valve limits the maximum operating pressure to 3 bar (43 psi). The cooling flange transmits the waste heat to the pumped fluid. Permanently lubricated roller bearings are used for the motor bearings. The power cable is longitudinally watertight and has bare cable ends.
Seal
Seals on the fluid side and the motor side are available in the designs shown below:
- Design G: Two independent mechanical seals
- Design K: Block seal cartridge with two independent mechanical seals
Operating fluids
All operating fluids are potentially biodegradable and environmentally safe:
- Medical grade white oil
- Water-glycol mixture (35 % glycol and 65 % water)
Wilo-EFC frequency converter
A Wilo-EFC frequency converter drives the high efficiency permanent magnet motor. After an approval by Wilo, other frequency converters can be used.
Motor efficiency classes (based on IEC 60034-30)
The motors meet the IE4 (Super Premium Efficiency) efficiency level.
Scope of delivery
- Pump with permanent magnet motor
- External frequency converter Wilo-EFC (ordered separately)
- Accessories as ordered
- Installation and operating instructions
Options
- Special voltages
- Pumping fluids up to 60 °C (140 °F)
- Motor bearing temperature monitoring
- Ceram coating for abrasive and corrosive fluids
- Motors with IE5 (Ultra-Premium Efficiency) efficiency level
- Ex-rated according to
- ATEX
- FM
- IECEx
Accessories
- Suspension unit for stationary wet installation
- Foot elbow for stationary dry installation
- Level controls
- I/O modules to extend digital and analogue inputs and outputs
- Fixation sets with anchor bolts
- Slinging gear
