Wilo-Padus UNI

The flexible drainage pump for a diverse range of fluids.

Your advantages
Wilo-Padus UNI

The flexible drainage pump for a diverse range of fluids.

The Wilo-Padus UNI is the ideal entry-level model for wastewater transport in small commercial buildings. The pump can be used as a portable device or in a pump chamber for a diverse range of fluids. The hydraulics with corrosion-free composite and its smooth surface offers high reliability and makes the pump universal for use in diverse fluids. The installation of the pump is significantly easier due to the low weight, the integration of its capacitor in the single-phase motor and the threaded connection. Especially the maintenance is comfortable due to the direct access to the main components. The service intervals are long thanks to the double mechanical seal and the large sealing chamber. The Wilo-Padus UNI can be combined with the Wilo-Control and can be integrated into building management systems.


Your advantages

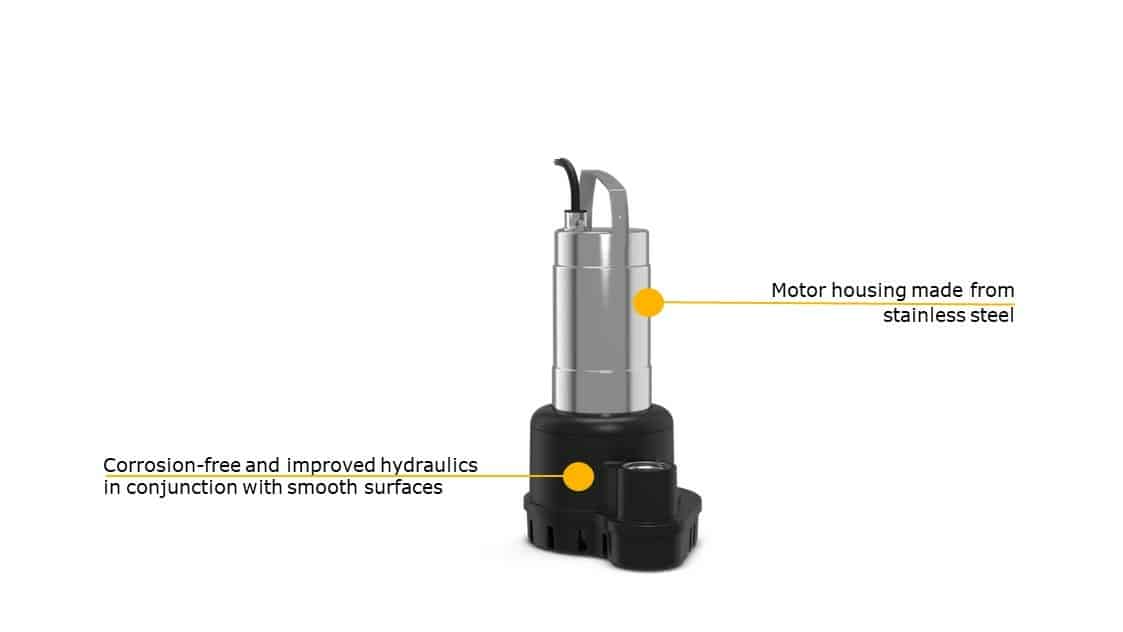

  • Exceptional reliability owing to corrosion-free hydraulics for universal applications and various fluids

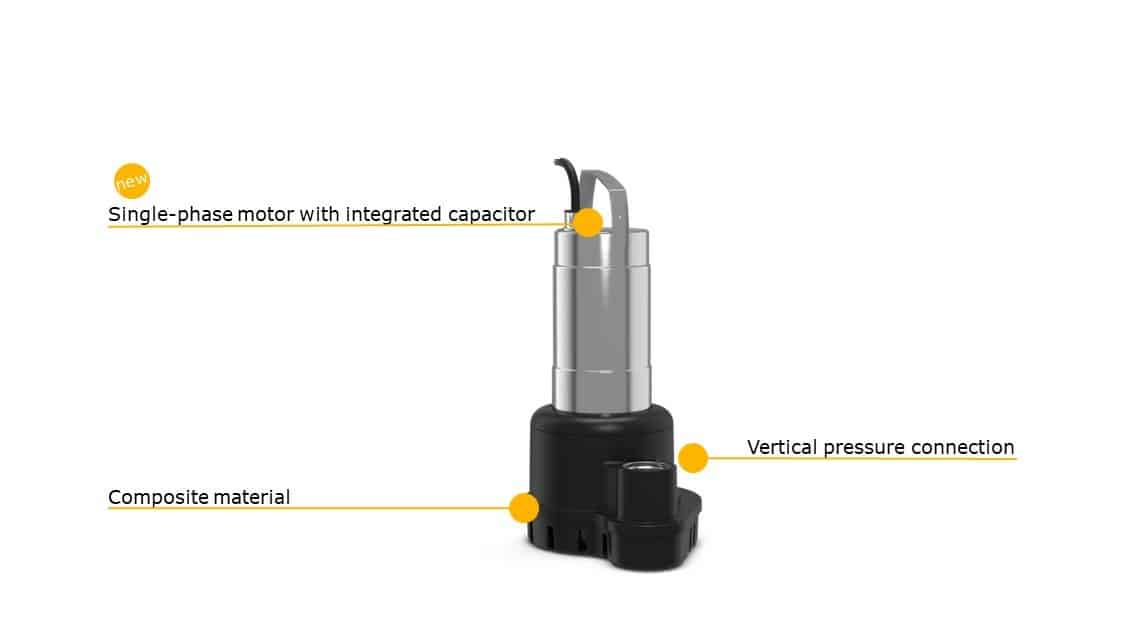

  • Low weight, integrated capacitor at the AC motor and threaded connection allows for easy installation

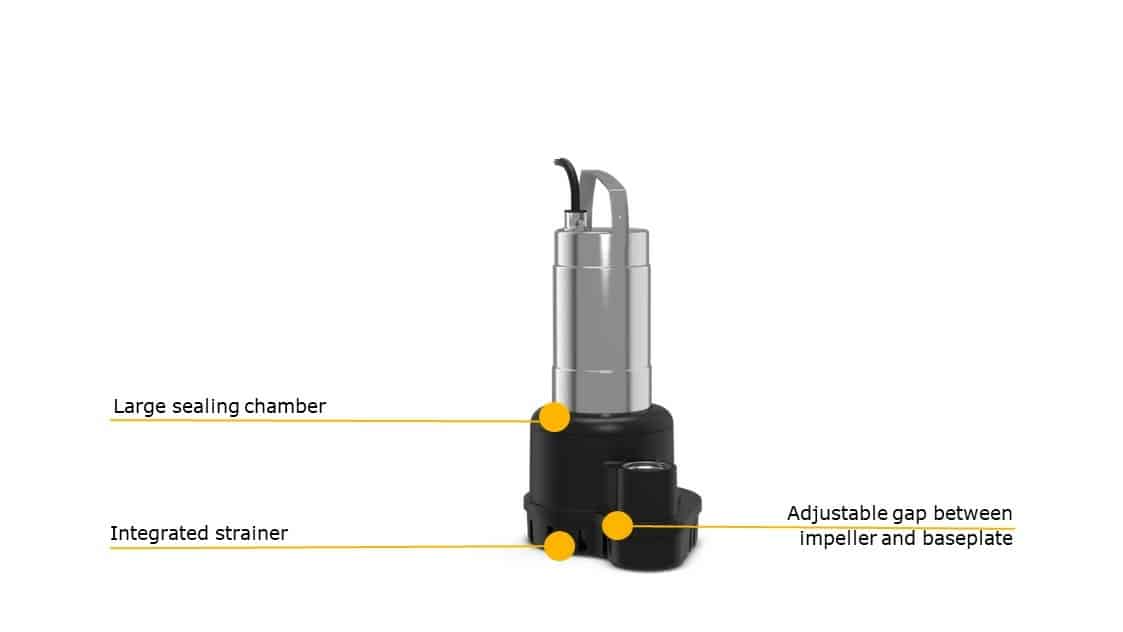

  • Quick maintenance facilitated by direct access to the sealing chamber and pump housing
  • Long maintenance intervals resulting from a double mechanical seal and large volume sealing chamber
  • The integrated strainer ensures no clogging
Series description
Wilo-Padus UNI

Design

Submersible pump for stationary and portable wet well installation in intermittent operation.

Liquid

For pumping in commercial areas of:

  • Sewage without faeces
  • Wastewater (with small amounts of sand and gravel)
  • Wastewater, slightly acidic with a pH value > 4.5
  • The Rexa UNI submersible pumps … B/ and Rexa UNI … K/ are additionally suitable for pumping of:
    • Lake- and seawater NaCl content (common salt): max. 30 g/l up to 20 °C
    • Swimming pool water, max. chloride content: 400 mg/l
    • Wastewater, slightly acidic with a pH value of > 3.5

Sewage pumping according to (DIN) EN 12050

The pumps meet the requirements of EN 12050-2.

Equipment/function

  • Thermal motor monitoring with bimetallic strip
  • Single-phase AC motor with self-switching thermal motor monitoring
  • Single-phase AC motor with integrated capacitor
  • Three-phase AC motor with motor protection plug (version P and A)
  • Attached float switch (version A)

Typekey

Example:

Wilo-Padus UNI M05B/T15-540/A

Padus

Submersible drainage pump

UNI

Series

M

Open multi-channel impeller

05

Nominal diameter of pressure connection

B

Version:

  • None = standard version
  • B = V4A version
  • K = version in V4A and with cooling shroud

T

Mains connection version:

  • M = 1~
  • T = 3~

15

/10 = rated power P in kW

5

Mains connection frequency: 5 = 50 Hz, 6 = 60 Hz

40

Rated voltage code

A

Additional electrical equipment:

  • Without = with bare cable end
  • P = with plug
  • A = with float switch and plug
  • VA = with vertical float switch and plug

Technical data

  • Mains connection: 1~230 V, 50 Hz or 3~400 V, 50 Hz
  • Immersed operating mode: S1
  • Non-immersed operating mode:
    • Padus UNI …: S2-15 min; S3 10%
    • Padus UNI … B/ …:S2-15 min; S3 10%
    • Padus UNI … K/ …:S1
  • Protection class: IP68
  • Insulation class: F
  • Fluid temperature: 3 … 40 °C (37 … 104 °F)
  • Fluid temperature, max.: 60 °C (140 °F) for 3 min

Materials

Wilo-Padus UNI M ...

  • Hydraulics housing: PP-GF30
  • Impeller: PP-GF30
  • Motor housing: 1.4301 (AISI 304)
  • Cooling shroud: −
  • Shaft end: 1.4401 (AISI 316)
  • Seal on the pump side: SiC/SiC
  • Seal on the motor side: C/Cr
  • Static seal: NBR (nitrile)

Wilo-Padus UNI M ... B/ ...

  • Hydraulics housing: PP-GF30
  • Impeller: PP-GF30
  • Motor housing: 1.4401 (AISI 316)
  • Cooling shroud: −
  • Shaft end: 1.4401 (AISI 316)
  • Seal on the pump side: SiC/SiC
  • Seal on the motor side: C/Cr
  • Static seal: NBR (nitrile)

Wilo-Padus UNI M ... K/ ...

  • Hydraulics housing: PP-GF30
  • Impeller: PP-GF30
  • Motor housing: 1.4401 (AISI 316)
  • Cooling jacket: 1.4401 (AISI 316)
  • Shaft end: 1.4401 (AISI 316)
  • Seal on the pump side: SiC/SiC
  • Seal on the motor side: C/Cr
  • Static seal: NBR (nitrile)

Construction

Padus UNI M … /M …/P

Wastewater pump with open multi-channel impeller and vertical threaded connection. Hydraulics housing and impeller made of copolymer. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with fitted shockproof plug.

Padus UNI M … /M …/A and Padus UNI M … B/M …/A

Wastewater pump with open multi-channel impeller and vertical threaded connection. Hydraulics housing and impeller made of copolymer. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with float switch and fitted shockproof plug.

Padus UNI M … /M …/VA

Wastewater pump with open multi-channel impeller and vertical threaded connection. Hydraulics housing and impeller made of copolymer. Surface-cooled 1~ motor with integrated operating capacitor and self-switching thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing and mounted vertical float switch. Detachable connection cable with fitted shockproof plug.

Padus UNI M … K/M …/A

Wastewater pump with open multi-channel impeller and vertical threaded connection. Hydraulics housing and impeller made of copolymer. 1~ motor (jacket cooling) with integrated operating capacitor and self-switching thermal motor monitoring. Oil-filled sealing chamber with double sealing. Motor housing and cooling shroud made of stainless steel. Detachable connection cable with float switch and fitted shockproof plug.

Padus UNI M … /T …/A

Wastewater pump with open multi-channel impeller and vertical threaded connection. Hydraulics housing and impeller made of copolymer. Surface-cooled 3~ motor with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with CEE plug. Float switch and thermal motor monitoring connected to the CEE plug.

Padus UNI M … /T … and Padus UNI M … B/T …

Wastewater pump with open multi-channel impeller and vertical threaded connection. Hydraulics housing and impeller made of copolymer. Surface-cooled 3~ motor with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Stainless steel motor housing. Detachable connection cable with bare cable ends.

Padus UNI M … K/T …

Wastewater pump with open multi-channel impeller and vertical threaded connection. Hydraulics housing and impeller made of copolymer. 3~ motor (jacket cooling) with thermal motor monitoring. Oil-filled sealing chamber with double sealing. Motor housing and cooling shroud made of stainless steel. Detachable connection cable with bare cable ends.

Scope of delivery

Padus UNI M …

  • Pump
  • Installation and operating instructions

Padus UNI M … KIT

  • Pump
  • Adapter set for 2½" pipe installation:
    • Threaded flange 2" (male thread) to 2½" (female thread). For screwing into the discharge port. Connection dimension discharge port: +46 mm.
    • Rubber grommet for 2½" pipe inner diameter: 75 mm, with 2× pipe clamps.
  • Installation and operating instructions

Accessories

  • Connection cable with fixed cable lengths:
    • 1~ motor: up to max. 30 m (98 ft).
    • 3~ motor: up to max. 50 m (164 ft).
  • Suspension unit for wet well installation
  • Level control devices
  • Fixation accessories and chains
  • Switchgear, relays and plugs
