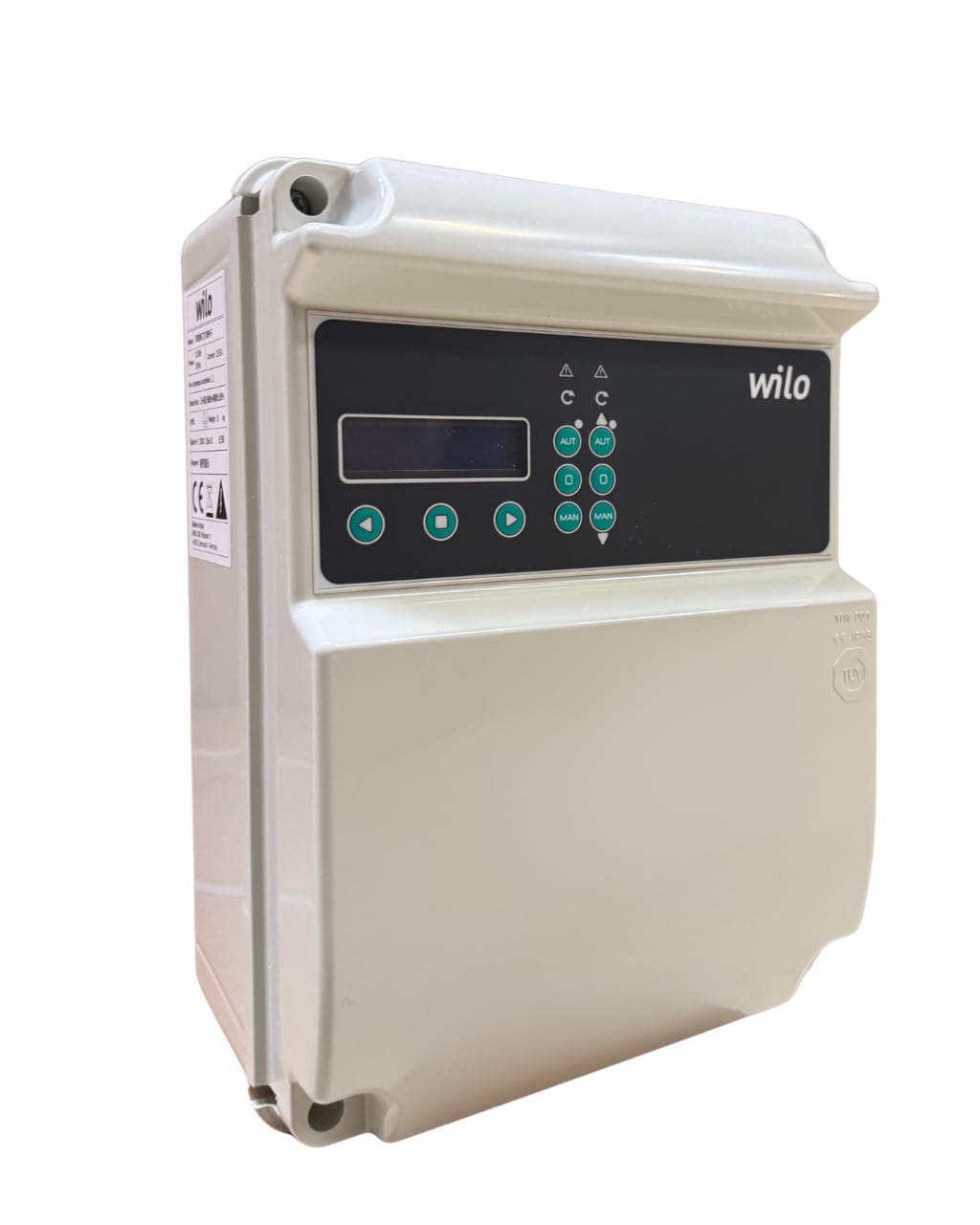

Switchgear Xtreme

• Ultimate versatility: One panel covers booster, circulation and drainage duties thanks to five selectable modes (Waste-water, Clean-water, Sensor, Multi-tank, Stop/Start) and the ability to work with 4-20 mA sensors, floats or electrodes—ideal for mixed plant rooms or spares stock reduction.

• Plug-and-play commissioning: Auto-detection of each pump’s rated current, factory presets, and an intuitive HMI wizard slash start-up time and minimise parameter errors.

• Intelligent protection: Integrated over/under-voltage limits, cos φ monitoring, moisture/thermistor inputs and dry-run restart logic safeguard motors and prolong service life without external relays.

• Reliability through redundancy: Duty-rotation algorithms balance runtime hours, while instant standby takeover on fault keeps systems running 24 / 7—even with three-pump sets.

• User-driven control: Password-protected display, adjustable start/stop delays, switch-on limits and service-interval timer let operators fine-tune performance to site conditions.

• Comprehensive monitoring: Individual run/fault LEDs plus configurable alarm relays and common SSM/SBM contacts provide clear local status and seamless BMS or SCADA integration.

• Rugged, global-ready design: Powder-coated steel enclosure with IP55 ingress protection and 50/60 Hz selection handles harsh environments and worldwide power supplies up to 10 HP per pump.
